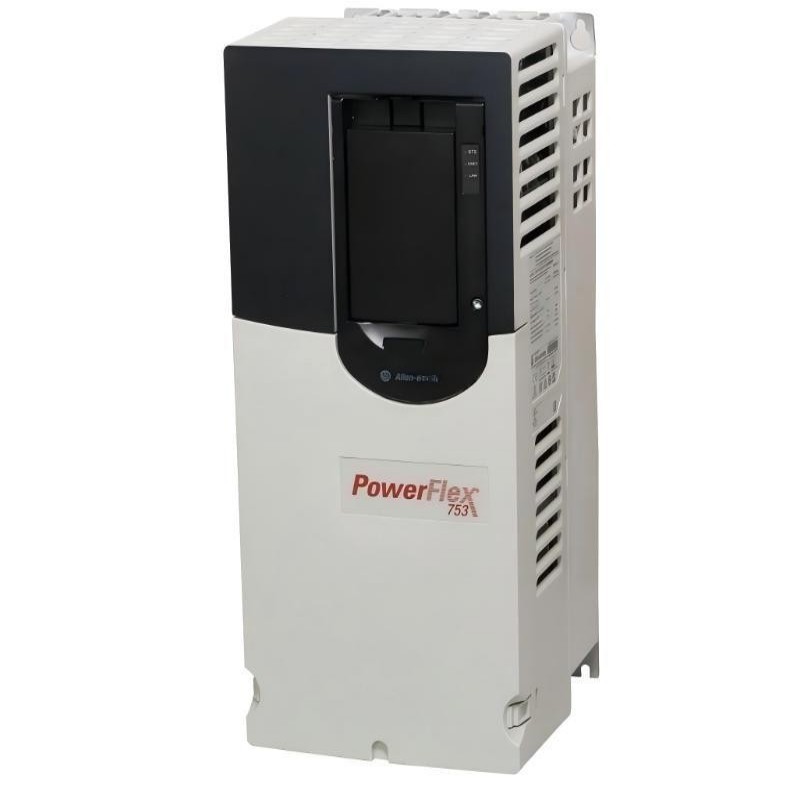

Allen-Bradley 20F1AGF212JN0NNNNN PowerFlex 753 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
Allen-Bradley 20F1AGF212JN0NNNNN PowerFlex 753 AC Drive
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Series | PowerFlex 753 |
| Catalog Number | 20F1AGF212JN0NNNNN |
| Product Type | AC Drive |
| Input Voltage | 690 VAC |
| Phase | 3 Phase |
| Rated Output Current | 212 A |
| Normal-Duty Rating | 200 kW |
| Heavy-Duty Rating | 160 kW |
| Normal-Duty Output Current | 212 A continuous |
| Heavy-Duty Output Current | 171 A continuous |
| Input Configuration | AC Input with Precharge, No DC Terminals |
| Frame Size | Frame 7 |
| Enclosure | IP54 / NEMA Type 12 |
| Cooling | Air Cooled |
| Embedded I/O | Yes |
| Filtering | Installed |
| Common-Mode Jumper | Installed |
| Dynamic Braking | No Internal Dynamic Braking Transistor |
| HIM | No HIM included |
| Dimensions | Approx. 881.5 × 430 × 349.6 mm (H × W × D) |
| Weight | Approx. 72.6–108.9 kg (160–240 lb) |
FAQ
Q1: What is the Allen-Bradley 20F1AGF212JN0NNNNN?
The 20F1AGF212JN0NNNNN is a PowerFlex 753 air-cooled AC drive for high-power three-phase motor applications. It is configured for 690 VAC operation and a 212 A normal-duty output rating.
Q2: What is the power rating of this drive?
It provides a 200 kW Normal-Duty rating and a 160 kW Heavy-Duty rating. The Heavy-Duty continuous current rating is 171 A.
Q3: What voltage does the 20F1AGF212JN0NNNNN use?
This model is designed for a 690 VAC three-phase supply. It uses AC input with precharge and does not have DC input terminals.
Q4: What enclosure does this PowerFlex 753 use?
The drive uses an IP54 / NEMA Type 12 enclosure, making it suitable for appropriate industrial cabinet and equipment installations.
Q5: Does this model include a dynamic braking transistor?
No. The N configuration indicates that an internal dynamic braking transistor is not installed. An external braking solution may be required when the application demands regenerative braking control.
Q6: Does the drive include embedded I/O?
Yes. The PowerFlex 753 configuration includes embedded I/O for integration with the control system.
Q7: What are the dimensions and weight of this drive?
The approximate Frame 7 dimensions are 881.5 × 430 × 349.6 mm. Depending on the exact hardware configuration, the approximate weight is 72.6–108.9 kg.
Q8: What should be checked before installing this drive?
Verify the 690 VAC supply, motor current, duty rating, enclosure requirements, braking requirements, cabinet ventilation, mounting clearance, grounding, and communication or option-module requirements before commissioning.
Allen-Bradley 20F1AGF212JN0NNNNN PowerFlex 753 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
