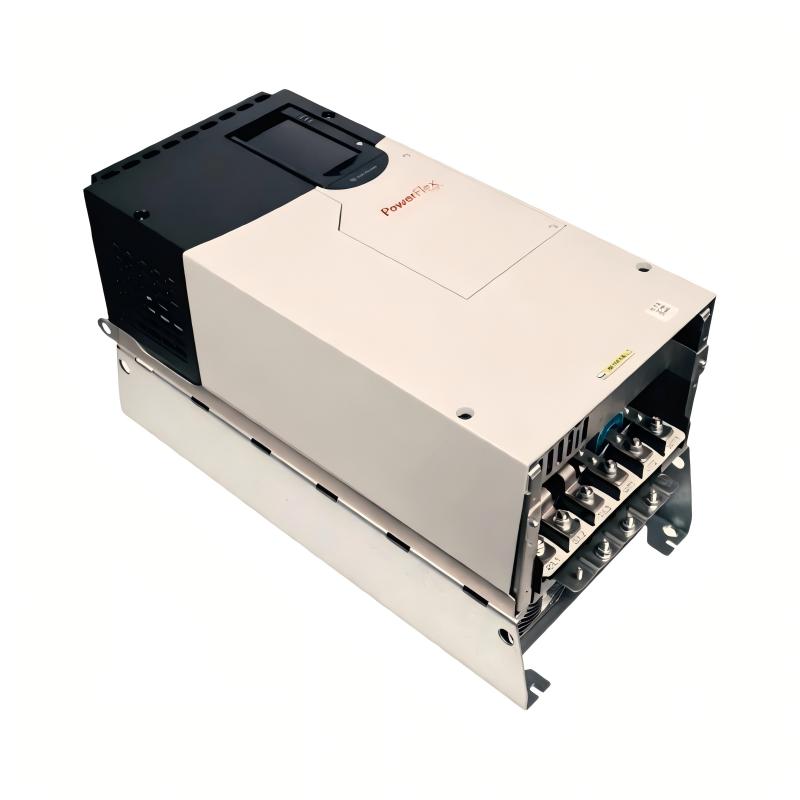

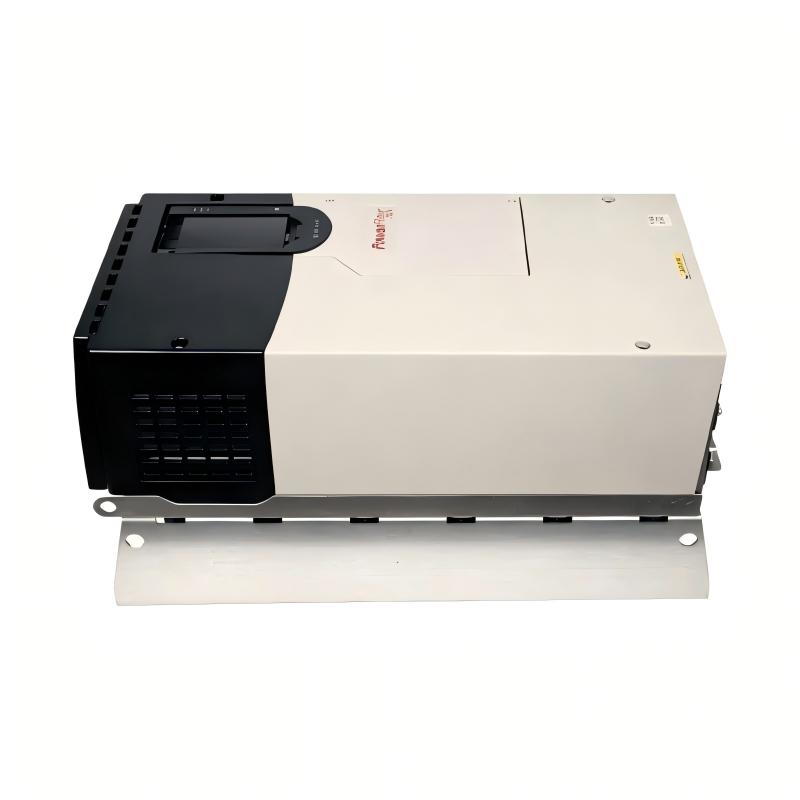

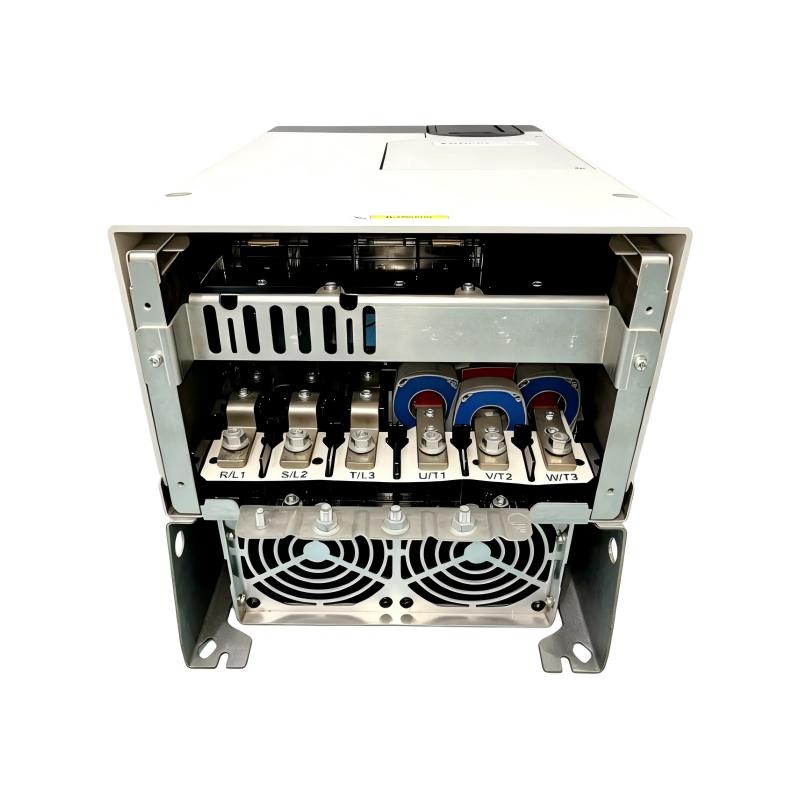

Allen Bradley 20F1ANC140AA0NNNNN PowerFlex 753 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F1ANC140AA0NNNNN |
| Product Series | PowerFlex 753 |
| Product Type | PowerFlex 753 AC Drive |
| Drive Type | AC Variable Frequency Drive |
| Voltage Class | 400 V AC |
| Input Voltage Range | 380–400 V AC |
| Input Phase | Three-phase |
| Rated Output Current | 140 A |
| Normal-Duty Power Rating | Approx. 75 kW |
| Heavy-Duty Power Rating | Approx. 55 kW |
| Frame Size | Frame 4 |
| Cooling Method | Forced-air cooling |
| Enclosure Rating | IP20 |
| Enclosure Type | NEMA/UL Open Type |
| Control Methods | V/Hz, Sensorless Vector, Vector Control |
| Motor Control | AC induction motor speed and torque control |
| Dynamic Braking | Supported with external braking components |
| PID Control | Supported |
| Embedded I/O | Supported |
| Communication Expansion | Supported through PowerFlex 753 option modules |
| EMC Function | EMC filtering configuration supported |
| Operator Interface | HIM compatible |
| Installation | Control cabinet or panel mounting |
| Typical Applications | Conveyors, pumps, fans, compressors, material handling and industrial machinery |
| Dimensions | 665.5 × 308 × 346.4 mm |
| Weight | 38.6 kg |
FAQ
1. What is the Allen-Bradley 20F1ANC140AA0NNNNN used for?
The Allen-Bradley 20F1ANC140AA0NNNNN is a PowerFlex 753 AC drive designed for variable-speed control of three-phase AC motors. With a 140 A output rating, it is intended for higher-power industrial equipment such as conveyors, pumps, fans, compressors, material-handling systems and other machinery requiring controlled motor acceleration and speed regulation.
2. What input power does the 20F1ANC140AA0NNNNN require?
This model is designed for a 400 V-class three-phase AC power supply, with an applicable input range around 380–400 V AC. The incoming supply should be checked before installation, and the drive should be connected through correctly sized disconnecting and overcurrent protection equipment. Proper protective grounding is also required.
3. What is the output current rating of the 20F1ANC140AA0NNNNN?
The rated output current is 140 A. When selecting a motor, the motor nameplate current should be compared with the drive’s applicable output-current rating. The actual load duty, acceleration requirements, ambient conditions and overload requirements should also be considered rather than selecting the drive based only on motor power.
4. Which motor control methods are available on the PowerFlex 753?
The PowerFlex 753 platform supports several motor-control methods, including V/Hz, sensorless vector and vector-based control functions. The appropriate method depends on the motor type and required performance. V/Hz is commonly used for straightforward variable-speed applications, while vector-based control is more suitable where better speed or torque response is required.
5. Can the 20F1ANC140AA0NNNNN be used with a high-inertia load?
Yes, the PowerFlex 753 can be applied to high-inertia machinery when the drive, motor and braking system are correctly selected. High-inertia loads require particular attention to acceleration and deceleration times. If rapid stopping is required, an appropriate braking arrangement should be evaluated to handle the regenerative energy generated during deceleration.
6. Does the 20F1ANC140AA0NNNNN support PID control?
Yes. PID control can be used for applications where the drive needs to maintain a process variable such as pressure, flow or speed. Typical applications include pumps and fans. Proper feedback scaling, setpoint configuration, proportional and integral parameters, and minimum and maximum frequency limits should be configured during commissioning.
7. What can cause an overcurrent fault on the 20F1ANC140AA0NNNNN?
An overcurrent fault can result from excessive mechanical load, incorrect motor parameters, short circuits, ground faults, incorrect motor wiring or excessively aggressive acceleration settings. The motor cable and insulation should be checked first. The motor nameplate data and acceleration parameters should then be verified. Mechanical binding or sudden load changes should also be investigated.
8. What should be checked when commissioning the 20F1ANC140AA0NNNNN?
Before energizing the drive, verify the three-phase input supply, motor wiring, grounding, protective devices and control connections. Enter the correct motor nameplate data and configure the required control mode, acceleration and deceleration times, frequency limits and feedback parameters. During the initial test run, start at low speed and monitor output current, motor direction, fault status and mechanical response before moving to the normal operating speed.
Allen Bradley 20F1ANC140AA0NNNNN PowerFlex 753 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
