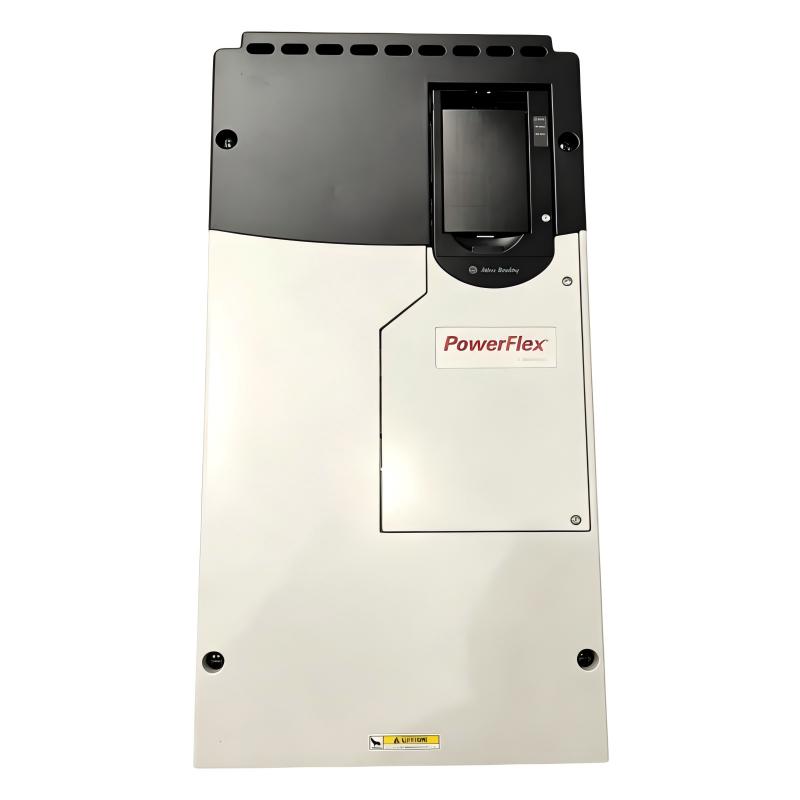

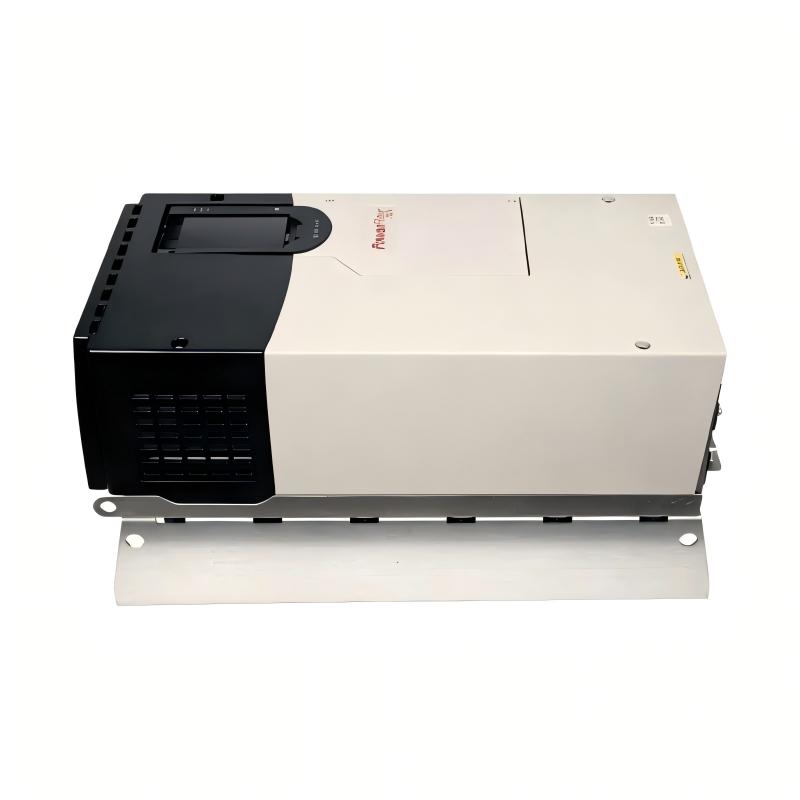

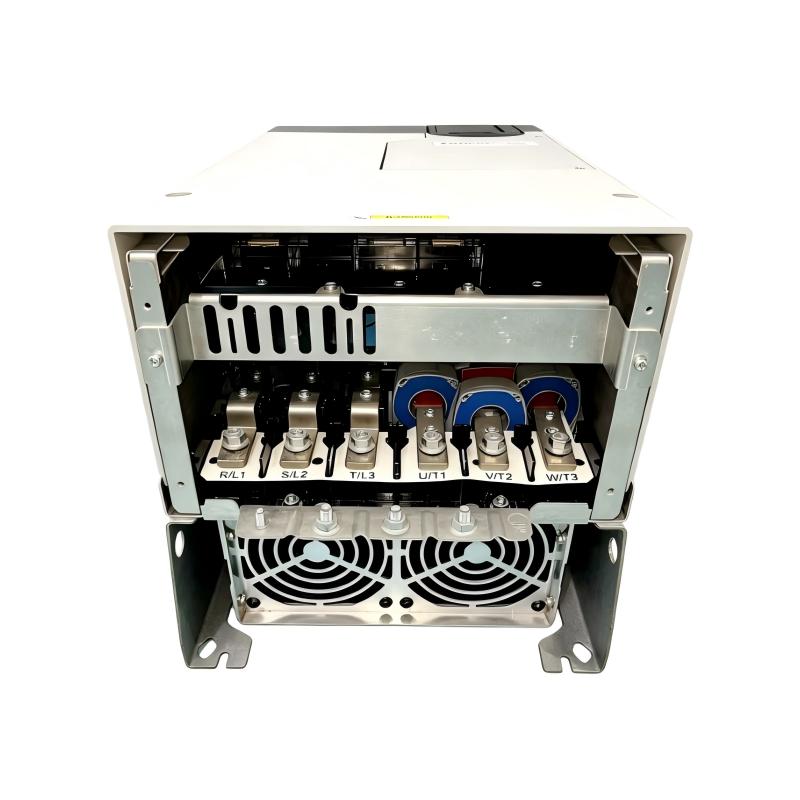

Allen Bradley 20F1ANC140JA0NNNNN PowerFlex 753 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F1ANC140JA0NNNNN |
| Product Series | PowerFlex 753 |
| Product Type | AC Drive |
| Input Voltage | 400 V AC |
| Input Phase | Three-phase |
| Rated Output Current | 140 A |
| Normal-Duty Power Rating | 75 kW |
| Heavy-Duty Power Rating | 55 kW |
| Input Type | AC input with precharge, no DC terminals |
| Frame Size | Frame 6 |
| Enclosure Rating | IP20/IP00 |
| Enclosure Type | NEMA/UL Open Type |
| Cooling Method | Forced-air cooling |
| EMC Filtering | Supported |
| Common-Mode Capacitor Jumper | Installed |
| Dynamic Braking | Integrated dynamic braking transistor |
| Embedded I/O | Supported |
| Operator Interface | Blank cover, no HIM |
| PID Control | Supported |
| Safety Functions | Available through applicable options |
| Communication Expansion | Supported through communication option modules |
| Output Frequency Range | 0–500 Hz |
| Typical Applications | Conveyors, pumps, fans, compressors, material handling and industrial machinery |
| Dimensions | 665.5 × 308 × 346.4 mm |
| Weight | 38.6 kg |
FAQ
1. What is the rated output current of the Allen-Bradley 20F1ANC140JA0NNNNN?
The rated output current is 140 A. Motor selection should be based primarily on the motor nameplate current, with the required drive capacity checked against the normal-duty or heavy-duty operating conditions.
2. What motor power can the 20F1ANC140JA0NNNNN support?
The drive is rated for 75 kW under normal-duty conditions and 55 kW under heavy-duty conditions. The appropriate rating depends on load characteristics, starting torque, overload duration, acceleration requirements, and operating cycle.
3. What type of input power does this PowerFlex 753 drive use?
The 20F1ANC140JA0NNNNN uses a three-phase 400 V AC input with precharge. This configuration does not provide DC input terminals. Appropriate upstream protection and power-distribution equipment should be selected according to the installation requirements.
4. Does the 20F1ANC140JA0NNNNN include dynamic braking?
Yes. This model includes an integrated dynamic braking transistor. However, the presence of the transistor does not mean that a braking resistor is installed internally. An appropriately rated external braking resistor should be selected when rapid deceleration or high regenerative energy is expected.
5. What is the EMC and common-mode capacitor configuration of this model?
The drive includes EMC filtering and is configured with the common-mode capacitor jumper installed. The final configuration should be checked against the grounding system, EMC requirements, and installation conditions before commissioning.
6. Can the 20F1ANC140JA0NNNNN be controlled by a PLC?
Yes. The PowerFlex 753 platform can communicate with a PLC or other industrial controller through compatible communication option modules. The embedded I/O can also be used for basic start/stop commands, speed references, status signals, and other control functions.
7. How should an overcurrent fault be investigated during operation?
First inspect the motor and output cables for short circuits, grounding problems, or incorrect connections. Then verify the motor nameplate parameters and drive settings. Mechanical overload, blocked equipment, excessive acceleration demand, and insufficient acceleration time should also be checked. High-inertia loads may require optimized acceleration and deceleration profiles.
8. What parameters should be checked during initial commissioning?
Before commissioning, verify the input supply, motor rated voltage, rated current, rated frequency, rated speed, control mode, I/O configuration, and communication settings. A controlled low-speed test should be performed first to confirm motor rotation direction, current level, acceleration response, and fault status before applying the full operating load.
Allen Bradley 20F1ANC140JA0NNNNN PowerFlex 753 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
