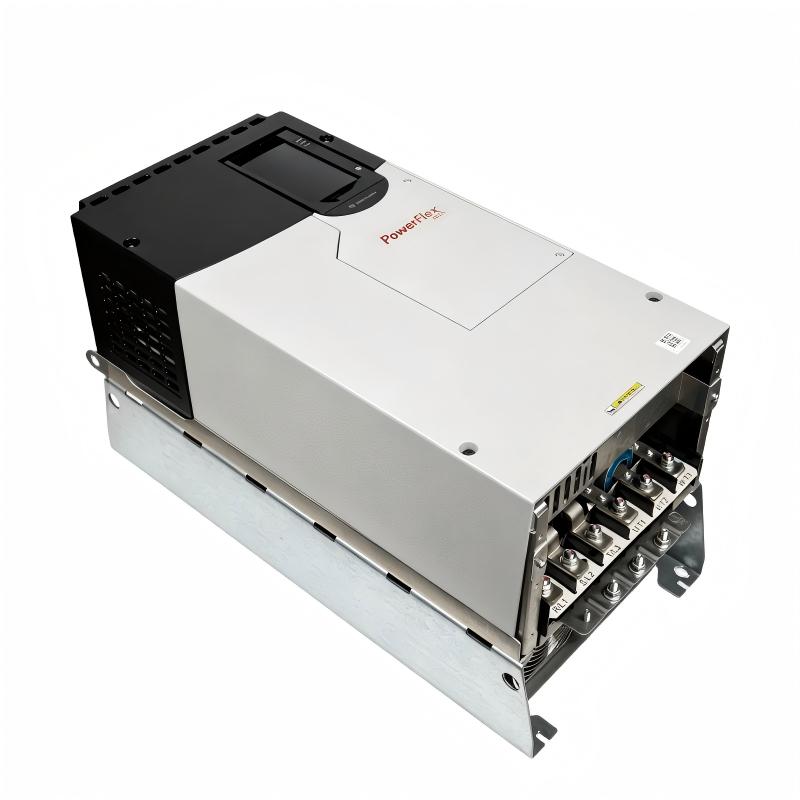

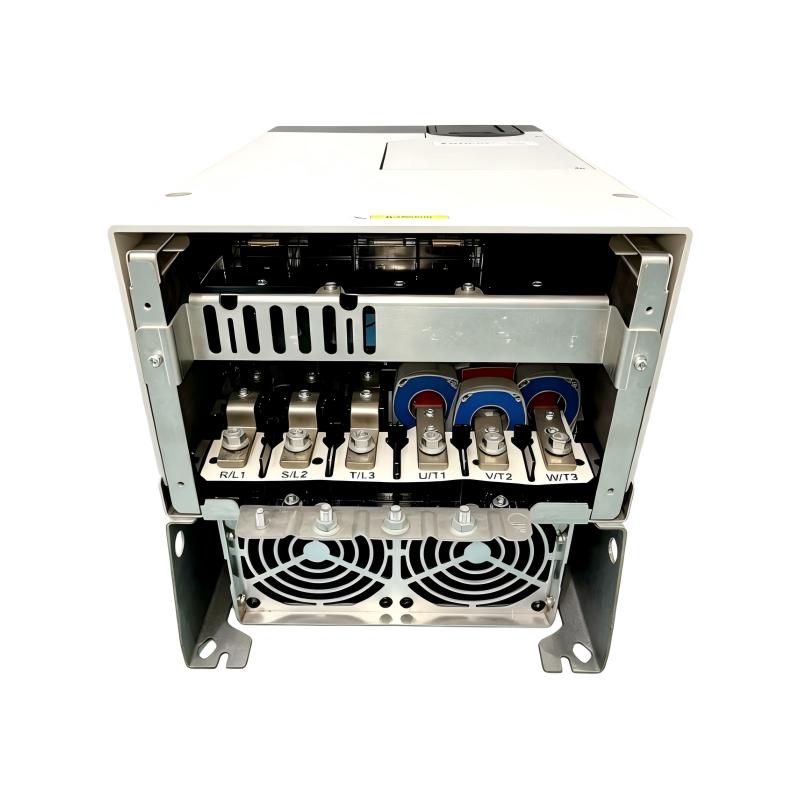

Allen Bradley 20F1ANC205JA0NNNNN PowerFlex 753 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model |
|
|
Brand |
Allen-Bradley |
|
Manufacturer |
Rockwell Automation |
|
Product Series |
PowerFlex 753 |
|
Product Type |
Variable Frequency AC Drive |
|
Input Voltage |
400 V AC |
|
Input Phase |
Three-phase |
|
Rated Output Current |
205 A (Normal Duty) |
|
Heavy-Duty Output Current |
170 A |
|
Normal-Duty Power Rating |
110 kW |
|
Heavy-Duty Power Rating |
90 kW |
|
DC Bus Voltage |
Approximately 540 V DC |
|
Input Configuration |
AC input with precharge; no DC terminals |
|
Frame Size |
Frame 6 |
|
Cooling Method |
Forced-air cooling |
|
Enclosure Rating |
IP20/IP00, NEMA/UL Open Type |
|
EMC Filtering |
Filtered; common-mode jumper installed |
|
Dynamic Braking |
Internal braking transistor |
|
Embedded I/O |
Yes |
|
Human Interface Module (HIM) |
Not included |
|
Motor Control |
Adjustable-frequency motor speed control |
|
Communication |
Supports compatible PowerFlex 750-series communication options |
|
Typical Applications |
Pumps, fans, conveyors and industrial machinery |
|
Dimensions |
665.5 × 308 × 346.4 mm |
|
Weight |
38.6 kg |
FAQ
1. What is the Allen-Bradley 20F1ANC205JA0NNNNN PowerFlex 753 AC Drive used for?
This drive controls the speed and torque of three-phase AC motors in industrial equipment such as pumps, fans, conveyors, and processing machinery. Variable-speed operation can help match motor performance to changing load requirements.
2. What is the rated power of this PowerFlex 753 drive?
The drive is rated at 110 kW for normal-duty applications and 90 kW for heavy-duty applications. Select the rating according to the motor nameplate, load characteristics, starting requirements, and application duty cycle.
3. What power supply does the 20F1ANC205JA0NNNNN require?
It is designed for a 400 V AC, three-phase supply. Check the incoming voltage, phase configuration, protective devices, grounding, and installation requirements before energizing the drive.
4. Does this drive support dynamic braking?
Yes. This model includes a dynamic braking transistor. A compatible external braking resistor may be required, depending on the application’s deceleration time and regenerative energy. Confirm resistor ratings and installation requirements in the PowerFlex 753 documentation.
5. Does the drive include a built-in operator keypad?
No. This catalog number is supplied without a Human Interface Module (HIM). A compatible HIM or supported software-based interface can be used for parameter configuration, monitoring, and troubleshooting.
6. How is the PowerFlex 753 configured and commissioned?
Commissioning typically includes entering the motor nameplate data, selecting the command and speed-reference sources, setting acceleration and deceleration times, configuring protection parameters, and performing the appropriate motor tuning procedure. Verify rotation direction and safety interlocks before operating the machine under load.
7. What should be checked if the drive trips during operation?
Read the fault code and review the drive’s fault history first. Check the supply voltage, motor and output wiring, mechanical load, motor current, cooling fan, and heatsink ventilation. Correct the underlying cause before resetting the fault.
8. Can the PowerFlex 753 be integrated with a PLC or industrial network?
Yes. Its embedded I/O supports hardwired control, and compatible communication option modules can connect it to supported industrial networks and PLC systems. Verify the required network protocol, option-module compatibility, drive parameters, and PLC configuration before integration.
Allen Bradley 20F1ANC205JA0NNNNN PowerFlex 753 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
