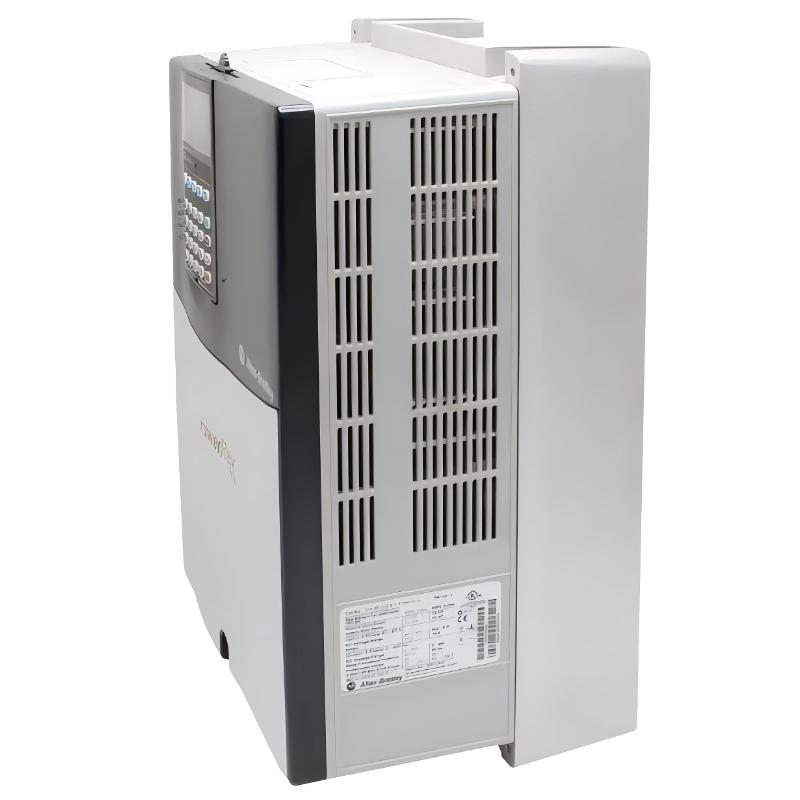

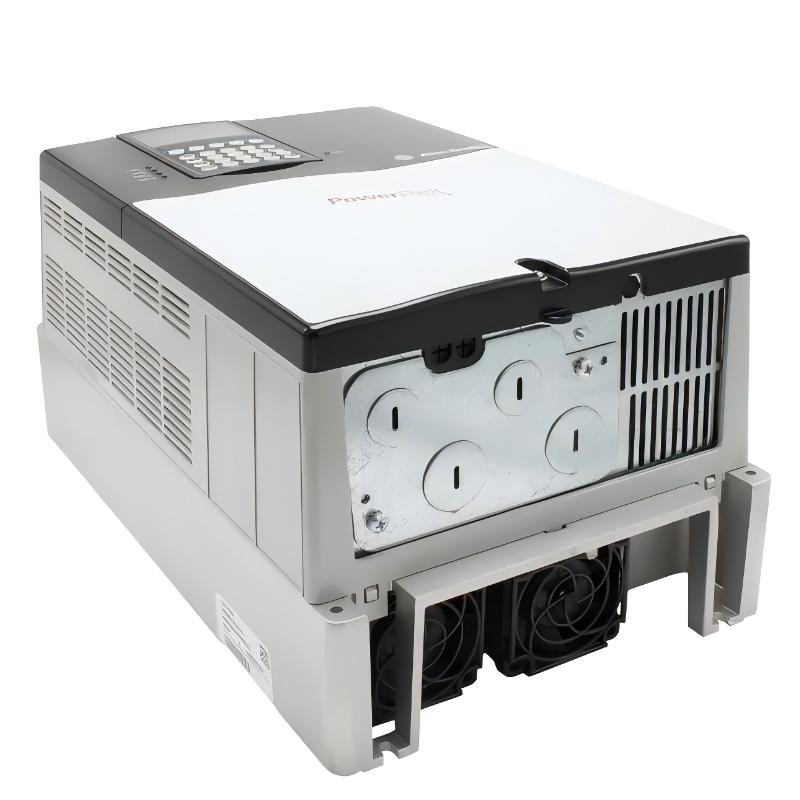

Allen Bradley 20F1AND186 PowerFlex 753 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 20F1AND186 |
| Product Type | PowerFlex 753 AC Drive |
| Product Series | Allen-Bradley PowerFlex 753 Series |
| Main Function | Variable frequency drive for high-power motor speed control, torque regulation, and industrial automation applications |
| Input Voltage | 480 VAC, 3-phase |
| Input Voltage Range | 380 to 480 VAC |
| Input Frequency | 50/60 Hz |
| Input Type | AC input with precharge, no DC terminals |
| Output Current | 186 A |
| Normal Duty Power Rating | 110 kW (150 HP) |
| Heavy Duty Power Rating | 92 kW (125 HP) |
| Output Phase | 3-phase |
| Frame Size | Frame 6 |
| Control Type | Vector Control, Closed Loop Vector Control, PID Control |
| Enclosure Type | IP20/IP00, NEMA/UL Open Type |
| Cooling Method | Forced air cooling |
| EMC Filtering | Filtered configuration with common mode jumper installed |
| Dynamic Braking | Built-in dynamic braking transistor configuration |
| Brake Resistor | External braking resistor required |
| Human Interface Module (HIM) | Not included, blank cover configuration |
| Embedded I/O | Included |
| Communication Capability | Supports optional industrial communication modules |
| Safety Function Support | Supports optional safety functions through compatible modules |
| Mounting Method | Panel mounting |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 665.5 × 308 × 346.4 mm (26.2 × 12.1 × 13.6 in.) |
| Weight | Approximately 48 kg (106 lb) |
| Application Areas | Heavy-duty machinery, large conveyors, pumps, fans, compressors, material handling systems, and industrial process equipment |
FAQ
Q1: What is the main function of the 20F1AND186?
A1: The 20F1AND186 is a PowerFlex 753 AC drive designed for high-power motor control applications. It provides adjustable speed regulation, torque management, and reliable operation in demanding industrial environments.
Q2: What motor power rating does the 20F1AND186 support?
A2: The drive supports up to 110 kW (150 HP) under normal duty operation and 92 kW (125 HP) under heavy duty conditions.
Q3: What type of power supply is required for the 20F1AND186?
A3: The drive requires a three-phase 480 VAC power supply and is designed for industrial systems operating within the 380 to 480 VAC range.
Q4: Does the 20F1AND186 support dynamic braking?
A4: Yes. The drive supports dynamic braking through its braking transistor configuration, allowing connection to an external braking resistor when rapid deceleration is required.
Q5: Is a Human Interface Module included with the 20F1AND186?
A5: No. This model is supplied without a HIM module and uses a blank cover configuration. A compatible interface module can be added separately if required.
Q6: Can the 20F1AND186 be integrated into industrial communication networks?
A6: Yes. The PowerFlex 753 platform supports optional communication modules, allowing integration with industrial control systems and automation networks.
Q7: What applications are suitable for the 20F1AND186?
A7: Typical applications include large conveyors, pumps, fans, compressors, production machinery, material handling equipment, and industrial process systems requiring high-performance motor control.
Q8: How can users troubleshoot issues with the 20F1AND186?
A8: Troubleshooting should include checking incoming power, motor connections, drive parameters, fault codes, communication settings, cooling performance, and installation conditions.
Allen Bradley 20F1AND186 PowerFlex 753 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
