Allen-Bradley 20G11LF650AN0NNNNN PowerFlex 755 AC Drive – Technical Specifications and FAQ
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Product Type | PowerFlex 755 AC Drive |
| Catalog Number | 20G11LF650AN0NNNNN |
| Input Voltage | 690 VAC |
| Input Phase | 3 Phase |
| Rated Current | 650 A |
| Low-Duty Power Rating | 710 kW |
| Normal-Duty Power Rating | 630 kW |
| Heavy-Duty Power Rating | 500 kW |
| Frame Size | Frame 9 |
| Cooling Method | Air Cooled |
| Communication | Embedded EtherNet/IP |
| Input Configuration | AC Input with DC Terminals |
| Enclosure | Type 1, IP20 |
| Cabinet Style | 800 mm Deep MCC Style |
| EMC Filtering | Filtered |
| CM Jumper | Removed |
| Dynamic Braking | None |
| HIM | Blank / No HIM |
| Dimensions | 800 mm deep MCC-style configuration; overall height and width depend on the packaged arrangement |
| Weight | 10kg |

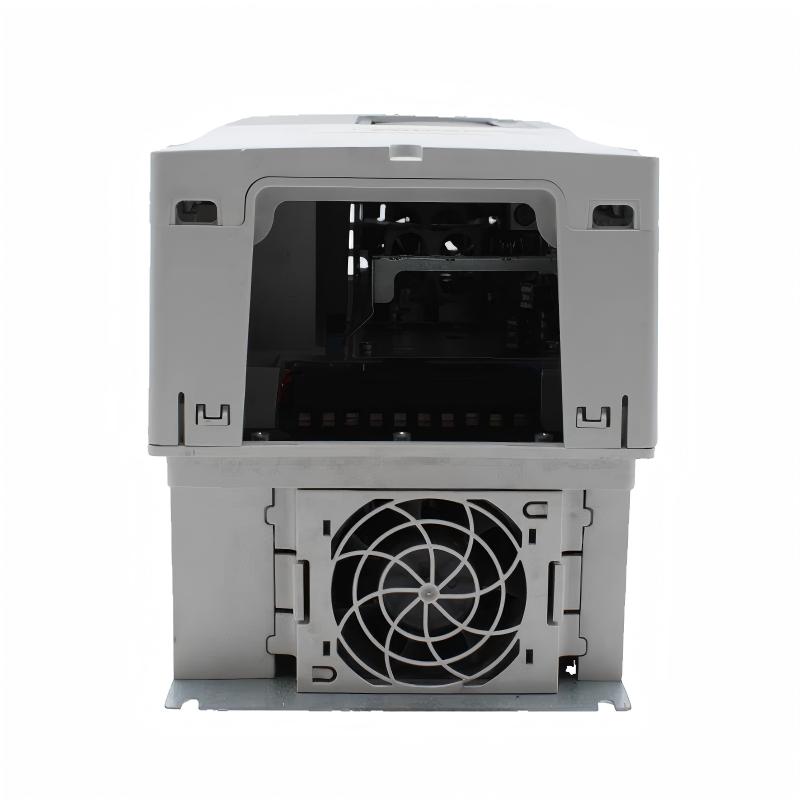

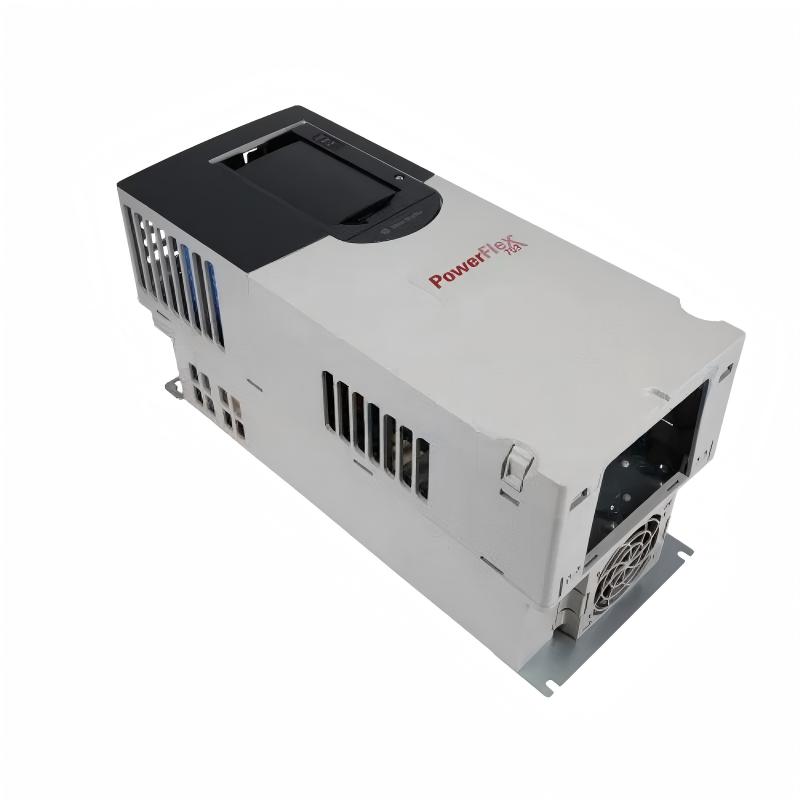

The 20G11LF650AN0NNNNN is an Allen-Bradley PowerFlex 755 air-cooled AC drive for high-power three-phase motor applications. It is rated at 650 A for a 690 VAC supply, with published ratings of 710 kW for low-duty operation, 630 kW for normal duty, and 500 kW for heavy duty. The catalog configuration is a Frame 9 unit with embedded EtherNet/IP, filtered input circuitry, Type 1/IP20 protection, and an 800 mm deep MCC-style package.
The AN0 configuration specifies a removed CM jumper, no internal dynamic-braking option, and a blank/no-HIM arrangement. The catalog listing also identifies AC input with DC terminals and air-cooled construction.
FAQ
Q1: What is the Allen-Bradley 20G11LF650AN0NNNNN?
A: It is a PowerFlex 755 AC drive designed for high-power three-phase industrial motor-control applications. This model belongs to the 690 VAC Frame 9 range.
Q2: What is the rated current of the 20G11LF650AN0NNNNN?
A: The drive has a rated output current of 650 A. Its published ratings are 710 kW for low-duty operation, 630 kW for normal duty, and 500 kW for heavy duty.
Q3: What input voltage does this PowerFlex 755 drive use?
A: The 20G11LF650AN0NNNNN is designed for a 690 VAC, three-phase power supply. It uses an AC input configuration with DC terminals.
Q4: Does the 20G11LF650AN0NNNNN support EtherNet/IP?
A: Yes. Embedded EtherNet/IP is included, allowing the drive to communicate with compatible PLCs, controllers, and other industrial automation equipment.
Q5: What type of cooling does this drive use?
A: The drive uses air cooling. As a high-current Frame 9 unit, it requires suitable airflow and cabinet ventilation to maintain proper operating temperatures.
Q6: Does this model include dynamic braking?
A: No. The AN0 configuration is listed without an internal dynamic-braking option. If the application requires rapid or controlled deceleration, the braking requirements should be evaluated separately.
Q7: What does the AN0 configuration indicate?
A: For this catalog configuration, AN0 identifies the version with the CM jumper removed and a blank/no-HIM arrangement. The unit also uses filtered input circuitry.
Q8: What are the dimensions and weight of the 20G11LF650AN0NNNNN?
A: The drive uses an 800 mm deep MCC-style Frame 9 package. The complete height, width, and packaged weight depend on the final equipment arrangement, so the applicable mechanical drawing should be used for installation planning rather than relying on a generic Frame 9 dimension.
Allen-Bradley 20G11LF650AN0NNNNN PowerFlex 755 AC Drive – Technical Specifications and FAQ is in stock. Please contact us for a quick quote and competitive pricing.
