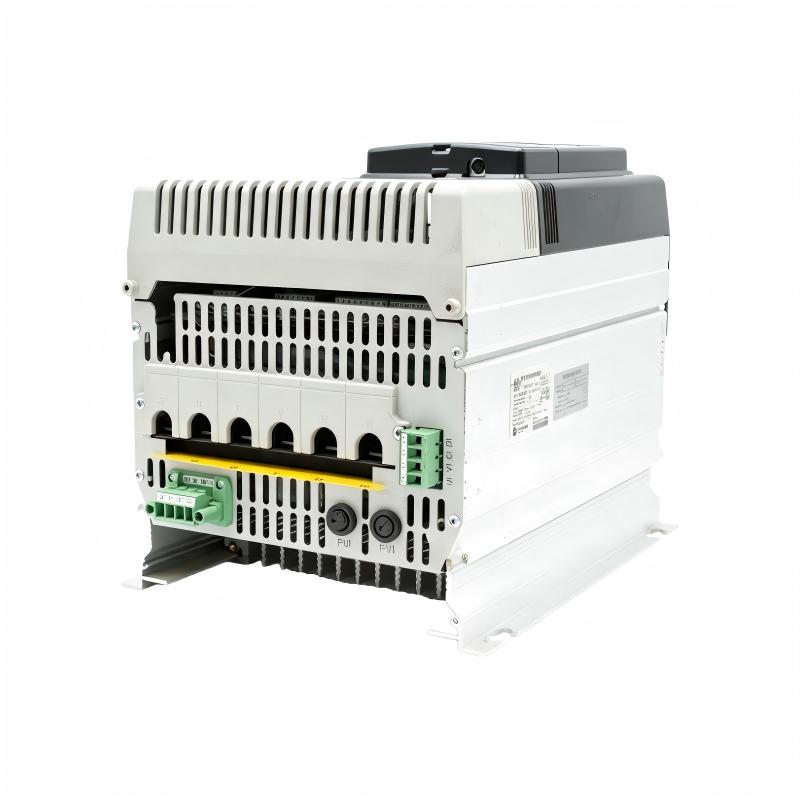

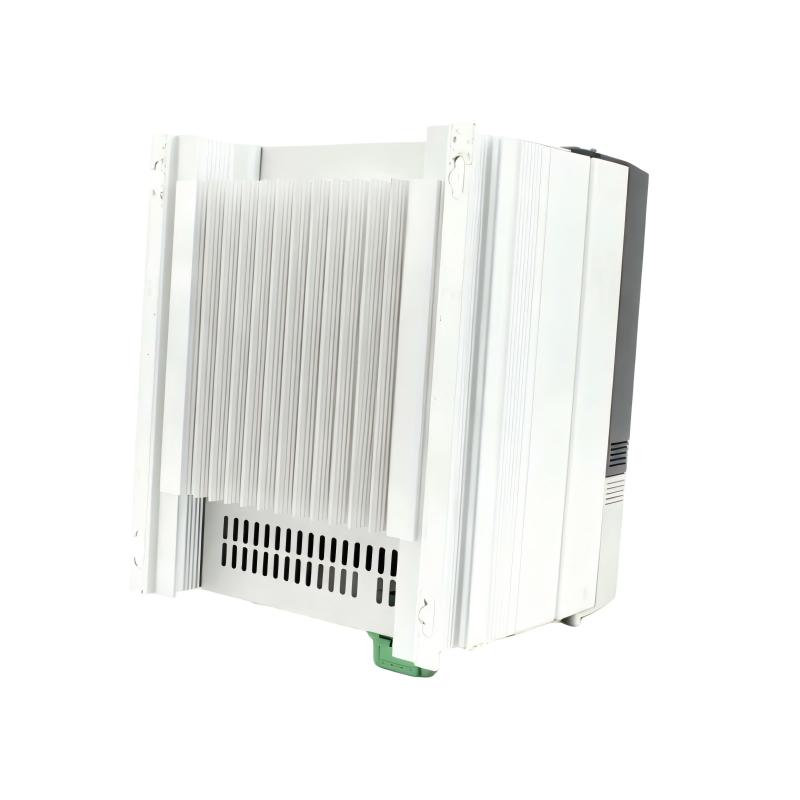

Allen Bradley 20P21AD010RA0NNN PowerFlex DC Drives
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Brand |
Allen-Bradley |
|
Manufacturer |
Rockwell Automation |
|
Model |
|
|
Product Series |
|
|
Product Type |
Non-Regenerative DC Drive |
|
Input Voltage |
380–480 V AC |
|
Nominal Input Voltage |
480 V AC |
|
Input Phase |
Three-phase |
|
Input Frequency |
50/60 Hz |
|
Rated DC Output Current |
10 A |
|
Rated Motor Power |
3.7 kW (5 HP) at 460 V AC input |
|
Drive Frame Size |
Frame A |
|
Enclosure Rating |
IP20, NEMA/UL Type Open |
|
Cooling Method |
Forced-air cooling |
|
Regeneration Capability |
Non-regenerative |
|
Field Supply |
Requires compatible field supply configuration |
|
Operator Interface |
HIM not included; blank plate fitted |
|
Communication Module |
Not included |
|
Protective Coating |
Conformal coating |
|
Typical Applications |
DC motor speed control, conveyors, winding equipment and industrial machinery |
|
Dimensions |
359 × 267 × 287 mm |
|
Weight |
11 kg |
FAQ
1. What is the Allen-Bradley 20P21AD010RA0NNN used for?
The PowerFlex DC drive is designed to regulate the speed and torque of compatible DC motors in industrial applications. It can be used in equipment such as conveyors, material-handling systems and process machinery that requires controlled DC motor operation.
2. What input power supply does this drive require?
The drive is designed for a three-phase AC supply within the 380–480 V range, with 480 V AC as its nominal rating. Confirm the site supply voltage, frequency, grounding and upstream protection before installation.
3. What is the rated output current and motor power?
The drive has a rated DC output current of 10 A and a motor power rating of 3.7 kW (5 HP) at 460 V AC input. The motor’s armature and field ratings must be checked to ensure compatibility.
4. Is the 20P21AD010RA0NNN regenerative?
No. This is a non-regenerative model. It controls DC motor operation but does not return regenerative energy to the AC supply. Applications with frequent deceleration or overhauling loads may require an appropriate braking or energy-management solution.
5. Does the drive include a Human Interface Module (HIM)?
No. This catalog configuration has a blank front plate instead of a HIM. A compatible operator interface or supported configuration method is required for convenient parameter setup and monitoring.
6. Can this drive communicate directly with a PLC?
The specified model does not include a communication module. PLC integration may require compatible optional communication hardware or hardwired control signals, depending on the system architecture.
7. What should be checked if the motor does not start?
Check the incoming AC supply, control-power circuit, enable and start commands, fault status, motor armature connections, and field circuit. Also verify that the drive parameters match the motor nameplate and that any external interlocks are satisfied.
8. What precautions are important during commissioning?
Verify the drive and motor ratings, protective grounding, cable connections, field supply, overcurrent protection and required ventilation. Configure the motor parameters before running the system, then test direction, speed response, current limits and stopping behavior under controlled conditions.
Allen Bradley 20P21AD010RA0NNN PowerFlex DC Drives is in stock. Please contact us for a quick quote and competitive pricing.
