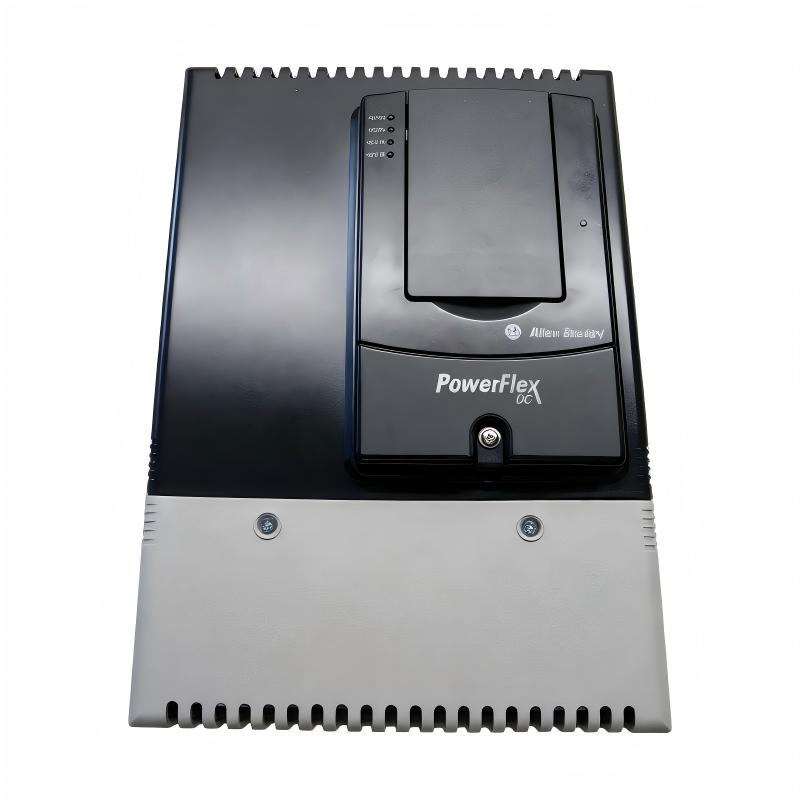

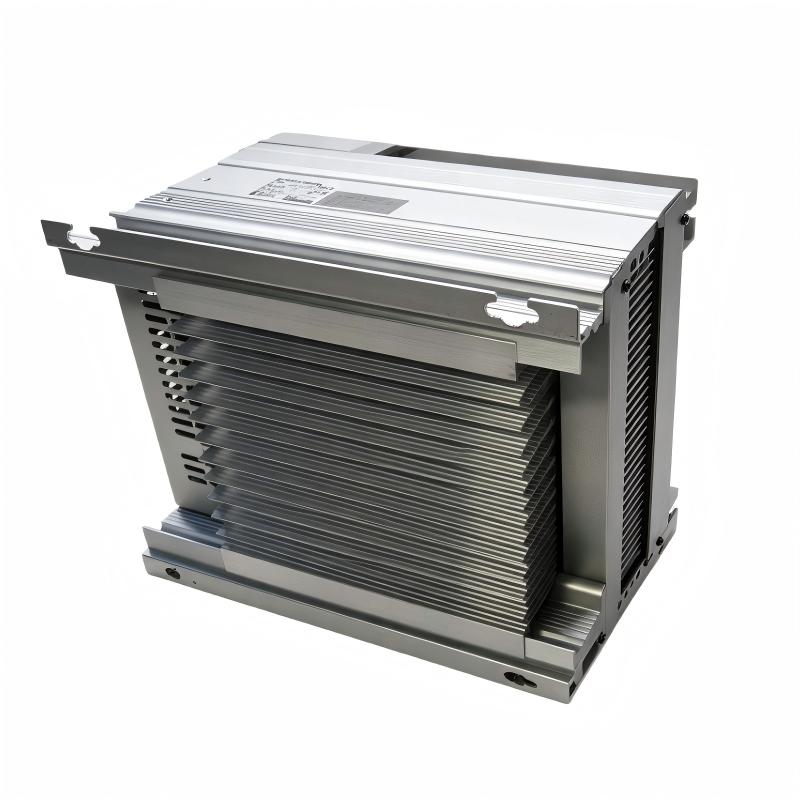

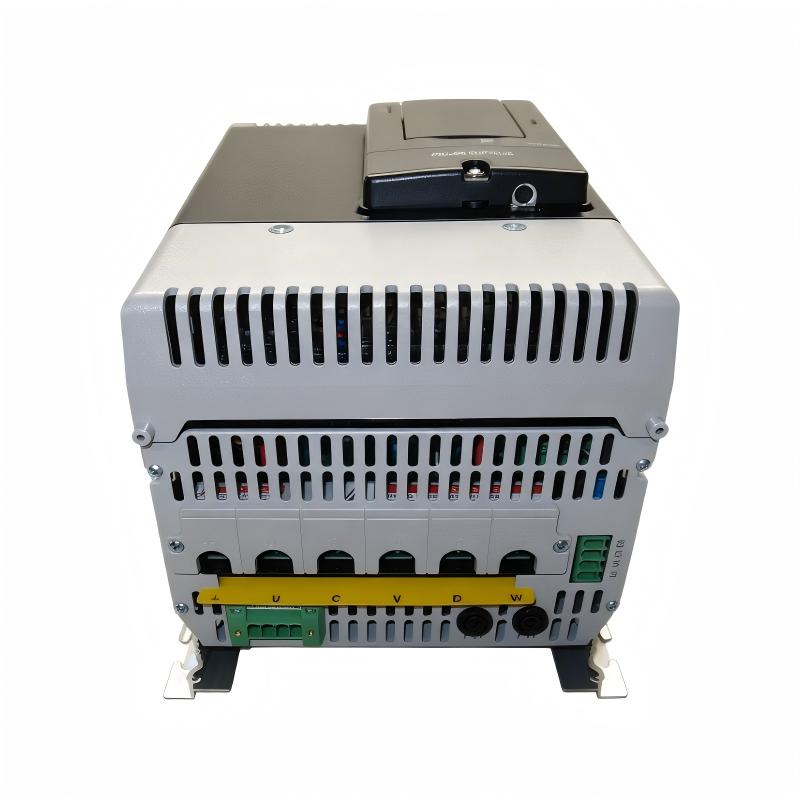

Allen Bradley 20P21AD014RA0NNN PowerFlex DC Drives
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

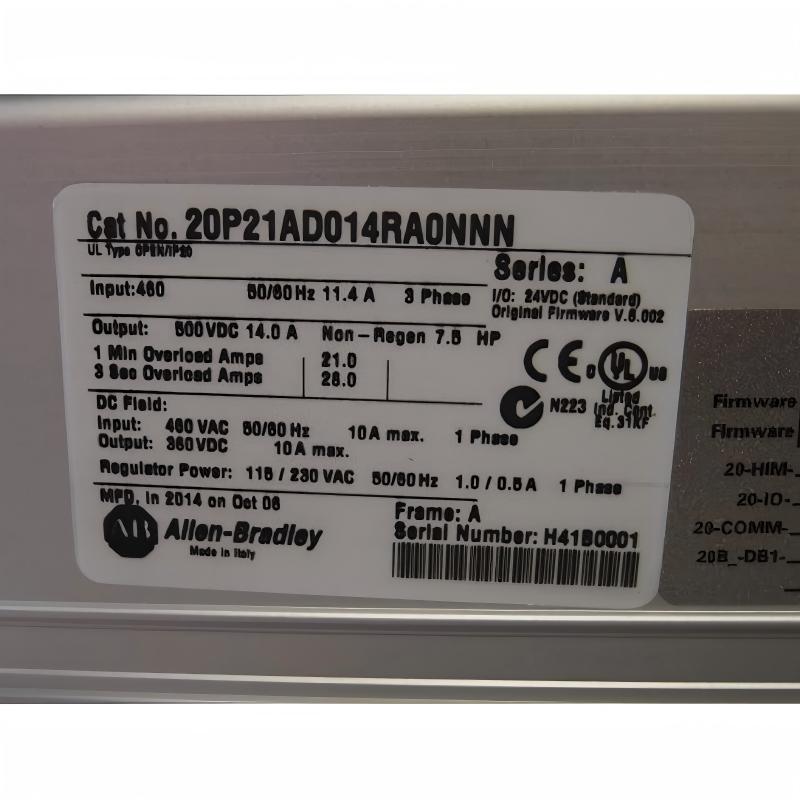

Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Brand |
Allen-Bradley |
|
Manufacturer |
Rockwell Automation |
|
Model |
|
|
Product Series |
|
|
Product Type |
Non-Regenerative DC Drive |
|
Input Voltage |
380–480 V AC |
|
Nominal Input Voltage |
480 V AC |
|
Input Phase |
Three-phase |
|
Input Frequency |
50/60 Hz |
|
Rated DC Output Current |
14 A |
|
Motor Power Rating |
Depends on input voltage, motor ratings and operating duty |
|
Drive Frame |
Frame A |
|
Enclosure Rating |
IP20, NEMA/UL Type Open |
|
Cooling Method |
Forced-air cooling |
|
Regeneration Capability |
Non-regenerative |
|
Operator Interface |
HIM not included; blank plate fitted |
|
Communication Module |
Not included |
|
Control Method |
DC motor armature voltage control |
|
Typical Applications |
Conveyors, winding equipment, material handling and industrial DC motor control |
|
Dimensions |
359 × 267 × 287 mm |
|
Weight |
11 kg |
FAQ
1. What is the Allen-Bradley 20P21AD014RA0NNN PowerFlex DC Drive used for?
This drive controls the speed and torque of compatible DC motors in industrial machinery. Typical applications include conveyors, winding systems, material-handling equipment, and production lines that require adjustable DC motor speed.
2. What are the rated output current and motor power?
The drive has a rated DC output current of 14 A and a normal-duty motor power rating of 7.5 HP (approximately 5.5 kW) at 460 V AC input. Check the motor armature and field ratings before selecting the drive for an application.
3. What input power supply does this model require?
The 20P21AD014RA0NNN is designed for a 480 V AC, three-phase input supply, with a 50/60 Hz supply frequency. Verify the actual voltage, phase configuration, grounding, and upstream protection before energizing the unit.
4. Is this a regenerative DC drive?
No. This is a non-regenerative drive. It controls motor speed but does not return regenerative energy to the AC supply. Applications involving frequent braking or overhauling loads may require a separate braking or energy-management solution.
5. What type of field supply does the drive use?
This model specifies a single-phase regulated field supply. The motor field voltage and current must be compatible with the drive’s field supply ratings. Confirm the motor nameplate and applicable technical documentation before wiring.
6. Does the drive include a keypad or communication module?
No. This catalog configuration has a blank plate instead of a Human Interface Module (HIM), and it does not include a communication module. A compatible operator interface or optional communication hardware may be required for convenient configuration and PLC integration.
7. What should be checked if the DC motor does not start?
Check the incoming AC supply, control power, start and enable commands, fault status, armature wiring, and motor field circuit. Also verify the motor parameters and external interlocks. Clear the underlying fault before attempting to restart the drive.
8. What precautions are required during installation and commissioning?
Confirm the drive and motor ratings, protective grounding, cable connections, branch-circuit protection, and ventilation requirements. Configure the motor data and control parameters, then test motor direction, speed response, current limits, and stopping behavior under controlled conditions before returning the equipment to normal service.
Allen Bradley 20P21AD014RA0NNN PowerFlex DC Drives is in stock. Please contact us for a quick quote and competitive pricing.
