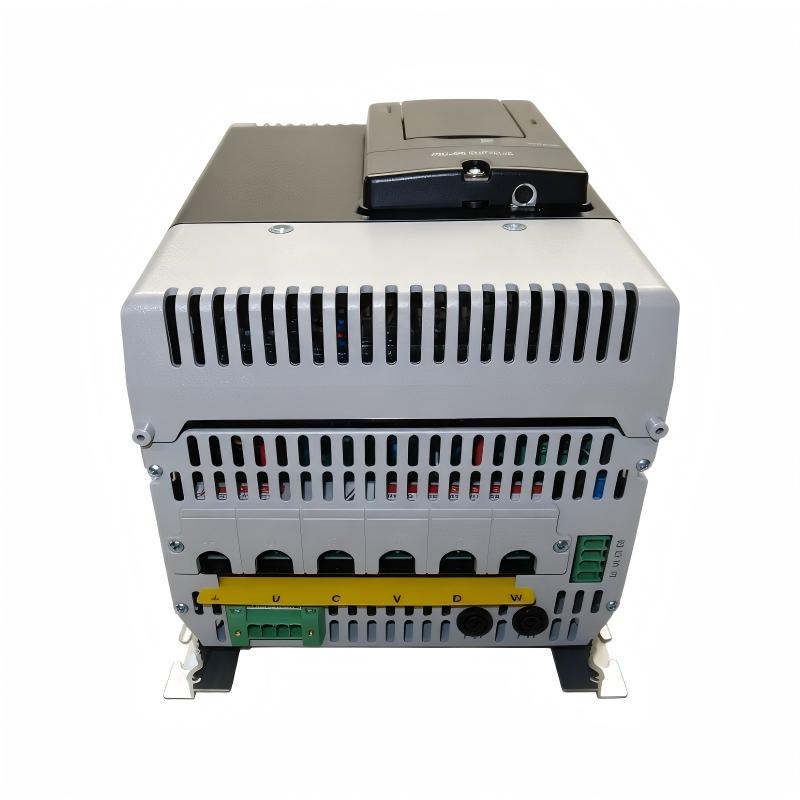

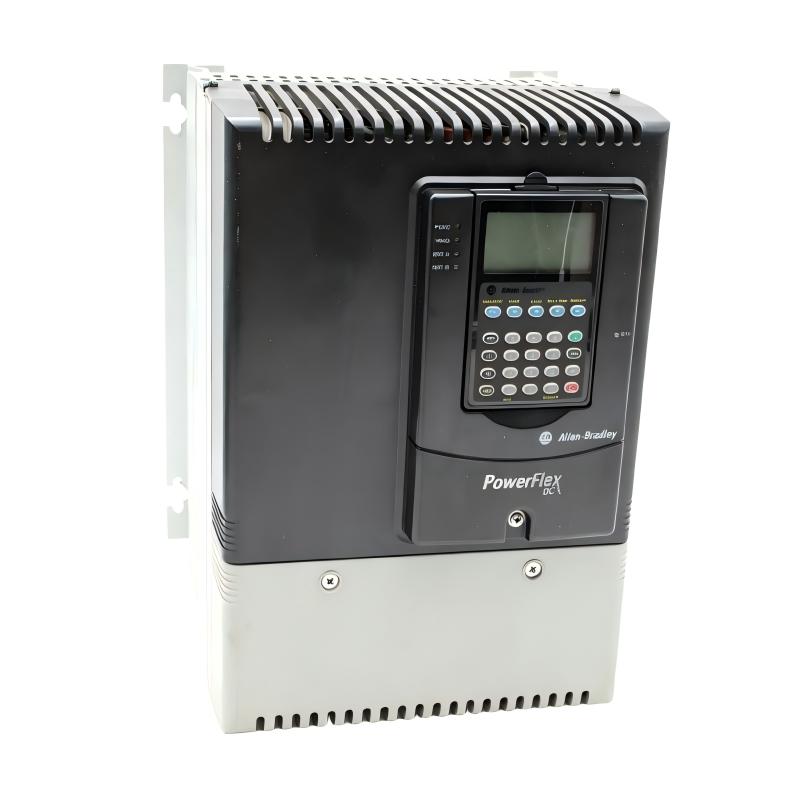

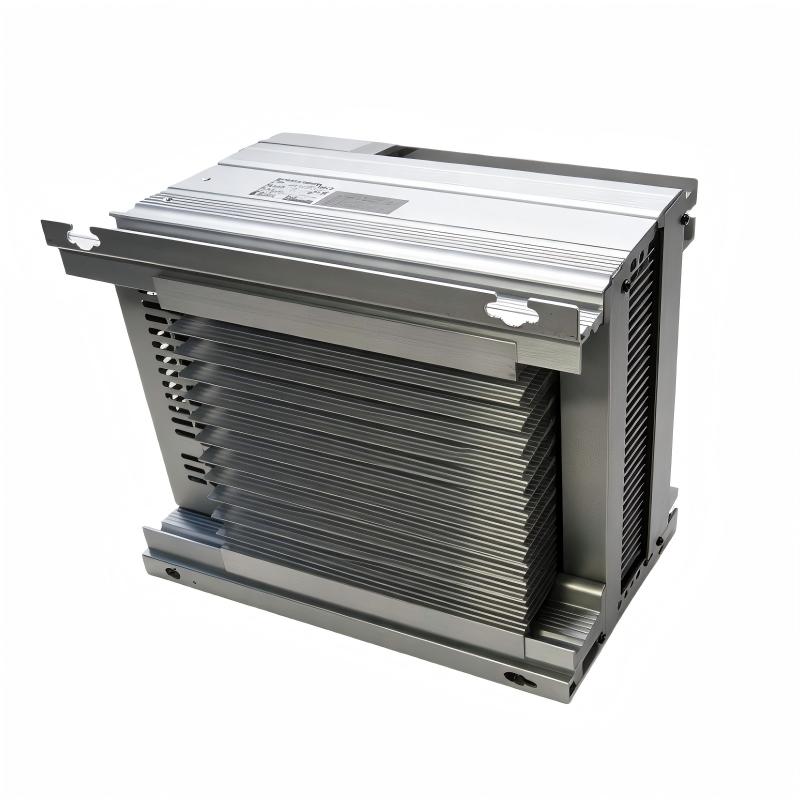

Allen Bradley 20P21AD019RA0NNN PowerFlex DC Drives
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Brand |
Allen-Bradley |
|
Manufacturer |
Rockwell Automation |
|
Model |
|
|
Product Series |
|
|
Product Type |
Non-Regenerative DC Drive |
|
Input Voltage |
380–480 V AC |
|
Nominal Input Voltage |
480 V AC |
|
Input Phase |
Three-phase |
|
Input Frequency |
50/60 Hz |
|
Input Type |
6-pulse |
|
Rated DC Output Current |
19 A |
|
Rated Motor Power |
7.5 kW (10 HP) |
|
Frame Size |
Frame A |
|
Field Supply |
Single-phase regulated |
|
Regeneration Capability |
Non-regenerative |
|
Enclosure Rating |
IP20, NEMA/UL Type Open |
|
Protective Coating |
Conformal coating |
|
Cooling Method |
Forced-air cooling |
|
Human Interface Module (HIM) |
Not included; blank plate fitted |
|
Communication Module |
Not included |
|
Control Method |
DC motor armature voltage control |
|
Typical Applications |
Conveyors, winding systems, material handling and industrial DC motor control |
|
Dimensions |
359 × 267 × 287 mm |
|
Weight |
11 kg |
FAQ
1. What is the Allen-Bradley 20P21AD019RA0NNN used for?
The PowerFlex DC drive controls the speed and torque of compatible DC motors in industrial applications. It is suitable for conveyors, winding equipment, material-handling systems and other machinery that requires adjustable DC motor speed.
2. What are the rated output current and motor power?
The drive has a rated DC output current of 19 A and a motor power rating of 7.5 kW (10 HP) at 460 V AC input. The selected motor’s armature and field ratings must match the drive’s capabilities.
3. What input power supply does this drive require?
The drive is designed for a three-phase AC input in the 380–480 V range, with a nominal input voltage of 480 V AC. Verify the supply voltage, frequency, grounding and upstream protection before energizing the unit.
4. Is the 20P21AD019RA0NNN regenerative?
No. This model is non-regenerative and does not return braking energy to the AC supply. Applications with frequent deceleration or overhauling loads may require a separate braking or energy-management solution.
5. What type of field supply does this model use?
It uses a single-phase regulated field supply. Confirm the motor’s field voltage and current requirements against the drive specifications before connecting the field circuit.
6. Does the drive include a keypad or communication module?
No. This configuration has a blank plate instead of a Human Interface Module (HIM), and no communication module is included. A compatible operator interface or optional communication hardware may be required for configuration and PLC integration.
7. What should be checked if the motor fails to start?
Check the incoming AC supply, control power, start and enable commands, fault status, armature wiring and field circuit. Also verify the motor parameters and external interlocks. Correct the fault before attempting to restart the drive.
8. What should be verified during installation and commissioning?
Check the drive and motor ratings, grounding, cable connections, branch-circuit protection and ventilation. Configure the motor data and control parameters, then test motor direction, speed response, current limits and stopping behavior under controlled conditions before normal operation.
Allen Bradley 20P21AD019RA0NNN PowerFlex DC Drives is in stock. Please contact us for a quick quote and competitive pricing.
