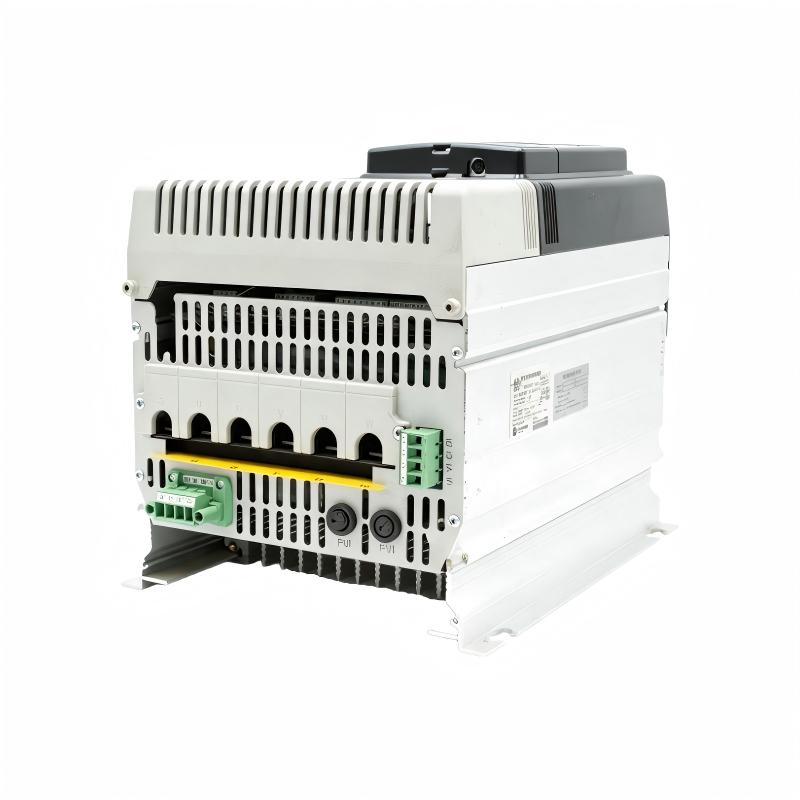

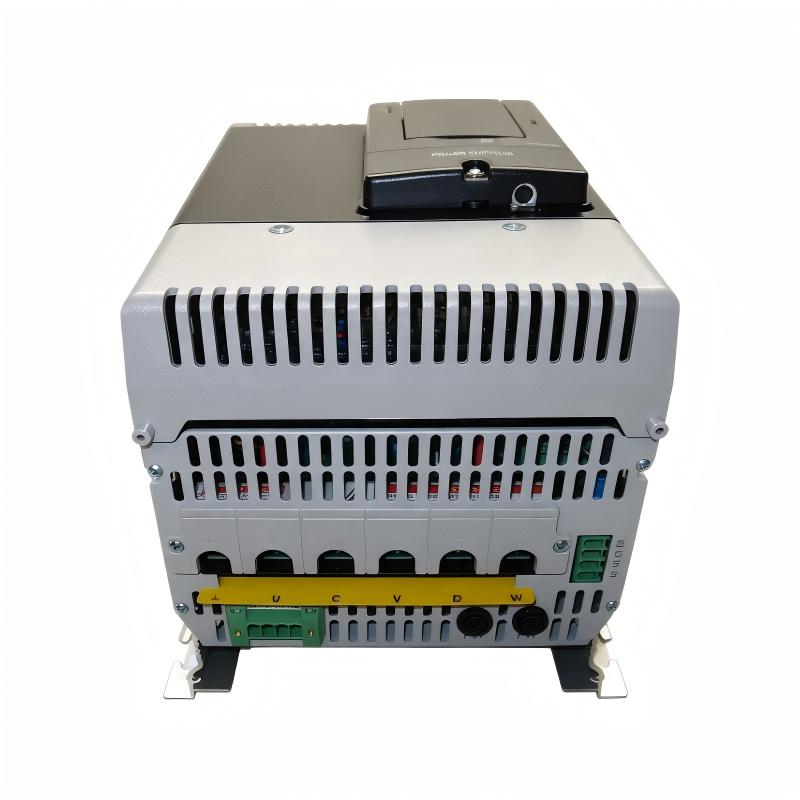

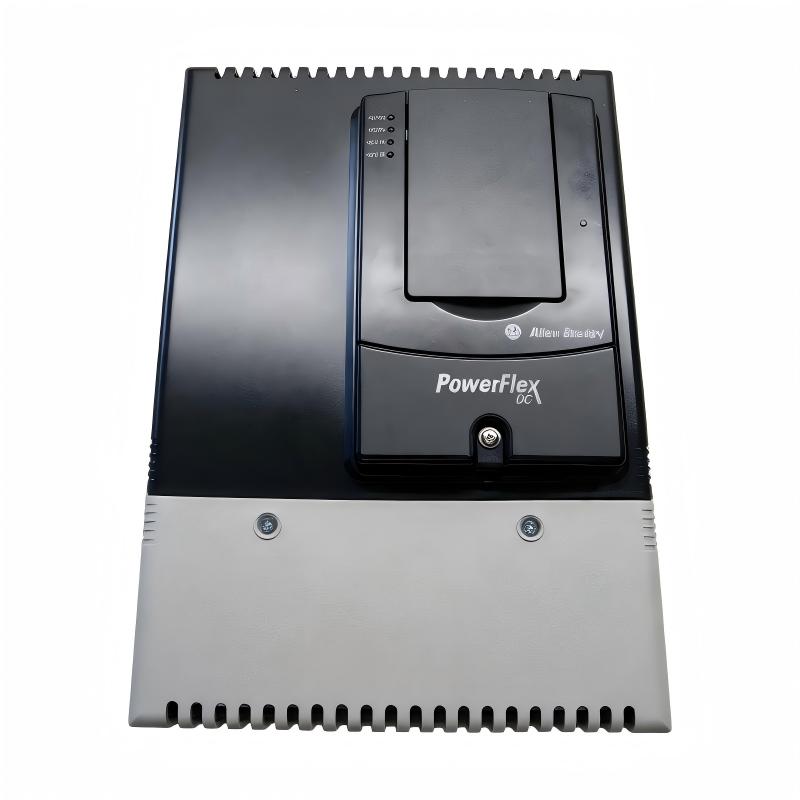

Allen Bradley 20P21AD027RA0NNN PowerFlex DC Drives
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Brand |
Allen-Bradley |
|
Manufacturer |
Rockwell Automation |
|
Model |
|
|
Product Series |
|
|
Product Type |
Non-Regenerative DC Drive |
|
Input Voltage |
380–480 V AC |
|
Nominal Input Voltage |
480 V AC |
|
Input Phase |
Three-phase |
|
Input Frequency |
50/60 Hz |
|
Input Type |
6-pulse |
|
Rated DC Output Current |
27 A |
|
Rated Motor Power |
11 kW (15 HP) |
|
Frame Size |
Frame A |
|
Motor Operation |
Two-quadrant operation |
|
Field Supply |
Single-phase regulated |
|
Regeneration Capability |
Non-regenerative |
|
Enclosure Rating |
IP20, NEMA/UL Type Open |
|
Protective Coating |
Conformal coating |
|
Cooling Method |
Air-cooled |
|
Human Interface Module (HIM) |
Not included; blank plate fitted |
|
Communication Module |
Not included |
|
Standard I/O |
8 digital inputs, 4 digital outputs, 3 analog outputs and 2 analog inputs |
|
Typical Applications |
DC motor speed control, conveyors, winding equipment and material-handling systems |
|
Dimensions |
359 × 267 × 287 mm |
|
Weight |
11 kg |
FAQ
1. What is the Allen-Bradley 20P21AD027RA0NNN used for?
The PowerFlex DC drive controls the speed and torque of compatible DC motors in industrial applications. It is commonly used in conveyors, winding systems, material-handling equipment and production machinery that requires adjustable motor speed.
2. What are the rated output current and motor power?
The drive provides a rated DC output current of 27 A and supports a motor rating of 11 kW (15 HP) at 460 V AC input. The motor’s armature and field ratings should be checked before selecting the drive.
3. What power supply does this drive require?
It is designed for a three-phase AC supply in the 380–480 V range, with a nominal rating of 480 V AC. Verify the actual supply voltage, frequency, grounding and upstream circuit protection before installation.
4. What does two-quadrant motor operation mean?
Two-quadrant operation supports motoring in one direction and controlled braking behavior within the drive’s operating capabilities. Because this is a non-regenerative model, braking energy is not returned to the AC supply. Applications with significant regenerative energy may need an additional braking solution.
5. What is the purpose of the regulated field supply?
The regulated field supply provides excitation current to a compatible DC motor’s field winding. Correct field voltage and current are essential for stable motor operation, so the motor nameplate and drive configuration should be checked before commissioning.
6. Can this drive connect directly to a PLC?
The drive includes standard digital and analog I/O for hardwired control. However, this catalog configuration does not include a communication module. Network-based PLC integration requires compatible optional communication hardware.
7. What should be checked if the drive reports a fault?
Read the fault code and review the fault history. Check the incoming AC supply, control signals, motor armature connections, field circuit, load conditions and cooling airflow. Correct the cause before resetting the drive.
8. What steps are required before commissioning?
Verify the motor and drive ratings, protective grounding, wiring, circuit protection and ventilation. Configure the motor parameters, command source, speed reference and current limits. Test motor direction, acceleration, deceleration and protective functions under controlled conditions before returning the equipment to normal operation.
Allen Bradley 20P21AD027RA0NNN PowerFlex DC Drives is in stock. Please contact us for a quick quote and competitive pricing.
