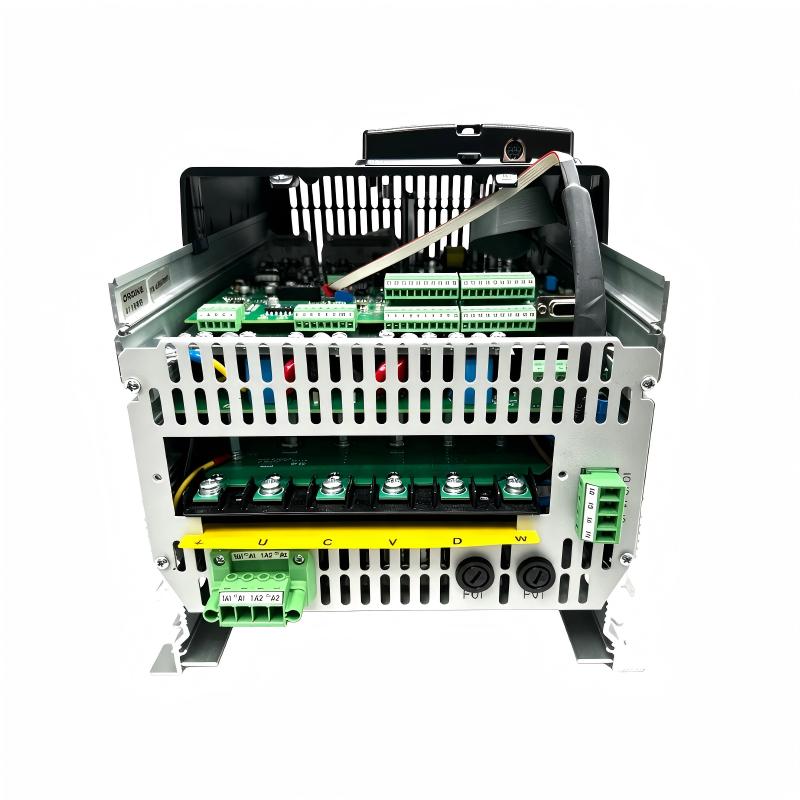

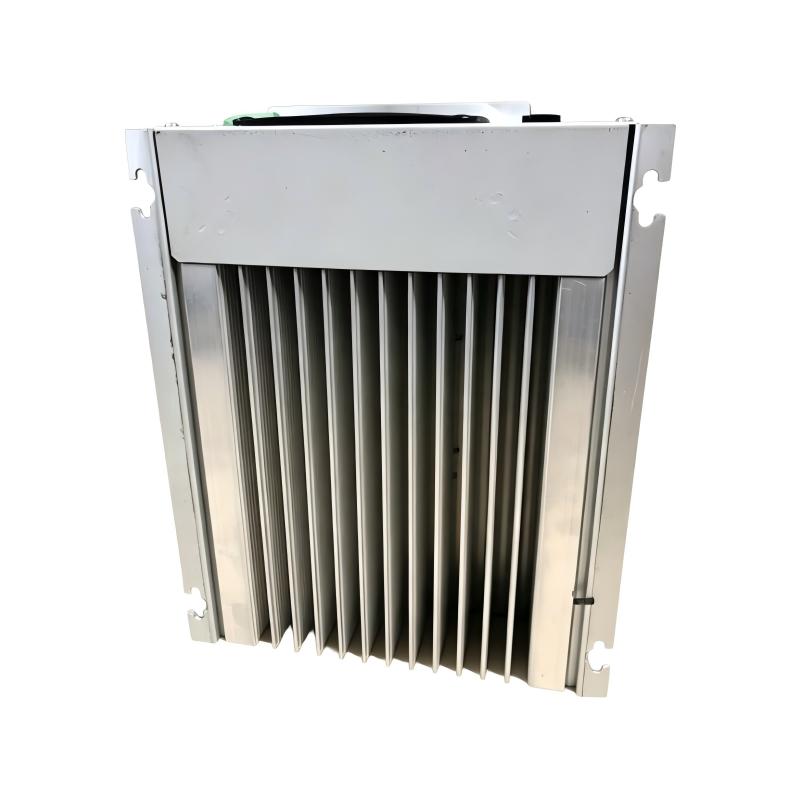

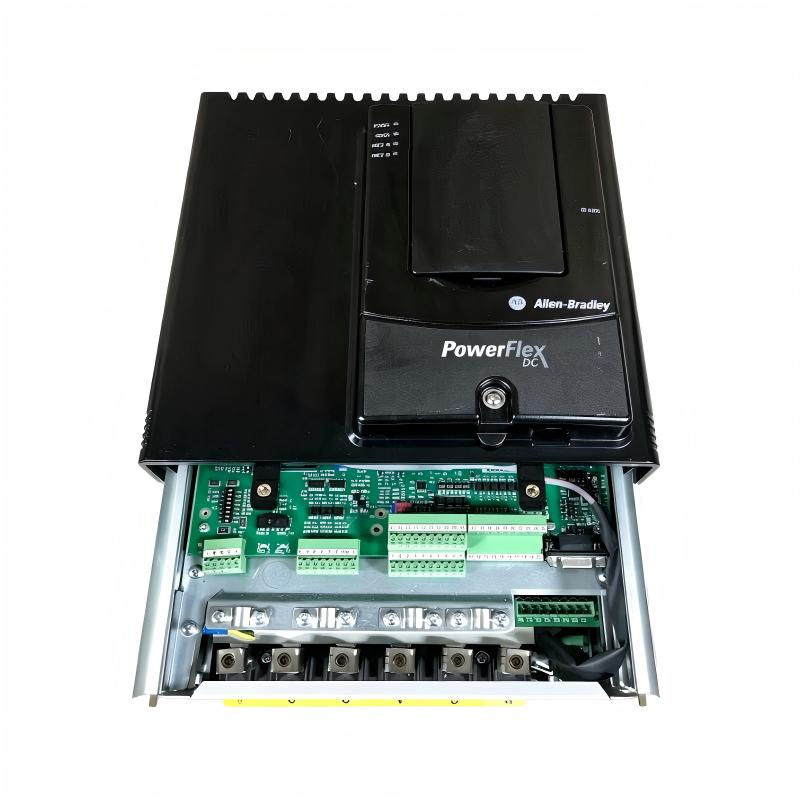

Allen Bradley 20P21AD100RA0NNN PowerFlex DC Drives
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Product Type | PowerFlex DC Drive |
| Model Number | 20P21AD100RA0NNN |
| Drive Series | PowerFlex DC Drives |
| Drive Type | Non-Regenerative DC Drive |
| Input Voltage | 380–480V AC |
| Input Phase | 3-phase |
| Input Frequency | 50/60 Hz |
| Rated Output Current | 100 A |
| Rated Motor Power | 60 HP / 45 kW |
| Motor Operation | Two-quadrant operation |
| Field Supply | Single-phase regulated |
| Enclosure Rating | IP20 |
| Enclosure Type | NEMA/UL Type Open |
| Protective Coating | Conformal coating |
| Human Interface Module (HIM) | Not included; blank plate |
| Communication Module | Not included as standard |
| Typical Applications | DC motor speed control, industrial machinery, production equipment, and process control systems |
| Dimensions | 359 × 267 × 287 mm |
| Weight | 12 kg |
FAQ
Q1: What is the main function of the Allen-Bradley 20P21AD100RA0NNN?
A: The 20P21AD100RA0NNN is a PowerFlex DC drive designed to regulate the speed and operation of compatible DC motors. It adjusts motor armature voltage and current to support controlled acceleration, deceleration, and stable operation in industrial applications.
Q2: What input power supply is required for this drive?
A: This model is designed for a three-phase AC input supply in the 380–480V range, typically at 50/60 Hz. The actual supply voltage and wiring configuration must match the drive nameplate and installation documentation.
Q3: What are the rated current and motor power of this model?
A: The drive has a rated output current of 100 A and a listed normal-duty motor rating of 60 HP, approximately 45 kW. Final selection should account for motor armature voltage, rated current, load profile, and operating duty.
Q4: Does the 20P21AD100RA0NNN support regenerative braking?
A: No. This is a non-regenerative, two-quadrant drive. If an application requires four-quadrant operation or regenerative energy feedback, a suitable regenerative drive configuration should be considered.
Q5: Does this model include an operator interface or communication module?
A: The standard configuration does not include a Human Interface Module (HIM) or a communication module. If local parameter access, remote monitoring, or network integration is required, confirm the compatible accessories before installation.
Q6: What should be checked if the drive does not start the motor?
A: Check the incoming AC supply, circuit protection, drive fault codes, start and enable signals, control wiring, and motor connections. Also verify that the motor and drive ratings are compatible and that the required operating parameters have been configured correctly.
Q7: Why might the drive trip during acceleration or under heavy load?
A: Potential causes include excessive load, unsuitable acceleration settings, motor or armature circuit problems, loose connections, or insufficient cooling. Review the fault history and operating conditions before adjusting parameters or replacing components.
Q8: What should be considered when replacing this PowerFlex DC drive?
A: Verify the complete catalog number, input voltage, rated output current, motor compatibility, non-regenerative operating mode, control wiring, and installed options. Before commissioning, check the parameter configuration, protective devices, grounding, and motor response under controlled operating conditions.
Allen Bradley 20P21AD100RA0NNN PowerFlex DC Drives is in stock. Please contact us for a quick quote and competitive pricing.
