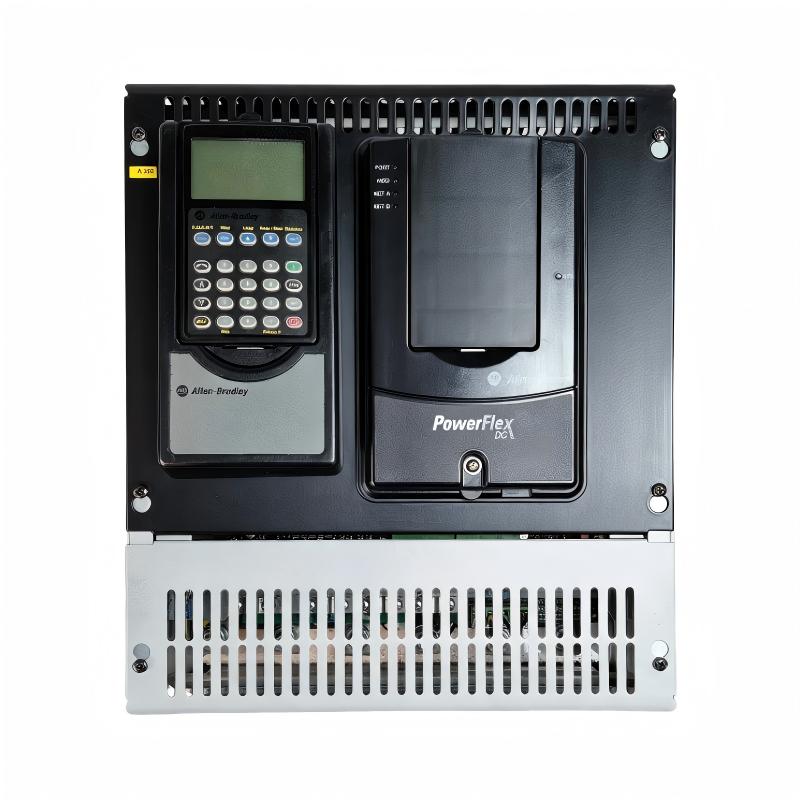

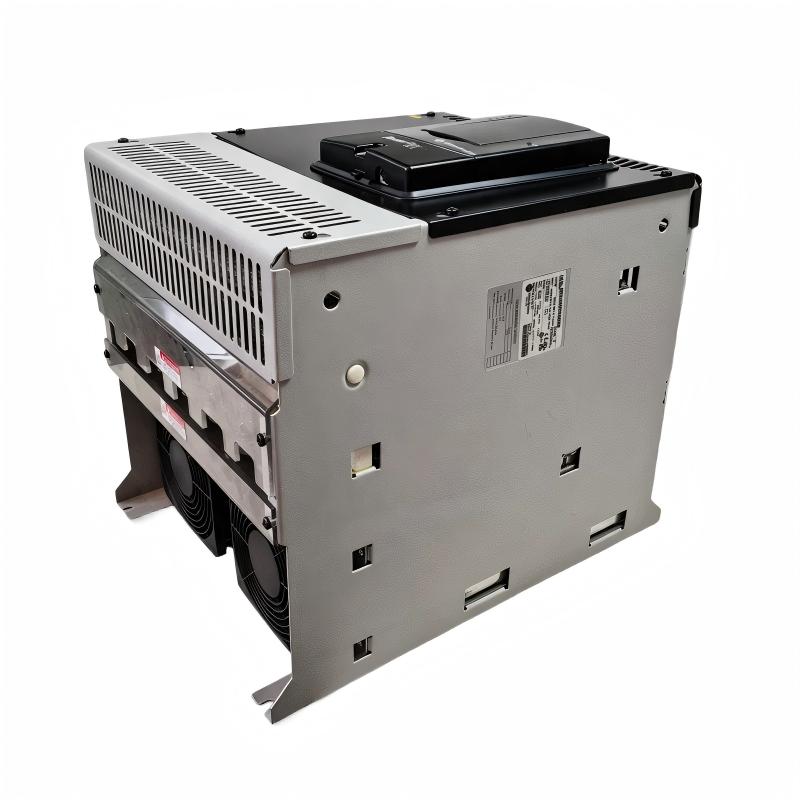

Allen Bradley 20P21AD207RA0NNN PowerFlex DC Drives
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Product Type | PowerFlex DC Drive |
| Model Number | 20P21AD207RA0NNN |
| Product Series | PowerFlex DC Drives |
| Drive Type | Non-Regenerative DC Drive |
| Input Voltage | 480V AC |
| Input Phase | 3-phase |
| Input Frequency | 50/60 Hz ±5% |
| Input Type | 6-pulse |
| Rated Output Current | 207 A |
| Rated Motor Power | 125 HP / 93 kW |
| Motor Operation | Two-quadrant operation |
| Frame Size | Frame B |
| Enclosure Rating | IP20 |
| Enclosure Type | NEMA/UL Type Open |
| Protective Coating | Conformal coating |
| Human Interface Module (HIM) | Not included; blank plate |
| Communication Module | Not included as standard |
| Typical Applications | DC motor speed control, conveyors, industrial machinery, and process equipment |
| Dimensions (W × H × D) | 311 × 388 × 350 mm |
| Weight | 25.5 kg |
FAQ
Q1: What is the main function of the Allen-Bradley 20P21AD207RA0NNN?
A: The 20P21AD207RA0NNN is a PowerFlex DC drive designed to regulate the speed and operation of compatible DC motors. It controls motor armature voltage and current to provide controlled acceleration, deceleration, and reliable operation in industrial systems.
Q2: What input power supply does this drive require?
A: This model is designed for a 480V three-phase AC input supply, with a typical frequency of 50/60 Hz. Confirm the supply voltage, wiring configuration, and installation requirements against the drive nameplate before energizing the equipment.
Q3: What are the rated output current and motor power?
A: The drive has a rated output current of 207 A and a listed normal-duty motor rating of 125 HP, approximately 93 kW. Motor selection should also account for armature voltage, field supply requirements, load characteristics, and operating duty.
Q4: Does the 20P21AD207RA0NNN support regenerative braking?
A: No. This model is a non-regenerative, two-quadrant DC drive. Applications that require regenerative energy feedback or four-quadrant operation need a suitable regenerative drive configuration.
Q5: Does this model include an operator interface or communication module?
A: The standard configuration does not include a Human Interface Module (HIM) or communication module. If local parameter adjustment, remote monitoring, or network integration is required, confirm compatible accessories and communication options before installation.
Q6: What should be checked if the drive fails to start the motor?
A: Check the incoming AC supply, circuit protection, drive fault codes, start and enable signals, control wiring, and motor connections. Verify that the motor ratings and drive parameters are compatible. Isolate power and follow electrical safety procedures before inspecting wiring.
Q7: Why might the drive trip during acceleration or heavy-load operation?
A: Possible causes include excessive mechanical load, unsuitable acceleration settings, motor or armature circuit faults, loose connections, or insufficient cooling. Review the fault history and operating conditions before adjusting parameters or replacing components.
Q8: What should be verified when replacing an existing 20P21AD207RA0NNN?
A: Confirm the full catalog number, input voltage, rated output current, motor compatibility, non-regenerative operating mode, control wiring, and installed options. Before commissioning, verify parameter settings, protective devices, grounding, and motor response under controlled operating conditions.
Allen Bradley 20P21AD207RA0NNN PowerFlex DC Drives is in stock. Please contact us for a quick quote and competitive pricing.
