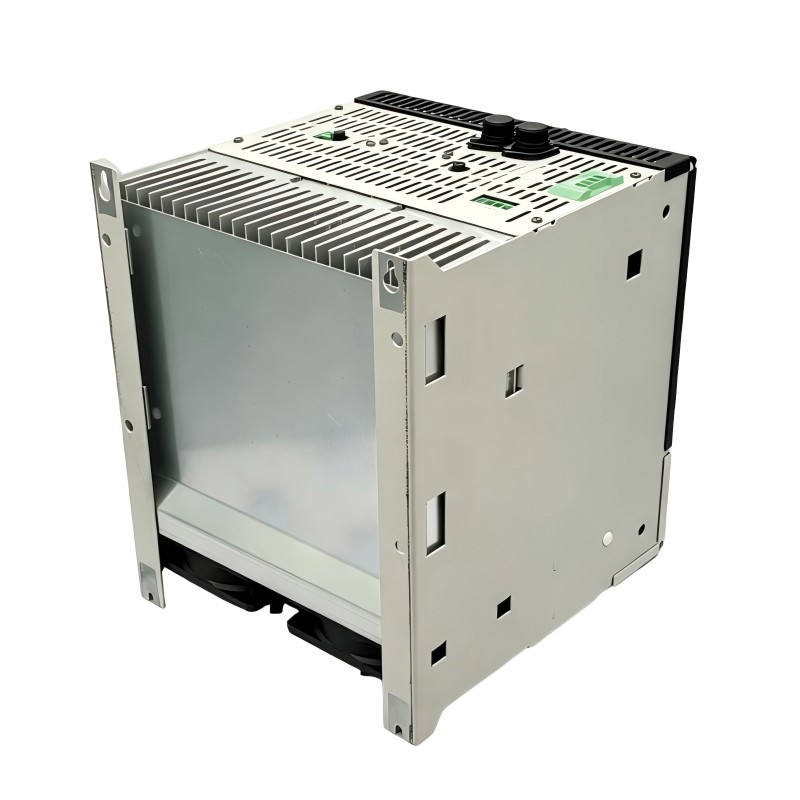

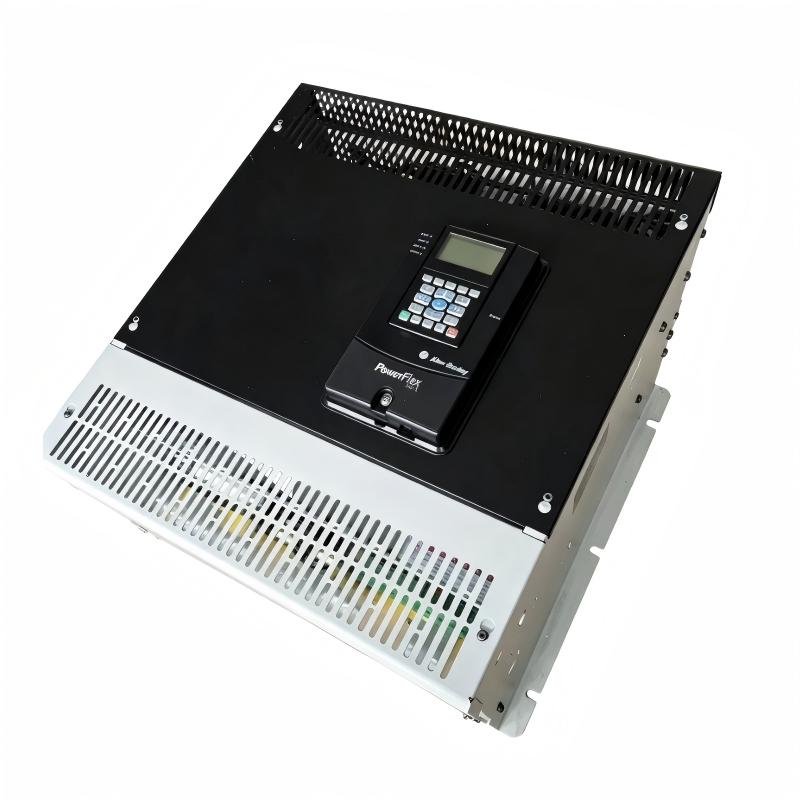

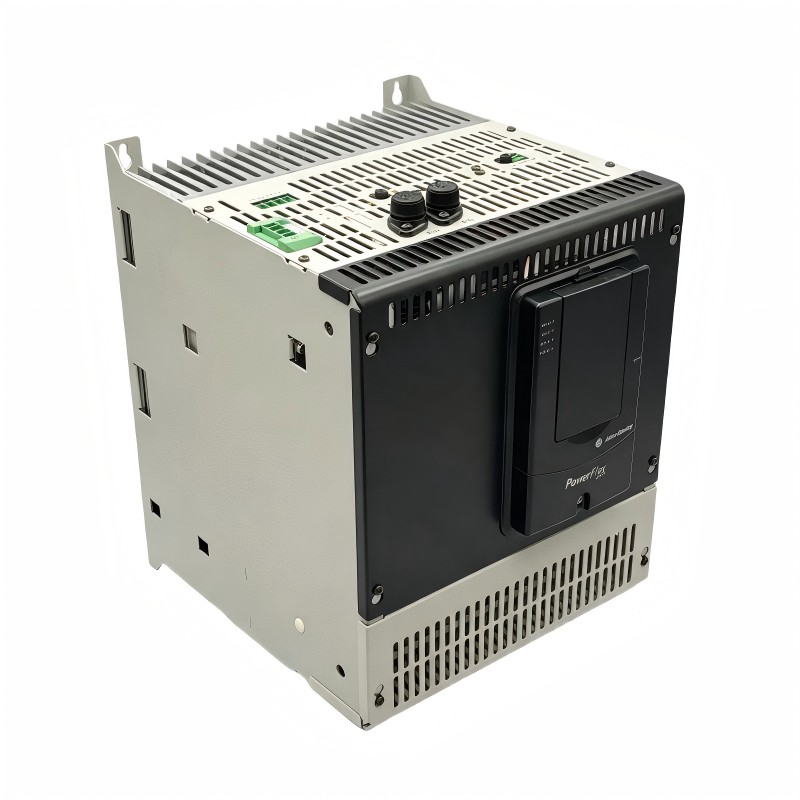

Allen Bradley 20P21AD667RA0NNN PowerFlex DC Drives
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Product Model | 20P21AD667RA0NNN |
| Product Series | PowerFlex DC Drives |
| Product Type | Digital DC Drive |
| Rated AC Input Voltage | 480 V AC |
| Input Phase | Three-phase |
| Input Type | 6-pulse rectifier |
| Rated DC Output Current | 667 A |
| Rated Motor Power | 400 HP / approximately 298 kW |
| Motor Operation | Two-quadrant, non-regenerative operation |
| Field Supply | Single-phase regulated |
| Enclosure Rating | IP20 |
| Enclosure Type | NEMA/UL Type Open |
| Protective Coating | Conformal coating |
| Human Interface Module (HIM) | Not included; blank plate installed |
| Communication Module | Not included |
| Control Method | Digital DC motor speed and torque control |
| Overload Capability | Depends on drive configuration and operating conditions; verify the applicable technical manual |
| Cooling Method | Forced-air cooling; confirm installation requirements in the product manual |
| Mounting Method | Industrial control cabinet installation |
| Dimensions | 521 × 511 × 416 mm |
| Weight | 62 kg |
| Typical Applications | Industrial DC motor speed control, production machinery, material handling, and heavy-duty process equipment |
FAQ
Q1: What is the main function of the Allen-Bradley 20P21AD667RA0NNN?
A: The Allen-Bradley 20P21AD667RA0NNN is a PowerFlex DC drive designed to control the speed and torque of compatible DC motors. It regulates the motor armature output according to the configured control requirements and is suitable for high-current industrial drive applications.
Q2: What are the input voltage and rated output current of this drive?
A: This model is designed for a 480 V AC, three-phase supply and has a rated DC output current of 667 A. The incoming supply, protective devices, cables, and motor ratings must be selected according to the manufacturer’s installation and application requirements.
Q3: What type of motor operation does this PowerFlex DC drive support?
A: The 20P21AD667RA0NNN supports two-quadrant, non-regenerative operation. It can control motor operation in the supported motoring and braking regions, but it does not provide the same regenerative power-return capability as a regenerative drive. Applications requiring energy feedback to the AC supply need a suitable regenerative solution.
Q4: Is a Human Interface Module included with this model?
A: No. This catalog configuration is supplied without a Human Interface Module (HIM) and has a blank plate installed. Setup, parameter adjustment, and diagnostics may require compatible configuration tools or optional interface equipment.
Q5: Does the 20P21AD667RA0NNN include a communication module?
A: No communication module is included in this configuration. If the drive must communicate with a PLC, DCS, or plant monitoring system, check the available communication options and confirm compatibility with the required industrial network before selecting additional hardware.
Q6: What should be checked if the DC motor fails to start?
A: Begin by checking the three-phase AC supply, incoming protection devices, emergency-stop circuit, enable signals, and drive fault history. Confirm that the motor and field circuits are correctly connected and that the start command and speed reference reach the drive. Do not repeatedly reset the drive without identifying the cause of the fault.
Q7: How can unstable motor speed or excessive current be diagnosed?
A: Check the motor nameplate data and drive parameter settings first. Inspect the armature and field wiring, feedback device if fitted, load conditions, and speed-reference signal. Compare actual current and speed feedback with the commanded values, and review diagnostic codes to determine whether the problem is related to the motor, mechanical load, feedback circuit, or drive configuration.
Q8: What precautions are necessary when installing or replacing this drive?
A: Verify the complete catalog number, supply voltage, motor current rating, cabinet ventilation, grounding, and required protective devices before installation. The drive must be installed by qualified personnel following the manufacturer’s electrical safety procedures. Before maintenance, isolate all power sources and allow the specified discharge time for the DC bus. After replacement, verify parameter settings, motor field configuration, control wiring, and protective functions before returning the equipment to service.
Allen Bradley 20P21AD667RA0NNN PowerFlex DC Drives is in stock. Please contact us for a quick quote and competitive pricing.
