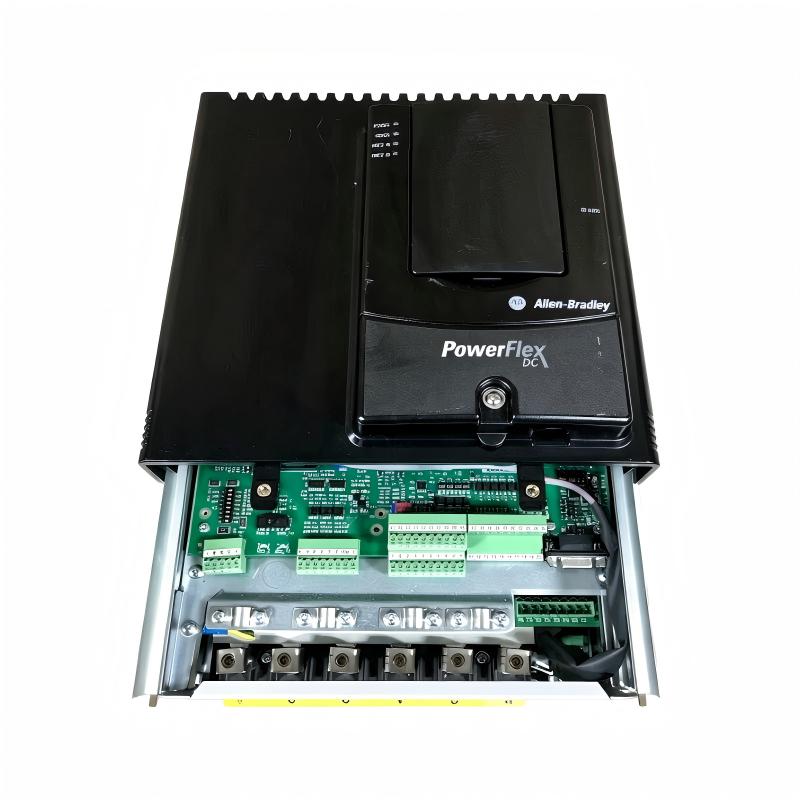

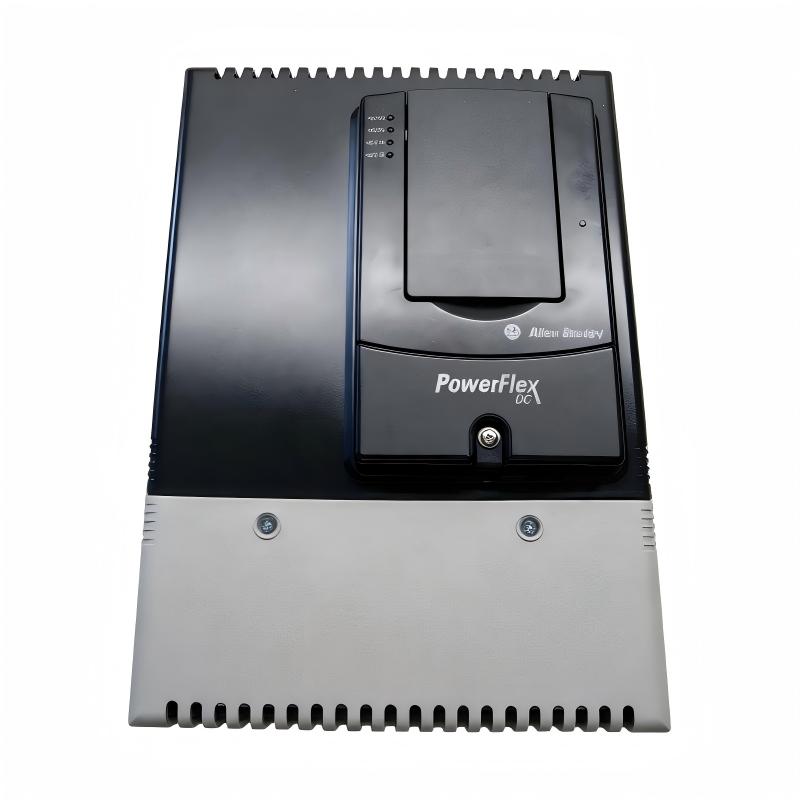

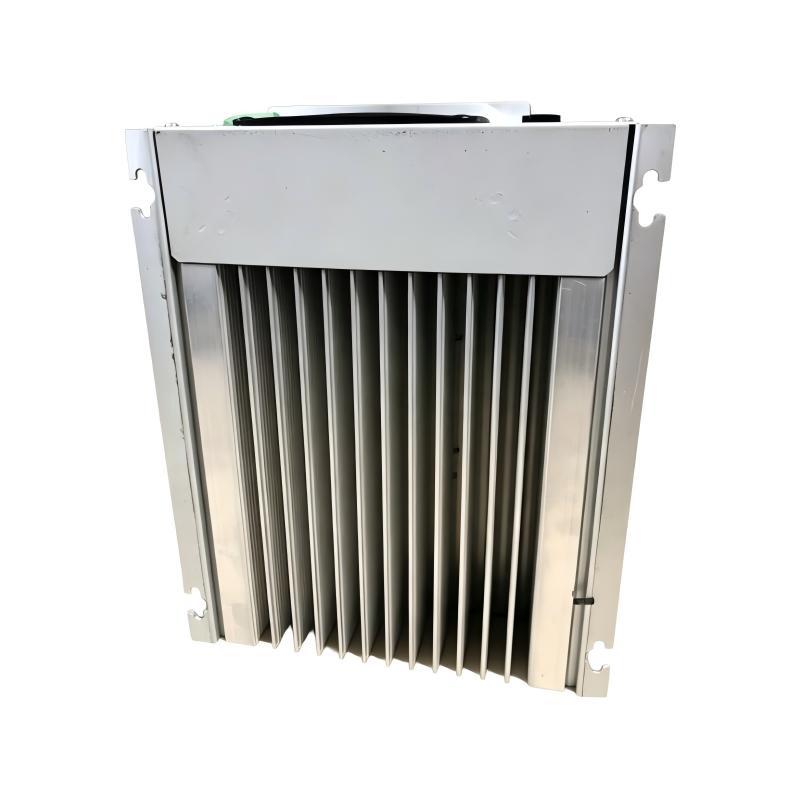

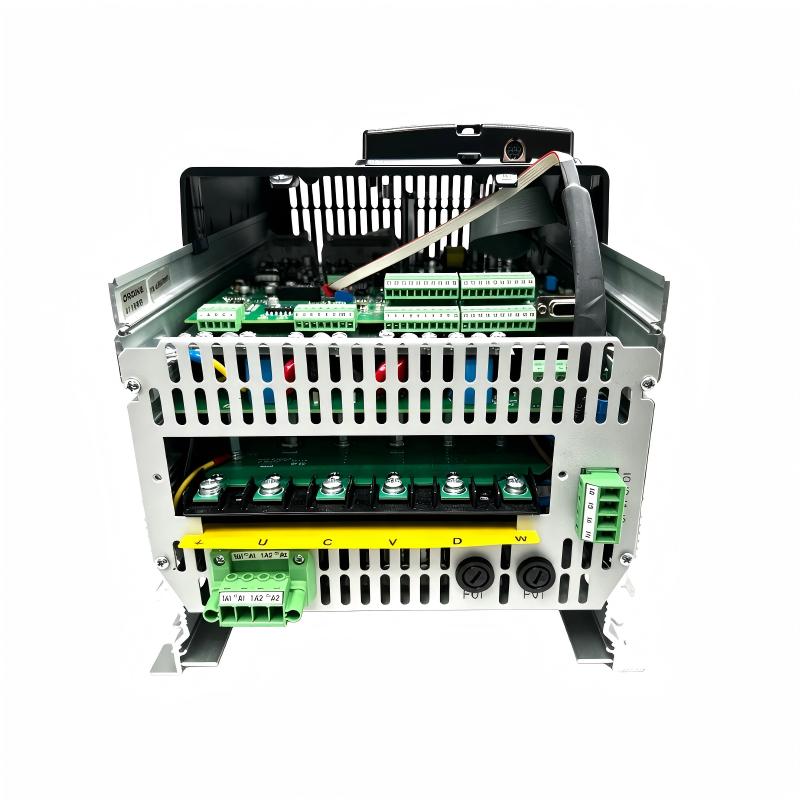

Allen Bradley 20P21AD6P0RA0NNN PowerFlex DC Drives
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Product Model | 20P21AD6P0RA0NNN |
| Product Series | PowerFlex DC Drives |
| Product Type | Digital DC Drive |
| Rated AC Input Voltage | 480 V AC |
| Input Phase | Three-phase |
| Input Rectifier Type | 6-pulse |
| Rated DC Output Current | 6 A |
| Rated Motor Power | 3 HP / 2.2 kW |
| Drive Operation | Non-regenerative |
| Frame Size | Frame A |
| Enclosure Rating | IP20 |
| Enclosure Type | NEMA/UL Type Open |
| Circuit Board Protection | Conformal coating |
| Human Interface Module (HIM) | Not included; blank plate installed |
| Communication Module | Not included |
| User Manual | Included in the specified product configuration |
| Control Function | DC motor speed and torque control |
| Mounting | Industrial control cabinet installation |
| Dimensions | 359 × 267 × 287 mm |
| Weight | 11 kg |
| Typical Applications | Small industrial DC motors, production machinery, material handling, and process control equipment |
FAQ
Q1: What is the main function of the Allen-Bradley 20P21AD6P0RA0NNN?
A: The Allen-Bradley 20P21AD6P0RA0NNN is a PowerFlex DC drive designed to regulate the speed and torque of compatible DC motors. It adjusts the motor’s armature power according to the configured control commands, making it suitable for industrial machinery that requires controlled motor operation.
Q2: What are the input voltage and rated output current of this drive?
A: This model is designed for a three-phase 480 V AC supply and has a rated DC output current of 6 A. The supply circuit, protective devices, and motor must be selected to match the drive’s electrical ratings and the application’s requirements.
Q3: What motor power is supported by the 20P21AD6P0RA0NNN?
A: The drive is rated for 3 HP, approximately 2.2 kW, under the specified operating conditions. Before installation, verify the motor nameplate data, armature voltage, rated current, and field requirements to ensure compatibility.
Q4: Does this model support regenerative braking?
A: No. The 20P21AD6P0RA0NNN is a non-regenerative drive. It supports DC motor speed control but does not return braking energy to the AC supply in the same way as a regenerative model. Applications that require regenerative operation should use a suitably rated regenerative drive.
Q5: Is a Human Interface Module included with this drive?
A: No. This catalog configuration does not include a Human Interface Module (HIM) and is supplied with a blank plate. Parameter configuration and troubleshooting may require compatible programming tools or optional interface equipment.
Q6: Can this drive communicate directly with a PLC or DCS?
A: The specified configuration does not include a communication module. Integration with a PLC or DCS depends on the available drive control I/O, the required communication protocol, and compatible optional hardware. Confirm the interface requirements before designing the control system.
Q7: What should be checked if the motor does not start or the drive reports a fault?
A: Check the three-phase supply, input protection, enable and start signals, emergency-stop circuit, and fault history. Verify the motor wiring, field circuit, and parameter settings. If a fault remains active, identify its cause before resetting the drive rather than repeatedly restarting the equipment.
Q8: What precautions should be taken when installing or replacing this drive?
A: Verify the complete catalog number, supply voltage, motor current and power ratings, enclosure requirements, and cabinet ventilation. Installation and maintenance should be performed by qualified personnel. Isolate the power supply and follow the manufacturer’s specified DC bus discharge procedure before working on the equipment. After installation, verify parameter settings, motor connections, control signals, and protective functions before returning the system to service.
Allen Bradley 20P21AD6P0RA0NNN PowerFlex DC Drives is in stock. Please contact us for a quick quote and competitive pricing.
