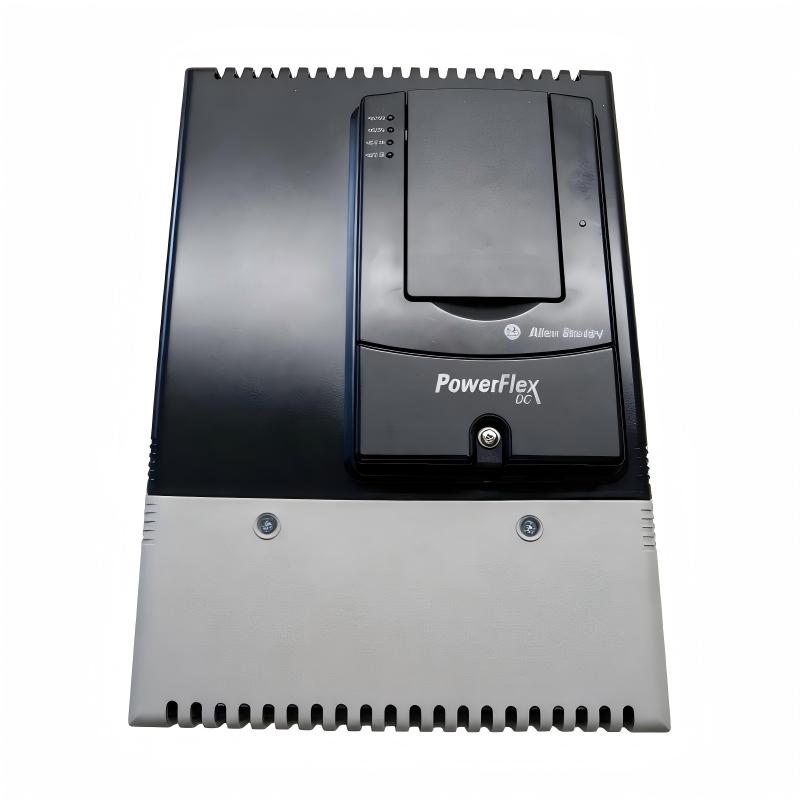

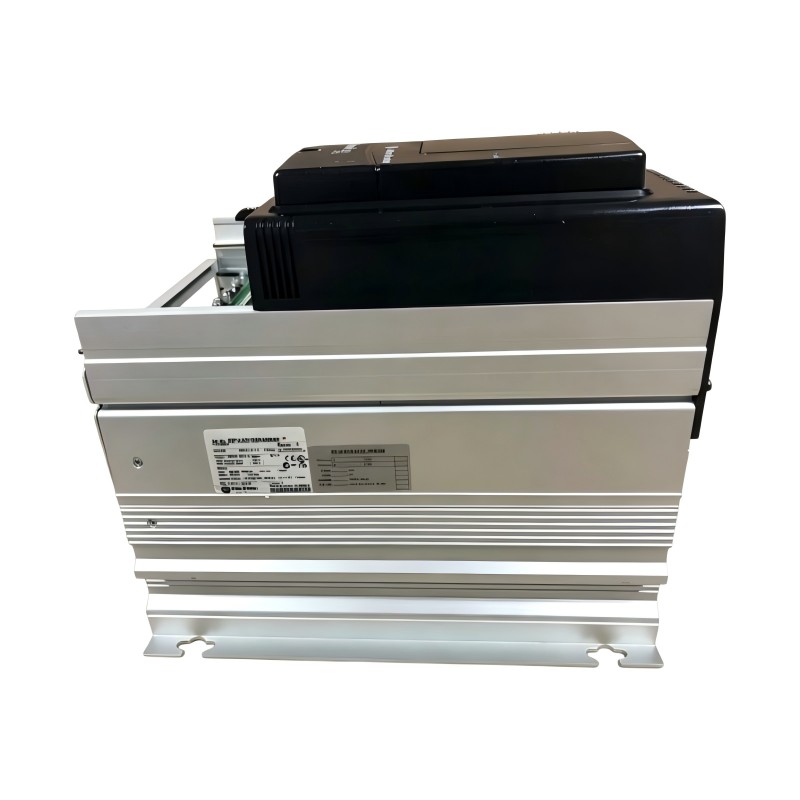

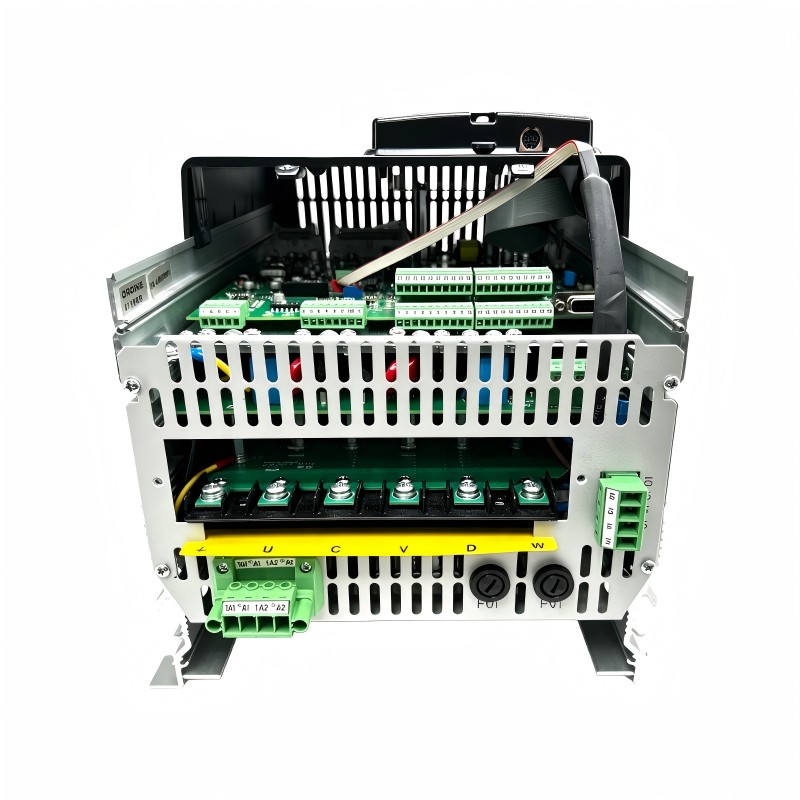

Allen Bradley 20P41AB093RA0NNN PowerFlex DC Drives
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Product Model | 20P41AB093RA0NNN |
| Product Series | PowerFlex DC Drives |
| Product Type | Regenerative Digital DC Drive |
| Rated Input Voltage | 240 V AC (208 V AC supply designation) |
| Input Phase | Three-phase |
| Input Type | 6-pulse rectifier |
| Rated DC Output Current | 93 A |
| Rated Motor Power | 25 HP / 18.5 kW |
| Motor Operation | Four-quadrant regenerative operation |
| Frame Size | Frame A |
| Field Supply | Single-phase regulated |
| Enclosure Rating | IP20 |
| Enclosure Type | NEMA/UL Type Open |
| Circuit Board Protection | Conformal coating |
| Human Interface Module (HIM) | Not included; blank plate installed |
| Communication Module | Not included |
| Standard I/O | 8 digital inputs, 4 digital outputs, 3 analog inputs, 2 analog outputs |
| Overload Capability | 150% for 60 seconds; 200% for 3 seconds, under specified conditions |
| Control Function | DC motor speed and torque control |
| Dimensions | 359 × 267 × 287 mm |
| Weight | 12 kg |
FAQ
Q1: What is the main function of the Allen-Bradley 20P41AB093RA0NNN?
A: The Allen-Bradley 20P41AB093RA0NNN is a PowerFlex DC drive designed to regulate the speed and torque of compatible DC motors. Its regenerative capability supports controlled acceleration, deceleration, and energy feedback during braking. It is suitable for industrial machinery that requires frequent speed changes, reversing, or controlled stopping.
Q2: What are the input voltage and rated output current of this drive?
A: This model is designed for a three-phase AC supply in the 208–240 V class and has a rated DC output current of 93 A. Before commissioning, verify the actual supply voltage, motor armature ratings, field requirements, and protective device selection against the drive nameplate and installation documentation.
Q3: What motor power is supported by the 20P41AB093RA0NNN?
A: The drive is rated for a 25 HP motor, equivalent to approximately 18.5 kW, under specified operating conditions. Check the motor’s armature voltage, rated current, field current, and duty cycle before installation. The drive must be matched to the motor’s electrical ratings and the application’s load requirements.
Q4: How does four-quadrant regenerative operation work?
A: Four-quadrant operation allows the drive to control forward and reverse rotation, as well as motoring and regenerative braking. During regenerative braking, energy generated by the motor can be returned to the AC supply. This is useful for applications involving frequent deceleration, reversing, or overhauling loads, provided the power system supports regenerative operation.
Q5: Does this model include a Human Interface Module or communication module?
A: No. This configuration is supplied without a Human Interface Module (HIM) and without a communication module. Parameter setup and diagnostics may require compatible programming tools or optional interface equipment. PLC or DCS integration depends on the available I/O, communication hardware, and control system architecture.
Q6: What should be checked if the motor fails to start?
A: Check the three-phase input supply, upstream circuit protection, drive enable and start commands, emergency-stop circuit, and active fault codes. Inspect the motor armature and field wiring, feedback signals where applicable, and drive parameter settings. Correct the underlying problem before resetting the drive or attempting another start.
Q7: How can overcurrent faults or unstable motor speed be diagnosed?
A: Start by verifying the motor nameplate data and drive configuration. Inspect the armature circuit, field supply, speed feedback device, mechanical load, and speed reference signal. Compare the commanded speed with actual feedback and review the fault history. If the problem occurs during acceleration or deceleration, check the ramp settings and load characteristics.
Q8: What precautions are required when installing or replacing this drive?
A: Confirm the complete catalog number, supply voltage, motor ratings, grounding, overcurrent protection, and cabinet ventilation. Installation and maintenance must be performed by qualified personnel. Isolate all power sources and follow the manufacturer’s DC bus discharge procedure before working on the equipment. After installation, verify the wiring and parameter settings, then test motor control and regenerative braking under controlled conditions before returning the system to service.
Allen Bradley 20P41AB093RA0NNN PowerFlex DC Drives is in stock. Please contact us for a quick quote and competitive pricing.
