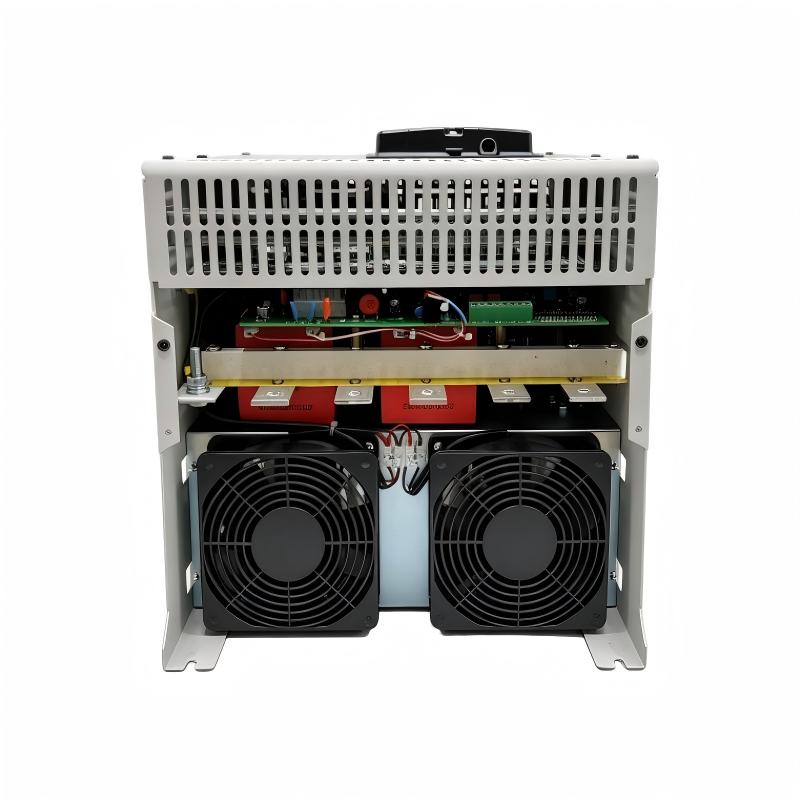

1. What is the primary function of the Allen-Bradley 20P41AB146RA0NNN PowerFlex DC Drive?

The 20P41AB146RA0NNN is a regenerative DC drive designed to control DC motor speed, torque, acceleration, and deceleration. It is rated for 146 A output current and a normal-duty motor rating of 40 HP (30 kW). It is suitable for industrial machinery that requires controlled motor operation and the ability to return braking energy to the electrical supply under appropriate operating conditions.

2. What does four-quadrant regenerative operation mean?

Four-quadrant operation allows the drive to control motor torque and rotation in both directions, including motoring and regenerative braking. During deceleration or an overhauling load condition, the motor can operate as a generator, allowing energy to flow back toward the AC supply through the regenerative drive system. Correct configuration and system design are essential to achieve the intended braking performance.

3. What electrical supply is required for this drive?

This model is designed for a three-phase AC input in the 240 V class, with the catalog description specifying 240 V AC and a 208 V variant. Confirm the actual supply requirements from the drive nameplate and the applicable installation documentation before connecting power. Supply protection, conductor sizing, grounding, and disconnect arrangements must comply with the manufacturer’s instructions and local electrical regulations.

4. How should the motor be matched to the 20P41AB146RA0NNN?

Motor selection should consider rated armature voltage, armature current, field requirements, rated speed, torque, and the application’s overload profile. The drive’s 146 A output-current rating and 40 HP normal-duty rating provide important selection references, but they do not replace verification of the motor nameplate. Configure the drive’s current limits and motor parameters according to the motor manufacturer’s specifications.

5. Does this model include a built-in operator interface or communication module?

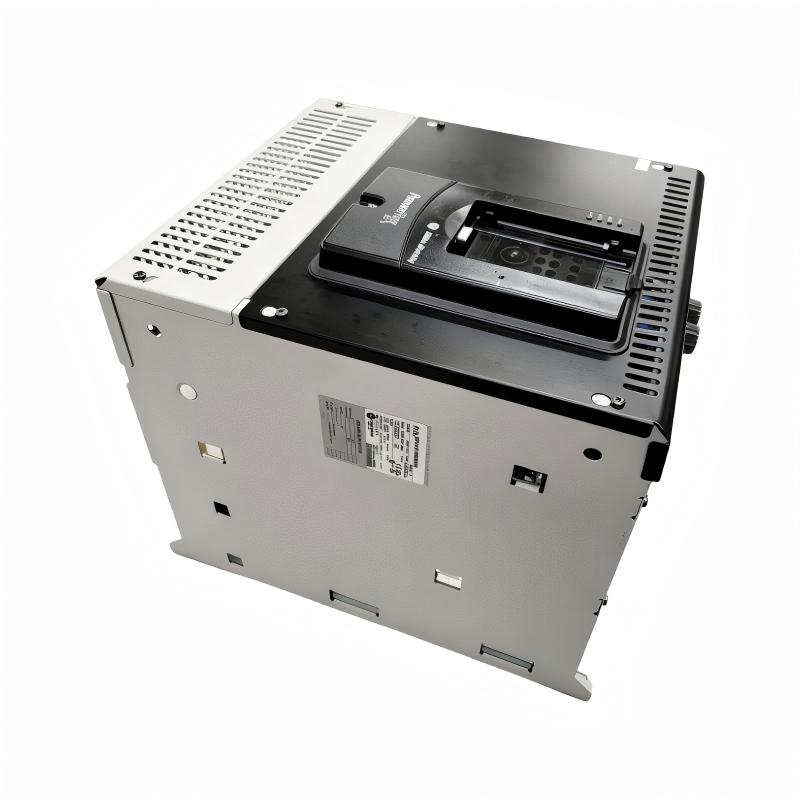

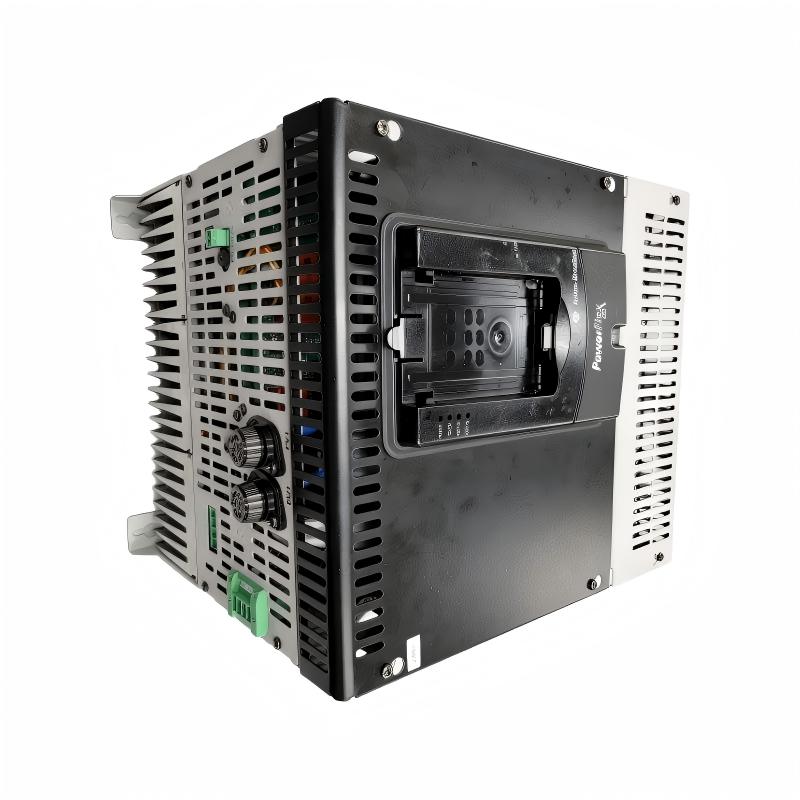

This catalog configuration is supplied without a Human Interface Module (HIM) and without a communication module. A blank cover is provided instead of the HIM. Local operation, parameter adjustment, or network integration may therefore require compatible optional hardware or an appropriate engineering setup. Verify option compatibility before purchasing accessories or planning a control-system connection.

6. What is the purpose of the conformal coating and IP20 enclosure?

The conformal coating provides additional protection for electronic components against certain environmental contaminants. The IP20 enclosure offers protection against access to hazardous parts with fingers and against solid objects of the specified size, but it does not provide water protection. The drive should be installed in a suitable electrical enclosure when required by the environment, with adequate ventilation and protection against moisture and conductive contamination.

7. What should be checked if the drive trips during acceleration or deceleration?

First, record the fault code and review the drive’s diagnostic information. Check motor current, acceleration and deceleration settings, current limits, load conditions, and the motor’s field supply. For regenerative applications, also verify the AC supply condition and the regenerative system configuration. Do not repeatedly reset the drive without identifying the cause, as recurring trips may indicate a motor, wiring, configuration, or power-system problem.

8. What maintenance practices help keep this PowerFlex DC Drive operating reliably?

Follow the manufacturer’s maintenance schedule and site safety procedures. Before inspection, isolate the supply, apply lockout/tagout, and verify that hazardous voltage has been discharged in accordance with the manual. Inspect electrical connections, grounding, cooling paths, and signs of dust buildup, overheating, or component deterioration. Keep a record of fault history and parameter changes, and back up the configuration before carrying out maintenance or replacing the drive.
