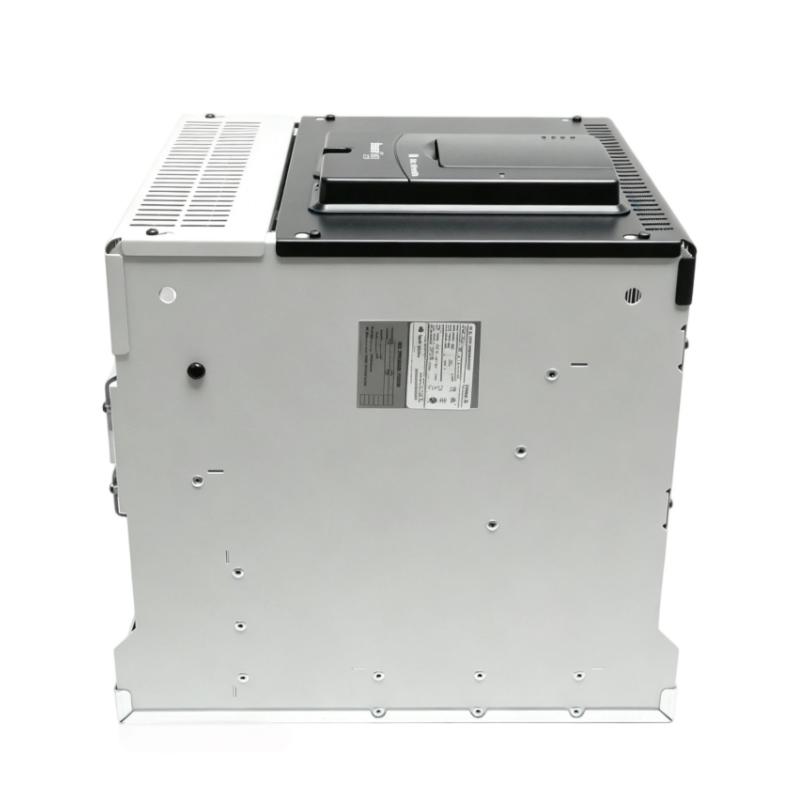

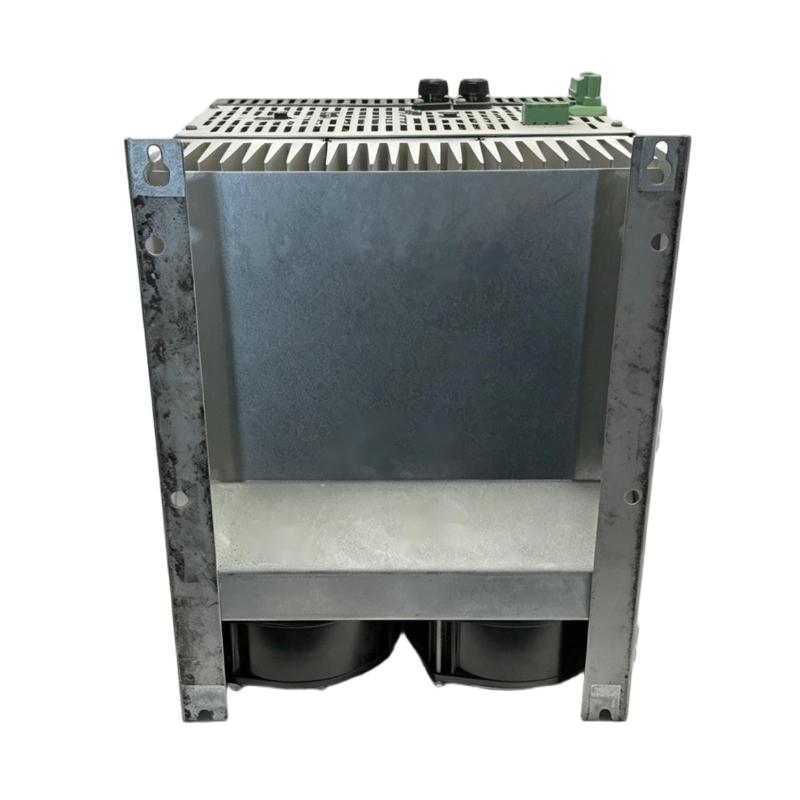

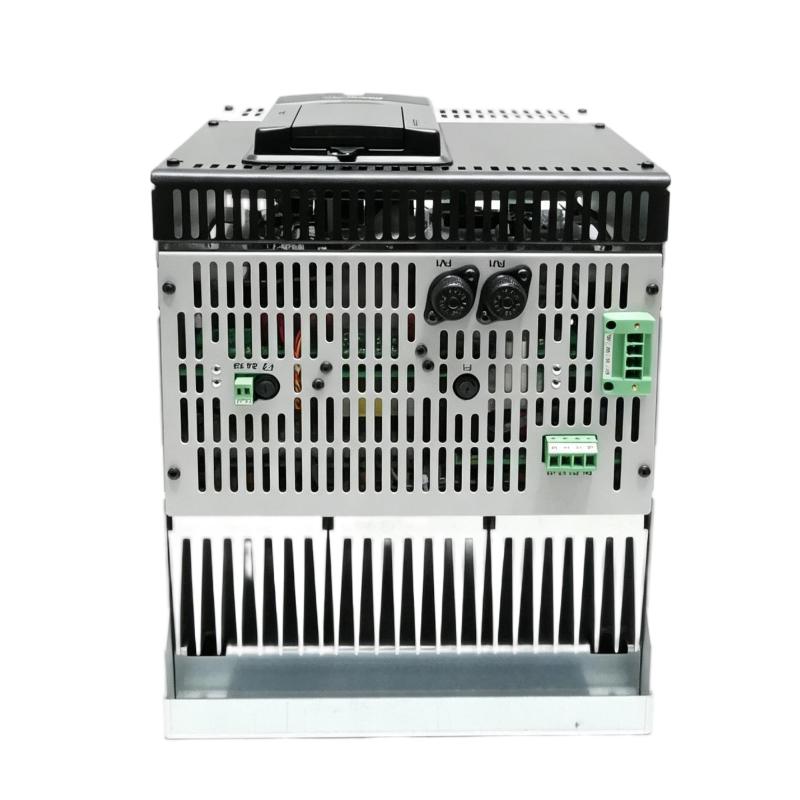

Allen Bradley 20P41AB360RA0NNN PowerFlex DC Drives
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model Number | 20P41AB360RA0NNN |
| Product Series | PowerFlex DC Drives |
| Product Type | Regenerative DC Drive |
| Rated Motor Power | 75 kW / 100 HP |
| Nominal AC Voltage | 230 V AC |
| AC Input Voltage Range | 200–240 V AC |
| Input Phase | Three-phase |
| Input Rectification | Six-pulse |
| Rated DC Output Current | 360 A |
| Motor Operation | Four-quadrant regenerative operation |
| Frame Size | Frame B |
| Field Supply | Single-phase regulated field supply |
| Enclosure Rating | IP20 |
| Enclosure Type | NEMA/UL Type Open |
| Conformal Coating | Yes |
| Human Interface Module (HIM) | Not included; blank plate supplied |
| Communication Module | Not included |
| Overload Capacity | 150% for 60 seconds; 200% for 3 seconds |
| Cooling and Installation | Install in a suitable industrial control cabinet with adequate ventilation |
| Dimensions | 311 × 388 × 350 mm |
| Weight | 32 kg |
| Product Lifecycle | Scheduled for discontinuation on April 15, 2027 |
FAQ
1. What is the primary function of the Allen-Bradley 20P41AB360RA0NNN?
The 20P41AB360RA0NNN is a PowerFlex DC regenerative drive designed to regulate DC motor speed, torque, and current. It is suitable for industrial machinery requiring controlled motor operation and regenerative braking.
2. What power supply does the 20P41AB360RA0NNN require?
The drive is designed for a three-phase AC supply in the 200–240 V range, with a nominal voltage class of 230 V AC. Confirm the actual supply conditions and installation requirements before commissioning.
3. What does four-quadrant regenerative operation mean?
Four-quadrant operation allows the drive to control forward and reverse motoring as well as braking in both directions. During regenerative braking, energy can be returned to the electrical supply, subject to the system configuration.
4. What is the rated output current of this DC drive?
The rated DC output current is 360 A. Motor compatibility should be evaluated using the motor’s armature current, voltage, field requirements, duty cycle, and operating conditions.
5. Does the 20P41AB360RA0NNN include a Human Interface Module or communication module?
No. This catalog configuration is supplied without a Human Interface Module and without a communication module. A blank plate is fitted in place of the HIM, so the required programming and communication arrangements should be planned separately.
6. What installation conditions are required?
The drive has an IP20, NEMA/UL open-type enclosure and is intended for installation in an appropriate control cabinet. Provide suitable ventilation, grounding, electrical protection, cable clearance, and access for maintenance.
7. What should be checked if the drive trips during operation?
Check the fault code and event history first. Then inspect the incoming supply, motor and armature wiring, load conditions, field circuit, feedback signals, and control connections. Isolate power and follow the applicable safety procedures before inspecting electrical components.
8. What maintenance is recommended for the 20P41AB360RA0NNN?
Inspect electrical connections, ventilation paths, cooling conditions, and signs of overheating or contamination at scheduled intervals. Verify protective devices and operating parameters, and replace components only with compatible parts. Follow the manufacturer’s maintenance documentation and site safety procedures.
Allen Bradley 20P41AB360RA0NNN PowerFlex DC Drives is in stock. Please contact us for a quick quote and competitive pricing.
