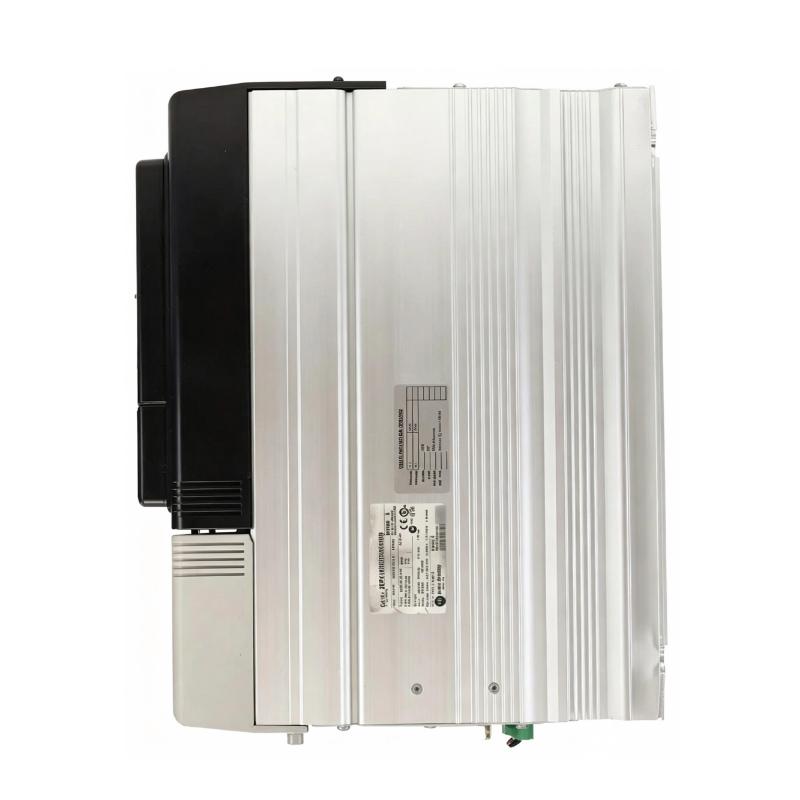

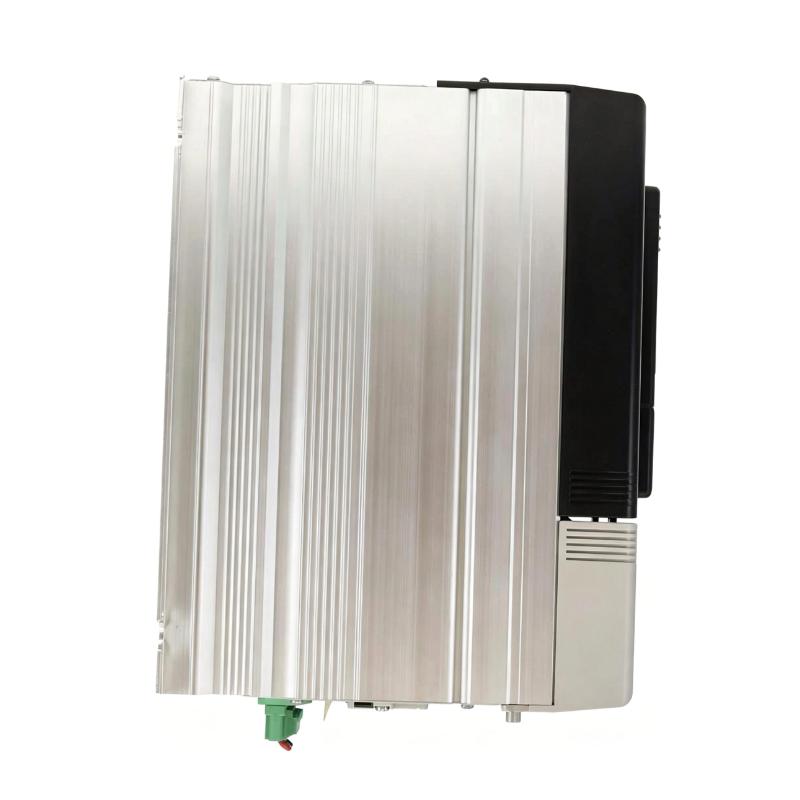

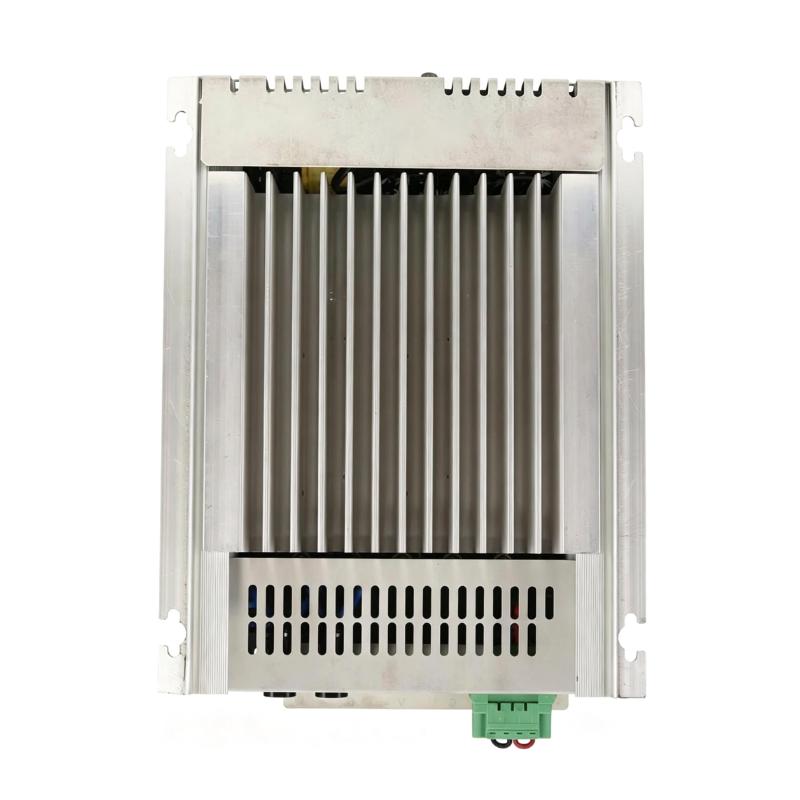

Allen Bradley 20P41AB9P0RA0NNN PowerFlex DC Drives
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model Number | 20P41AB9P0RA0NNN |
| Product Series | PowerFlex DC Drives |
| Product Type | Regenerative DC Drive |
| Rated Motor Power | 1.5 kW / 2 HP |
| Nominal AC Input Voltage | 230 V AC |
| AC Input Voltage Range | 200–240 V AC |
| Input Phase | Three-phase |
| Rated DC Output Current | 9 A |
| Motor Operation | Four-quadrant regenerative operation |
| Frame Size | Frame A |
| Enclosure Rating | IP20 |
| Enclosure Type | NEMA/UL Type Open |
| Conformal Coating | Yes |
| Human Interface Module (HIM) | Not included; blank plate supplied |
| Communication Module | Not included |
| Overload Capacity | 150% for 60 seconds; 200% for 3 seconds |
| Cooling and Installation | Install in a suitable industrial control cabinet with adequate ventilation |
| Dimensions | 359 × 267 × 287 mm |
| Weight | 11 kg |
| Product Lifecycle | Scheduled for discontinuation on April 15, 2027 |
FAQ
1. What is the main function of the Allen-Bradley 20P41AB9P0RA0NNN?
The 20P41AB9P0RA0NNN is a regenerative DC drive designed to control DC motor speed, torque, and direction. It is suitable for industrial applications requiring precise speed regulation, reversing, and regenerative braking.
2. What power supply does this PowerFlex DC drive require?
This model is designed for a three-phase AC supply in the 200–240 V range, with a nominal voltage class of 230 V AC. Verify the available supply voltage and electrical protection requirements before commissioning.
3. What are the rated output current and motor power?
The drive has a rated DC output current of 9 A and a motor power rating of 2 HP, approximately 1.5 kW. Motor selection should also account for armature voltage, field requirements, duty cycle, and load characteristics.
4. What is the benefit of four-quadrant regenerative operation?
Four-quadrant operation supports forward and reverse motoring, as well as braking in both directions. When the electrical system is configured for regeneration, braking energy can be returned to the supply instead of being dissipated entirely as heat.
5. Does the 20P41AB9P0RA0NNN include a Human Interface Module or communication module?
No. This configuration is supplied without a Human Interface Module (HIM) and without a communication module. A blank plate is fitted in place of the HIM. Any required operator interface or network communication hardware must be selected separately.
6. What installation conditions are required for reliable operation?
The drive has an IP20, NEMA/UL open-type enclosure and is intended for installation inside a suitable industrial control cabinet. Ensure adequate ventilation, reliable grounding, appropriate electrical protection, and sufficient clearance for wiring and maintenance.
7. What should be checked if the drive trips or the motor fails to start?
Check the fault code and event history first. Then inspect the incoming AC supply, motor armature circuit, field circuit, control wiring, feedback signals, and mechanical load. Disconnect power and follow the applicable safety procedures before inspecting electrical components.
8. What maintenance is recommended for the PowerFlex DC drive?
Regularly inspect electrical connections, ventilation paths, and signs of overheating, dust accumulation, or component deterioration. Check protective devices and operating parameters, and replace components only with compatible parts. Follow the manufacturer’s technical documentation and the site’s maintenance schedule.
Allen Bradley 20P41AB9P0RA0NNN PowerFlex DC Drives is in stock. Please contact us for a quick quote and competitive pricing.
