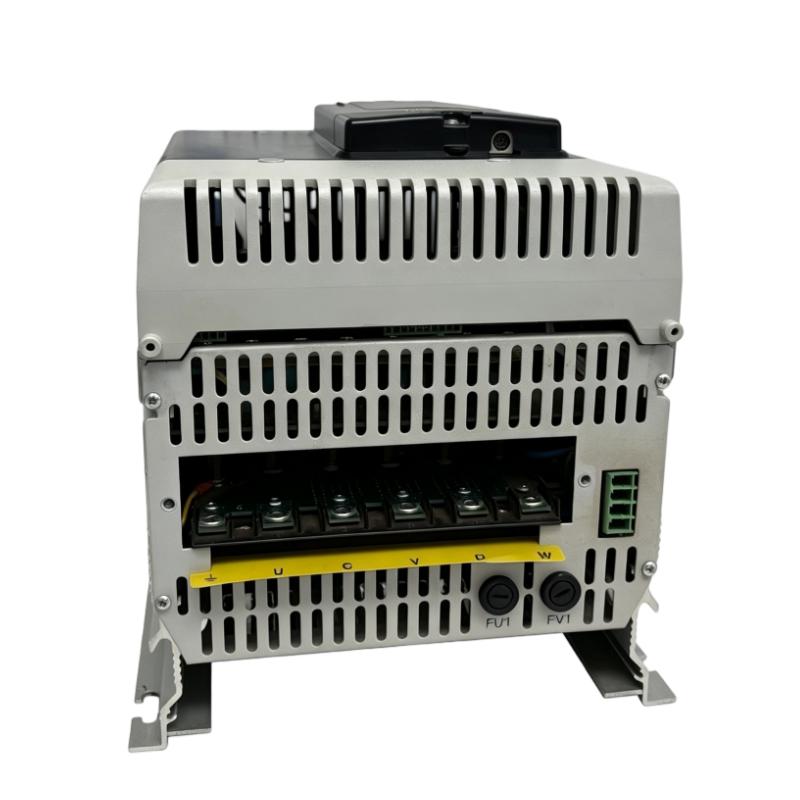

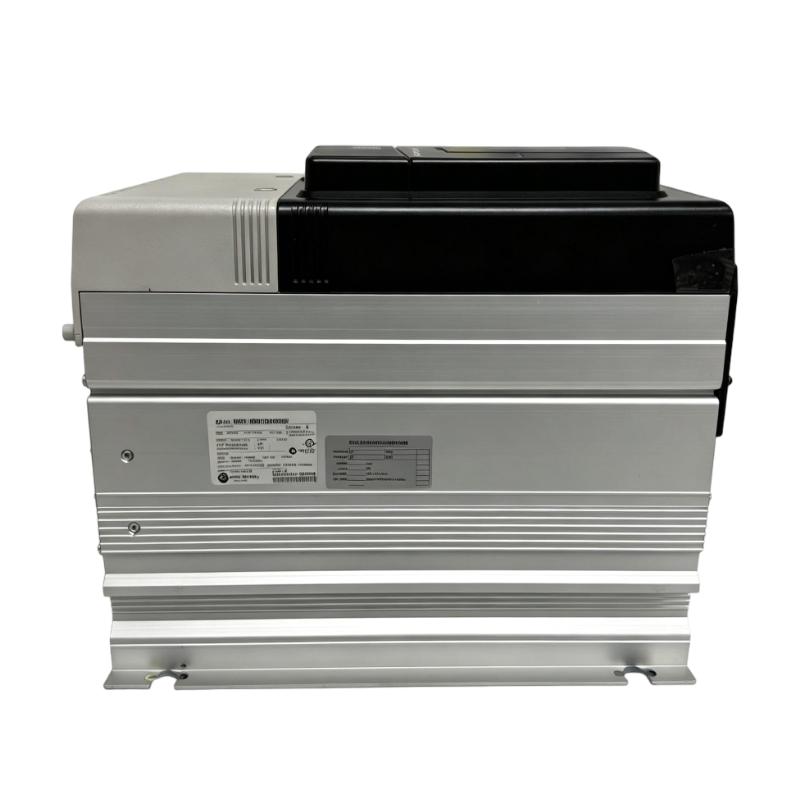

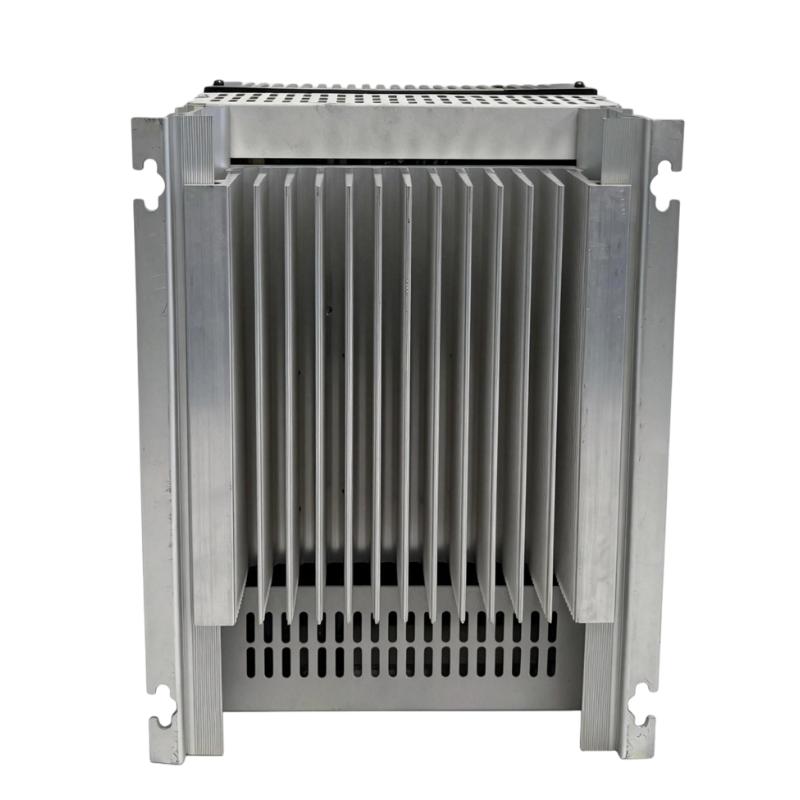

Allen Bradley 20P41AD027RA0NNN PowerFlex DC Drives
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | 20P41AD027RA0NNN |
| Product Type | PowerFlex DC Drive |
| Product Series | PowerFlex DC, 20P Series |
| Rated AC Input Voltage | 480 V AC |
| Nominal Input Voltage | 460 V AC |
| Input Phase | 3-phase |
| Input Configuration | 6-pulse |
| Rated Armature Output Current | 27 A |
| Rated Motor Power | 15 HP / 11 kW |
| Drive Configuration | Regenerative |
| Operating Mode | Four-quadrant operation |
| Field Supply | Regulated field supply |
| Feedback Capability | DC tachometer and encoder |
| Enclosure Rating | IP20 |
| Enclosure Type | NEMA/UL Type Open |
| Frame Size | A |
| Conformal Coating | Yes |
| Human Interface Module (HIM) | Not included; blank plate supplied |
| Communication Module | Not included |
| Cooling | Forced-air cooling |
| Installation | Industrial control cabinet |
| Dimensions | 359 × 267 × 287 mm |
| Weight | 11 kg |
FAQ
1. What is the Allen-Bradley 20P41AD027RA0NNN used for?
The 20P41AD027RA0NNN is a PowerFlex DC drive designed to control DC motor speed and torque. It is suitable for industrial machinery requiring precise speed regulation, controlled acceleration and deceleration, reversing, or regenerative braking. Typical applications include conveyors, printing equipment, winders, and material-processing systems.
2. What are the input power requirements for this drive?
The drive is designed for a 480 V AC three-phase supply, with a nominal voltage rating of 460 V AC. It uses a six-pulse input configuration. Before installation, verify the supply voltage, grounding, protective devices, and wiring requirements against the manufacturer’s installation documentation.
3. What motor power and current does this model support?
The drive is rated for 15 HP (11 kW) motor applications, with a rated armature output current of 27 A. Motor compatibility must be confirmed by checking the motor nameplate, armature voltage, rated current, field requirements, and operating duty.
4. What is the advantage of its regenerative four-quadrant operation?
Four-quadrant operation supports motoring and regenerative braking in both forward and reverse directions. During suitable braking conditions, the drive can return energy to the AC supply. This capability is useful for applications with frequent speed changes, reversing cycles, or loads that require controlled deceleration.
5. Does the 20P41AD027RA0NNN include an operator keypad or communication module?
No. This configuration does not include a Human Interface Module (HIM) or a communication module. A blank plate is supplied in place of the HIM. Confirm the required accessories and communication options before commissioning the drive or integrating it into an automation network.
6. What feedback devices can be used with this drive?
The PowerFlex DC platform supports DC tachometer and encoder feedback options. The appropriate configuration depends on the motor, required speed regulation, and application characteristics. Feedback wiring, device compatibility, and parameter settings should be checked before startup.
7. What should be checked before commissioning the drive?
Verify the input supply, motor armature and field ratings, grounding, protective devices, cabinet ventilation, and control wiring. Confirm the selected feedback method and configure the drive parameters for the connected motor. Perform initial tests according to the manufacturer’s instructions, using appropriate electrical isolation and lockout/tagout procedures.
8. How can common drive faults be diagnosed?
Begin by checking the fault code and drive status indicators. Then inspect the AC input supply, motor connections, field circuit, feedback signals, control commands, and mechanical load. Verify that the current limits and motor parameters are configured correctly. Always isolate power and confirm a safe condition before inspecting wiring or replacing components.
Allen Bradley 20P41AD027RA0NNN PowerFlex DC Drives is in stock. Please contact us for a quick quote and competitive pricing.
