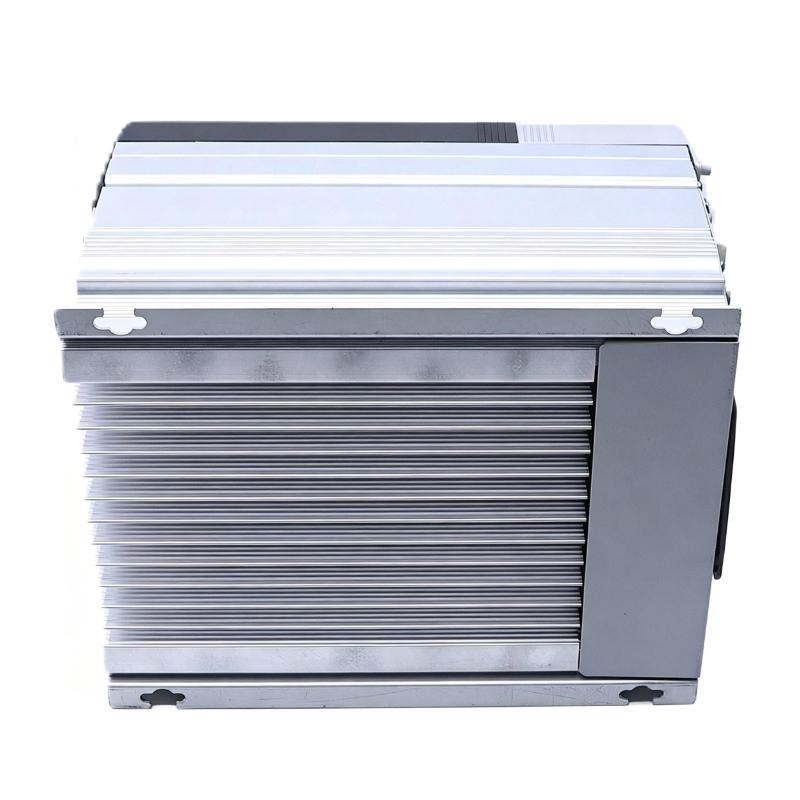

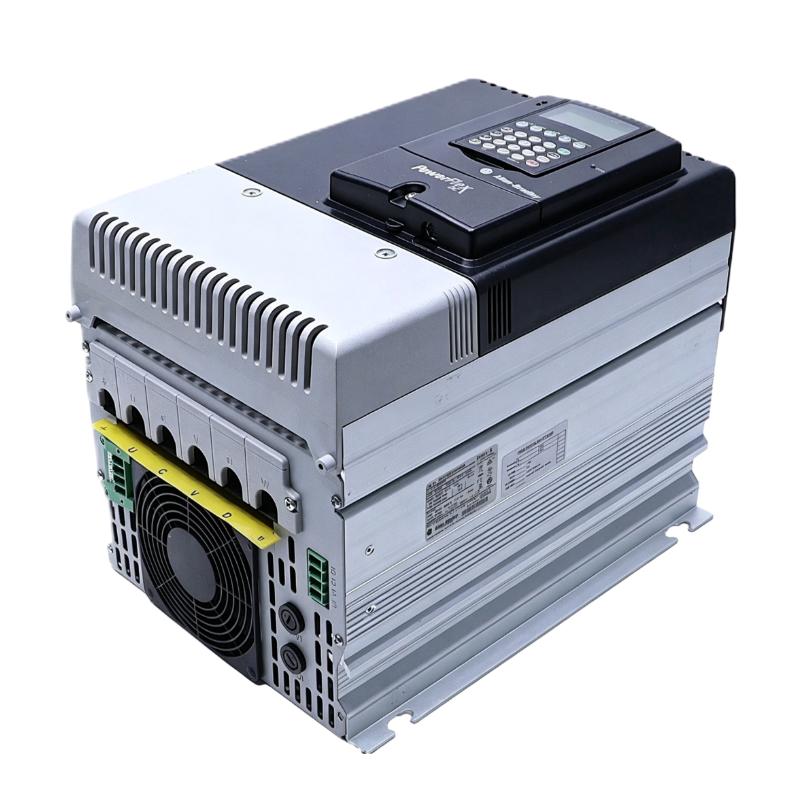

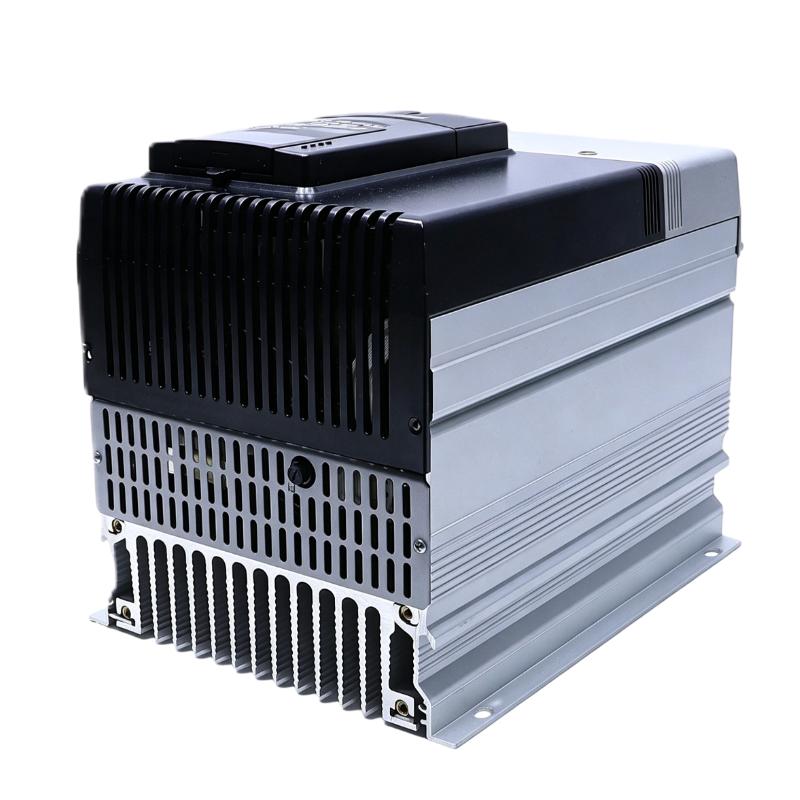

Allen Bradley 20P41AD073RA0NNN PowerFlex DC Drives
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | 20P41AD073RA0NNN |
| Product Type | PowerFlex DC Drive |
| Product Series | PowerFlex DC, 20P Series |
| Drive Type | Regenerative DC Drive |
| Rated Input Voltage | 460 V AC nominal |
| Input Voltage Class | 380–480 V AC |
| Input Phase | 3-phase |
| Input Type | 6-pulse |
| Rated Armature Output Current | 73 A |
| Rated Motor Power | 40 HP / 30 kW |
| Input Frequency | 50/60 Hz |
| Motor Operation | Four-quadrant regenerative operation |
| Field Supply | Single-phase regulated |
| Feedback Capability | DC tachometer and encoder |
| Enclosure Rating | IP20 |
| Enclosure Type | NEMA/UL Type Open |
| Frame Size | A |
| Conformal Coating | Yes |
| Human Interface Module (HIM) | Not included; blank plate supplied |
| Communication Module | Not included |
| Installation | Industrial control cabinet |
| Lifecycle Status | Scheduled for discontinuation on April 15, 2027 |
| Dimensions | 359 × 267 × 287 mm |
| Weight | 12 kg |
FAQ
1. What is the Allen-Bradley 20P41AD073RA0NNN used for?
The 20P41AD073RA0NNN is a PowerFlex DC drive designed for precise speed and current regulation in industrial DC motor applications. It is suitable for extrusion, finishing, drawing, coating, winding, and material-handling equipment, particularly where loads have high inertia or require frequent acceleration, deceleration, and reversing.
2. What are the input power requirements for this drive?
The drive uses a nominal 460 V AC three-phase supply and a six-pulse input configuration. It belongs to the 380–480 V AC input class. Confirm the actual supply voltage, grounding, circuit protection, and wiring requirements against the manufacturer’s installation documentation before energizing the unit.
3. What motor power and current does this model support?
This model is rated for 40 HP (30 kW) motor applications, with a rated armature output current of 73 A. The connected motor’s armature voltage, current, field ratings, and duty cycle must be compatible with the drive. Selection should be based on the motor nameplate and actual load requirements.
4. What are the advantages of regenerative four-quadrant operation?
Four-quadrant operation supports forward and reverse motoring as well as regenerative braking in both directions. Under suitable operating conditions, braking energy can be returned to the AC supply. This is useful for high-inertia machinery, frequent reversing, and processes involving repeated acceleration and deceleration.
5. Does the 20P41AD073RA0NNN include an operator keypad or communication module?
No. The standard configuration does not include a Human Interface Module (HIM) or a communication module; a blank plate is supplied in place of the HIM. Check the required operator interface and communication accessories before installation and commissioning.
6. Which feedback devices are supported by this drive?
The PowerFlex DC platform supports DC tachometer and encoder feedback. The appropriate configuration depends on the motor and the required speed regulation. Verify feedback-device compatibility, wiring, signal requirements, and parameter settings before starting the motor.
7. What should be checked before commissioning the drive?
Check the AC supply, motor armature and field ratings, grounding, circuit protection, control wiring, and cabinet ventilation. Confirm that feedback settings and motor parameters are correct for the application. Follow the manufacturer’s installation instructions and apply appropriate electrical isolation and lockout/tagout procedures.
8. How should common operating faults be diagnosed?
Begin by checking the drive’s fault codes and status indicators. Inspect the incoming supply, motor connections, field circuit, feedback signals, control commands, and mechanical load. Verify that the configured motor parameters match the connected equipment. Before inspecting wiring or replacing components, isolate the power supply and confirm that the equipment is safe to service.
Allen Bradley 20P41AD073RA0NNN PowerFlex DC Drives is in stock. Please contact us for a quick quote and competitive pricing.
