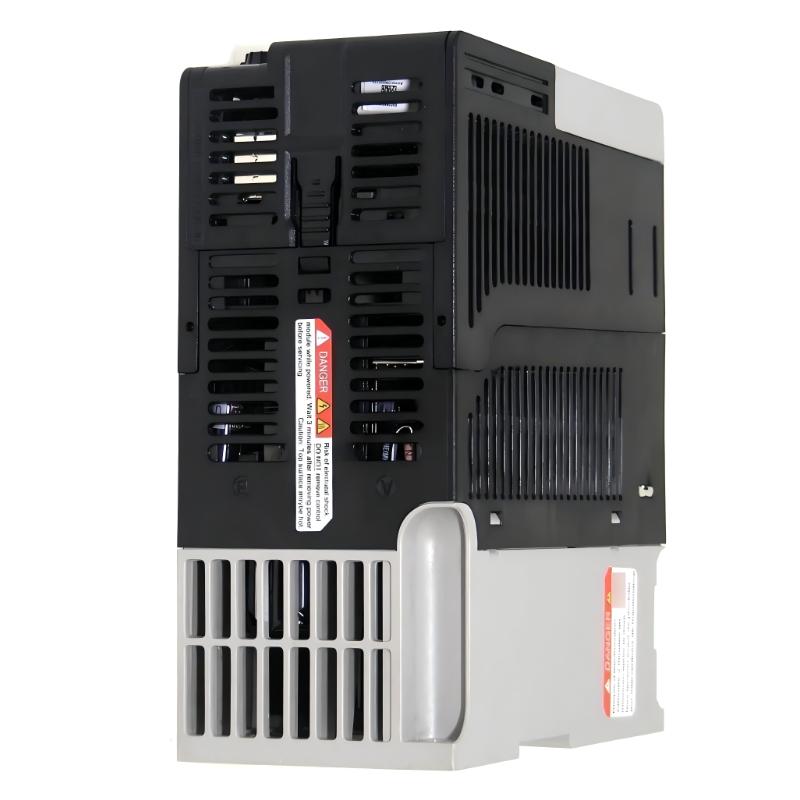

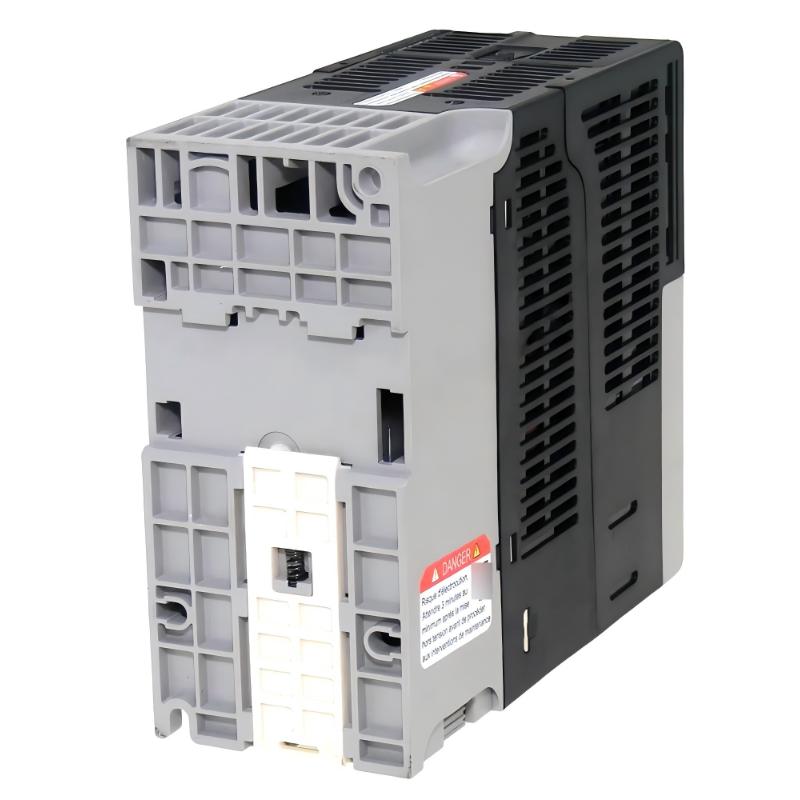

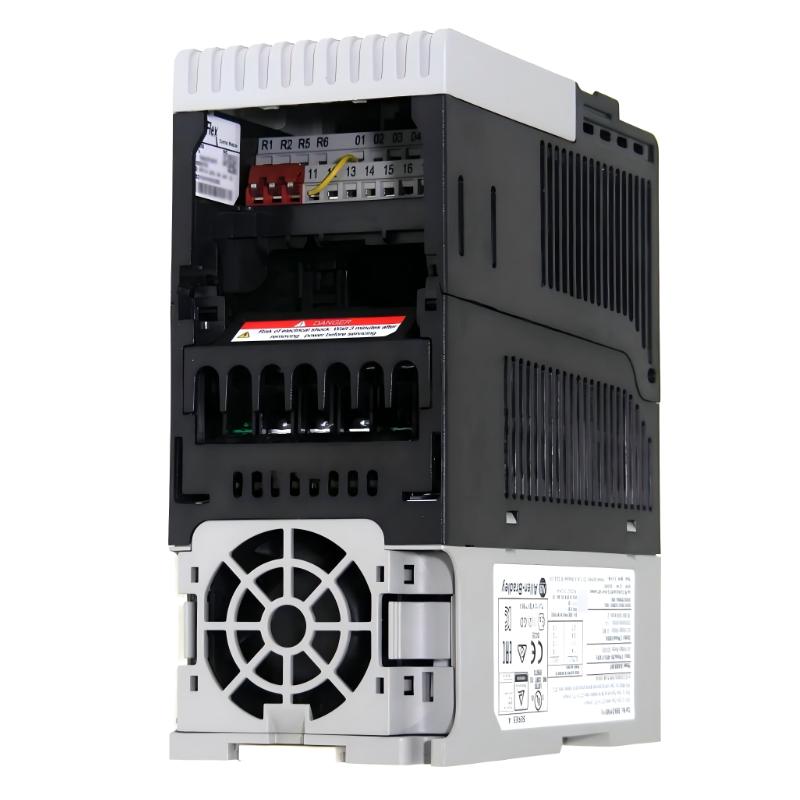

Allen Bradley 25B-D1P4N104 PowerFlex 525 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 25B-D1P4N104 |
| Product Type | PowerFlex 525 AC Drive |
| Product Series | Allen-Bradley PowerFlex 525 Series |
| Main Function | Compact variable frequency drive for motor speed control, energy optimization, and industrial automation applications |
| Input Voltage | 480 VAC, 3-phase |
| Input Voltage Range | 380 to 480 VAC |
| Input Frequency | 50/60 Hz |
| Input Phase | 3-phase |
| Output Current | 1.4 A |
| Normal Duty Power Rating | 0.4 kW (0.5 HP) |
| Heavy Duty Power Rating | 0.4 kW (0.5 HP) |
| Output Voltage | 0 to rated input voltage |
| Output Frequency Range | 0 to 500 Hz |
| Frame Size | Frame A |
| Control Method | Sensorless Vector Control, V/Hz Control, PID Control |
| Enclosure Type | IP20 / NEMA Open Type |
| Mounting Method | Panel mounting |
| Cooling Method | Natural air cooling with integrated heatsink |
| Communication Interface | Embedded EtherNet/IP communication |
| Safety Function | Built-in Safe Torque-Off function |
| Dynamic Braking | Built-in brake transistor |
| EMC Filtering | No internal EMC filter |
| Human Interface Module (HIM) | Integral keypad with potentiometer and LED display |
| Embedded I/O | Digital inputs, relay outputs, analog input and analog output |
| Protection Functions | Overcurrent, overload, overvoltage, undervoltage, short circuit, and motor protection |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 180 × 100 × 140 mm (7.09 × 3.94 × 5.51 in.) |
| Weight | Approximately 1.6 kg (3.5 lb) |
| Application Areas | Small conveyors, pumps, fans, packaging machines, machine tools, and general industrial motor control systems |
FAQ
Q1: What is the main function of the 25B-D1P4N104?
A1: The 25B-D1P4N104 is a PowerFlex 525 AC drive designed for compact motor speed control applications, providing efficient operation and flexible automation integration.
Q2: What motor power rating does the 25B-D1P4N104 support?
A2: The drive supports motors up to 0.4 kW (0.5 HP) with a rated output current of 1.4 A.
Q3: What type of power supply is required for the 25B-D1P4N104?
A3: The drive requires a three-phase 480 VAC power supply and is designed for industrial electrical systems operating within the 380 to 480 VAC range.
Q4: Does the 25B-D1P4N104 support dynamic braking?
A4: Yes. The drive includes a built-in brake transistor, allowing connection to an external braking resistor for applications requiring faster motor deceleration.
Q5: Does the 25B-D1P4N104 support Ethernet communication?
A5: Yes. The drive includes embedded EtherNet/IP communication, allowing integration with PLC systems and industrial automation networks.
Q6: What safety functions are available on the 25B-D1P4N104?
A6: The drive includes a built-in Safe Torque-Off function to help improve machine safety by preventing motor torque generation when required.
Q7: What applications are suitable for the 25B-D1P4N104?
A7: Typical applications include small conveyors, fans, pumps, packaging equipment, and other machinery requiring compact variable speed motor control.
Q8: How can users troubleshoot issues with the 25B-D1P4N104?
A8: Troubleshooting should include checking power supply conditions, motor wiring, parameter settings, fault codes, communication status, cooling conditions, and load requirements.
Allen Bradley 25B-D1P4N104 PowerFlex 525 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
