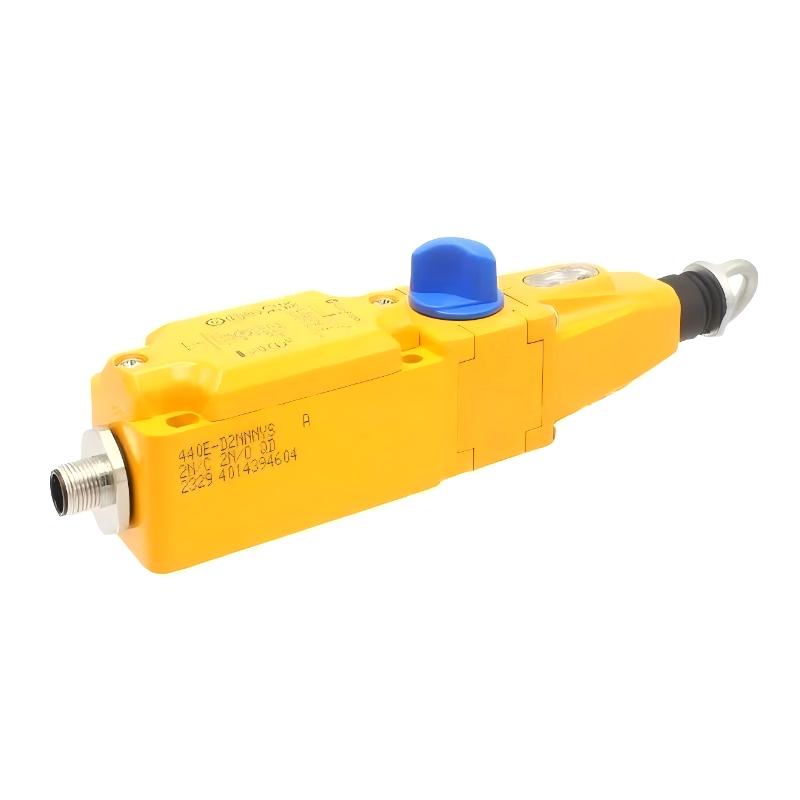

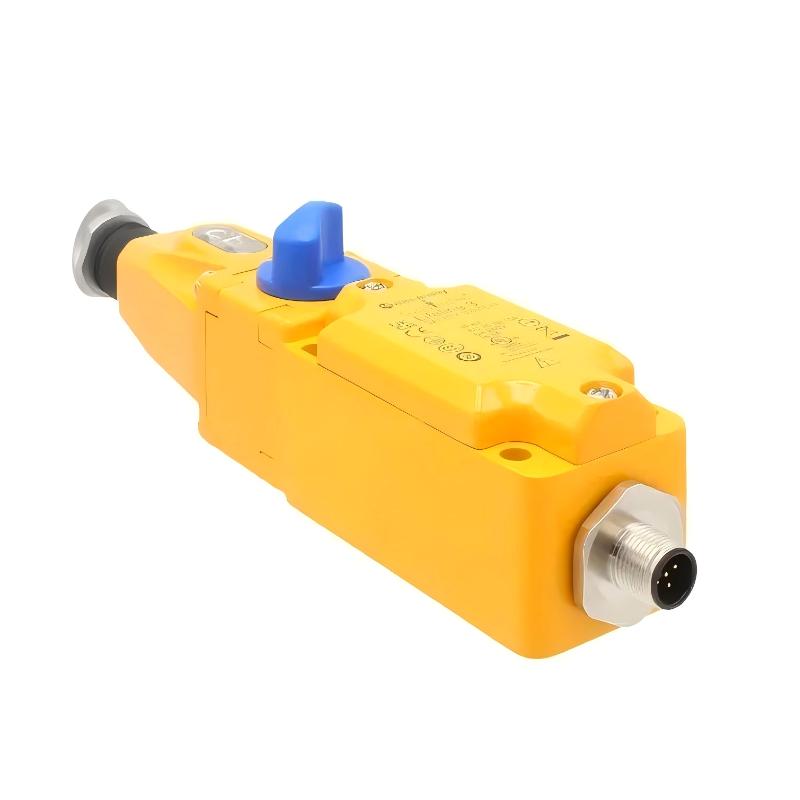

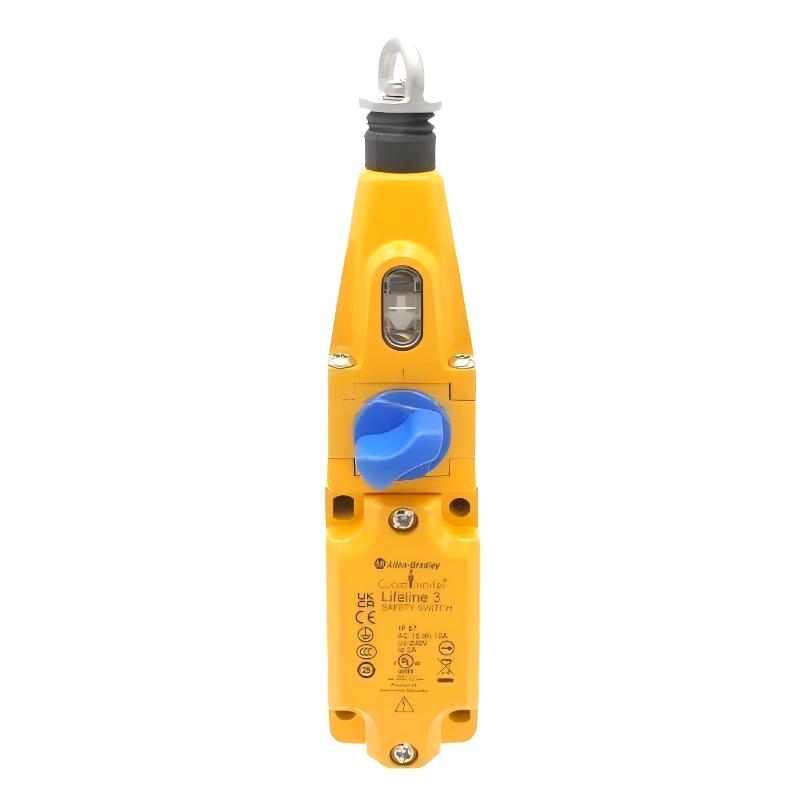

Allen Bradley 440E-D2NNNYS Cable-Pull Switch
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Model | 440E-D2NNNYS |
| Product Series | Guardmaster Lifeline 3 |
| Product Type | Cable-Pull Emergency Stop Switch |
| Application | Industrial machine safety and emergency stopping |
| Maximum Cable Span | Up to 30 m |
| Safety Contacts | 2 Normally Closed (N.C.) |
| Auxiliary Contacts | 2 Normally Open (N.O.) |
| Connection Type | 5-pin Micro M12 quick-disconnect |
| Compatible Interface | ArmorBlock Guard I/O |
| Housing Material | Die-cast alloy |
| Housing Color | Yellow |
| Enclosure Protection | IP67 |
| Cable Status Indication | Integrated cable tension/status indicator |
| Operating Principle | Cable tension and pull-actuated switching |
| Reset Function | Manual reset |
| Connector Rating | Up to 60 V AC/DC, 4 A for the 5-pin M12 connector |
| Dimensions | 204 × 40 × 56 mm |
| Weight | 0.92 kg |
FAQ
Q1: What is the primary function of the Allen-Bradley 440E-D2NNNYS cable-pull switch?
A: The 440E-D2NNNYS is a Guardmaster Lifeline 3 emergency cable-pull switch. It allows an operator to initiate a machine stop by pulling the safety cable along a production line, conveyor, or other guarded area. It is designed for applications where emergency-stop access is needed at multiple points along a cable route.
Q2: What is the maximum cable span supported by this model?
A: The Lifeline 3 design supports cable spans of up to 30 m. The actual installation must account for cable routing, tension, temperature changes, and the manufacturer’s installation requirements to ensure reliable operation.
Q3: What contact configuration does the 440E-D2NNNYS provide?
A: This model provides two normally closed safety contacts and two normally open auxiliary contacts. The safety contacts are intended for compatible safety circuits, while the auxiliary contacts can support status indication or control functions where appropriate.
Q4: Can this switch connect directly to an Allen-Bradley ArmorBlock Guard I/O system?
A: Yes. The model uses a 5-pin Micro M12 quick-disconnect connection designed for compatible ArmorBlock Guard I/O applications. Confirm the I/O module, connector pinout, and safety-system architecture before installation.
Q5: What happens when the cable is pulled or becomes slack?
A: The switch is designed to trip when the cable is pulled or loses the required tension. Its cable-status indication helps operators identify the cable condition. The machine’s safety circuit must be designed so that activation causes the intended safe stop.
Q6: How is the switch reset after an emergency stop?
A: After the cause of the stop has been identified and corrected, the cable system should be restored to the specified operating tension and the switch reset according to its installation instructions. Resetting the switch should not automatically restart hazardous machinery; restart should require the appropriate separate control action.
Q7: What installation checks are important for reliable operation?
A: Check mounting alignment, cable routing, end anchors, tensioning hardware, connector engagement, and the cable-status indicator. The cable should move freely without interference, and the installed span must remain within the specified limit. Test the complete safety function during commissioning.
Q8: What should be checked if the switch trips repeatedly or fails to reset?
A: Inspect cable tension, cable alignment, anchor points, mechanical obstructions, connector condition, and the safety circuit’s input status. Environmental changes or incorrect tensioning may cause nuisance trips. Before maintenance, place the machine in a safe state and follow the site’s lockout/tagout procedures.
Allen Bradley 440E-D2NNNYS Cable-Pull Switch is in stock. Please contact us for a quick quote and competitive pricing.
