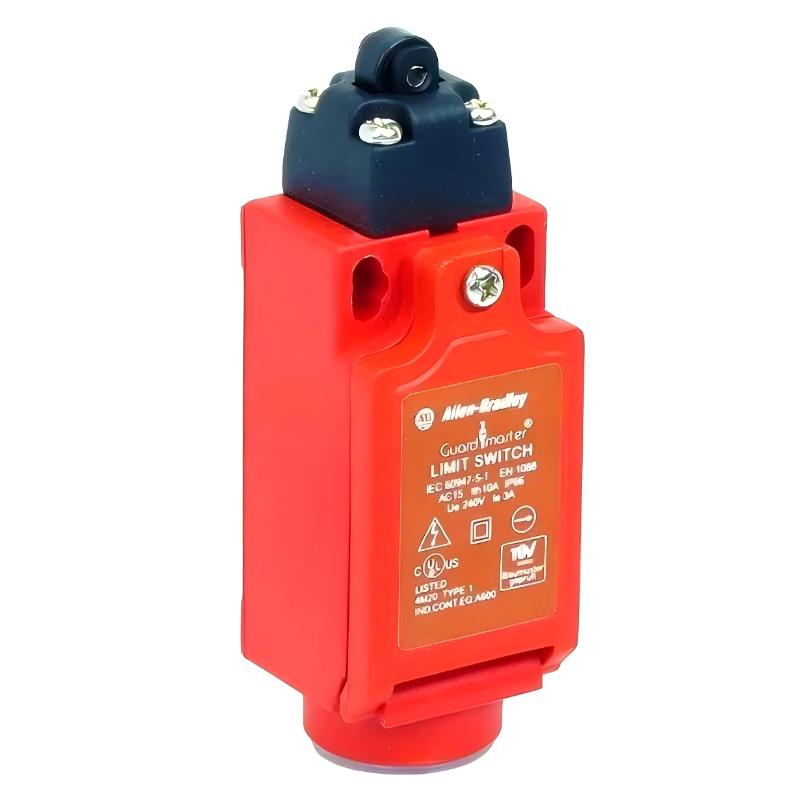

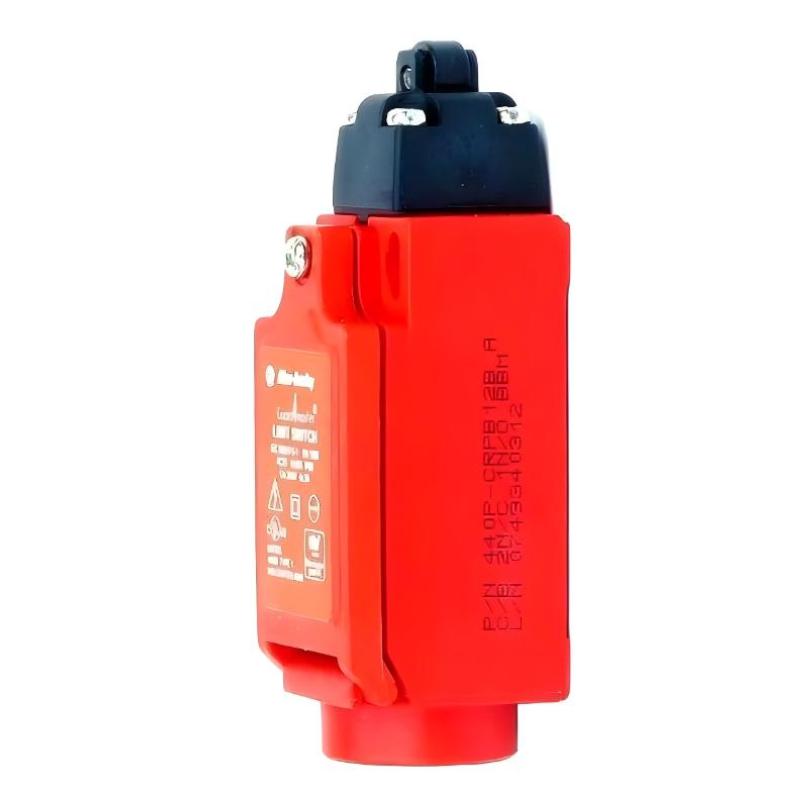

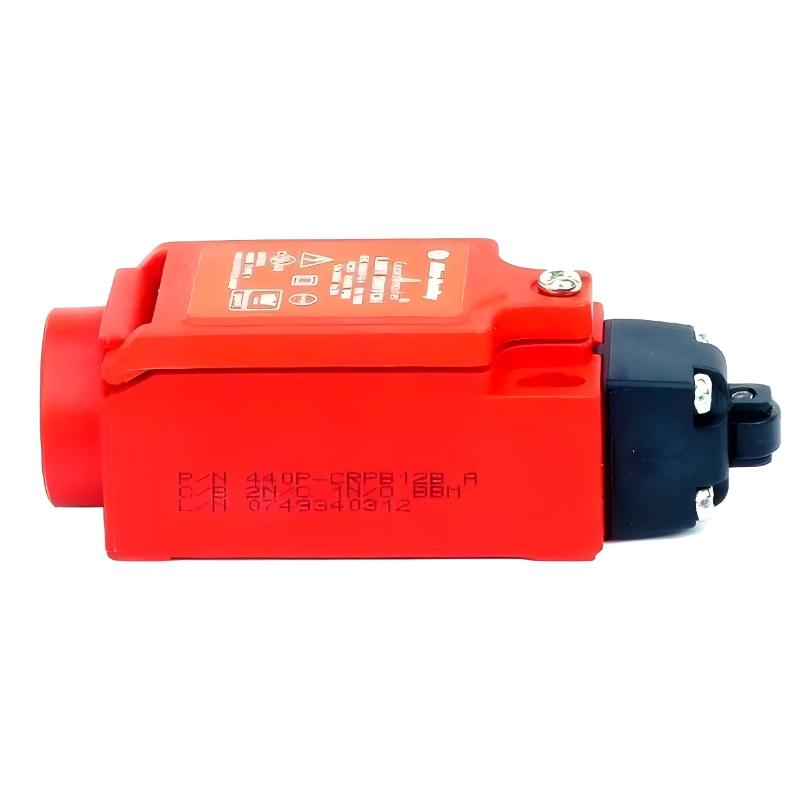

Q1: What is the main function of the Allen-Bradley 440P-CRPB12B GuardMaster Safety Limit Switch?

A: The 440P-CRPB12B safety limit switch is designed to detect the physical position of machine guards or moving mechanical components and provide a safety-rated signal to the control system. It ensures that machinery can only operate when protective guards are properly positioned.

In industrial automation systems, it acts as a key safety interlock device that helps prevent accidental machine operation under unsafe conditions.

Q2: How does a safety limit switch differ from a standard limit switch?

A: A safety limit switch is specifically designed with fail-safe mechanisms, including positive opening contacts that ensure the circuit is broken under fault conditions. Standard limit switches do not necessarily guarantee this level of safety integrity.

This makes safety limit switches suitable for applications where human protection and machine safety compliance are required.

Q3: What is positive opening action and why is it important?

A: Positive opening action means that the safety contacts are mechanically forced open when the actuator is triggered, even if contact welding or failure occurs.

This ensures that the safety circuit will reliably open under any condition, which is critical for maintaining compliance with industrial safety standards.

Q4: What types of machines typically use this safety limit switch?

A: This device is commonly used in conveyor systems, packaging machinery, automated production lines, CNC machines, and industrial robots.

It is especially useful in applications where physical movement must be monitored to ensure safe machine operation.

Q5: How does the switch contribute to machine safety?

A: The switch continuously monitors the position of guards or machine components. If a guard is opened or an unsafe condition is detected, it immediately interrupts the safety circuit.

This triggers the control system to stop machine operation, preventing potential injury or equipment damage.

Q6: Is this safety limit switch suitable for heavy-duty industrial environments?

A: Yes. It is designed with a robust industrial housing and mechanical structure that can withstand vibration, impact, and continuous operation in harsh environments.

This makes it suitable for demanding manufacturing and automation applications.

Q7: Does this device require regular maintenance?

A: The switch is designed for long mechanical life with minimal maintenance requirements. However, periodic inspection is recommended to ensure correct actuator alignment and wiring integrity.

Proper maintenance helps maintain consistent safety performance over time.

Q8: What role does this switch play in a safety control system?

A: In a safety system, this limit switch acts as a direct physical position sensor for machine guards or moving parts. It provides critical input signals to safety controllers or relays.

It forms an essential part of the safety interlock chain, ensuring that machines operate only when all safety conditions are satisfied.
