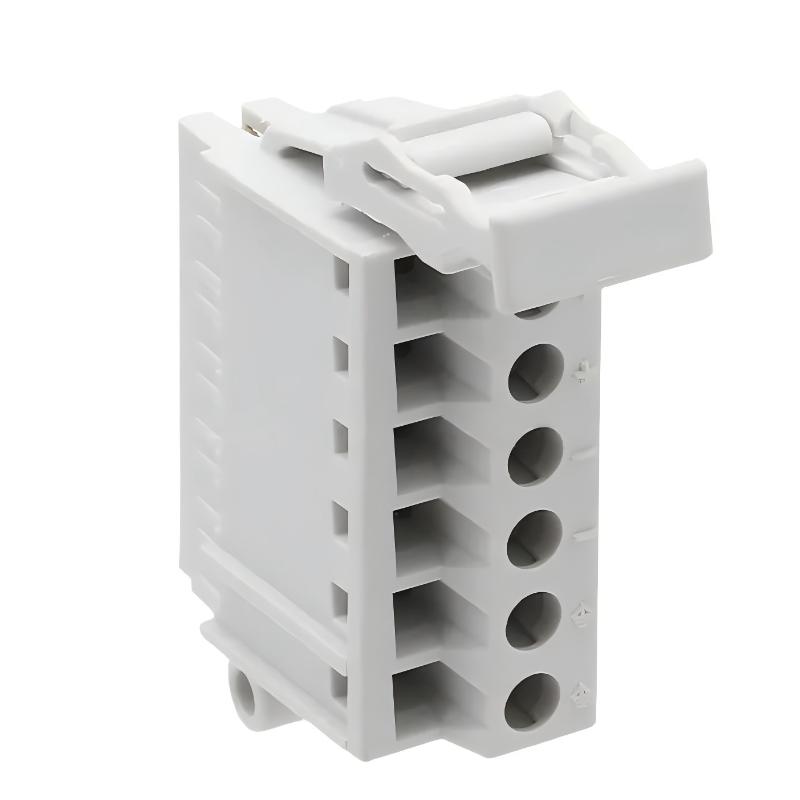

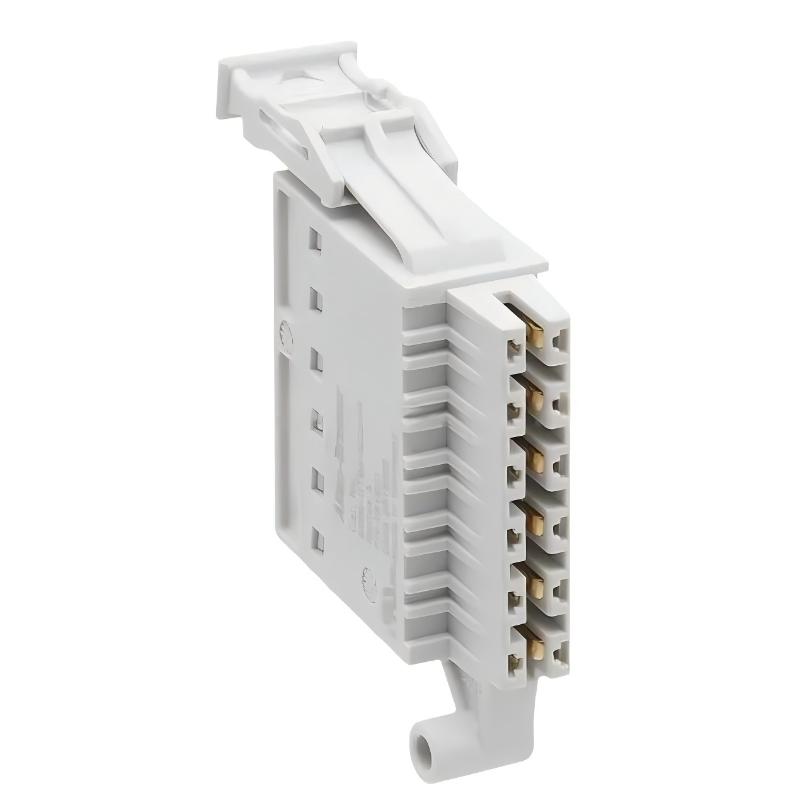

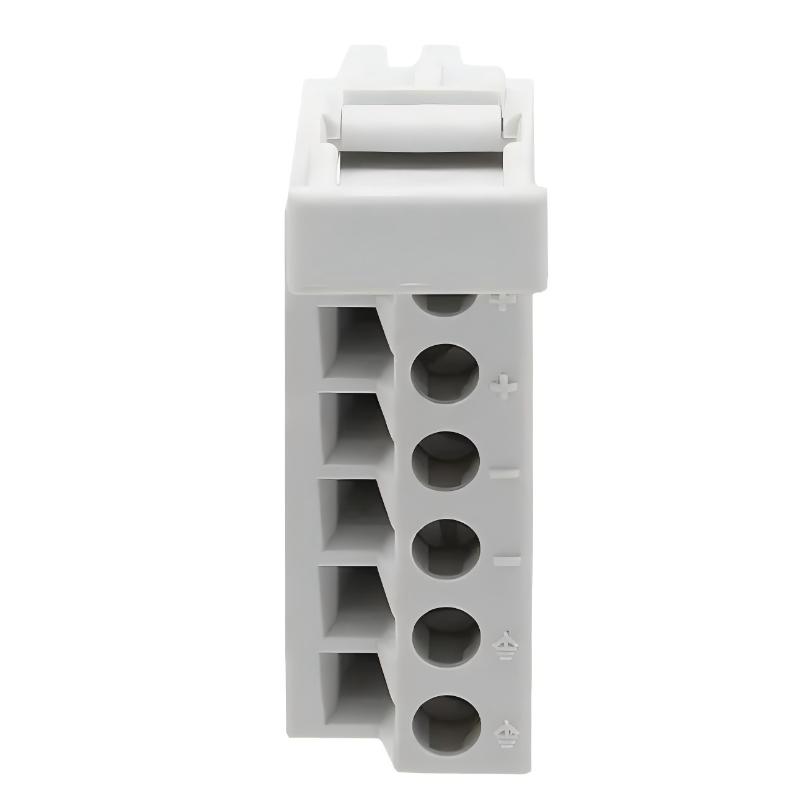

Allen Bradley 5069-RTB6-SCREW Compact 5000 I/O Terminal Blocks
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Compact 5000 I/O Terminal Block |
| Brand | Allen-Bradley |
| Model | 5069-RTB6-SCREW |
| Product Type | I/O Terminal Block |
| Series | Compact 5000 I/O System |
| Pin Configuration | 6-pin screw terminal block |
| Primary Function | Provides electrical connection interface between I/O modules and field wiring |
| Application System | Allen-Bradley Compact 5000 I/O platform |
| Connection Type | Screw-clamp wiring connection |
| Wiring Method | Field wiring termination via screw terminals |
| Compatibility | Compact 5000 I/O modules |
| Installation Method | Module-mounted removable terminal block |
| Electrical Role | Signal and power interface termination |
| Mechanical Design | Secure locking and vibration-resistant connection |
| Material Design | Industrial-grade durable housing |
| Maintenance Type | Replaceable terminal interface design |
| Environmental Suitability | Industrial automation environments |
| EMC Performance | Designed for industrial electromagnetic environments |
| Safety Function | Ensures secure and stable field wiring connection |
| Dimensions | 6-pin |
| Weight | 0.04 kg |
FAQ
Q1: What is the main function of the Allen-Bradley 5069-RTB6-SCREW terminal block?
A1: The 5069-RTB6-SCREW terminal block is designed to provide a secure and reliable wiring interface between Compact 5000 I/O modules and field devices. It ensures stable electrical connections for signal transmission and power distribution within industrial automation systems.
Q2: Which system is this terminal block used with?
A2: This terminal block is specifically designed for the Allen-Bradley Compact 5000 I/O system. It integrates directly with compatible I/O modules, forming part of the field wiring interface.
Q3: What type of connection method does it use?
A3: It uses a screw-clamp connection method, which provides strong mechanical holding force and ensures stable electrical contact for field wiring in industrial environments.
Q4: What are the advantages of screw terminal connections?
A4: Screw terminals offer high reliability, strong vibration resistance, and secure wire retention. They are widely used in industrial environments where stable long-term connections are required.
Q5: Can the terminal block be replaced separately?
A5: Yes, the terminal block is designed as a removable interface component. It can be replaced without replacing the entire I/O module, which simplifies maintenance and reduces downtime.
Q6: What types of signals can it handle?
A6: The terminal block supports standard industrial I/O signals used in Compact 5000 systems, including digital input/output and power connections depending on the associated I/O module configuration.
Q7: What installation practices are recommended?
A7: It should be installed by securely mounting it onto the corresponding I/O module and tightening all screw terminals properly. Proper torque and correct wiring practices are essential to ensure reliable operation.
Q8: How can long-term connection reliability be ensured?
A8: Long-term reliability can be maintained by ensuring correct torque on screw terminals, avoiding excessive vibration, periodically inspecting wiring tightness, and keeping the installation environment clean and dry.
Allen Bradley 5069-RTB6-SCREW Compact 5000 I/O Terminal Blocks is in stock. Please contact us for a quick quote and competitive pricing.
