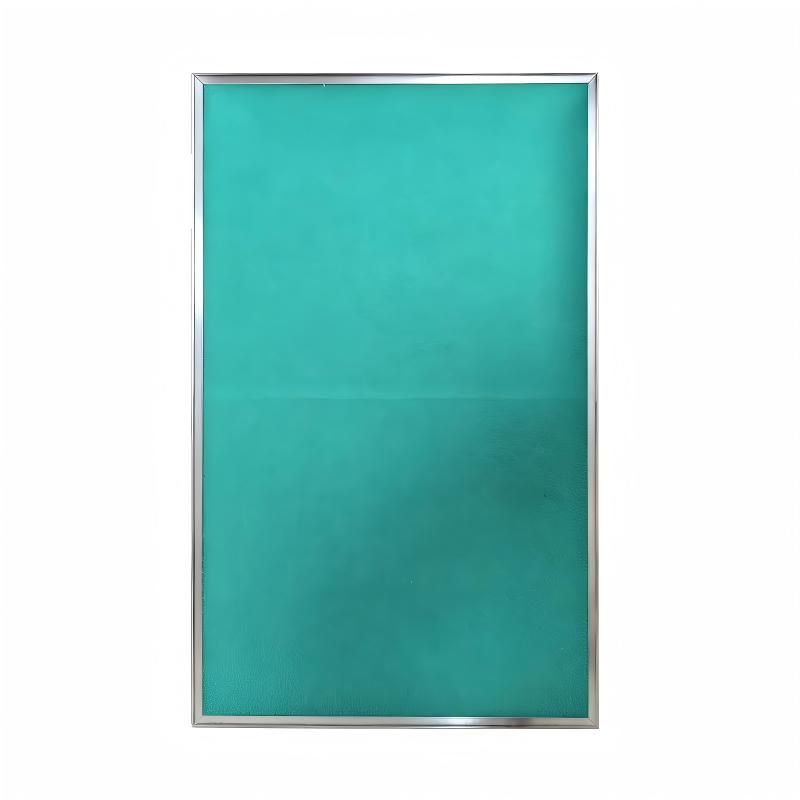

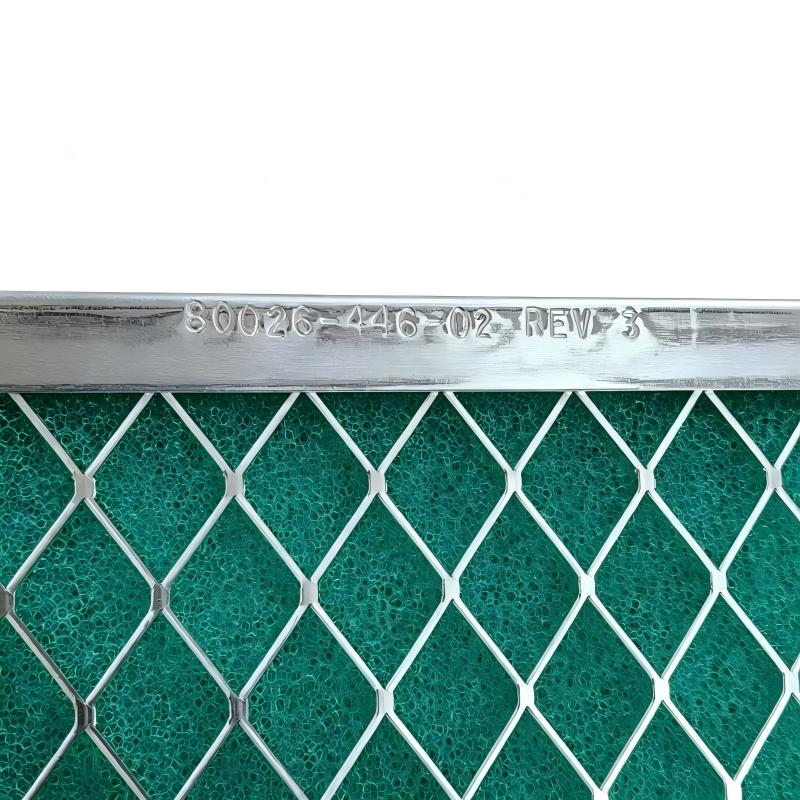

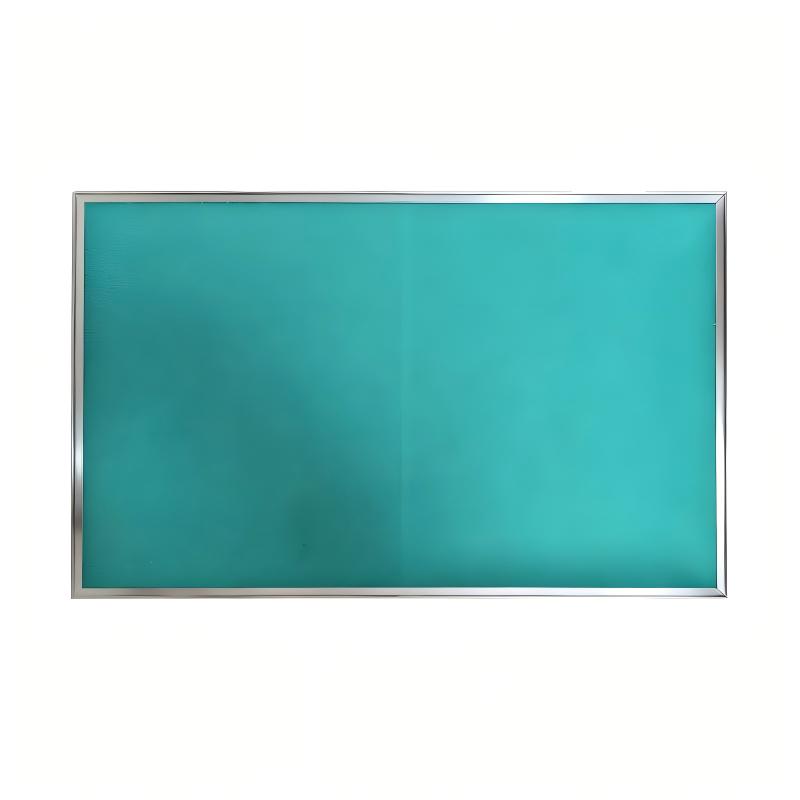

Q1: What is the main function of the Allen-Bradley 80026-446-02-R washable door filter?

A: The 80026-446-02-R is a washable door filter designed for compatible industrial electrical enclosures. Its main function is to help reduce dust and airborne particles entering the cabinet through the ventilation system. Keeping contaminants away from electrical components can help reduce dust accumulation on circuit boards, connections, and other sensitive equipment. The filter also supports the airflow required for enclosure cooling when used with a compatible ventilation arrangement. It should be selected according to the enclosure design and the original filter specification.

Q2: Can the 80026-446-02-R be used as a replacement for another cabinet filter?

A: Replacement suitability depends on the filter dimensions, mounting arrangement, airflow requirements, and enclosure design. Before ordering, compare the complete part number with the existing filter and check the opening dimensions, fixing method, and position within the ventilation assembly. A filter that fits physically may still be unsuitable if its airflow resistance or filtration characteristics differ significantly from the original component. For electrical cabinets with specific environmental protection requirements, verify that the replacement maintains the required enclosure protection level.

Q3: How often should the washable door filter be cleaned?

A: Cleaning frequency depends on the surrounding environment, ventilation rate, operating hours, and amount of airborne dust. Cabinets installed in dusty production areas may require more frequent inspection than those in clean indoor environments. During scheduled maintenance, check the filter for visible contamination, blocked passages, deformation, and damage. Clean it according to the manufacturer’s instructions and allow it to dry completely before reinstalling it. A fixed cleaning interval should be established based on actual operating conditions rather than relying on a universal schedule.

Q4: What problems can occur if the filter becomes clogged?

A: A clogged filter restricts airflow through the enclosure ventilation system. Reduced airflow can cause internal temperatures to rise, potentially affecting the reliability and service life of drives, power supplies, control modules, and other heat-generating components. Depending on the equipment, excessive temperature may also trigger thermal alarms or protective shutdowns. If cabinet temperatures increase or ventilation performance declines, inspect the filter and associated fan assembly. Cleaning or replacing the filter may restore airflow, but technicians should also check whether the fan is operating correctly and whether other ventilation passages are obstructed.

Q5: What is the correct procedure for cleaning the 80026-446-02-R filter?

A: First, follow the equipment manufacturer’s maintenance and safety procedures. If the filter is installed near powered electrical equipment, ensure that the cleaning process cannot introduce moisture or contaminants into energized components. Remove the filter according to the enclosure instructions and clean it using a method approved for its material. Avoid aggressive chemicals, excessive water pressure, or mechanical actions that could damage the filter structure. Allow the filter to dry completely before reinstalling it. If the filter is torn, distorted, or no longer allows adequate airflow after cleaning, replace it with a compatible part.

Q6: How can technicians determine whether the filter needs replacement rather than cleaning?

A: A washable filter can generally be reused while its structure remains intact and its airflow performance can be restored through approved cleaning. Replacement should be considered if the filter is torn, permanently deformed, deteriorated, or heavily contaminated in a way that cleaning cannot resolve. A filter that repeatedly becomes blocked within a short period may also indicate excessive environmental contamination or an underlying ventilation problem. During inspection, check the filter frame and mounting points as well as the filtering material. The replacement should match the original filter specification to avoid compromising airflow or enclosure protection.

Q7: Can installing the wrong filter affect the performance of an industrial control cabinet?

A: Yes. A filter with unsuitable dimensions may leave gaps around the mounting area, allowing unfiltered air to enter the enclosure. A filter with excessive airflow resistance can reduce cooling performance, while one with inadequate filtration may allow more contaminants to reach internal components. These issues can contribute to overheating, dust accumulation, and premature component wear. When selecting a replacement, verify the part number, dimensions, mounting arrangement, airflow characteristics, and required environmental protection level. If the cabinet operates in a demanding industrial environment, follow the original equipment manufacturer’s recommendations rather than choosing a filter based on appearance alone.

Q8: What should buyers check when purchasing the 80026-446-02-R washable door filter?

A: Buyers should confirm the complete Allen-Bradley part number, 80026-446-02-R, and verify that it matches the existing filter and enclosure configuration. Check the product’s condition, filter material, frame integrity, and suitability for repeated cleaning. For used or surplus parts, request information about storage conditions and physical inspection. It is also useful to confirm the supplier’s warranty and return policy, especially when purchasing replacement parts for equipment that must remain operational. After delivery, inspect the filter for deformation or damage before installation and verify that it fits securely without gaps around the mounting area.
