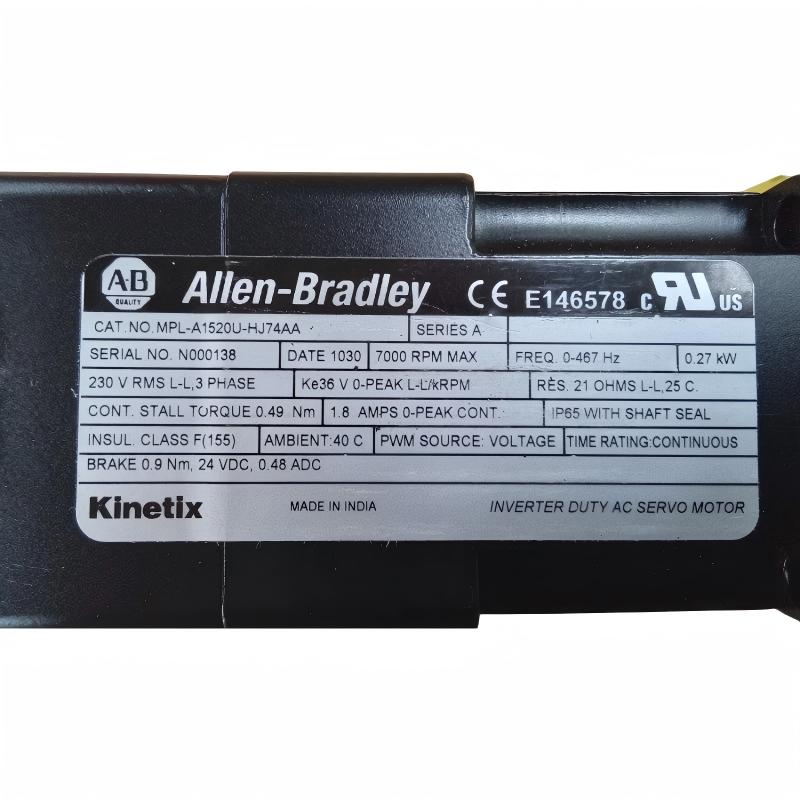

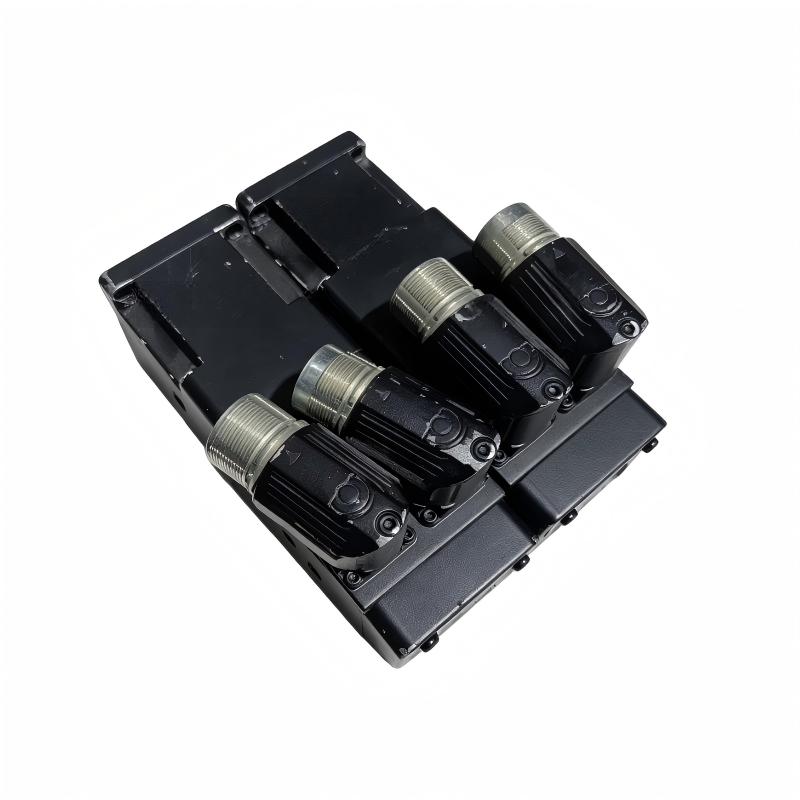

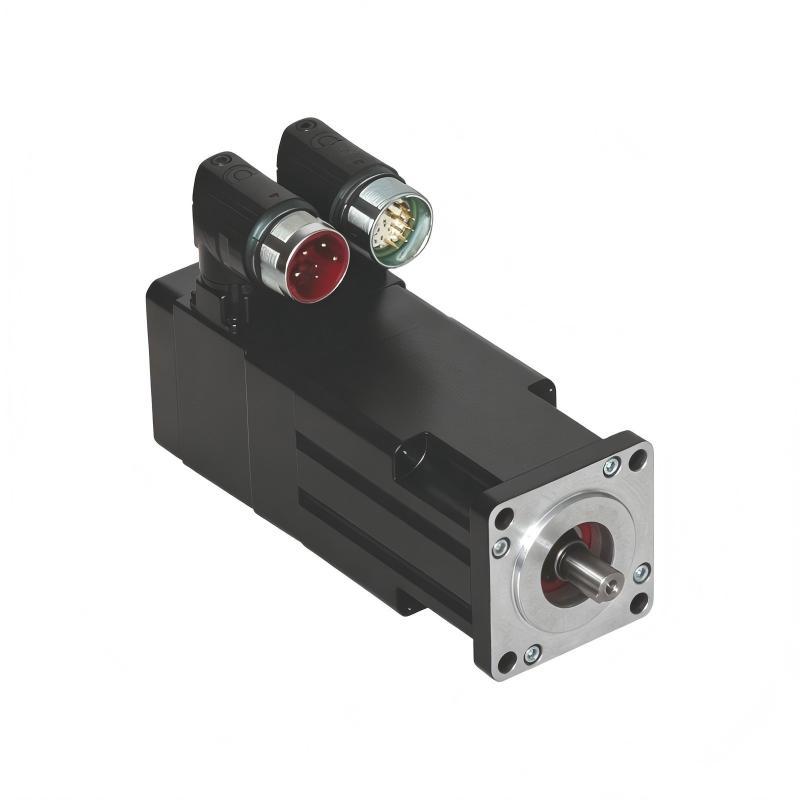

Allen Bradley MPL-A1520U-HJ74AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-A1520U-HJ74AA |
| Product Type | Low-Inertia Brushless AC Servo Motor |
| Product Series | MP-Series MPL |
| Voltage Class | 200 V AC |
| Rated Supply Voltage | 230 V AC |
| Rated Power | 0.27 kW |
| Rated Speed | 7000 rpm |
| Continuous Stall Torque | 0.49 Nm |
| Peak Torque | 1.58 Nm |
| Feedback Type | 2000-Line Incremental Encoder |
| Feedback Resolution | 2000 pulses/revolution |
| Shaft Type | Keyed Shaft Extension |
| Frame Size | 63 mm |
| Magnet Stack Length | 50.8 mm |
| Connector Type | SpeedTEC DIN Connector |
| Connector Orientation | Right-Angle, 180° Rotatable |
| Holding Brake | 24 V DC |
| Mounting Type | IEC Metric Flange |
| Shaft Seal | Not Included |
| Protection Rating | IP50 |
| Operating Temperature | 0–40°C |
| Weight | 1.2 kg |
| Product Status | Discontinued |
FAQ
1. What are the main applications of the MPL-A1520U-HJ74AA servo motor?
The Allen-Bradley MPL-A1520U-HJ74AA is designed for industrial motion-control systems that require precise positioning, reliable speed regulation, and responsive acceleration. Typical applications include packaging machinery, automated assembly equipment, material handling systems, and production lines. Its low-inertia design supports frequent starts, stops, and changes in operating speed.
2. Which servo drives are compatible with the MPL-A1520U-HJ74AA?
This motor can be used with compatible Allen-Bradley servo drive systems that support its 200 V voltage class, electrical ratings, and incremental encoder feedback. Compatible drive families may include Kinetix and Ultra 3000 systems, depending on the specific drive model and configuration. Always verify the motor-drive combination before installation or replacement.
3. How does the 2000-line incremental encoder work?
The incremental encoder generates electrical pulses as the motor shaft rotates. The servo drive uses these signals to determine changes in position and regulate motor speed through closed-loop control. The encoder provides 2000 pulses per revolution according to its specified resolution. Correct feedback wiring and drive configuration are essential for accurate operation.
4. What is the function of the integrated 24 V DC holding brake?
The integrated brake holds the motor shaft when the motor is stationary and the brake is engaged. It is intended for holding loads rather than routine dynamic stopping. A suitable 24 V DC supply and correctly configured control circuit are required. For vertical axes or gravity-loaded machinery, additional safety measures may be necessary because the brake is not a substitute for a dedicated safety system.
5. What are the rated speed and torque characteristics of this motor?
The motor has a rated speed of 7000 rpm, a continuous stall torque of 0.49 Nm, and a peak torque of 1.58 Nm. Actual operating performance depends on load inertia, drive settings, acceleration requirements, and thermal conditions. The drive should be configured to keep continuous operation within the motor’s permitted limits.
6. What should be checked when installing the MPL-A1520U-HJ74AA?
Check the motor-drive compatibility, supply voltage, protective grounding, power connections, encoder wiring, and brake circuit. Ensure that the mounting flange is secure and that the keyed shaft and coupling are correctly aligned. Before enabling the drive, verify that the driven mechanism can move freely and that the machine’s safety measures are operational.
7. Why might the motor experience encoder faults or positioning errors?
Potential causes include incorrect encoder wiring, electrical interference, loose connectors, incorrect drive parameters, mechanical backlash, or poor shaft alignment. An improperly tuned servo loop may also cause unstable motion. Check the drive’s fault codes and feedback diagnostics, inspect the wiring and mechanical coupling, and verify the configuration before returning the machine to service.
8. Is the MPL-A1520U-HJ74AA discontinued, and what should be considered when replacing it?
Yes. Rockwell Automation lists the MPL-A1520U-HJ74AA as discontinued, with July 23, 2024, as the discontinuation date. The listed replacement is MPL-A1520U-EJ74AA. However, the HJ74AA uses a 2000-line incremental encoder, while the EJ74AA uses a single-turn high-resolution absolute encoder. Before substitution, confirm drive compatibility, feedback configuration, brake requirements, connector arrangement, and commissioning procedures.
Allen Bradley MPL-A1520U-HJ74AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
