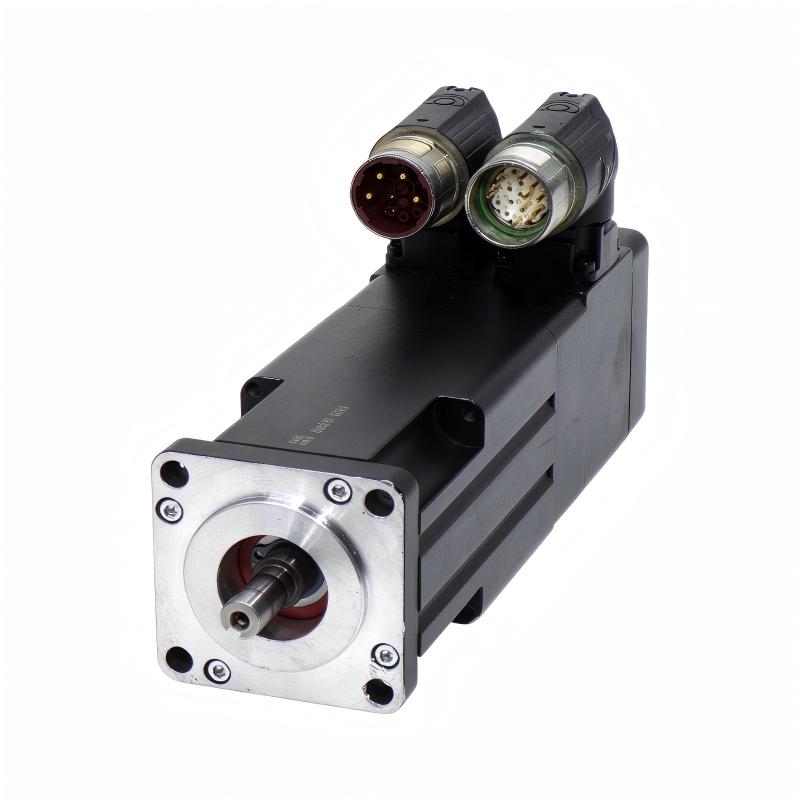

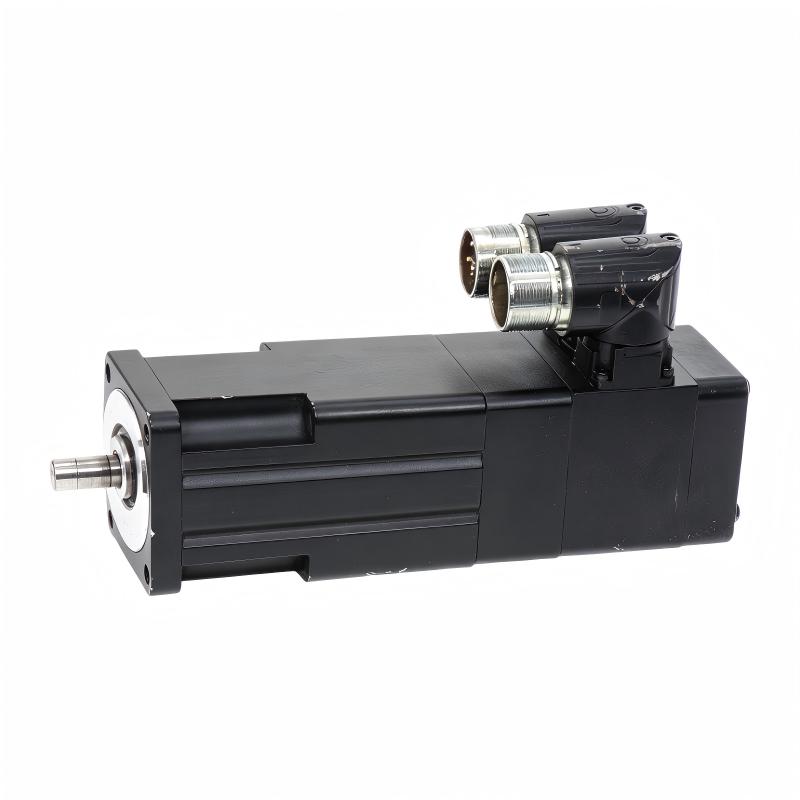

Allen Bradley MPL-A210V-EJ72AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-A210V-EJ72AA |
| Product Type | AC Rotary Servo Motor |
| Series | MP-Series MPL |
| Motor Type | Low-Inertia Brushless Servo Motor |
| Rated Voltage | 230 V AC |
| Voltage Class | 200 V |
| Frame Size | 75 mm |
| Rated Speed | 8000 RPM |
| Rated Torque | 0.55 N·m |
| Feedback Type | Single-Turn High-Resolution Absolute Encoder |
| Feedback Protocol | Hiperface |
| Encoder Resolution | 128 sin/cos |
| Shaft Type | Keyed Shaft |
| Brake | No Brake |
| Connector Type | SpeedTEC DIN Connector |
| Connector Orientation | Right-Angle, Rotatable 180° |
| Mounting Type | IEC Metric Flange Mount, Free Mounting Holes (Type FF) |
| Shaft Seal | No Shaft Seal |
| Protection Rating | IP50 standard; IP66 with optional shaft seal and compatible sealed connectors |
| Weight | 1.4 kg |
FAQ
Q1: What applications is the Allen-Bradley MPL-A210V-EJ72AA servo motor designed for?
The MPL-A210V-EJ72AA is a low-inertia AC servo motor designed for industrial motion-control applications that require accurate positioning and fast acceleration. Typical applications include packaging machinery, automated assembly equipment, conveyor systems, and precision manufacturing equipment.
Q2: Which servo drives are compatible with the MPL-A210V-EJ72AA?
The motor is intended for compatible Allen-Bradley motion-control systems. Drive selection depends on voltage class, encoder interface, motor ratings, and supported catalog numbers. Confirm compatibility with the exact motor model in the drive documentation before installation.
Q3: What is the rated speed and torque of this servo motor?
The motor has a rated speed of 8000 RPM and a rated torque of 0.55 N·m. Actual performance depends on the connected drive, operating conditions, load characteristics, and machine configuration.
Q4: What is the function of the single-turn absolute encoder?
The single-turn high-resolution absolute encoder provides shaft-position feedback within one revolution. With a compatible drive and correct configuration, it supports accurate closed-loop motion control and helps the system determine the shaft’s angular position after power-up.
Q5: Does the MPL-A210V-EJ72AA include a holding brake?
No. This model is specified without a brake. If the application involves a vertical axis or a load that must remain stationary when power is removed, a separate suitable holding mechanism may be required.
Q6: What should be checked if the servo motor fails to start?
Check the drive’s fault codes, incoming power, enable signals, safety interlocks, motor power cable, and encoder feedback connection. Confirm that the drive parameters match the motor model and resolve any active faults before restarting.
Q7: Why might the motor vibrate or show inaccurate positioning?
Possible causes include incorrect servo tuning, mechanical misalignment, loose couplings, excessive load inertia, feedback signal interference, or damaged cables. Review the drive diagnostics and inspect the mechanical assembly before adjusting control parameters.
Q8: What should be checked when replacing the MPL-A210V-EJ72AA?
Verify the full catalog number, voltage rating, encoder type, keyed shaft, connector arrangement, brake configuration, and mounting compatibility. After installation, check the drive configuration, feedback status, motor direction, and positioning performance through controlled commissioning tests.
Allen Bradley MPL-A210V-EJ72AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
