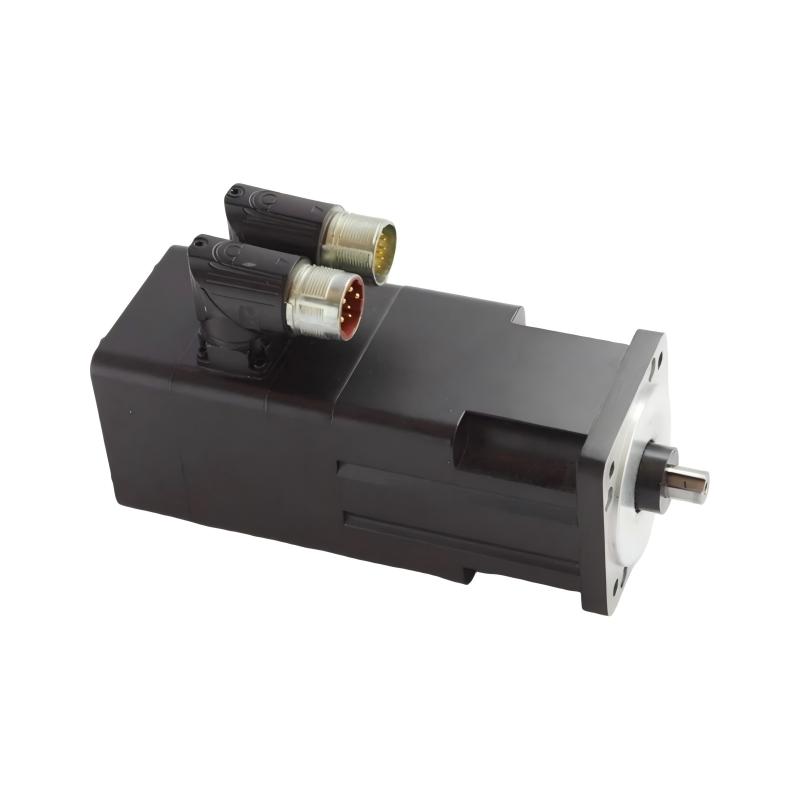

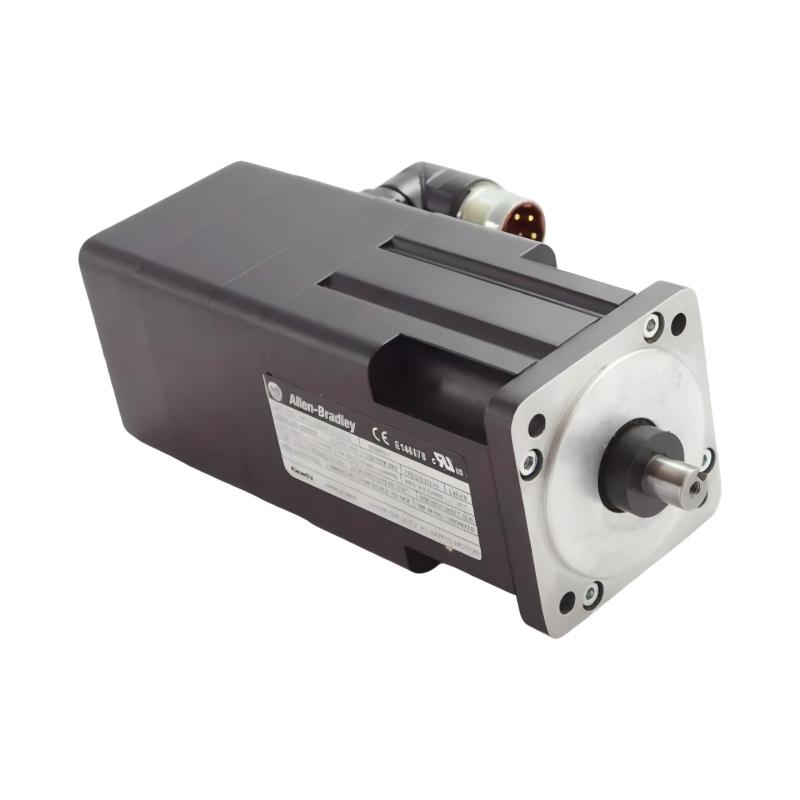

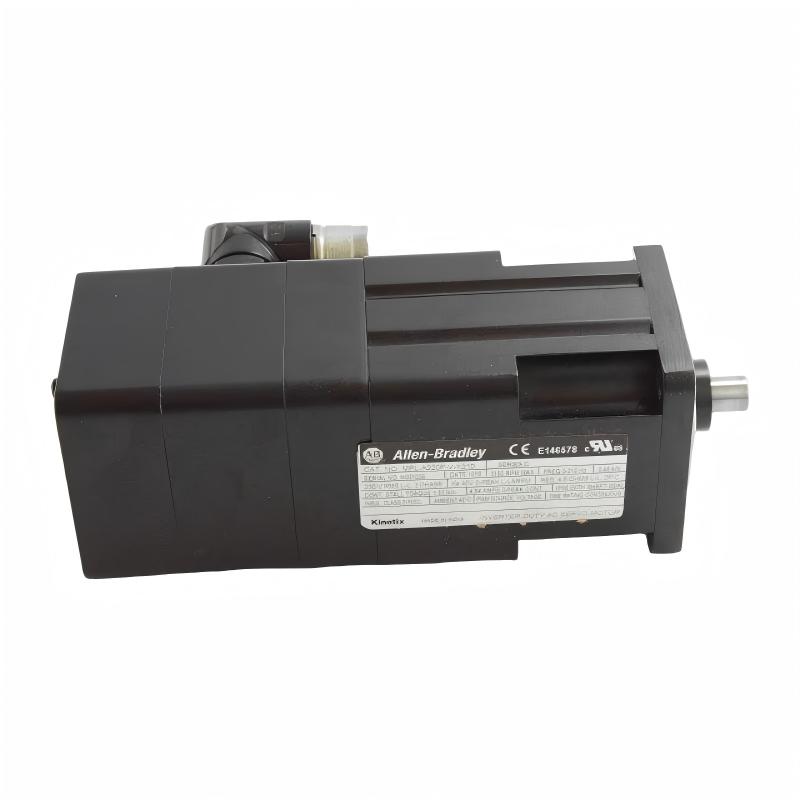

Q1: What is the main application of the Allen-Bradley MPL-A220F-V-X209 servo motor?

The MPL-A220F-V-X209 is intended for use as a replacement motor in compatible Allen-Bradley MPAR Series electric cylinders. It provides controlled rotary motion that the cylinder’s mechanical transmission converts into linear movement. Typical applications include industrial positioning, automated assembly, and linear actuation systems. Before installation, confirm that the motor is suitable for the specific MPAR cylinder model and its operating requirements.

Q2: Which power supply is required for the MPL-A220F-V-X209?

This motor belongs to the 200 V voltage class and is designed to operate with a compatible servo drive and the appropriate three-phase AC supply. The selected drive must support the motor’s electrical characteristics and feedback configuration. Verify the actual supply requirements and drive compatibility before connecting the motor. Incorrect voltage, wiring, or parameter settings may trigger faults or damage the equipment.

Q3: Does the MPL-A220F-V-X209 include an integrated holding brake?

This configuration is specified without an integrated 24 V DC holding brake. If the application requires a load to remain stationary when the motor is stopped, the machine or actuator design must provide a suitable holding mechanism. This is especially important for vertical axes and loads that may move under gravity. Always verify the exact motor configuration rather than assuming that similar model numbers have identical brake options.

Q4: How can I confirm compatibility with an MPAR electric cylinder?

Check the complete motor part number against the replacement specifications for the exact MPAR cylinder model. Compatibility depends on more than voltage and frame size; the mechanical interface, coupling arrangement, screw pitch, electrical connections, and servo-drive configuration must also match. Confirm these details before installation to avoid mechanical interference, incorrect motion, or commissioning problems.

Q5: What should I check if the motor fails to start?

Check the servo drive’s alarm history and status indicators first. Confirm that the power supply is available, the drive enable signal is active, and the motor and feedback cables are connected correctly. Also inspect emergency-stop circuits, machine interlocks, and the cylinder mechanism for obstruction. If an alarm is displayed, follow its troubleshooting procedure and correct the underlying cause before attempting another startup.

Q6: Why might the electric cylinder move unevenly or fail to reach its commanded position?

Possible causes include incorrect servo tuning, excessive load, mechanical friction, coupling issues, feedback faults, or unsuitable motion parameters. Inspect the cylinder’s mechanical transmission and verify that the load is within the actuator’s rated capacity. Then check the feedback signals and drive settings. If the problem appeared immediately after replacing the motor, recheck the selected motor configuration and its compatibility with the cylinder and drive.

Q7: How should the servo motor and electric cylinder be maintained?

Inspect the motor connectors, power and feedback cables, mounting fasteners, and cylinder transmission regularly. Monitor unusual noise, vibration, temperature changes, and recurring drive alarms. Keep the equipment clean and follow the manufacturer’s maintenance and lubrication instructions for the actuator. Always isolate electrical power before servicing, and have qualified personnel handle electrical testing or internal repairs.

Q8: What commissioning checks are recommended after replacing the motor?

Before startup, verify the motor part number, mechanical installation, cable connections, feedback configuration, and drive parameters. Confirm that the cylinder is assembled correctly and can move safely throughout its intended travel range. Begin with a low-speed test and check the movement direction, positioning response, brake or holding arrangements where applicable, and any unusual noise or vibration. Test the limit switches and safety interlocks before gradually returning the system to normal operation.
