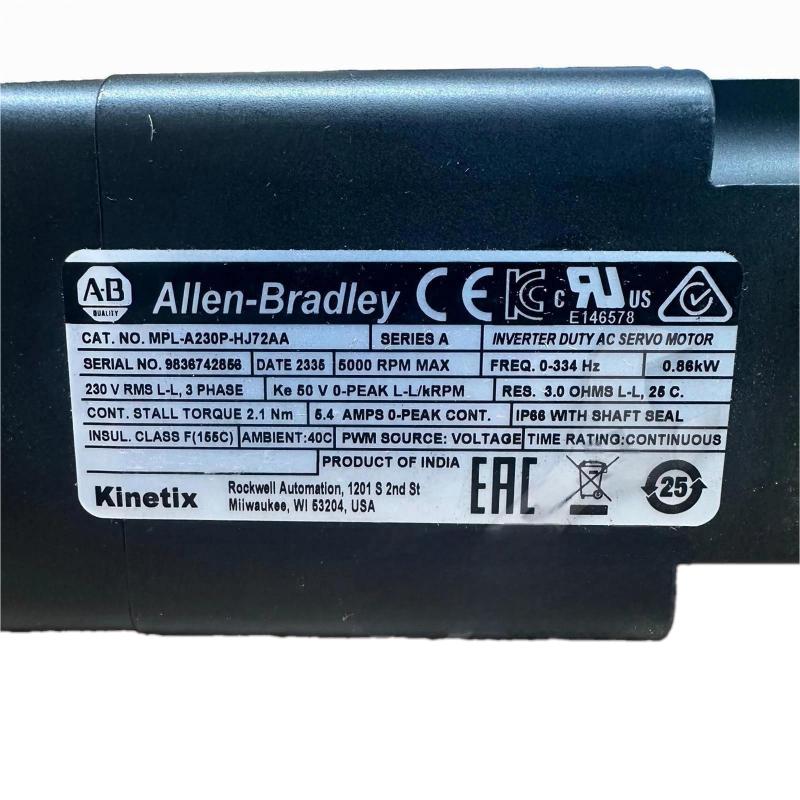

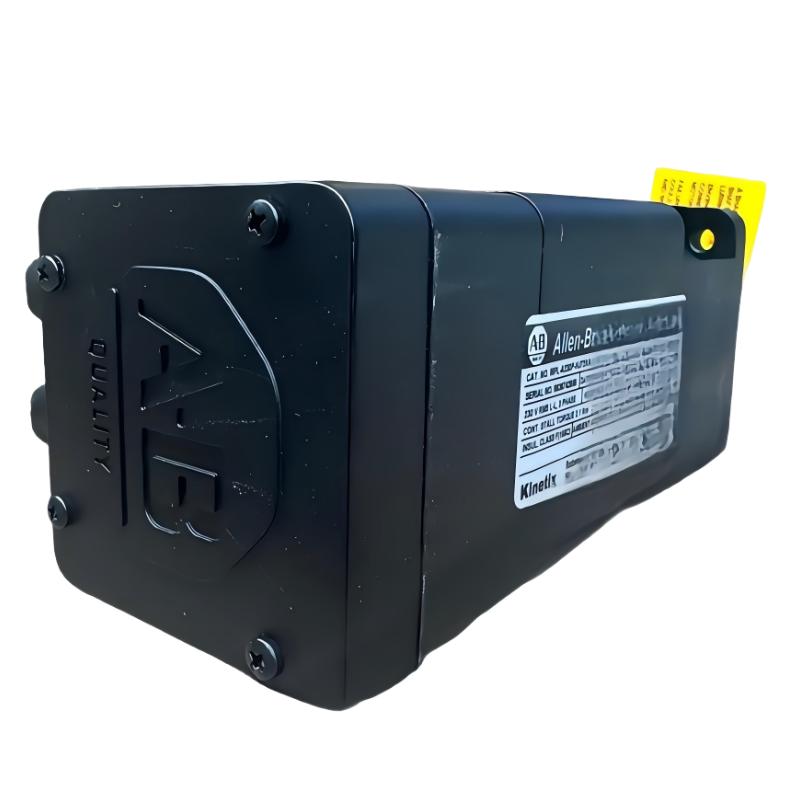

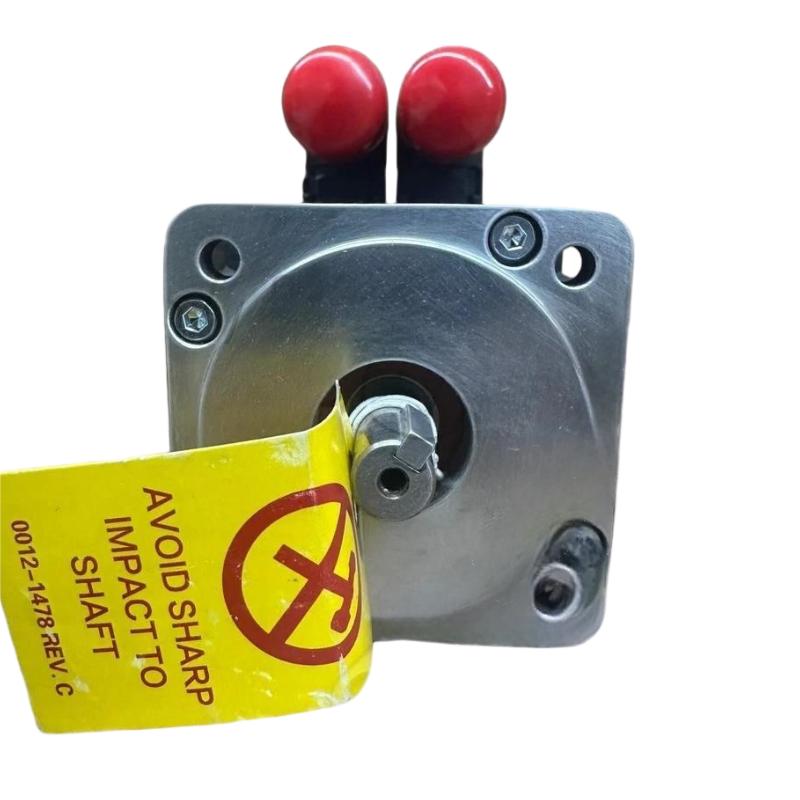

Allen Bradley MPL-A230P-HJ72AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Model | MPL-A230P-HJ72AA |
| Product Type | Low-Inertia AC Servo Motor |
| Product Series | MP-Series MPL |
| Voltage Class | 200 V AC |
| Frame Size | 75 mm |
| Magnet Stack Length | 76.2 mm |
| Rated Speed | 5000 rpm |
| Maximum Speed | 5000 rpm |
| Continuous Rated Power | 0.86 kW |
| Continuous Stall Torque | 2.1 Nm |
| Peak Torque | 8.2 Nm |
| Feedback Type | Incremental Encoder |
| Feedback Resolution | 2000 lines/revolution |
| Shaft Type | Keyed Shaft |
| Holding Brake | No Brake |
| Connector Type | Right-Angle SpeedTec DIN Connector |
| Connector Orientation | Rotatable 180° |
| Mounting Type | IEC Metric Flange Mount |
| Shaft Seal | No |
| Protection Rating | IP50 |
| Operating Temperature | 0–40°C |
| Weight | 2.6 kg |
FAQ
1. What applications is the Allen-Bradley MPL-A230P-HJ72AA servo motor designed for?
The MPL-A230P-HJ72AA is a low-inertia servo motor designed for industrial motion-control systems that require precise speed regulation and positioning. Typical applications include packaging machinery, automated assembly equipment, material handling systems, and production-line automation. Its suitability depends on the application’s torque requirements, acceleration profile, operating cycle, and servo drive configuration.
2. Which servo drives are compatible with the MPL-A230P-HJ72AA?
This motor belongs to the Allen-Bradley MP-Series MPL family. Compatibility with a servo drive depends on the exact drive model, voltage class, feedback interface, and system configuration. Verify the motor catalog number against the drive’s technical documentation before installation, particularly when integrating it into an existing motion-control system.
3. What type of feedback does the MPL-A230P-HJ72AA use?
The MPL-A230P-HJ72AA is specified with an incremental encoder. The encoder provides motion feedback to the servo drive, allowing the controller to regulate motor speed and position through closed-loop control. Correct encoder wiring, signal integrity, and drive configuration are important for stable operation and accurate positioning.
4. Does the MPL-A230P-HJ72AA include a holding brake?
No. The MPL-A230P-HJ72AA is specified without an integrated holding brake. If the application must hold a vertical or gravity-loaded axis when the motor stops, an appropriate external braking or load-holding arrangement may be required. The design should account for the load, stopping behavior, and machine safety requirements rather than relying on servo torque alone.
5. What should be checked before commissioning this servo motor?
Confirm the motor’s catalog number and compatibility with the selected servo drive. Inspect the power and encoder cables, connector seating, grounding, mounting, shaft coupling, and mechanical alignment. Enter the correct motor parameters into the drive and follow the manufacturer’s startup procedure. Initial testing should be performed at a controlled speed with suitable safeguards in place.
6. What are common causes of servo faults with the MPL-A230P-HJ72AA?
Common causes include incorrect encoder connections, damaged cables, unstable power supply, excessive mechanical load, incorrect drive parameters, and poor grounding. Start by checking the drive’s alarm code and diagnostic status. Inspect the electrical connections and mechanical load before replacing the motor, as faults may originate in the drive, wiring, or connected equipment.
7. How can unstable speed or positioning errors be diagnosed?
Check encoder signals, cable condition, coupling alignment, mechanical backlash, and the servo drive’s tuning parameters. Vibration, sudden load changes, or incorrect feedback scaling can also affect motion accuracy. Review the alarm history and compare the configured motor data with the product specifications. Make controlled adjustments according to the drive manufacturer’s tuning instructions.
8. What should be considered when replacing the MPL-A230P-HJ72AA?
Confirm the replacement motor’s voltage class, torque and speed ratings, encoder type, shaft configuration, connector arrangement, and brake requirements. The replacement must also be supported by the existing servo drive and control system. Since similar MP-Series motors may have different feedback or braking options, verify the complete catalog number before purchasing or installing a substitute.
Allen Bradley MPL-A230P-HJ72AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
