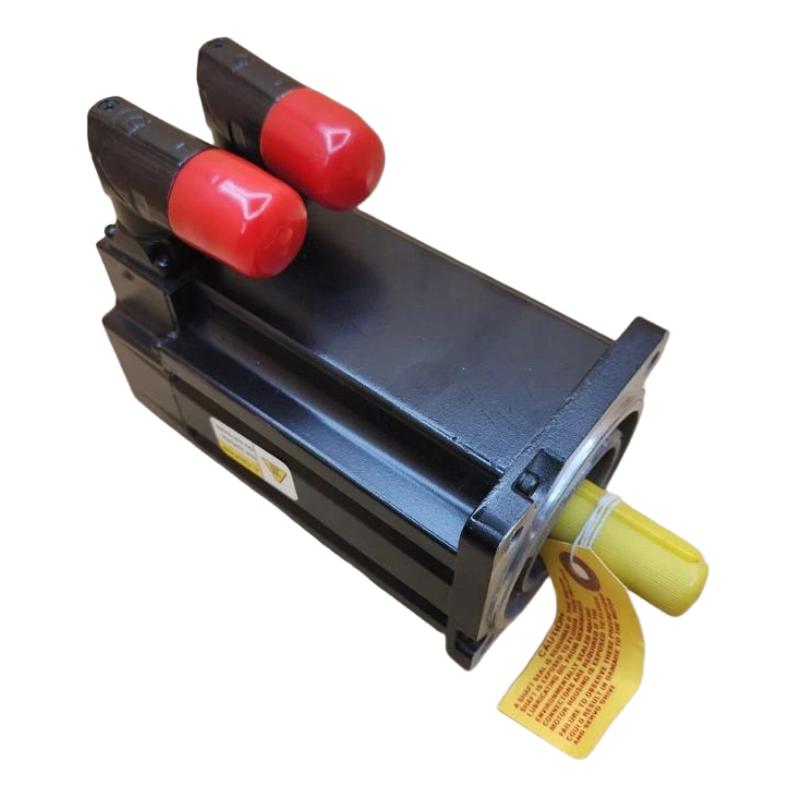

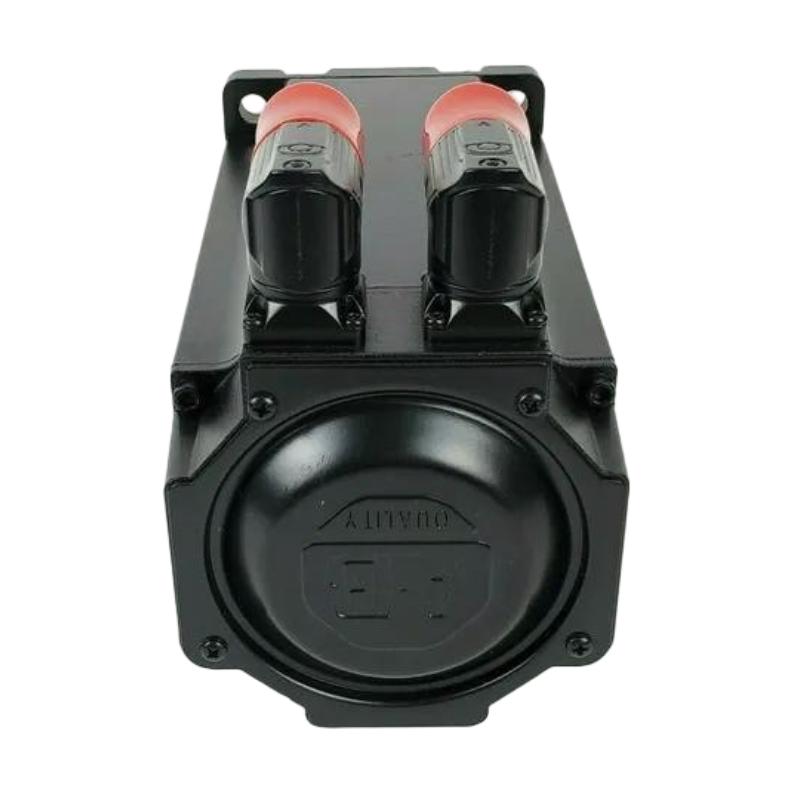

Technical Specifications

FAQ

Q1: What is the rated voltage of the MPL-A310P-SJ74AA servo motor?

The MPL-A310P-SJ74AA is a low-inertia AC servo motor designed for a 230 V AC voltage class. It is suitable for industrial motion control applications that require accurate positioning, speed regulation, and torque control. When selecting a compatible servo drive, verify the motor’s voltage rating, current requirements, feedback interface, and drive compatibility. Always check the motor nameplate and applicable technical documentation before installation to ensure the electrical configuration meets the requirements of the application.

Q2: What is the maximum speed of the MPL-A310P-SJ74AA?

The maximum speed of this servo motor is 5000 RPM, making it suitable for automation equipment that requires responsive and controlled rotary motion. The actual operating speed depends on the mechanical load, drive configuration, load inertia, acceleration and deceleration settings, and duty cycle. For applications involving frequent speed changes or continuous high-speed operation, engineers should evaluate motor temperature, load conditions, and system stability to ensure reliable performance throughout the operating cycle.

Q3: What type of encoder does the MPL-A310P-SJ74AA use?

The MPL-A310P-SJ74AA uses a single-turn high-resolution absolute encoder with Sin/Cos feedback and a resolution of 1024 cycles per revolution. The feedback system provides rotor position information to the servo drive, supporting precise motion control and speed regulation. Its Hiperface feedback protocol must be compatible with the selected drive. When replacing the motor or modifying the control system, verify the encoder interface, feedback configuration, and drive parameters to prevent feedback faults, positioning errors, or commissioning problems.

Q4: Does the MPL-A310P-SJ74AA have a built-in brake?

Yes, this model is specified with a built-in 24 V DC brake. The brake is intended primarily to hold a stationary load when the motor is not actively moving, which can be useful in certain vertical-axis and load-holding applications. A holding brake should not be treated as a substitute for dynamic braking or an independent emergency stopping system unless the manufacturer explicitly permits that use. During installation, confirm the brake wiring requirements, control sequence, and load-holding capability to ensure safe and reliable operation.

Q5: What are the continuous and peak torque ratings of the MPL-A310P-SJ74AA?

The specified continuous stall torque is 1.58 N·m, while the peak torque is 3.61 N·m. Continuous torque is important when evaluating the motor’s ability to handle sustained loads under the applicable operating conditions. Peak torque is relevant to short-duration demands such as acceleration and temporary load changes, subject to the motor and drive limits. Proper motor sizing should also account for load inertia, acceleration time, operating frequency, and duty cycle. Selecting a motor based solely on its peak torque may result in overheating or inadequate long-term performance.

Q6: Which servo drive is compatible with the MPL-A310P-SJ74AA?

A compatible servo drive must support the motor’s voltage class, electrical requirements, feedback protocol, and motor configuration. For Allen-Bradley motion control systems, compatibility should be confirmed against the exact servo drive series and its supported motor list. Engineers should also verify the required feedback connection, brake control arrangement, and drive parameter settings before commissioning. Using a drive from the same manufacturer does not automatically guarantee compatibility, so the exact motor and drive combination should be checked before purchasing or installing replacement equipment.

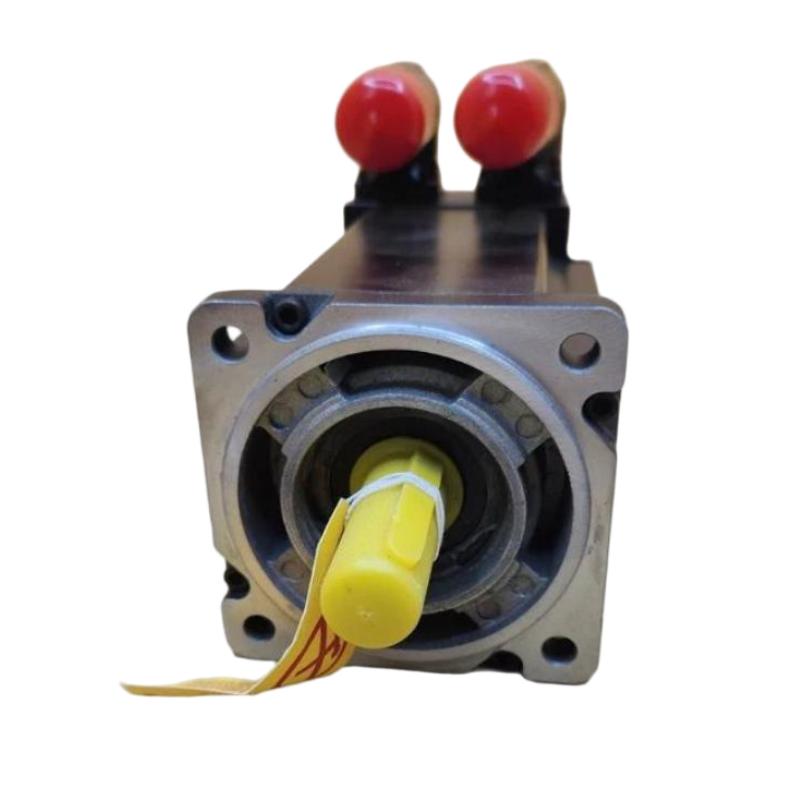

Q7: What should be checked when installing and wiring the MPL-A310P-SJ74AA?

Before installation, inspect the mounting flange, keyed shaft, coupling, and driven machinery to ensure proper mechanical alignment. Excessive radial or axial loading should be avoided because it can damage the bearings and reduce service life. Electrical installation should follow the applicable wiring specifications for the motor power cable, encoder feedback cable, and 24 V DC brake circuit. Keep feedback wiring appropriately separated from power cables to reduce electrical interference. Before operating the system, verify grounding, connector security, brake operation, drive configuration, and motor rotation direction.

Q8: How can overheating, vibration, or positioning errors in the MPL-A310P-SJ74AA be diagnosed?

Begin by checking the servo drive’s alarm history, operating parameters, and actual load conditions. Overheating may result from excessive continuous torque demand, an unsuitable duty cycle, restricted cooling, or an operating environment outside the permitted range. Vibration or positioning errors may be associated with incorrect servo tuning, mechanical misalignment, coupling problems, excessive backlash, loose connections, or encoder feedback faults. Troubleshooting should proceed systematically, changing one variable at a time where practical. Before inspecting electrical connections or mechanical components, isolate the power supply and follow the equipment’s safety procedures.
