Technical Specifications

FAQ

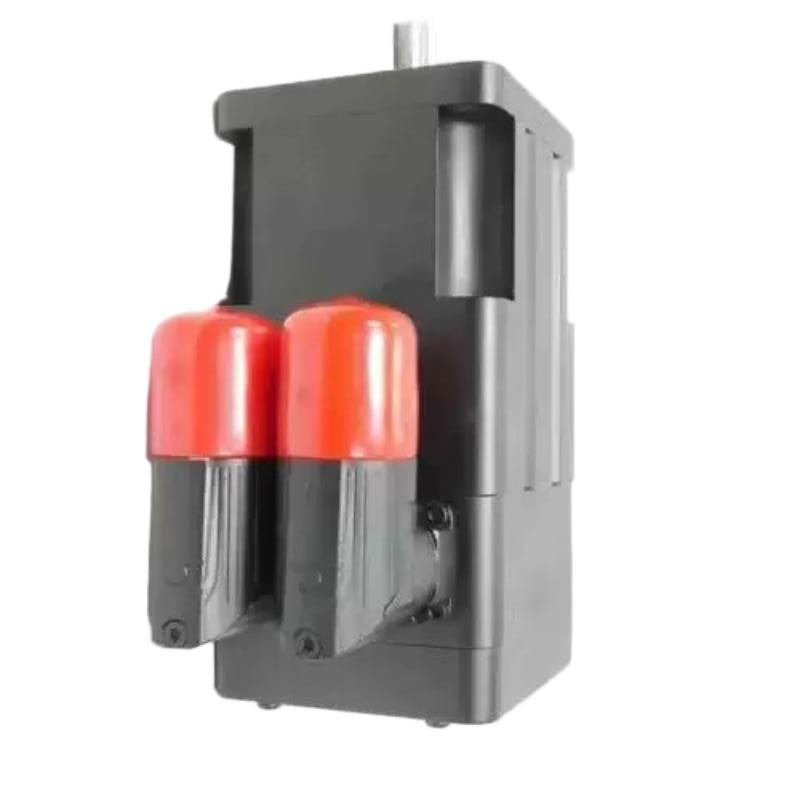

Q1: What is the rated voltage of the MPL-A310P-SK74AA servo motor?

The MPL-A310P-SK74AA is a low-inertia AC servo motor designed for the 230 V AC voltage class. It is suitable for industrial automation applications requiring precise speed regulation, positioning, and torque control. When selecting a compatible servo drive, verify the voltage rating, current capacity, feedback interface, and motor configuration. Correct electrical matching helps ensure stable operation and reduces the risk of faults during commissioning.

Q2: What are the rated speed and maximum speed of the MPL-A310P-SK74AA?

The motor has a rated speed of 4750 RPM and a maximum speed of 5000 RPM. These characteristics make it suitable for motion control applications that require responsive acceleration and consistent rotational performance. Actual operating speed depends on the mechanical load, load inertia, drive configuration, and duty cycle. For applications involving frequent acceleration and deceleration, the complete motion profile should be evaluated to ensure the motor operates within its specified limits.

Q3: What type of encoder is used in the MPL-A310P-SK74AA?

This model uses a single-turn high-resolution absolute encoder with Sin/Cos feedback and a resolution of 1024 cycles per revolution. The encoder communicates rotor position information to the servo drive through the Hiperface feedback protocol. This arrangement supports closed-loop motion control and accurate positioning. When replacing the motor or upgrading the control system, verify encoder compatibility, feedback cable requirements, and drive configuration to prevent communication faults and positioning errors.

Q4: What is the function of the built-in 24 V DC brake?

The MPL-A310P-SK74AA includes a 24 V DC holding brake designed to help maintain the motor’s position when it is not actively moving. This feature is useful in applications where unintended shaft movement must be limited, including certain vertical-axis systems. The holding brake should not automatically be treated as a substitute for a dynamic braking system or an independent emergency stop. Correct brake wiring, control sequencing, and load requirements should be verified before commissioning.

Q5: What are the continuous and peak torque ratings of this servo motor?

The MPL-A310P-SK74AA has a continuous stall torque rating of 1.58 N·m and a peak stall torque rating of 3.61 N·m. These values help engineers evaluate the motor’s ability to handle sustained torque demands and short-duration acceleration loads. Proper selection also requires consideration of load inertia, acceleration time, operating frequency, and thermal limits. Peak torque should not be used as a continuous operating value, and the complete application duty cycle should be checked before finalizing the motor selection.

Q6: Which servo drives can be used with the MPL-A310P-SK74AA?

The motor is intended for use with compatible Allen-Bradley motion control systems. Depending on the exact drive model and system configuration, compatible drive families may include Kinetix and Ultra series products. Before selecting a drive, verify the supported motor list, 230 V voltage class, Hiperface feedback compatibility, current capacity, and required cables. Compatibility should be confirmed for the exact motor-drive combination rather than assumed from the manufacturer’s name alone.

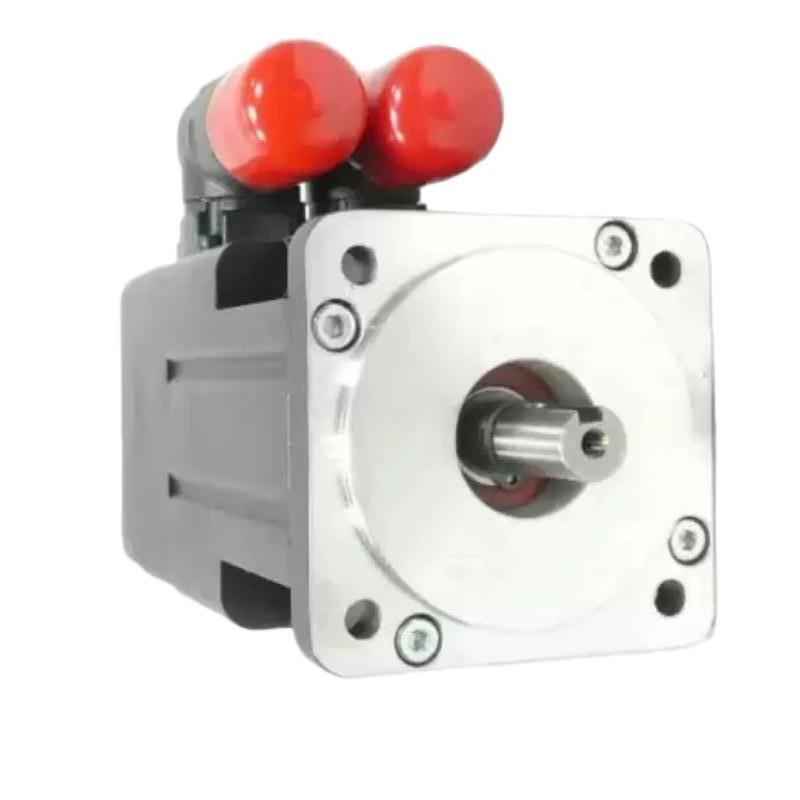

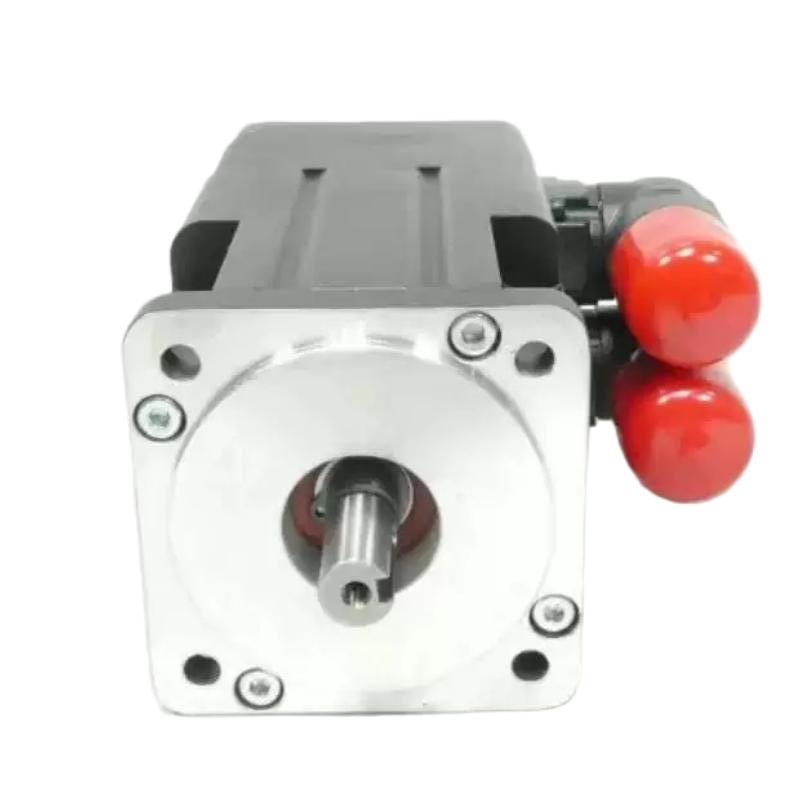

Q7: What installation requirements should be considered for the MPL-A310P-SK74AA?

Installation should include checking the mounting flange, keyless shaft extension, coupling alignment, and mechanical load. Ensure that the motor is securely mounted and that radial and axial shaft loads remain within the permitted limits. Use compatible power and feedback cables, follow the grounding requirements, and separate feedback wiring from power cables where appropriate to reduce electrical interference. The 24 V DC brake circuit must also be connected and controlled according to the applicable wiring specifications.

Q8: How can overheating, vibration, or positioning faults be diagnosed?

Start by reviewing the servo drive’s alarm history, operating parameters, and load conditions. Overheating may be caused by excessive torque demand, an unsuitable duty cycle, insufficient cooling, or incorrect drive settings. Vibration and positioning errors may result from mechanical misalignment, coupling problems, excessive backlash, incorrect servo tuning, loose connections, or encoder feedback faults. Troubleshooting should proceed systematically, checking mechanical, electrical, and control-related causes before replacing components. Always isolate the power supply before inspecting wiring or mechanical assemblies and follow the equipment’s safety procedures.
