Technical Specifications

FAQ

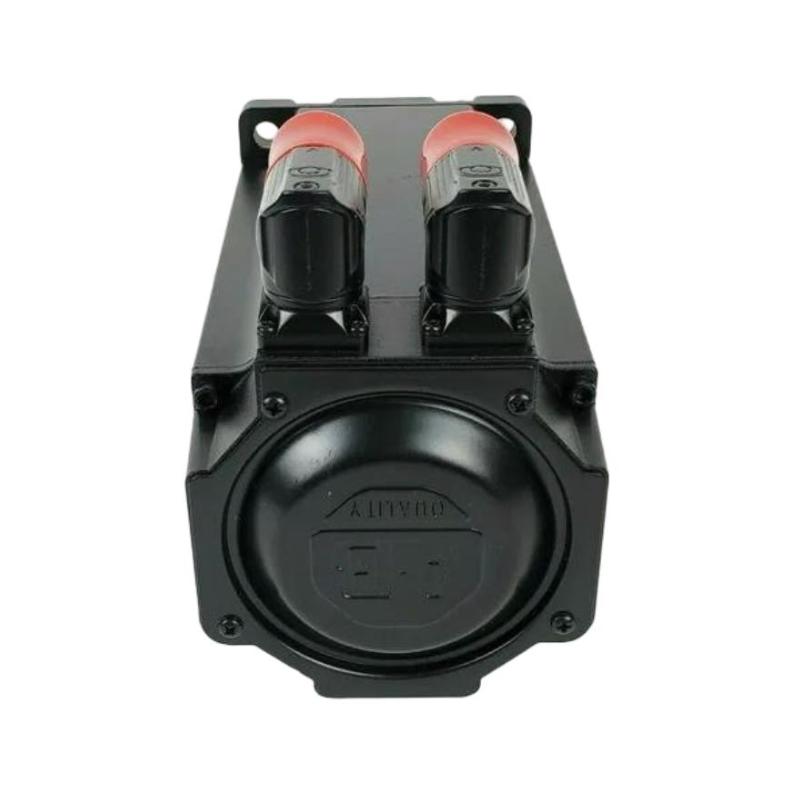

Q1: What is the rated voltage of the MPL-A320H-HJ74AA servo motor?

The MPL-A320H-HJ74AA belongs to the 230 V AC voltage class. It is designed for industrial motion control applications that require accurate positioning, controlled acceleration, and stable speed regulation. Before installation, verify that the servo drive matches the motor’s voltage and current requirements. The feedback interface, brake circuit, and compatible cable configuration should also be checked to ensure reliable operation.

Q2: What are the rated speed and torque specifications of this servo motor?

The listed rated speed is 3500 RPM, with a continuous stall torque of 3.05 N·m and peak torque of 7.91 N·m. These values help engineers evaluate the motor’s suitability for acceleration, deceleration, and normal operating loads. Actual performance depends on the drive, load inertia, duty cycle, and operating conditions. The motor should be sized according to the application’s continuous torque requirements and peak torque demands.

Q3: What type of feedback device does the MPL-A320H-HJ74AA use?

This model is listed with a 2000-line incremental encoder. The encoder supplies position and speed feedback to the servo drive, enabling closed-loop motion control. Correct feedback configuration is essential during commissioning. Verify the encoder interface and feedback cable compatibility with the selected drive. Incorrect wiring, electrical interference, or unsuitable parameter settings may cause feedback faults, unstable motion, or positioning errors.

Q4: Does the MPL-A320H-HJ74AA have a holding brake?

The HJ74AA model is specified with a 24 V DC holding brake. The brake helps hold the motor shaft when the motor is stopped and can be useful in applications where unwanted movement must be prevented. The brake supply and control sequence must follow the manufacturer’s wiring requirements. A holding brake is primarily intended for holding a stationary load and should not be used for repeated dynamic stopping unless the system is specifically designed for that purpose.

Q5: Which servo drives can be used with the MPL-A320H-HJ74AA?

The motor is intended for use in compatible Allen-Bradley motion control systems. Compatibility depends on the exact drive model, voltage class, feedback interface, current rating, brake-control requirements, and system configuration. Do not assume that every Kinetix or Ultra drive supports this motor. Check the drive’s supported motor list and relevant technical documentation before ordering or replacing equipment.

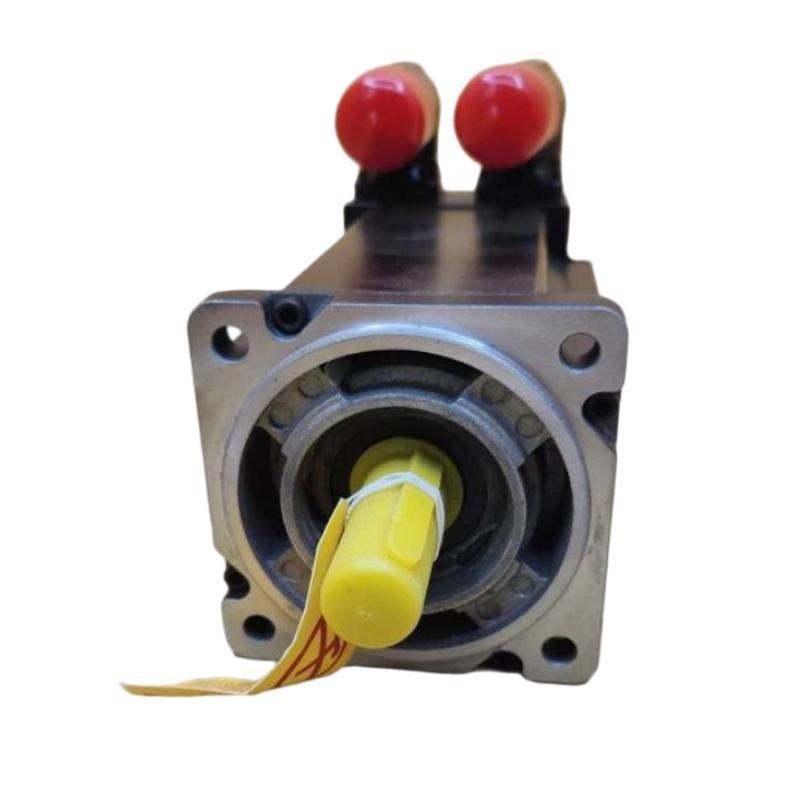

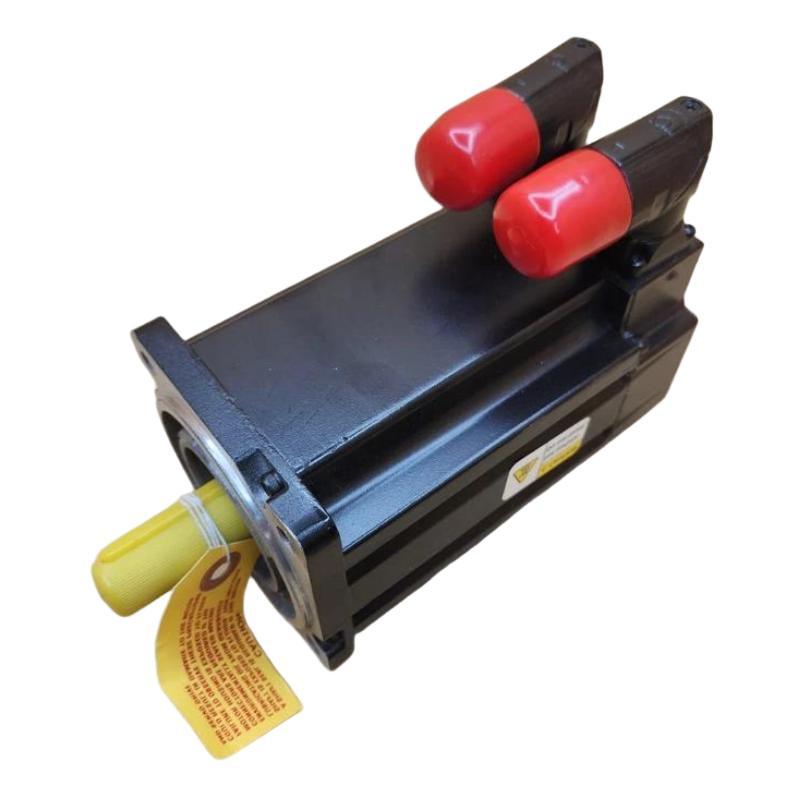

Q6: What should be checked when installing the motor’s keyed shaft?

The keyed shaft is designed to connect with compatible couplings and other mechanical drive components. Ensure that the key is correctly seated and that the coupling fits the shaft properly. Check shaft alignment and confirm that radial and axial loads remain within the motor’s permitted limits. Poor alignment, loose couplings, or excessive mechanical loading can cause vibration, bearing wear, and reduced positioning accuracy.

Q7: What operating conditions should be considered when using this servo motor?

The listed ambient operating temperature range is 0–40°C. The motor is specified with IP50 protection without a shaft seal, so the installation environment should be assessed before use. Excessive dust, moisture, oil contamination, or inadequate ventilation may affect service life and reliability. For applications exposed to liquids or harsh industrial contaminants, confirm that the motor’s protection level is appropriate for the installation.

Q8: How can overheating, vibration, or positioning errors be troubleshot?

Begin by checking the servo drive’s alarm history, motor load, speed and acceleration settings, and feedback status. Overheating can result from excessive load, a demanding duty cycle, poor ventilation, or incorrect drive settings. Vibration may be caused by misalignment, loose mounting hardware, coupling problems, or unsuitable servo tuning. Positioning errors may indicate encoder wiring problems, feedback configuration errors, or electrical interference. Inspect the mechanical and electrical systems systematically, and isolate the power supply before servicing wiring or mechanical components.
