Technical Specifications

FAQ

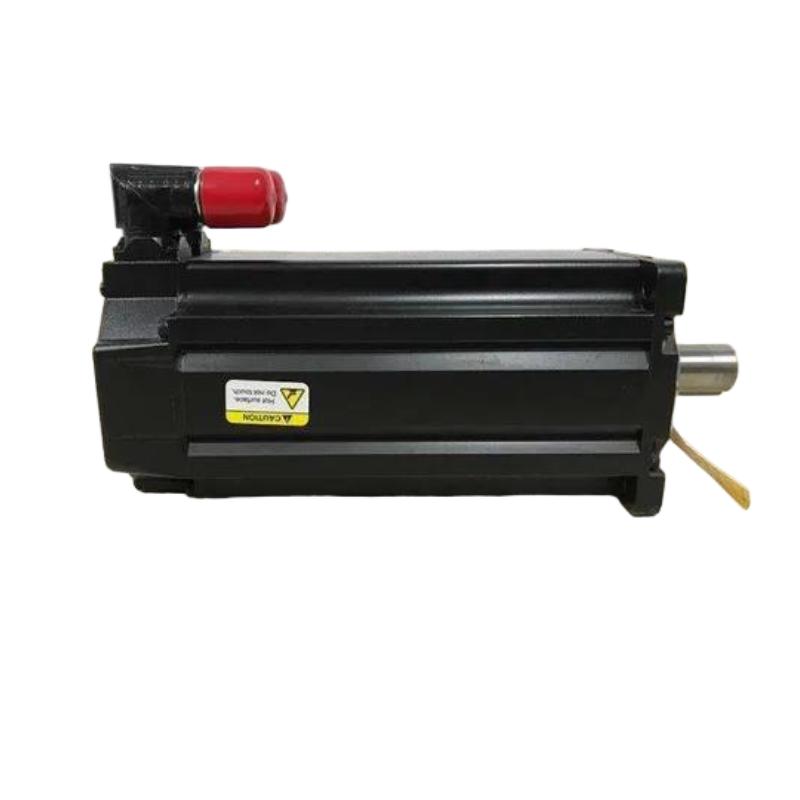

Q1: What is the rated voltage of the MPL-A320H-MJ22AA servo motor?

The MPL-A320H-MJ22AA is designed for the 230 V AC class of Allen-Bradley MP-Series servo systems. It is intended for industrial motion-control applications that require precise speed regulation and positioning. Before installation, confirm that the selected servo drive supports the motor’s voltage class, current requirements, feedback interface, and connector configuration.

Q2: What are the speed and torque ratings of this servo motor?

The motor is rated for 3500 RPM, with a continuous stall torque of 3.05 N·m and a peak torque of 7.91 N·m. These ratings help determine whether it can meet the application’s normal running and short-duration acceleration demands. Actual performance depends on load inertia, duty cycle, acceleration settings, and drive capacity. Check both continuous and peak torque requirements when sizing the motor.

Q3: What type of feedback does the MPL-A320H-MJ22AA use?

This model uses a multi-turn, high-resolution absolute encoder. Unlike a basic incremental encoder, an absolute encoder provides position information using an absolute position value, with multi-turn feedback tracking position across multiple shaft revolutions. The drive must support the encoder’s feedback protocol and configuration. Incorrect wiring or incompatible feedback settings may prevent the system from identifying the motor correctly.

Q4: Does the MPL-A320H-MJ22AA include a holding brake?

No. The MPL-A320H-MJ22AA is specified without an integrated brake. If the application requires a load to remain stationary when the motor is not energized, an external holding mechanism or suitable mechanical locking solution may be necessary. This is particularly important for vertical axes and gravity-loaded machinery. The holding solution should be selected according to the machine’s safety requirements and load characteristics.

Q5: Which servo drives are compatible with this motor?

The motor is designed for compatible Allen-Bradley motion-control systems. Compatibility depends on the specific servo drive, voltage rating, encoder interface, feedback protocol, and system configuration. Do not assume that every Kinetix or Ultra drive supports this model. Check the drive’s supported motor list and the applicable technical documentation before ordering or commissioning the equipment.

Q6: What should be considered when connecting the motor to a machine?

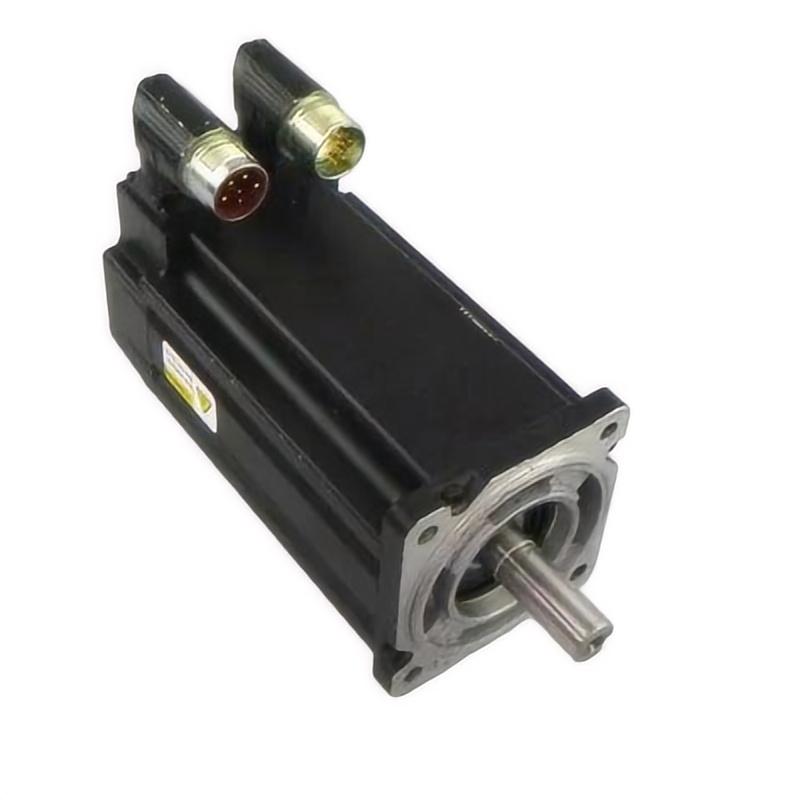

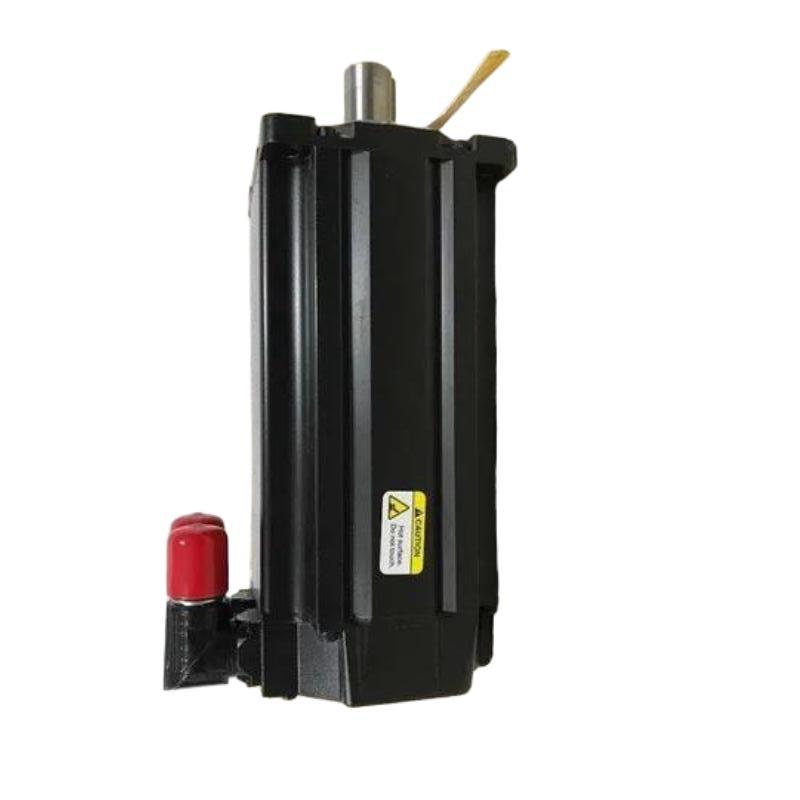

The motor has a keyed shaft extension for coupling to compatible mechanical drive components. Select a coupling suitable for the shaft and application torque, and ensure correct alignment before operation. The connector configuration should also be checked when selecting motor cables and planning cable routing. Poor alignment, loose couplings, or incorrect cable connections can lead to vibration, feedback faults, or reduced positioning accuracy.

Q7: What environmental conditions should be considered during installation?

The listed operating temperature limit is 40°C. The motor has no shaft seal in the specified configuration, so the installation environment and required protection level should be assessed carefully. Avoid exposing the motor to moisture, oil, or contaminants beyond its rated protection. Where the application involves washdown or significant contamination, confirm the required sealing options and connector protection before installation.

Q8: How can overheating, vibration, or positioning errors be troubleshot?

Start by reviewing the servo drive’s alarm history and checking the motor load, acceleration settings, feedback status, and cable connections. Overheating may result from excessive load, an unsuitable duty cycle, poor ventilation, or incorrect drive settings. Vibration may indicate misalignment, loose mounting hardware, coupling issues, or improper servo tuning. Positioning errors can arise from encoder wiring faults, incompatible feedback settings, or electrical interference. Isolate the power supply before inspecting wiring or mechanical components.
