Q1: What applications is the Allen-Bradley MPL-A320H-MJ72AA servo motor suitable for?

The MPL-A320H-MJ72AA is a low-inertia brushless AC servo motor designed for industrial motion-control applications. It can be used in automated assembly equipment, packaging machinery, material-handling systems, and other applications requiring precise speed and position control. Its suitability depends on the required torque, acceleration, load inertia, duty cycle, and compatibility with the selected servo drive.

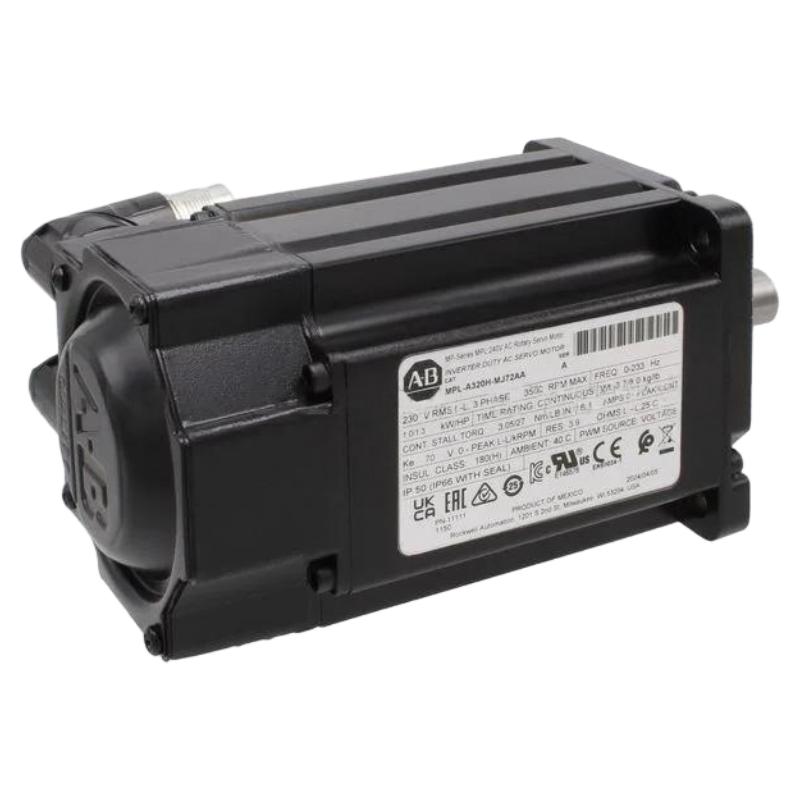

Q2: What are the rated speed and torque specifications of this motor?

The motor has a rated speed of 3500 RPM, a continuous stall torque of 3.05 N·m, and a peak torque of 7.91 N·m. These values help engineers assess the motor’s ability to handle continuous loads and short-duration acceleration demands. The actual operating point depends on the drive configuration, load characteristics, and thermal conditions. Always evaluate continuous and peak torque requirements before selecting the motor.

Q3: What type of encoder does the MPL-A320H-MJ72AA use?

This model uses a multi-turn, high-resolution absolute encoder with Hiperface feedback. The encoder provides position information to the servo drive for closed-loop motion control. The feedback system must be compatible with the selected drive, and the correct motor feedback parameters must be configured during commissioning. Incorrect wiring or feedback settings can lead to position errors, drive alarms, or failure to establish normal servo operation.

Q4: Does the MPL-A320H-MJ72AA include a holding brake?

No. The MPL-A320H-MJ72AA is specified without an integrated holding brake. If the application requires the motor to hold a load when power is removed, an external holding mechanism or suitable mechanical locking device may be required. This is particularly important for vertical axes and gravity-loaded equipment. The solution should be designed according to the machine’s safety requirements and expected load conditions.

Q5: Which servo drives are compatible with the MPL-A320H-MJ72AA?

The motor is designed for compatible Allen-Bradley motion-control systems. Supported drive options depend on the drive model, voltage class, feedback protocol, current requirements, and system configuration. Compatibility should be checked against the manufacturer’s motor and drive documentation rather than assumed from the product series alone. Confirming compatibility before installation helps prevent commissioning delays and feedback-related faults.

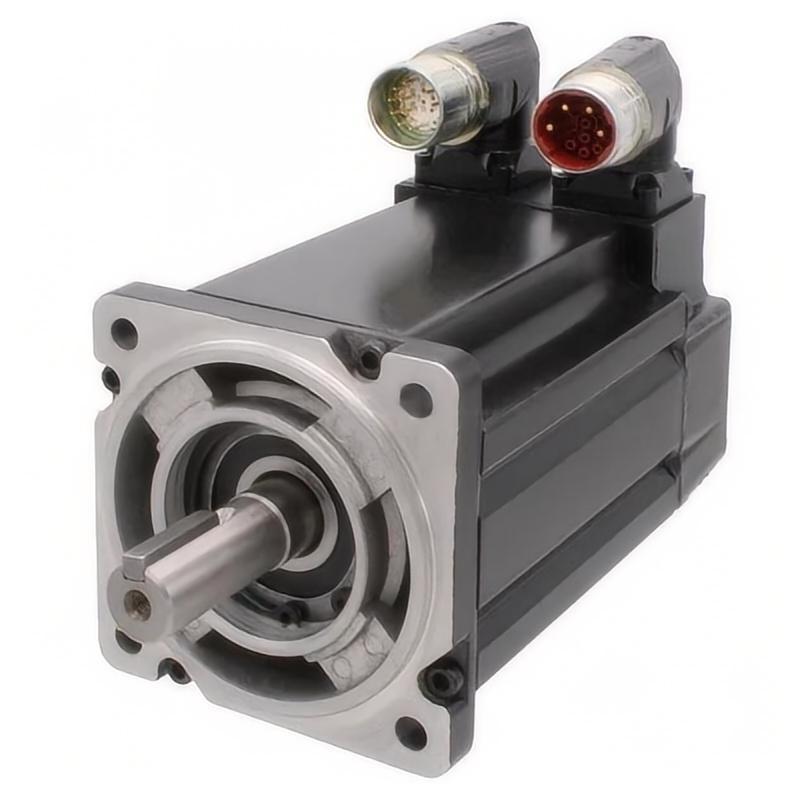

Q6: What should be checked when installing the motor’s keyed shaft?

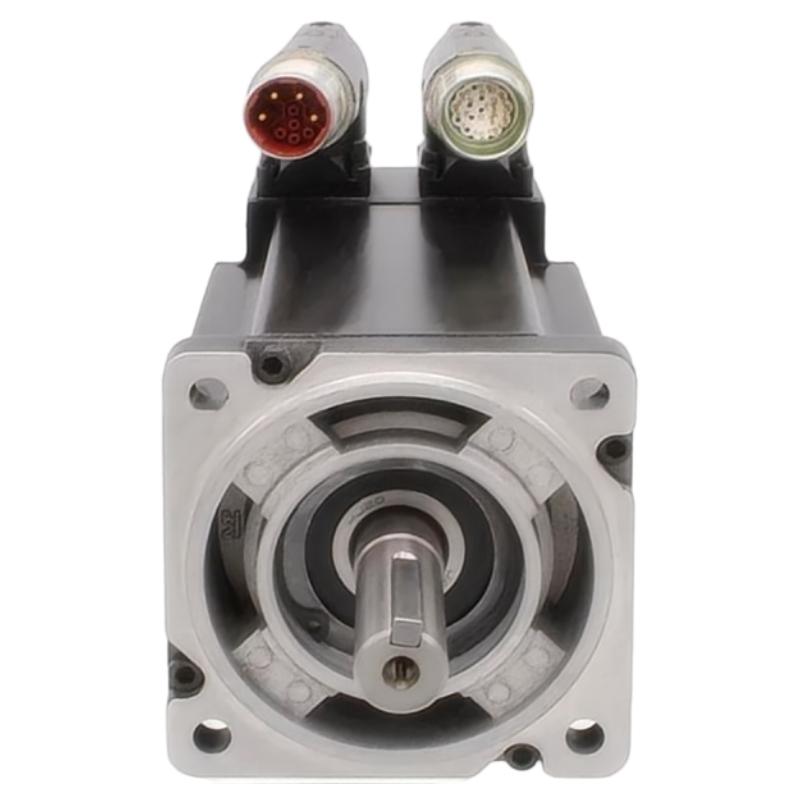

The keyed shaft extension is designed to connect with compatible couplings and mechanical transmission components. Ensure that the shaft key and coupling are correctly fitted and secured. Check shaft alignment and confirm that radial and axial loads remain within the permitted limits. Incorrect alignment, excessive mechanical loading, or a loose coupling can cause vibration, premature bearing wear, and reduced positioning accuracy.

Q7: What protection and environmental requirements apply to this motor?

The standard configuration has no shaft seal and is listed with IP50 protection. With the appropriate optional shaft seal and suitable environmentally sealed cable connectors, a higher protection level of up to IP66 may be available for the specified configuration. The motor’s operating temperature range is 0–40°C. Before installation in dusty, wet, or contaminated environments, verify the protection level of the complete motor and connector assembly.

Q8: How can common faults such as overheating, vibration, and positioning errors be diagnosed?

Begin by checking the servo drive’s alarm history, motor load, acceleration settings, and feedback status. Overheating may be caused by excessive load, an unsuitable duty cycle, insufficient ventilation, or incorrect drive parameters. Vibration may result from shaft misalignment, loose mounting hardware, coupling problems, or improper servo tuning. Positioning errors may indicate encoder cable damage, feedback configuration issues, or electrical interference. Troubleshoot the mechanical, electrical, and control systems systematically, and isolate the power supply before inspecting wiring or mechanical components.
