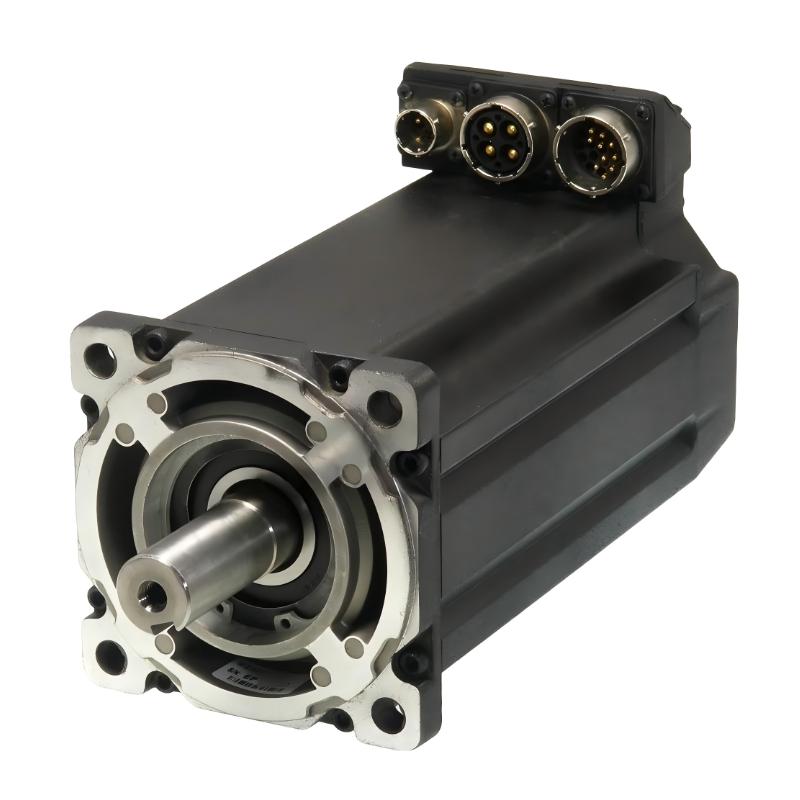

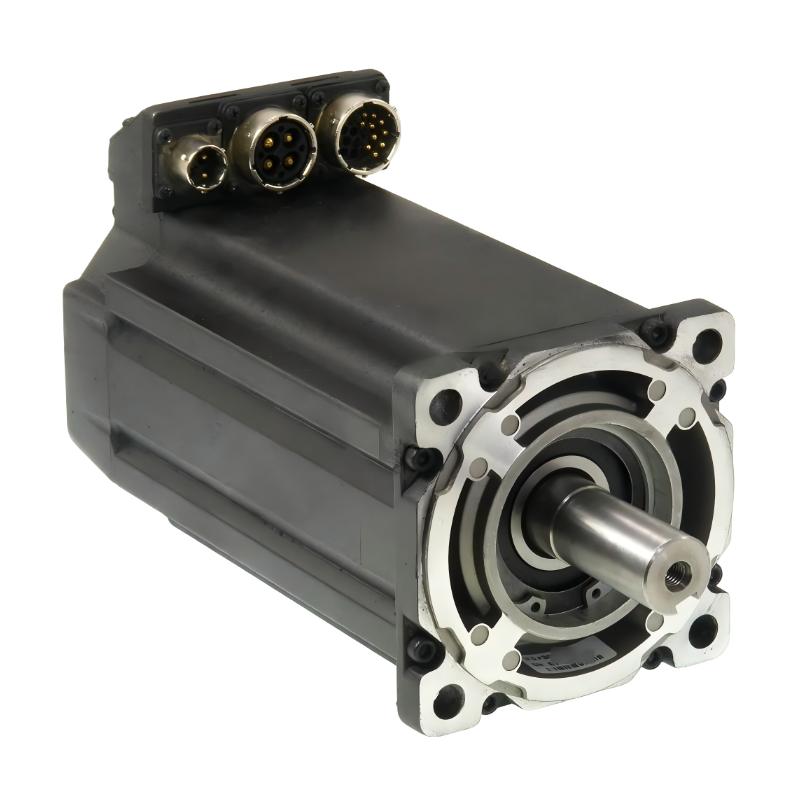

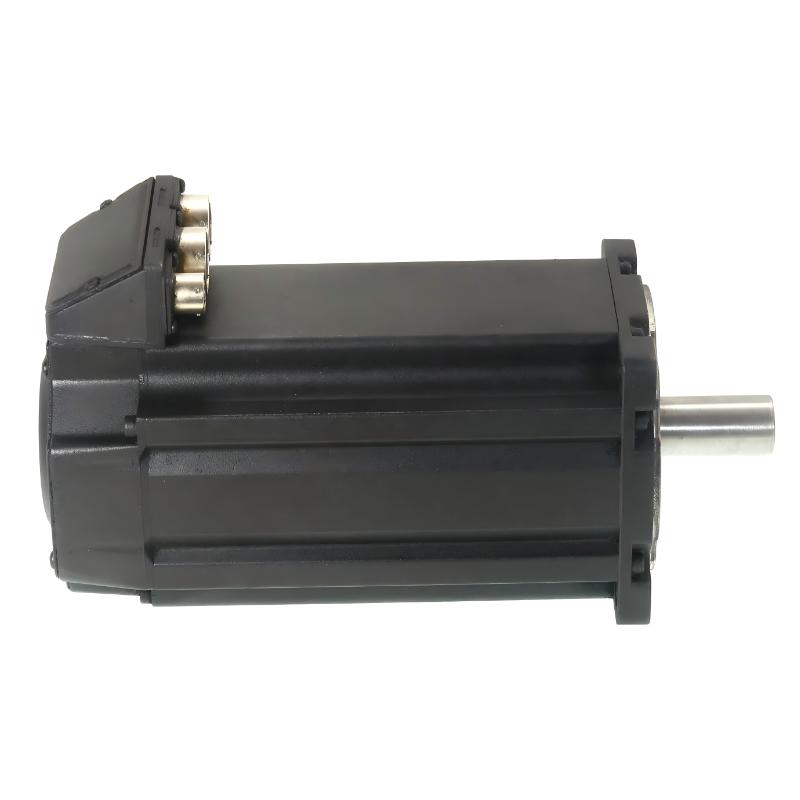

Allen Bradley MPL-B4530K-MJ24AA Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
MPL-B4530K-MJ24AA Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | MPL-B4530K-MJ24AA MP-Series Low Inertia Servo Motor |
| Product Type | AC Servo Motor |
| Series | Allen-Bradley MP-Series MPL |
| Device Type | Low-Inertia Brushless Rotary Servo Motor |
| Primary Function | Precision motion control for industrial automation systems |
| Voltage Class | 460V AC |
| Rated Power | Approx. 2.1 kW |
| Rated Speed | 4000 RPM |
| Continuous Stall Torque | 8.25 N·m |
| Continuous Stall Current | 7.0 A |
| Motor Type | Permanent magnet synchronous servo motor |
| Frame Size | 130 mm |
| Magnet Stack Length | 76.2 mm (3-inch stack) |
| Feedback Type | Multi-turn high-resolution absolute encoder |
| Encoder Protocol | Hiperface |
| Shaft Type | Keyed shaft |
| Shaft Seal | No shaft seal |
| Brake | 24V DC holding brake |
| Connector Type | Circular bayonet connector, facing shaft |
| Mounting Type | IEC metric flange mount |
| Cooling Method | Natural convection |
| Protection Rating | Industrial-grade enclosure |
| Compatible Drives | Kinetix 2000/300/350/6000/6200/6500/7000, Ultra 3000 |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -30°C to 70°C |
| Relative Humidity | 5%–95% non-condensing |
| Lifecycle Status | Discontinued |
| Dimensions (L × W × H) | Approx. 130 mm |
| Weight | Approx. 7.3 kg |
| Typical Applications | Robotics, CNC systems, packaging machinery, conveyors, industrial automation motion control |
FAQ
What is the MPL-B4530K-MJ24AA used for?
It is a high-performance servo motor used for precision motion control in industrial automation systems.
What is the rated speed of this motor?
The motor operates at a rated speed of 4000 RPM.
What type of feedback encoder does it use?
It uses a multi-turn high-resolution absolute encoder with Hiperface feedback.
Does this model include a brake?
Yes, it includes a 24V DC holding brake.
What type of shaft does it use?
It uses a keyed shaft without a shaft seal.
Which servo drives are compatible?
It is compatible with Allen-Bradley Kinetix and Ultra series servo drives.
Is this product still active?
No, it is a discontinued product.
Where is it commonly installed?
It is commonly used in robotics, CNC machinery, packaging systems, and automated production equipment.
Allen Bradley MPL-B4530K-MJ24AA Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
