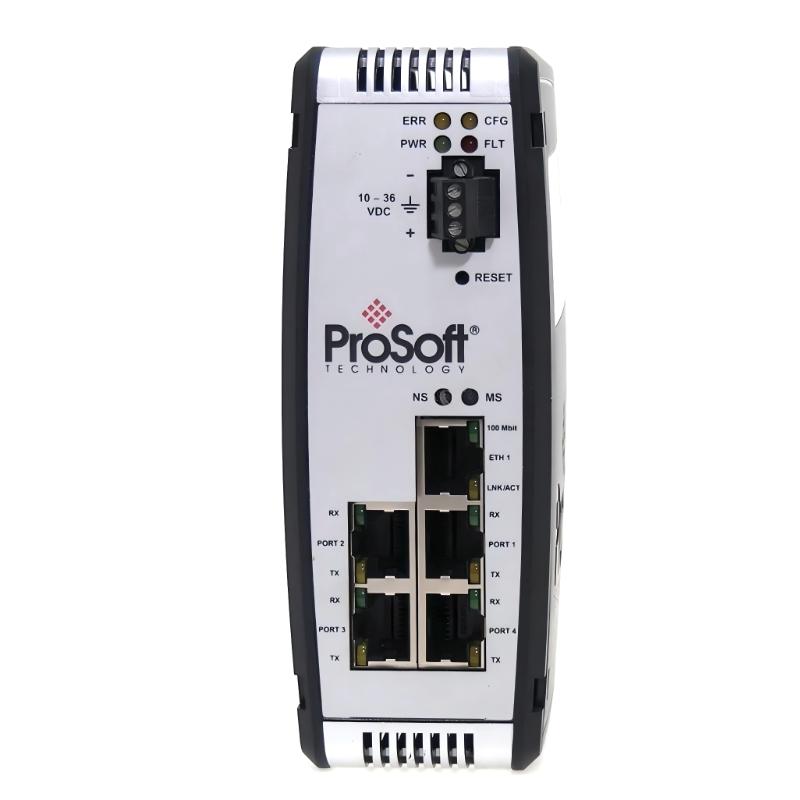

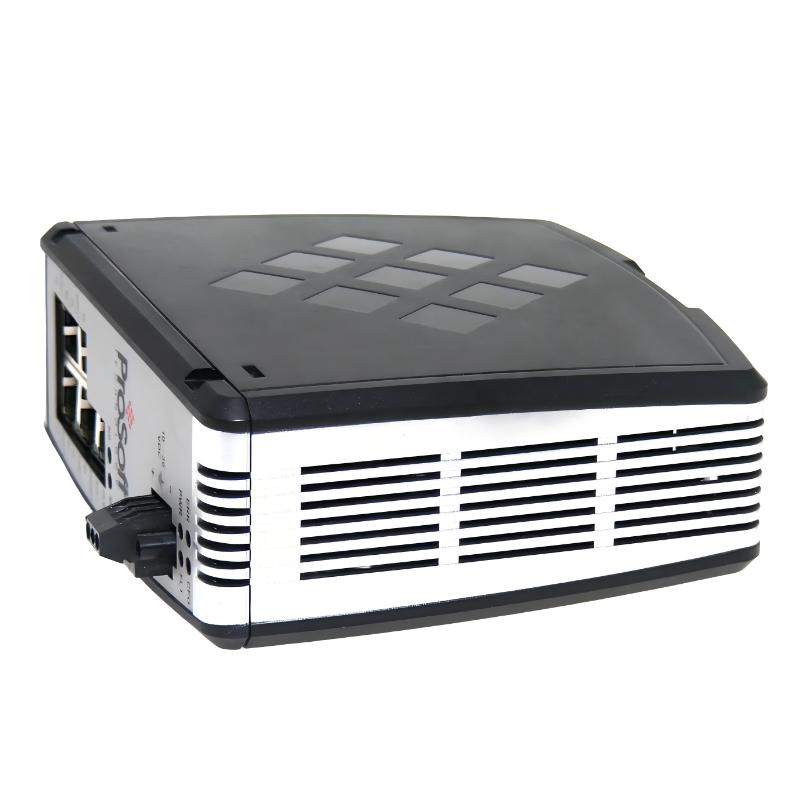

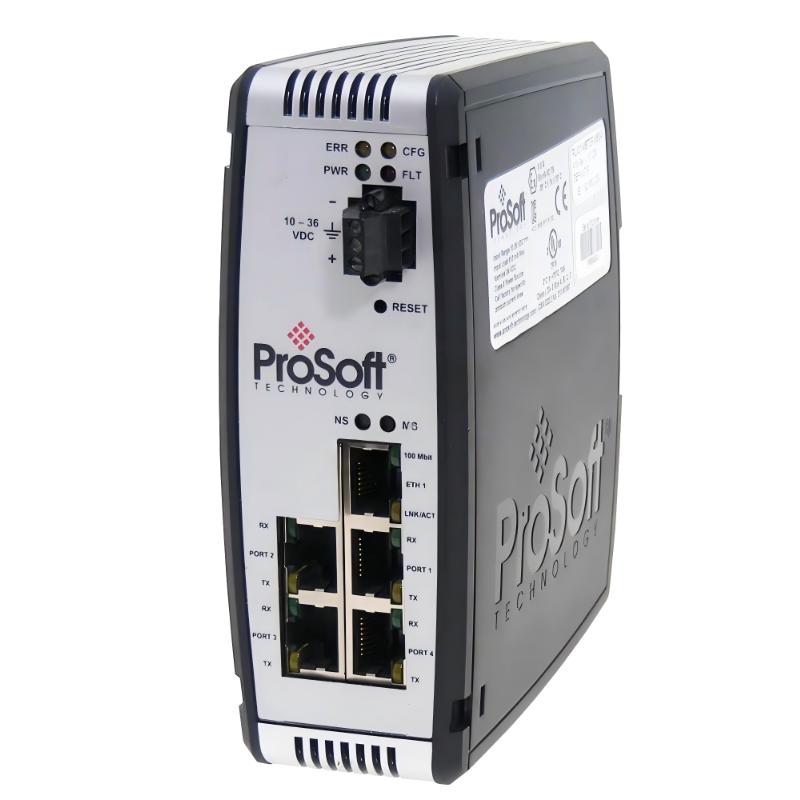

1. What is the main function of the PLX31-MBTCP-MBS4 gateway?

The PLX31-MBTCP-MBS4 is designed to bridge communication between Modbus TCP/IP Ethernet networks and Modbus serial networks (RTU or ASCII). In industrial automation systems, many modern devices use Ethernet-based communication, while older field devices still rely on serial Modbus. This gateway allows both types of devices to communicate seamlessly, enabling system integration without replacing existing equipment. It acts as a protocol translator that ensures data can flow reliably between different generations of automation hardware.

2. Why is a Modbus gateway important in industrial systems?

Industrial environments often contain mixed generations of equipment. Without a gateway, Modbus TCP devices cannot directly communicate with Modbus RTU/ASCII devices. The gateway eliminates this barrier by translating protocols in real time. This reduces system upgrade costs, extends the life of legacy equipment, and simplifies integration in distributed control systems where different communication standards coexist.

3. How does the gateway handle protocol conversion?

The device maps Modbus TCP requests received over Ethernet into Modbus RTU or ASCII commands sent through its serial ports. It processes addressing, function codes, and data frames to ensure compatibility between both systems. The conversion is transparent to the PLC or SCADA system, meaning the upper-level controller interacts as if all devices are on a single unified network.

4. What types of systems can it connect together?

The PLX31-MBTCP-MBS4 can connect Ethernet-based PLCs, HMIs, and SCADA systems with serial Modbus devices such as drives, meters, sensors, and legacy controllers. It is commonly used in manufacturing plants, water treatment systems, energy monitoring systems, and process automation environments where both modern and legacy devices coexist.

5. How is the device configured and managed?

Configuration is typically done through a built-in web interface accessible via Ethernet. Engineers can define communication parameters, map registers between networks, set baud rates for serial ports, and configure Modbus addressing. This simplifies commissioning and allows adjustments without specialized programming tools.

6. What happens if communication fails on one side of the gateway?

If either the Ethernet or serial side experiences communication failure, the gateway logs diagnostic information and updates status indicators. The unaffected side continues to operate independently. Depending on system design, PLCs may detect timeout conditions and trigger alarms or fallback logic to maintain safe operation.

7. Can multiple devices be connected through the serial ports?

Yes. Each of the four serial ports can be configured to communicate with multiple Modbus RTU or ASCII slave devices, depending on network design and addressing structure. This allows one gateway to serve as a central communication hub for several field devices, reducing hardware complexity.

8. Why is protocol conversion still necessary in modern automation systems?

Even though Ethernet-based communication is widely used today, many industrial plants still rely on legacy Modbus RTU devices that remain reliable and cost-effective. Replacing all legacy equipment is often expensive and unnecessary. Protocol gateways like this provide a practical solution by enabling interoperability, ensuring system continuity, and supporting gradual modernization strategies.
