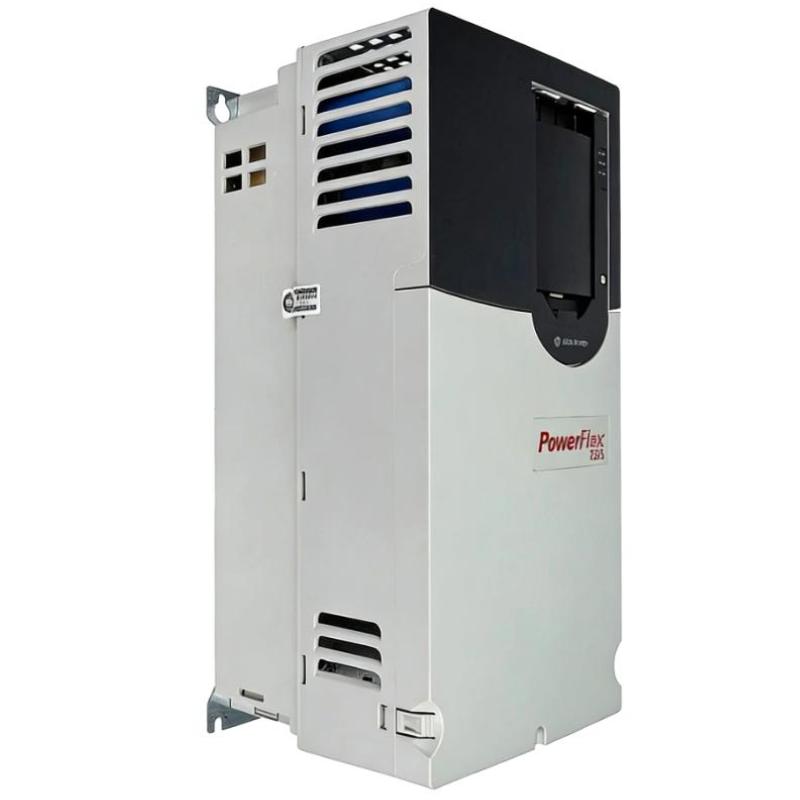

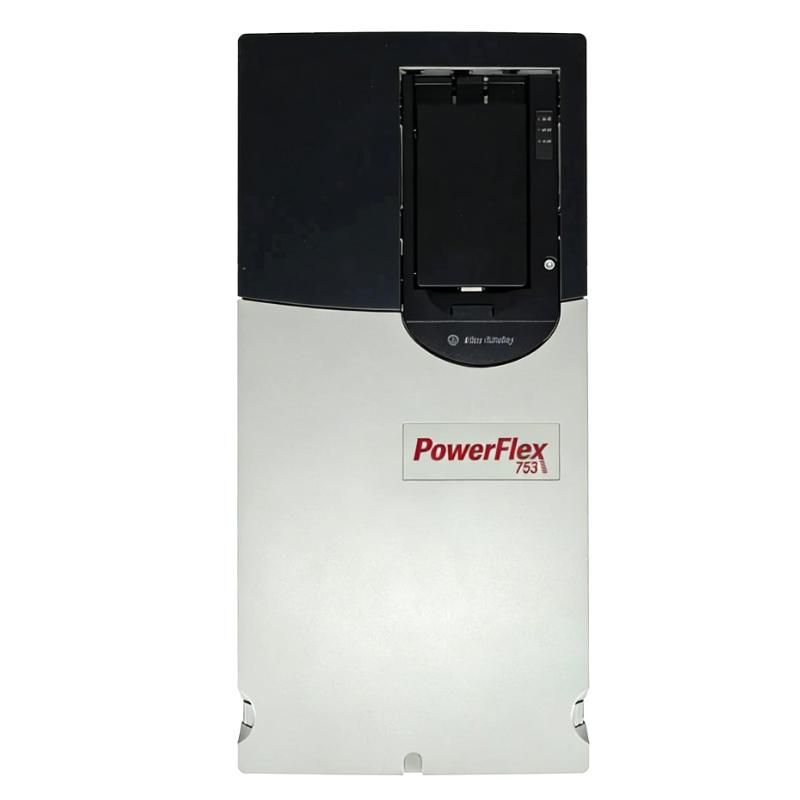

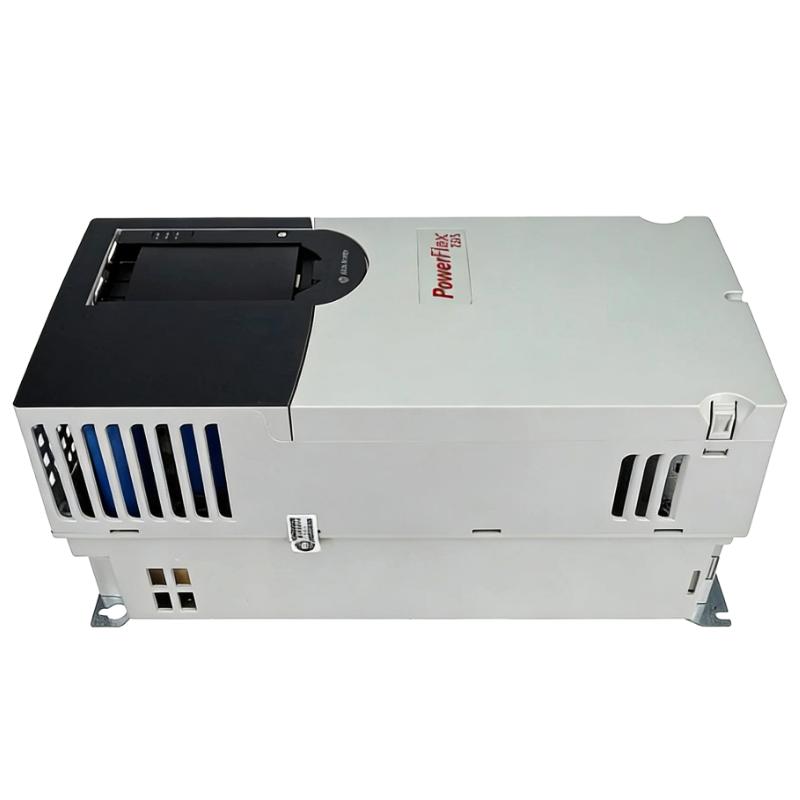

Allen Bradley PLX82-EIP-PNC PowerFlex 753 AC Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 20F11NC104JA0NNNNN |
| Product Type | PowerFlex 753 AC Drive |
| Product Series | Allen-Bradley PowerFlex 753 Series |
| Main Function | Variable frequency AC drive for motor speed control, energy optimization, and industrial automation applications |
| Input Voltage | 400 VAC, 3-phase |
| Input Voltage Range | 380 to 480 VAC |
| Input Frequency | 50/60 Hz |
| Input Phase | 3-phase |
| Output Current | 104 A |
| Normal Duty Power Rating | 55 kW |
| Heavy Duty Power Rating | 45 kW |
| Output Voltage | 0 to rated input voltage |
| Output Frequency Range | 0 to 590 Hz |
| Frame Size | Frame 5 |
| Control Method | Sensorless Vector Control, Vector Control, V/Hz Control, PID Control |
| Drive Platform | PowerFlex 753 AC Drive |
| Enclosure Type | IP20 / NEMA Open Type |
| Cooling Method | Forced air cooling |
| EMC Filtering | Integrated EMC filter with common mode jumper configuration |
| Dynamic Braking | Built-in dynamic braking transistor support |
| Brake Resistor | External braking resistor required |
| Human Interface Module (HIM) | Not included, blank cover configuration |
| Embedded I/O | Standard integrated I/O |
| Communication Interface | Supports optional communication modules |
| Safety Function Support | Supports optional Safe Torque-Off and safety modules |
| Mounting Method | Panel mounting |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 550 × 212 × 240 mm (H × W × D) |
| Weight | Approximately 23 kg (50.7 lb) |
| Application Areas | Conveyors, pumps, fans, compressors, material handling systems, and industrial process equipment |
FAQ
Q1: What is the main function of the 20F11NC104JA0NNNNN?
A1: The 20F11NC104JA0NNNNN is a PowerFlex 753 AC drive designed for industrial motor speed control, providing stable operation, precise performance, and flexible automation integration.
Q2: What motor power rating does the 20F11NC104JA0NNNNN support?
A2: The drive supports 55 kW normal duty operation and 45 kW heavy duty operation with a rated output current of 104 A.
Q3: What type of power supply is required for the 20F11NC104JA0NNNNN?
A3: The drive requires a three-phase 400 VAC power supply and operates within the 380 to 480 VAC voltage range.
Q4: Does the 20F11NC104JA0NNNNN support dynamic braking?
A4: Yes. The drive provides built-in dynamic braking transistor support and allows connection to an external braking resistor when required.
Q5: Is a Human Interface Module included with the 20F11NC104JA0NNNNN?
A5: No. This model is supplied without a HIM keypad and uses a blank cover configuration.
Q6: Can the 20F11NC104JA0NNNNN be integrated into industrial communication networks?
A6: Yes. The PowerFlex 753 platform supports optional communication modules for connection with various industrial automation networks.
Q7: What applications are suitable for the 20F11NC104JA0NNNNN?
A7: Typical applications include heavy-duty conveyors, pumps, fans, compressors, production machinery, and industrial process control equipment.
Q8: How can users troubleshoot issues with the 20F11NC104JA0NNNNN?
A8: Troubleshooting should include checking power supply, motor connections, drive parameters, fault codes, cooling conditions, braking components, and communication settings.
Allen Bradley PLX82-EIP-PNC PowerFlex 753 AC Drive is in stock. Please contact us for a quick quote and competitive pricing.
