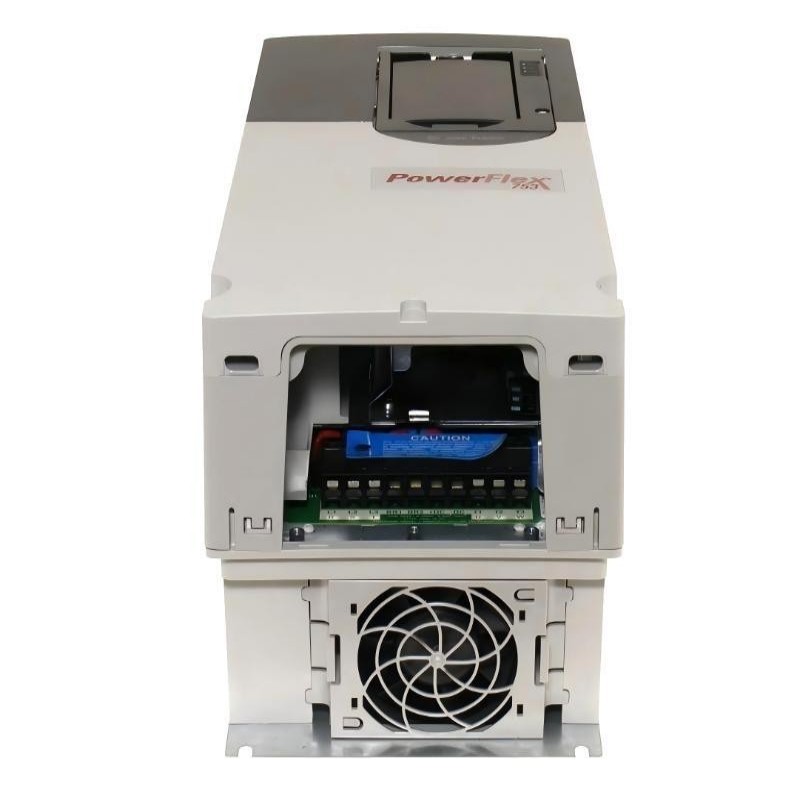

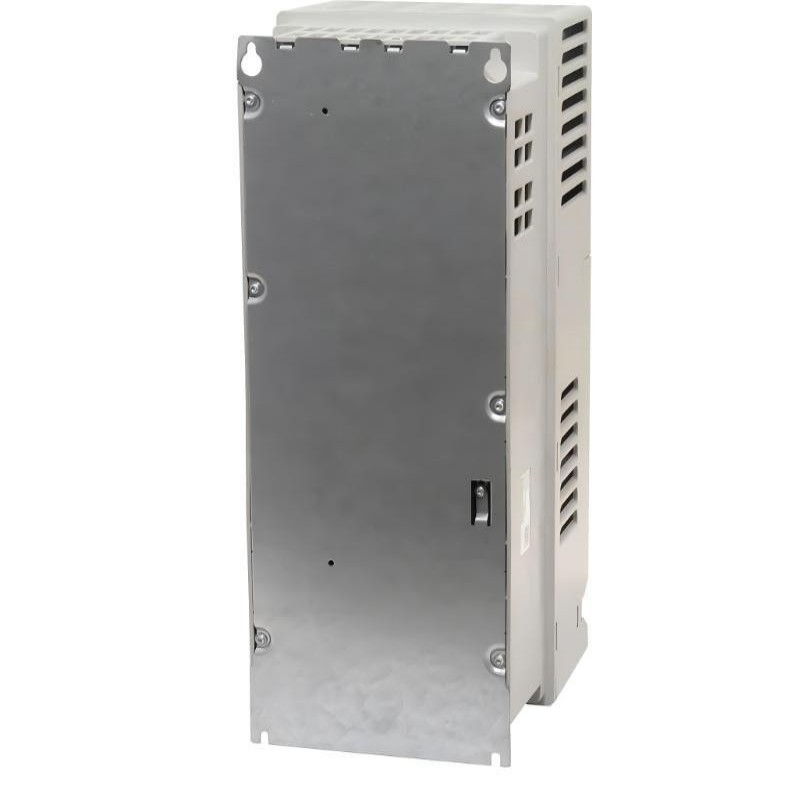

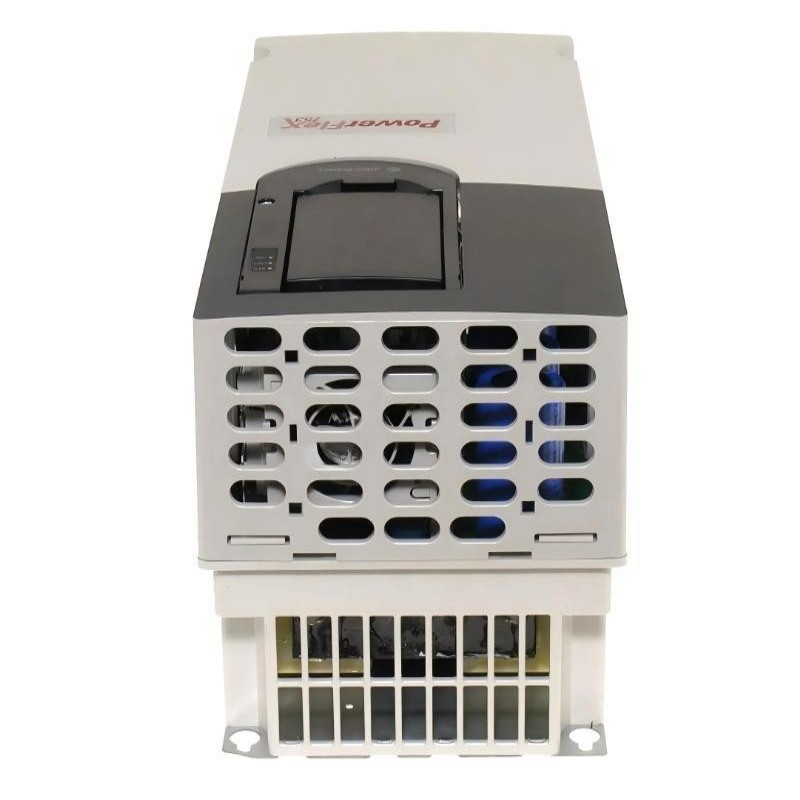

Allen-Bradley PowerFlex 753 20F14NF020JN0NNNNN AC Drive – Technical Specifications & FAQ
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

Technical Specifications
Allen-Bradley PowerFlex 753 20F14NF020JN0NNNNN AC Drive – Technical Specifications & FAQ
| Parameter | Specification |
|---|---|
| Product Type | Variable Frequency Drive (VFD) |
| Brand | Allen-Bradley |
| Product Series | PowerFlex 753 |
| Product Model | 20F14NF020JN0NNNNN |
| Drive Type | AC Drive / Common Bus Drive |
| Input Type | DC Input with Precharge |
| Nominal DC Input Voltage | 932 V DC |
| AC Voltage Class | 690 V AC |
| Input Phase | 3-phase |
| Normal-Duty Output Current | 20 A |
| Normal-Duty Power Rating | 15 kW |
| Heavy-Duty Output Current | 15 A |
| Heavy-Duty Power Rating | 11 kW |
| Enclosure | IP00 / NEMA/UL Open Type |
| Frame Size | Frame 6 |
| Cooling | Air-cooled |
| EMC Filtering | Filtered |
| Common-Mode Jumper | Installed |
| Dynamic Braking | No internal dynamic braking transistor |
| Human Interface Module | Not included |
| Mounting | Panel mounting |
| Dimensions (H × W × D) | Approx. 665.5 × 308 × 346.4 mm |
| Weight | Approx. 38.6 kg |
FAQ
Q1: What is the Allen-Bradley 20F14NF020JN0NNNNN?
- It is an Allen-Bradley PowerFlex 753 variable frequency drive designed for industrial motor control and common DC-bus applications.
Q2: What is the power rating of the 20F14NF020JN0NNNNN?
- The drive has a 15 kW normal-duty rating and an 11 kW heavy-duty rating. Its normal-duty continuous output current is 20 A.
Q3: What voltage does this PowerFlex 753 model support?
- This model belongs to the 690 V AC voltage class and uses a nominal 932 V DC common-bus input configuration.
Q4: What is the frame size of this drive?
- The 20F14NF020JN0NNNNN uses a Frame 6 enclosure. This frame size is used for higher-power PowerFlex 753 configurations.
Q5: Does the 20F14NF020JN0NNNNN include an EMC filter?
- Yes. The specified configuration includes filtering and the common-mode capacitor jumper installed.
Q6: Does this model have an internal dynamic braking transistor?
- No. This particular configuration does not include an internal dynamic braking transistor. An external braking arrangement may be required if the application involves significant regenerative energy.
Q7: Does the drive come with a Human Interface Module?
- No. The 20F14NF020JN0NNNNN is supplied without a Human Interface Module. A compatible HIM can be added separately when local programming or monitoring is needed.
Q8: What are the dimensions and weight of the 20F14NF020JN0NNNNN?
- The approximate Frame 6 dimensions are 665.5 × 308 × 346.4 mm (H × W × D), and the drive weighs approximately 38.6 kg. These figures refer to the drive itself rather than its shipping package.
Allen-Bradley PowerFlex 753 20F14NF020JN0NNNNN AC Drive – Technical Specifications & FAQ is in stock. Please contact us for a quick quote and competitive pricing.
