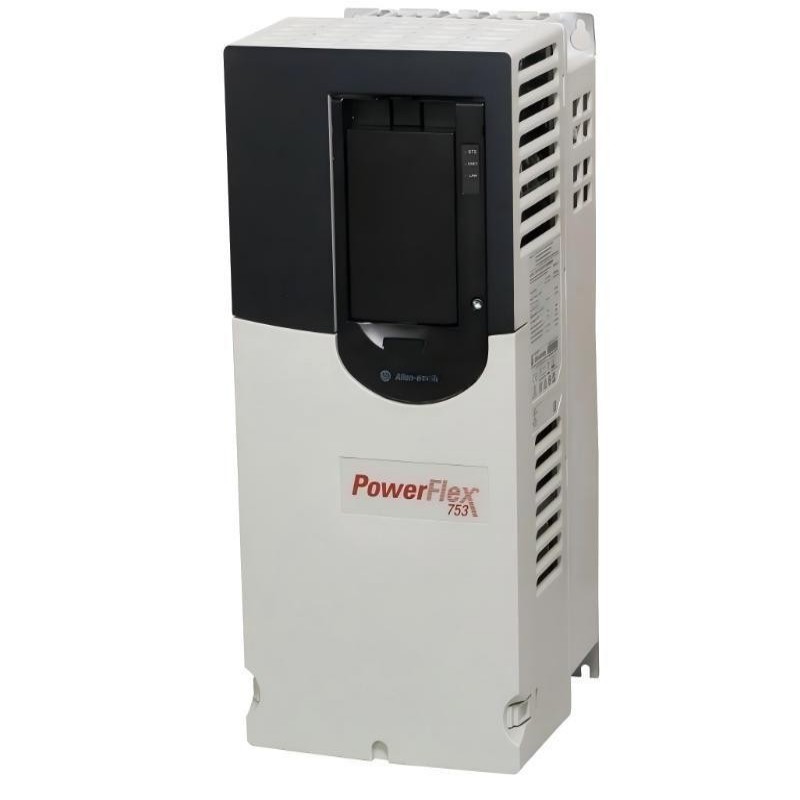

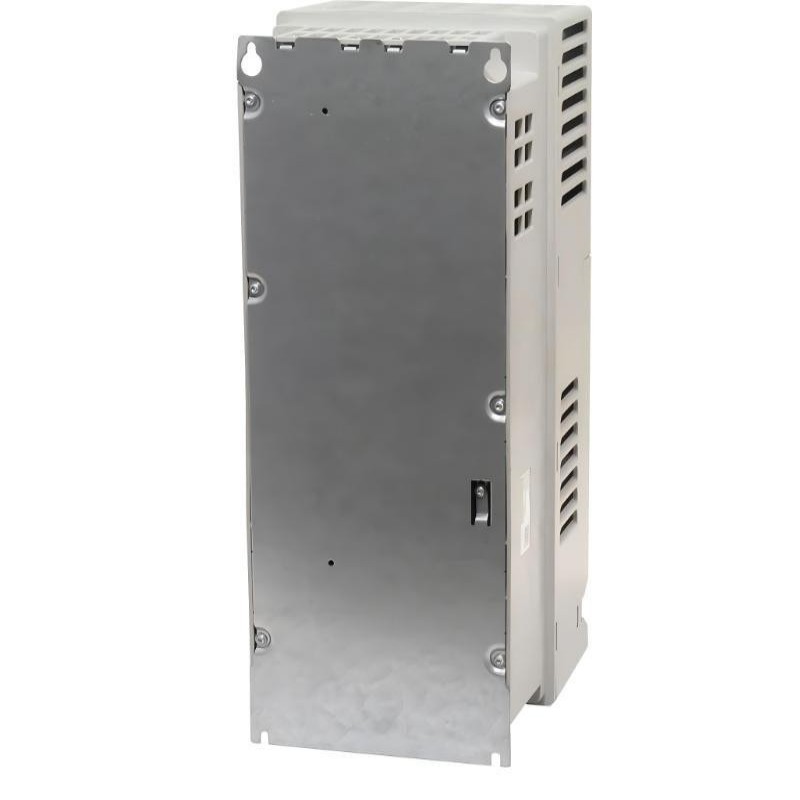

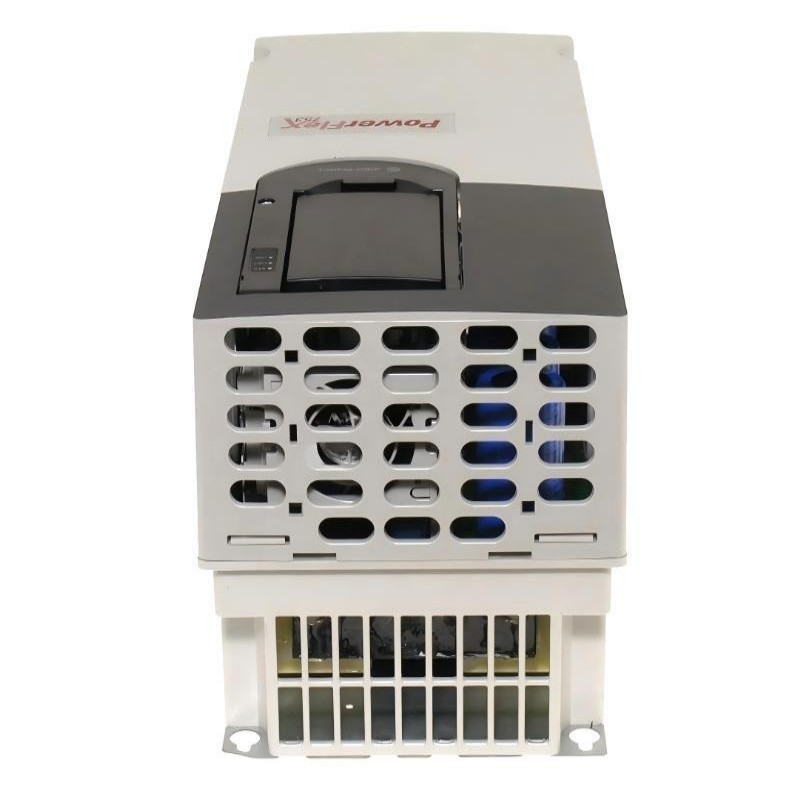

Allen-Bradley PowerFlex 753 20F14NF030JN0NNNNN AC Drive – Technical Specifications & FAQ
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
Allen-Bradley PowerFlex 753 20F14NF030JN0NNNNN AC Drive – Technical Specifications & FAQ
| Parameter | Specification |
|---|---|
| Product Type | Variable Frequency Drive (VFD) |
| Brand | Allen-Bradley |
| Product Series | PowerFlex 753 |
| Product Model | 20F14NF030JN0NNNNN |
| Drive Type | AC Drive / Common-Bus Drive |
| Cooling Type | Air-cooled |
| Input Type | DC Input with Precharge |
| Voltage Class | 690 V AC, 3-phase |
| Nominal DC Input Voltage | 932 V DC |
| Normal-Duty Output Current | 30 A |
| Normal-Duty Power Rating | 22 kW |
| Heavy-Duty Output Current | 25 A |
| Heavy-Duty Power Rating | 18.5 kW |
| Enclosure Type | IP20/IP00, NEMA/UL Open Type |
| Frame Size | Frame 6 |
| EMC Filtering | Filtered |
| Common-Mode Jumper | Installed |
| Dynamic Braking | None |
| Human Interface Module | Blank / No HIM |
| Embedded I/O | Included |
| Mounting | Panel mounting |
| Operating Temperature | 0 to 40 °C |
| Dimensions (H × W × D) | Approx. 665.5 × 308 × 346.4 mm |
| Weight | Approx. 14.5 kg |
The 20F14NF030JN0NNNNN is a PowerFlex 753 AC drive rated at 30 A, with 22 kW normal-duty and 18.5 kW heavy-duty output. Rockwell identifies this configuration as a 690 V, 3-phase, Frame 6 drive with DC input and precharge, filtering, and the common-mode jumper installed.
FAQ
Q1: What is the Allen-Bradley 20F14NF030JN0NNNNN?
- It is an Allen-Bradley PowerFlex 753 variable frequency drive designed for industrial motor speed control and common-bus applications.
Q2: What is the power rating of the 20F14NF030JN0NNNNN?
- The drive is rated for 22 kW under normal-duty operation and 18.5 kW under heavy-duty operation. The normal-duty output current is 30 A.
Q3: What voltage does this PowerFlex 753 model support?
- The drive belongs to the 690 V AC, three-phase voltage class and is designed for a nominal 932 V DC input in common-bus applications.
Q4: What type of cooling does the 20F14NF030JN0NNNNN use?
- It uses forced-air cooling. Adequate cabinet ventilation and clearance should be maintained to allow heat to dissipate properly.
Q5: Does the 20F14NF030JN0NNNNN include EMC filtering?
- Yes. This configuration is filtered and has the common-mode jumper installed.
Q6: Does this model include a dynamic braking transistor?
- No. The specified configuration has no internal dynamic braking transistor. An external braking solution may be required for applications with significant regenerative energy.
Q7: Does the drive include a Human Interface Module?
- No. The catalog configuration is supplied without a HIM. A compatible interface can be added separately when local programming or monitoring is required.
Q8: What are the dimensions and weight of the 20F14NF030JN0NNNNN?
- The approximate Frame 6 dimensions are 665.5 × 308 × 346.4 mm (H × W × D). Published distributor data lists the unit at approximately 14.5 kg; actual shipping weight can be higher depending on packaging and accessories.
Allen-Bradley PowerFlex 753 20F14NF030JN0NNNNN AC Drive – Technical Specifications & FAQ is in stock. Please contact us for a quick quote and competitive pricing.
