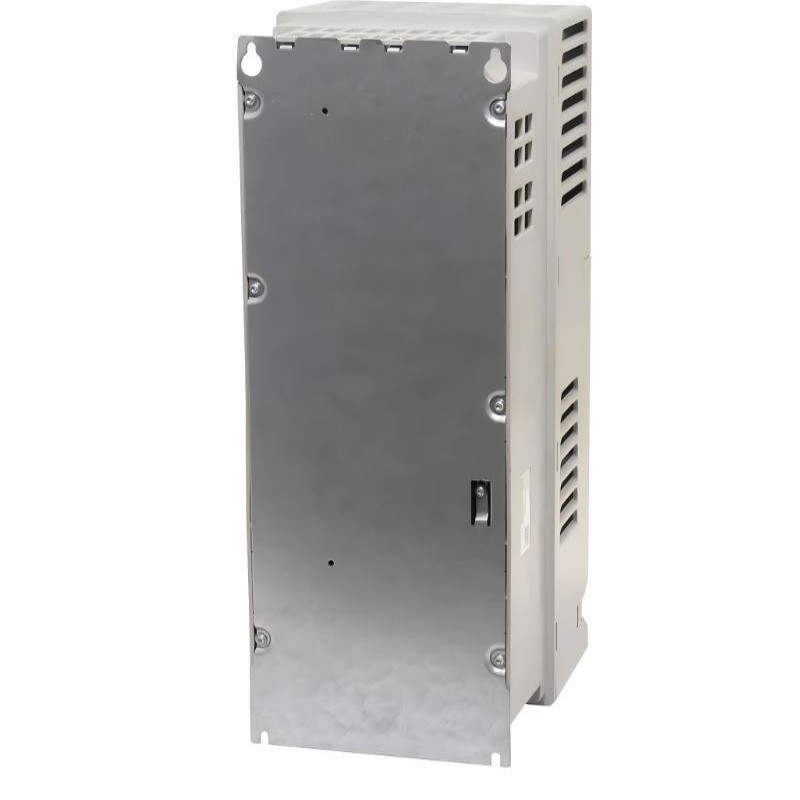

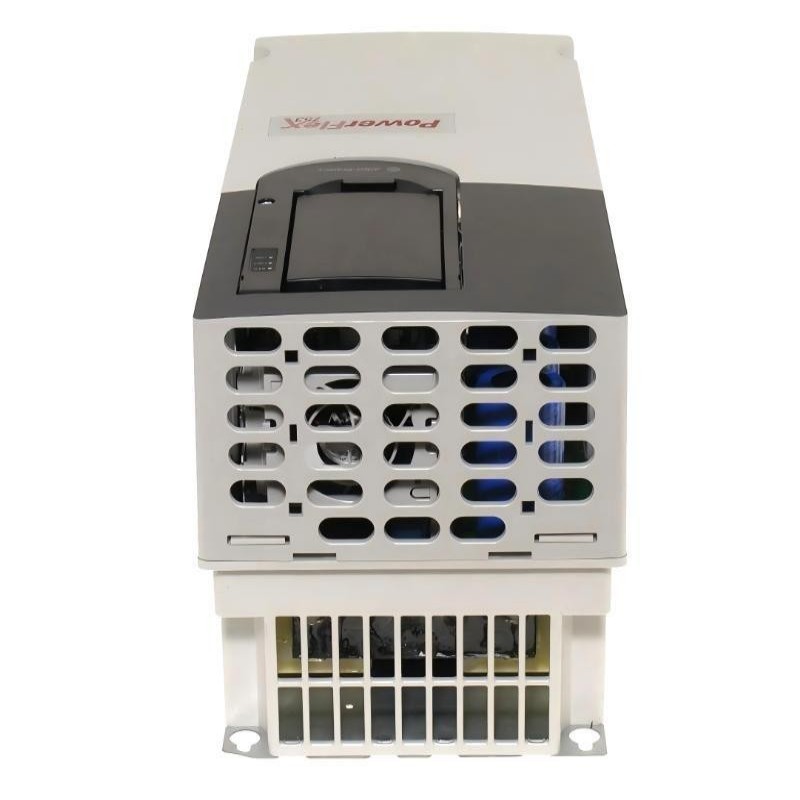

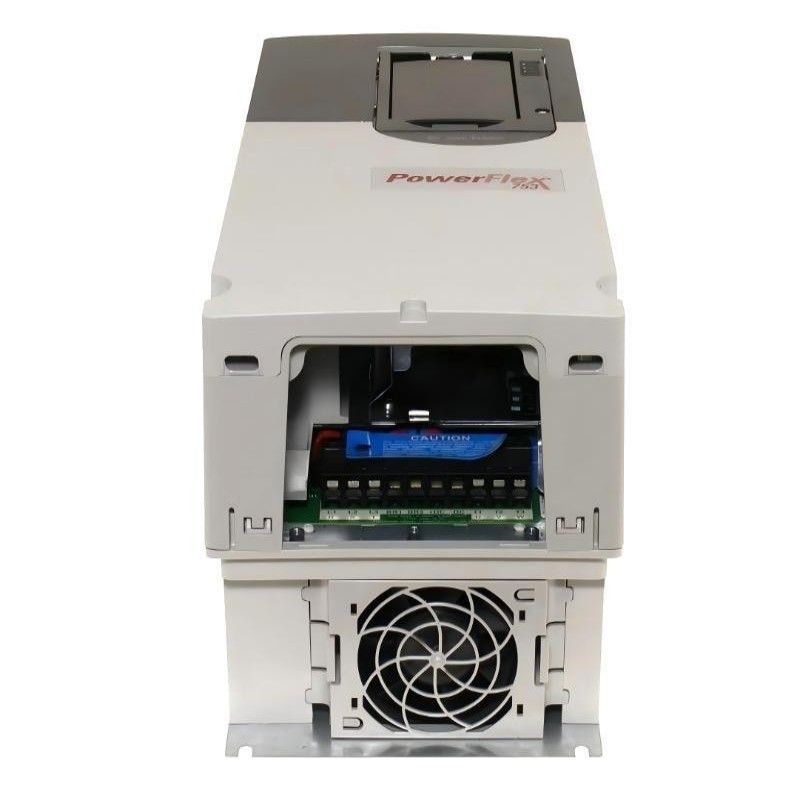

Allen-Bradley PowerFlex 753 20F14NF046JN0NNNNN AC Drive – Technical Specifications & FAQ

FAQ

Q1: What is the Allen-Bradley 20F14NF046JN0NNNNN?

• It is an Allen-Bradley PowerFlex 753 AC drive designed for industrial motor control and common-bus applications.

Q2: What is the power rating of the 20F14NF046JN0NNNNN?

• The drive is rated at 37 kW for normal-duty operation and 30 kW for heavy-duty operation. The normal-duty continuous output current is 46 A.

Q3: What voltage does this PowerFlex 753 model support?

• This model belongs to the 690 V AC class and is designed for a nominal 932 V DC common-bus input.

Q4: What is the frame size of this drive?

• The 20F14NF046JN0NNNNN uses Frame 6. The Frame 6 platform is used for several higher-power PowerFlex 753 configurations.

Q5: Does the 20F14NF046JN0NNNNN include filtering?

• Yes. The specified J configuration includes filtering and the common-mode jumper installed.

Q6: Does this model include an internal dynamic braking transistor?

• No. The specified configuration does not include an internal dynamic braking transistor. An external braking solution may be required for applications with substantial regenerative energy.

Q7: Does the drive come with a Human Interface Module?

• No. This configuration is supplied without a HIM. A compatible HIM can be added separately for local programming, parameter adjustment, and monitoring.

Q8: What are the dimensions and weight of the 20F14NF046JN0NNNNN?

• The approximate Frame 6 dimensions are 665.5 × 308 × 346.4 mm (H × W × D), and the drive weighs approximately 38.6 kg. These figures refer to the drive itself rather than its shipping package.

### Technical Specifications

**Allen-Bradley PowerFlex 753 20F14NF046JN0NNNNN AC Drive – Technical Specifications & FAQ**

| Parameter | Specification |
| ————————– | ————————————– |
| Product Type | Variable Frequency Drive (VFD) |
| Brand | Allen-Bradley |
| Product Series | PowerFlex 753 |
| Product Model | 20F14NF046JN0NNNNN |
| Drive Type | AC Drive / Common-Bus Drive |
| Input Type | DC Input with Precharge |
| Voltage Class | 690 V AC |
| Nominal DC Input Voltage | 932 V DC |
| Input Phase | 3-phase |
| Normal-Duty Output Current | 46 A |
| Normal-Duty Power Rating | 37 kW |
| Heavy-Duty Output Current | 34 A |
| Heavy-Duty Power Rating | 30 kW |
| Enclosure | IP00/IP20, NEMA/UL Open Type |
| Frame Size | Frame 6 |
| Cooling | Forced-air cooled |
| Filtering | Filtered |
| Common-Mode Jumper | Installed |
| Dynamic Braking | No internal dynamic braking transistor |
| Human Interface Module | Not included |
| Embedded I/O | Included |
| Mounting | Panel mounting |
| Dimensions (H × W × D) | Approx. 665.5 × 308 × 346.4 mm |
| Weight | Approx. 38.6 kg |

### FAQ

**Q1: What is the Allen-Bradley 20F14NF046JN0NNNNN?**

* It is an Allen-Bradley PowerFlex 753 AC drive designed for industrial motor control and common-bus applications.

**Q2: What is the power rating of the 20F14NF046JN0NNNNN?**

* The drive is rated at 37 kW for normal-duty operation and 30 kW for heavy-duty operation. The normal-duty continuous output current is 46 A.

**Q3: What voltage does this PowerFlex 753 model support?**

* This model belongs to the 690 V AC class and is designed for a nominal 932 V DC common-bus input.

**Q4: What is the frame size of this drive?**

* The 20F14NF046JN0NNNNN uses Frame 6. The Frame 6 platform is used for several higher-power PowerFlex 753 configurations.

**Q5: Does the 20F14NF046JN0NNNNN include filtering?**

* Yes. The specified J configuration includes filtering and the common-mode jumper installed.

**Q6: Does this model include an internal dynamic braking transistor?**

* No. The specified configuration does not include an internal dynamic braking transistor. An external braking solution may be required for applications with substantial regenerative energy.

**Q7: Does the drive come with a Human Interface Module?**

* No. This configuration is supplied without a HIM. A compatible HIM can be added separately for local programming, parameter adjustment, and monitoring.

**Q8: What are the dimensions and weight of the 20F14NF046JN0NNNNN?**

* The approximate Frame 6 dimensions are 665.5 × 308 × 346.4 mm (H × W × D), and the drive weighs approximately 38.6 kg. These figures refer to the drive itself rather than its shipping package.
