Product Overview

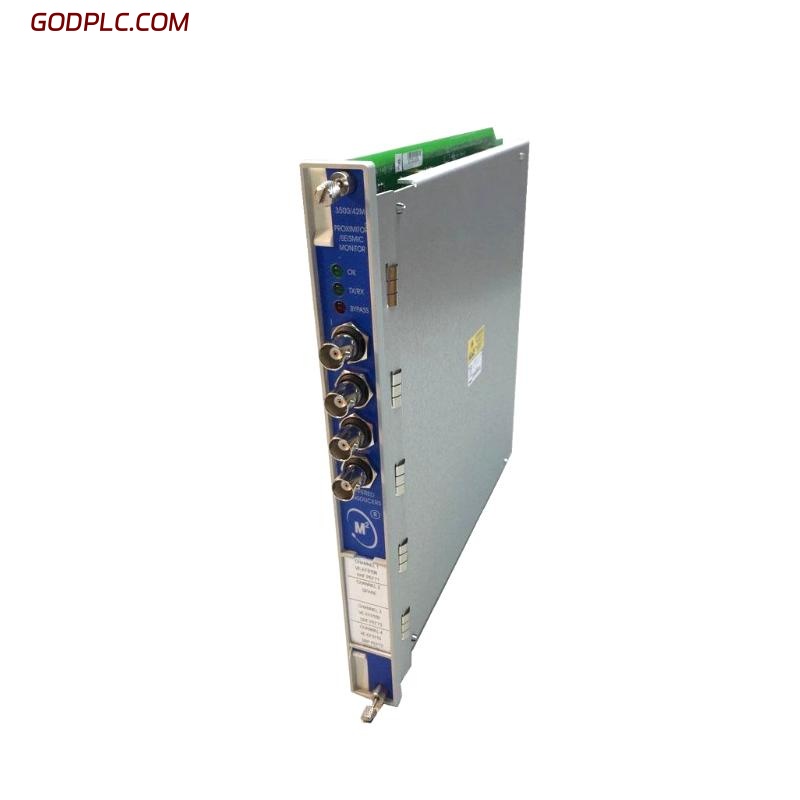

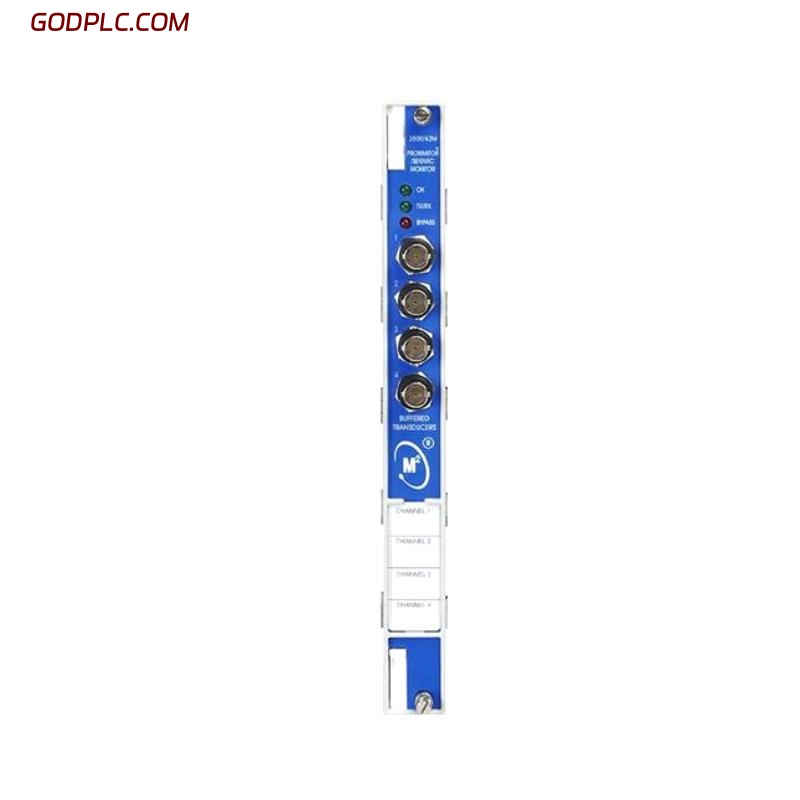

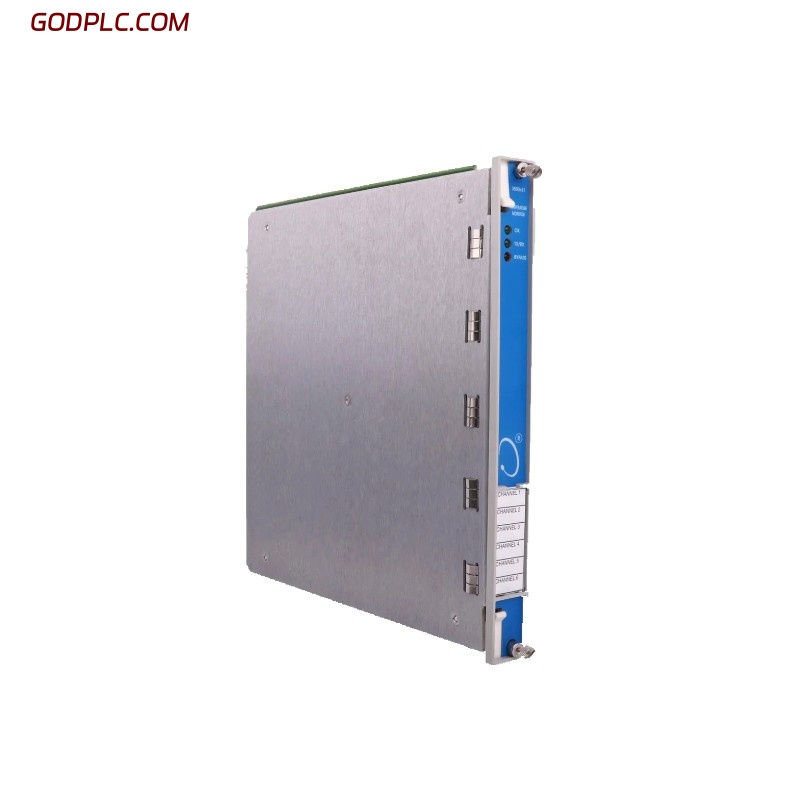

The Bently Nevada 3500/42-09-00-00 (176449-02) is a Proximitor / Seismic (vibration & position) monitoring module, part of the Bently Nevada 3500 Series machinery protection system. It is engineered to accept signals from proximity probes or seismic sensors (velocity/acceleration transducers), condition those signals, compute relevant vibration/position metrics, compare them to user-set alarm thresholds, and output protection (alarm/trip) or diagnostic data. The module is intended for installation in a 3500 rack, operating continuously to protect and monitor rotating equipment.
This specific build “-09-00-00” typically denotes a configuration variant (e.g. a particular I/O option, termination style, or compliance variant) for the 3500/42 family with the main electronics under part number 176449-02.
Key Features
-
Four measurement channels, internally arranged in two configurable pairs.
-
Support for Proximity probes, Velocity (Seismoprobe) sensors, or Accelerometers.
-
Real-time processing, allowing Alert and Danger threshold comparisons on multiple parameters.
-
Programmatic flexibility: each channel pair can be assigned different measurement types (e.g. radial vibration, thrust, eccentricity, absolute displacement).
-
Rack-plug design: the monitor fits into a standard 3500 instrument rack, mated with a rear I/O module for field wiring.
-
Compact and reliable: engineered for continuous operation in industrial environments.
-
Diagnostic and buffered outputs for machine health monitoring systems.
Technical Specifications
| Parameter | Specification | Details / Notes |
|---|---|---|
| Model / Type | 3500/42-09-00-00 (176449-02) | Proximitor / Seismic Monitor |
| Channels | 4 channels (2 pairs) | Each pair configurable |
| Sensor Inputs | Proximity probes, Seismoprobe / velocity, Accelerometer | Versatile support |
| Power Consumption | ~ 7.7 W (typical) | For the monitor electronics itself |
| Input Impedance | ~ 10 kΩ (standard I/O) | Ensures signal integrity |
| Sensitivity (example) | 3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil) | Depends on probe calibration |
| Frequency Response (Direct Path) | 4 Hz to 4000 Hz (-3 dB) or 1 Hz to 600 Hz option | Configurable filters |
| Gap / Low-Frequency Response | ~ 0.09 Hz (-3 dB) | For slow shaft movement / displacement |
| Rack Slot Requirement | 1 full-height front slot + matching rear I/O slot | Standard 3500 rack architecture |
| Physical Dimensions (H × W × D) | 241.3 mm × 24.4 mm × 241.8 mm | Approximate module size (module + depth) WORLD OF CONTROLS+1 |
| Weight | ~ 0.91 kg | Approximate module weight including internal components WORLD OF CONTROLS |
| Operating Temperature Range | -30 °C to +65 °C (varies by I/O variant) | Typical industrial rating v6-file.globalso.com+1 |
| Storage Temperature | -40 °C to +85 °C | For non-operating conditions v6-file.globalso.com |
| Compliance / Approvals | EMC (EN 61000 family), industrial immunity | Standard for machine-health modules v6-file.globalso.com |
| Country of Origin | USA | Manufactured in the United States |
bently 3500/42-09-00-00 176449-02 Four-Channel Proximitor / Seismic Monitor Module is in stock. Please contact us for a quick quote and competitive pricing.
