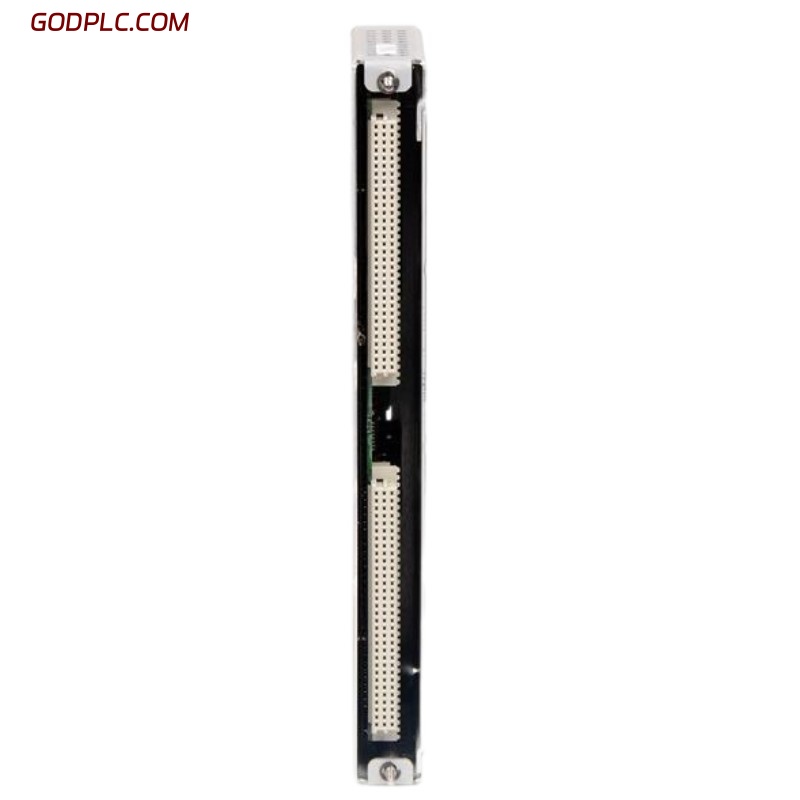

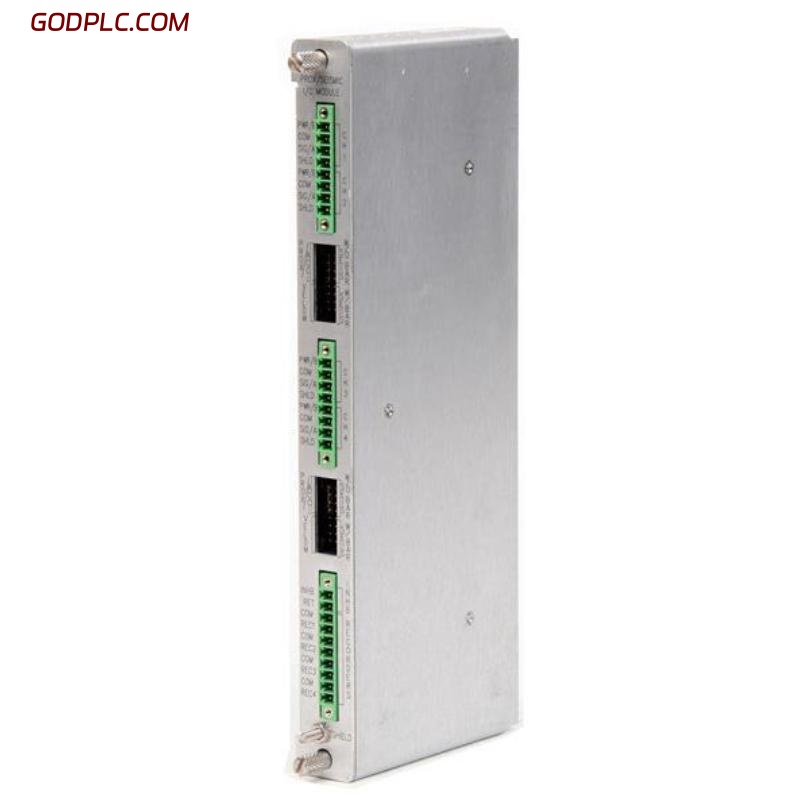

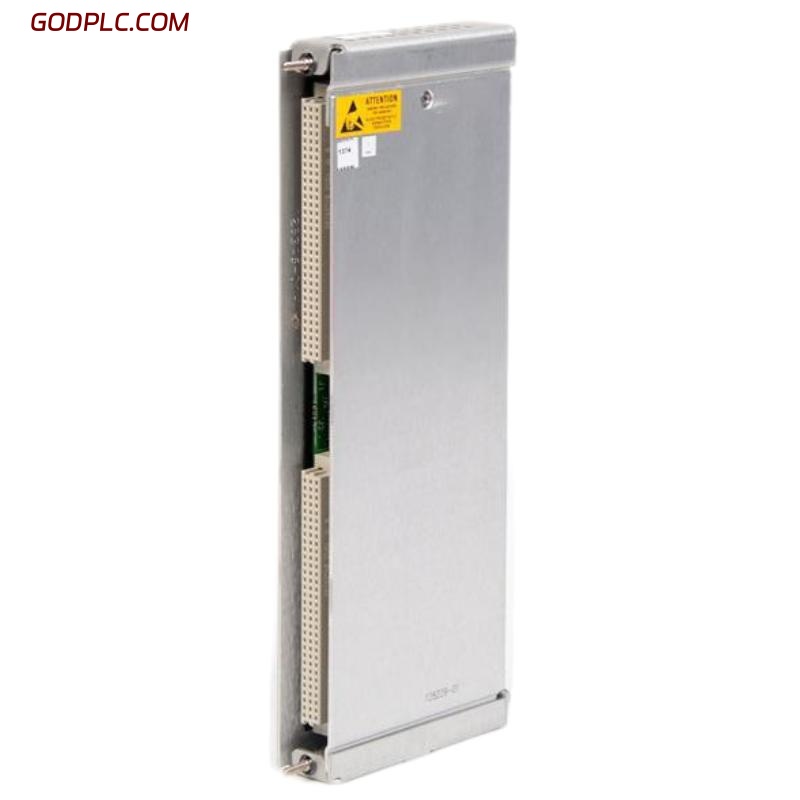

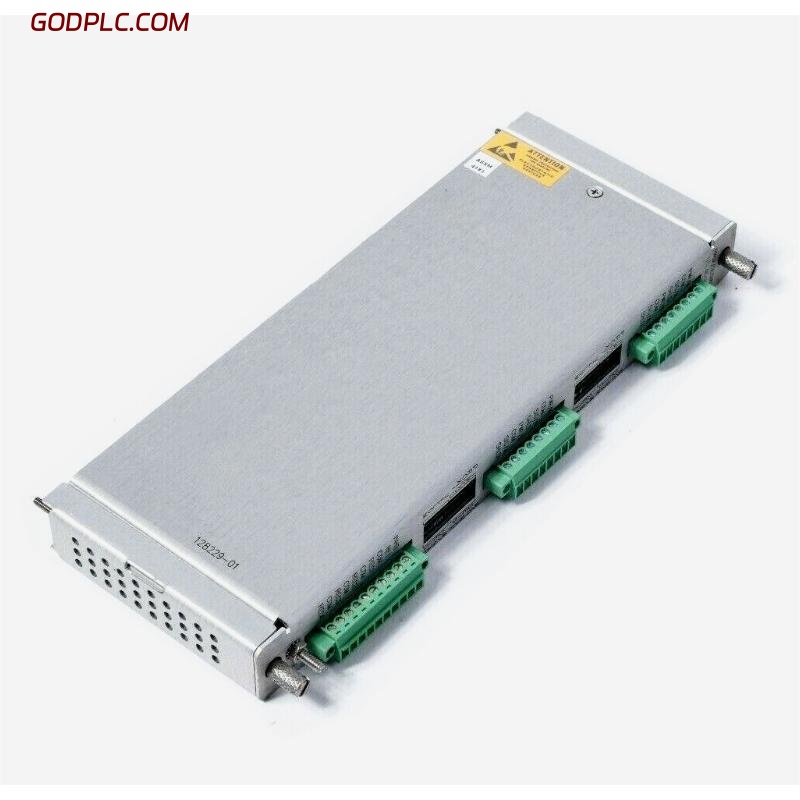

bently 3500/42M 128229-01 Four-Channel Proximitor / Seismic Monitor Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Bently Nevada 3500/42M (128229-01) is a four-channel Proximitor/Seismic Monitor Module designed for use within the Bently Nevada 3500 Machinery Protection System. It provides continuous online monitoring of machinery vibration and position parameters to ensure the reliable protection and diagnostics of critical rotating equipment.
This module accepts input signals from proximity probes, velocity sensors, or accelerometers, conditions the signals, and processes them into parameters such as vibration amplitude, shaft displacement, or acceleration. Each channel pair can be independently configured for specific measurements, allowing flexible monitoring strategies across various types of industrial machinery including turbines, compressors, pumps, and generators.
The 3500/42M continuously compares measured values with user-defined Alert and Danger setpoints. When limits are exceeded, the module generates alarms or relay outputs to initiate protective actions. Its modular rack-mount design allows easy integration and maintenance in industrial monitoring systems.
Key Features
-
Four independent monitoring channels (configurable as two channel pairs).
-
Compatible with proximity probes, velocity sensors, and accelerometers.
-
Real-time comparison against programmable Alert and Danger limits.
-
Buffered transducer outputs and 4–20 mA current outputs for recorders or control systems.
-
Fully compatible with the 3500 rack-based machinery protection platform.
-
Rugged industrial design with high signal integrity and reliability.
-
Compact form factor, lightweight construction, and easy maintenance.
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model Number | 3500/42M (128229-01) | Four-Channel Proximitor/Seismic Monitor |
| Number of Channels | 4 (two channel pairs) | Each pair can operate independently |
| Supported Transducers | Proximity probes, velocity sensors, accelerometers | Configurable input types |
| Measurement Parameters | Vibration, position, acceleration, displacement | For condition and protection monitoring |
| Power Consumption | 6.8 W (typical) | Low-power operation within 3500 rack |
| Input Impedance | 10 kΩ (typical) | Optimized for sensor accuracy |
| Sensitivity (example) | 3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil) | Based on proximity probe calibration |
| Frequency Response | Direct filter: 4 Hz to 4 kHz or 1 Hz to 600 Hz; Gap filter: 0.09 Hz | Adjustable per channel function |
| Outputs | 4–20 mA, buffered transducer outputs, relay outputs | For alarms, control, and diagnostics |
| Dimensions (H × W × D) | 241.3 mm × 24.4 mm × 163.1 mm (9.50 in × 0.96 in × 6.42 in) | Standard 3500 rack size |
| Weight | Approx. 0.46 kg (1.01 lb) | Compact and lightweight module |
| Operating Temperature Range | −20 °C to +65 °C | Industrial environmental rating |
| Mounting Type | Rack-mounted (3500 system) | Plug-in modular design |
| Country of Origin | United States | Manufactured by Bently Nevada (GE Measurement & Control) |
bently 3500/42M 128229-01 Four-Channel Proximitor / Seismic Monitor Module is in stock. Please contact us for a quick quote and competitive pricing.
