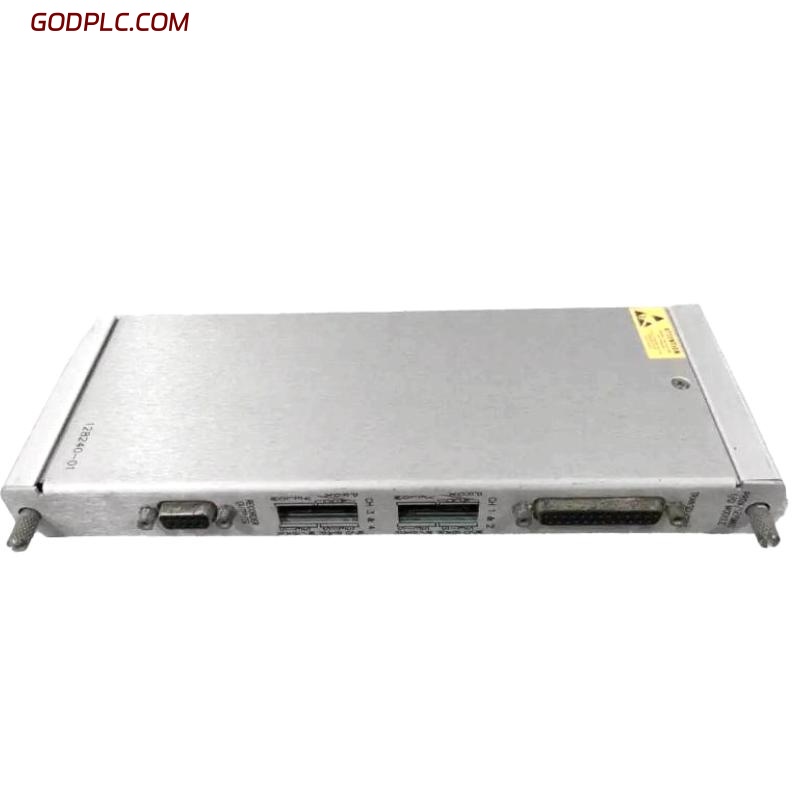

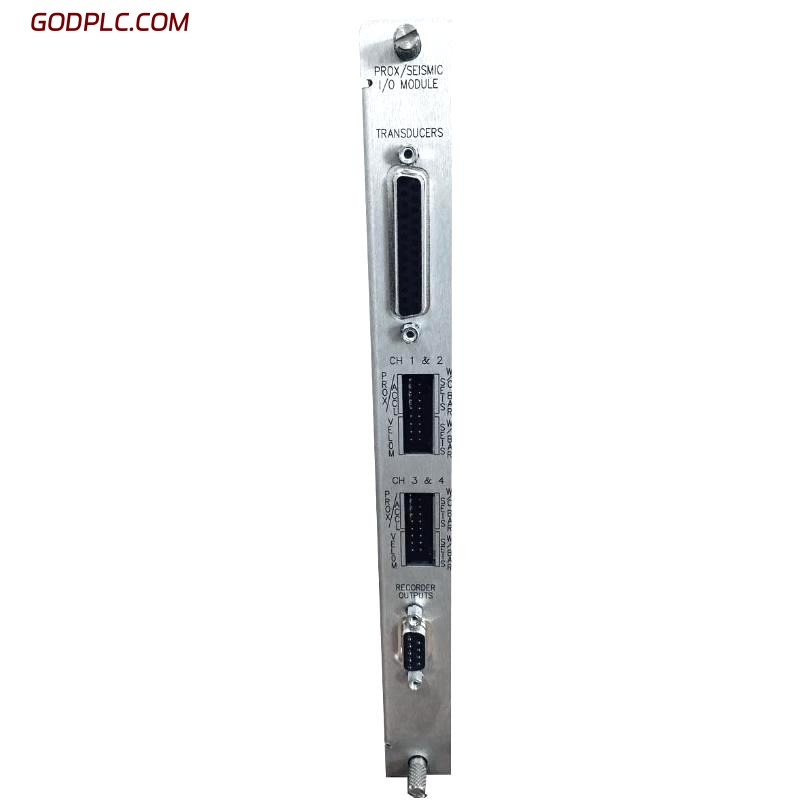

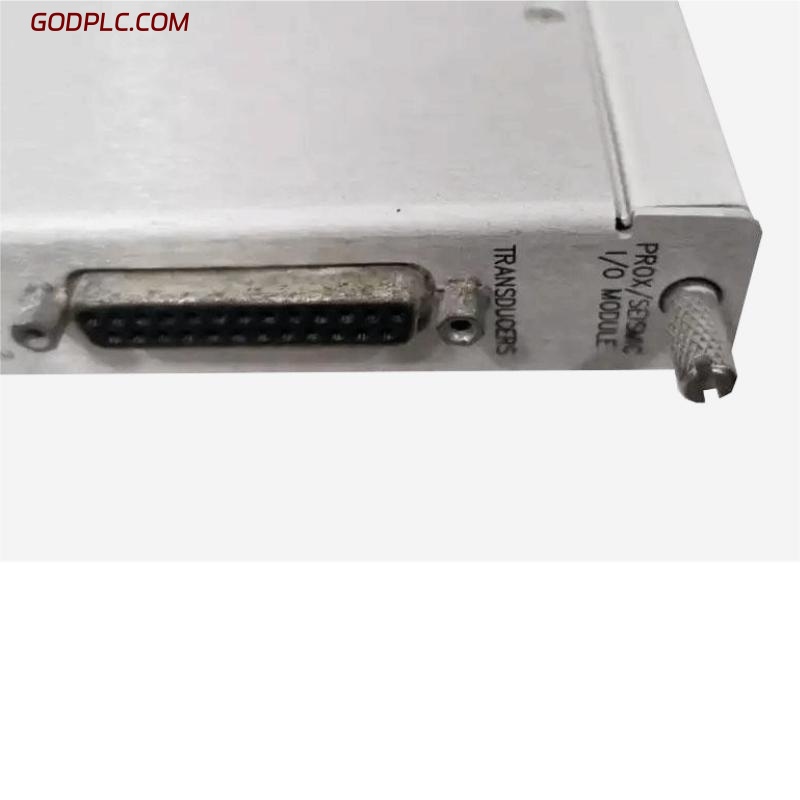

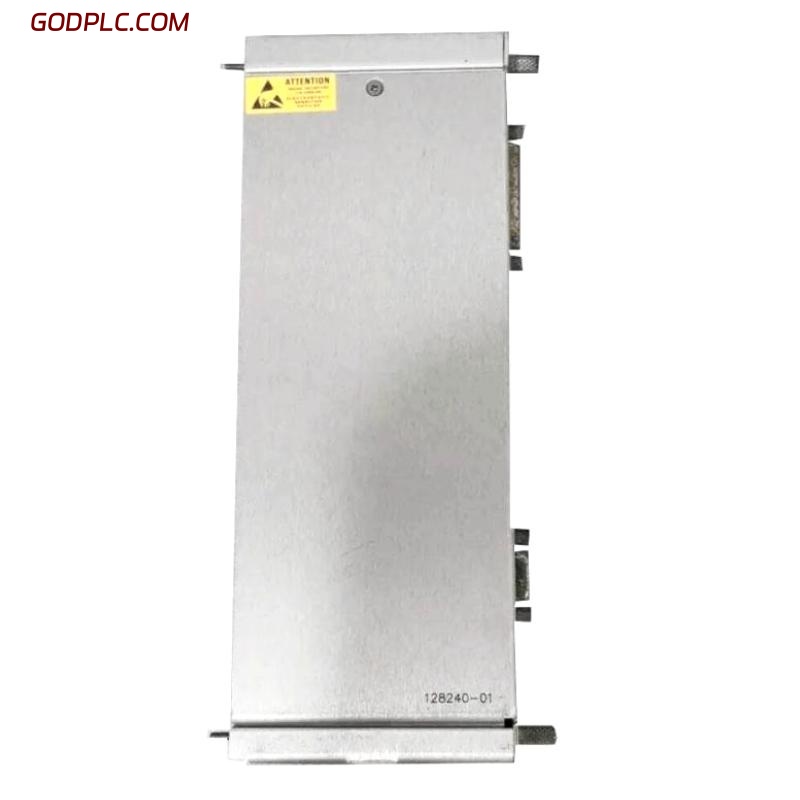

bently 3500/42M 128240-01 Four-Channel Proximitor / Seismic Monitor Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Bently Nevada 3500/42M (128240-01) is a four-channel Proximitor / Seismic Monitor used in the Bently Nevada 3500 Machinery Protection System.
It is designed to continuously measure and monitor vibration and position parameters in rotating machinery such as turbines, compressors, pumps, and motors.
Each module includes four independent channels, grouped into two pairs, and can be configured for various measurement functions — including radial vibration, thrust position, shaft absolute, eccentricity, and acceleration. The module continuously compares these measurements against preset alarm limits to provide both protection and condition monitoring functions.
The 3500/42M combines high reliability, flexible configuration, and compatibility with a wide range of transducers, making it ideal for use in critical industrial applications where machine uptime and protection are essential.
Key Features
-
Four independent input channels (two configurable pairs).
-
Accepts signals from proximity probes, seismic velocity sensors, and accelerometers.
-
Programmable measurement functions for each channel pair.
-
Dual alarm levels: Alert and Danger.
-
Real-time data processing and signal conditioning.
-
Full compatibility with the 3500 Series rack-based protection system.
-
Designed for continuous operation in harsh industrial environments.
-
Easy replacement and field maintenance due to modular rack design.
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model Number | 3500/42M (128240-01) | Four-channel Proximitor / Seismic Monitor |
| Product Type | Machinery Protection and Vibration Monitoring Module | Monitors vibration and position of rotating equipment |
| Number of Channels | 4 (2 configurable pairs) | Each pair can be set for different monitoring modes |
| Supported Sensors | Proximity probes, seismic sensors, accelerometers | Compatible with Bently Nevada and equivalent sensors |
| Measurement Functions | Radial vibration, thrust position, eccentricity, shaft absolute, acceleration, velocity | Flexible configuration for different machinery types |
| Input Impedance | Approx. 10 kΩ | Ensures stable and accurate signal input |
| Frequency Response | 4 Hz to 4 000 Hz (Direct); 1 Hz to 600 Hz (Low-frequency option) | Depends on selected filter configuration |
| Power Consumption | Approximately 7.7 W | Low power draw within the 3500 system |
| Alarm Levels | Alert and Danger | Configurable per channel |
| Output Signal | 4–20 mA proportional to measured value | Provides real-time monitoring data |
| Communication Interface | Through 3500 rack and System Display | Integrated system communication |
| Dimensions (H × W × D) | 241.3 mm × 24.4 mm × 241.8 mm (9.50 in × 0.96 in × 9.52 in) | Compact rack-mount design |
| Weight | Approx. 0.91 kg (2.0 lb) | Lightweight module for easy installation |
| Operating Temperature | –30 °C to +65 °C | Suitable for industrial environments |
| Storage Temperature | –40 °C to +85 °C | Safe during transportation and storage |
| Humidity | 95% non-condensing | Industrial-grade environmental protection |
| Mounting Type | 3500 rack slot | Modular and field-replaceable |
| Compliance | API 670 Compliant | Meets industry protection standards |
| Country of Origin | United States of America | Manufactured by Bently Nevada (a Baker Hughes company) |
bently 3500/42M 128240-01 Four-Channel Proximitor / Seismic Monitor Module is in stock. Please contact us for a quick quote and competitive pricing.
