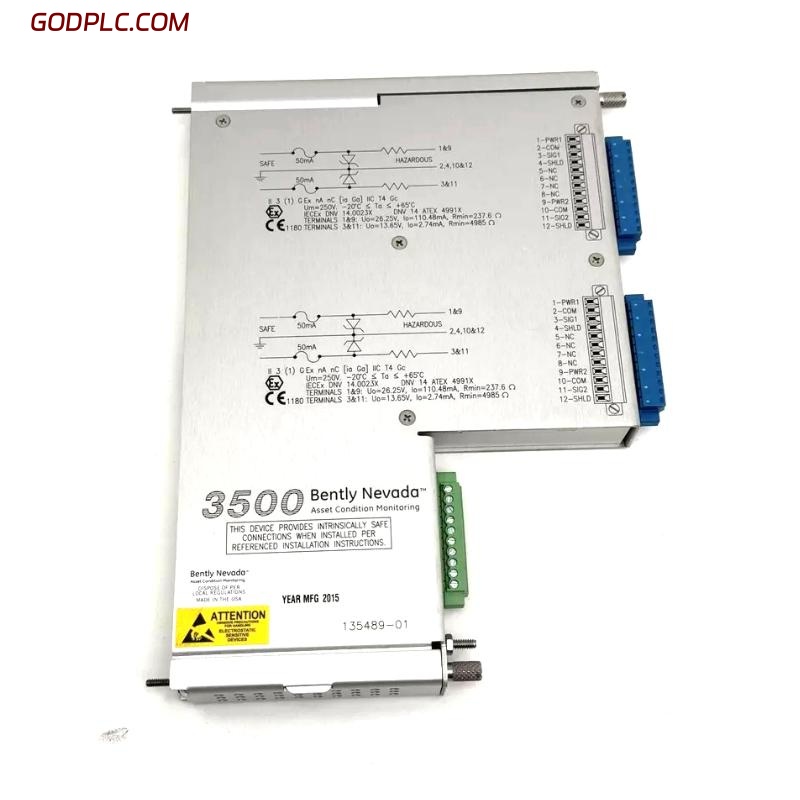

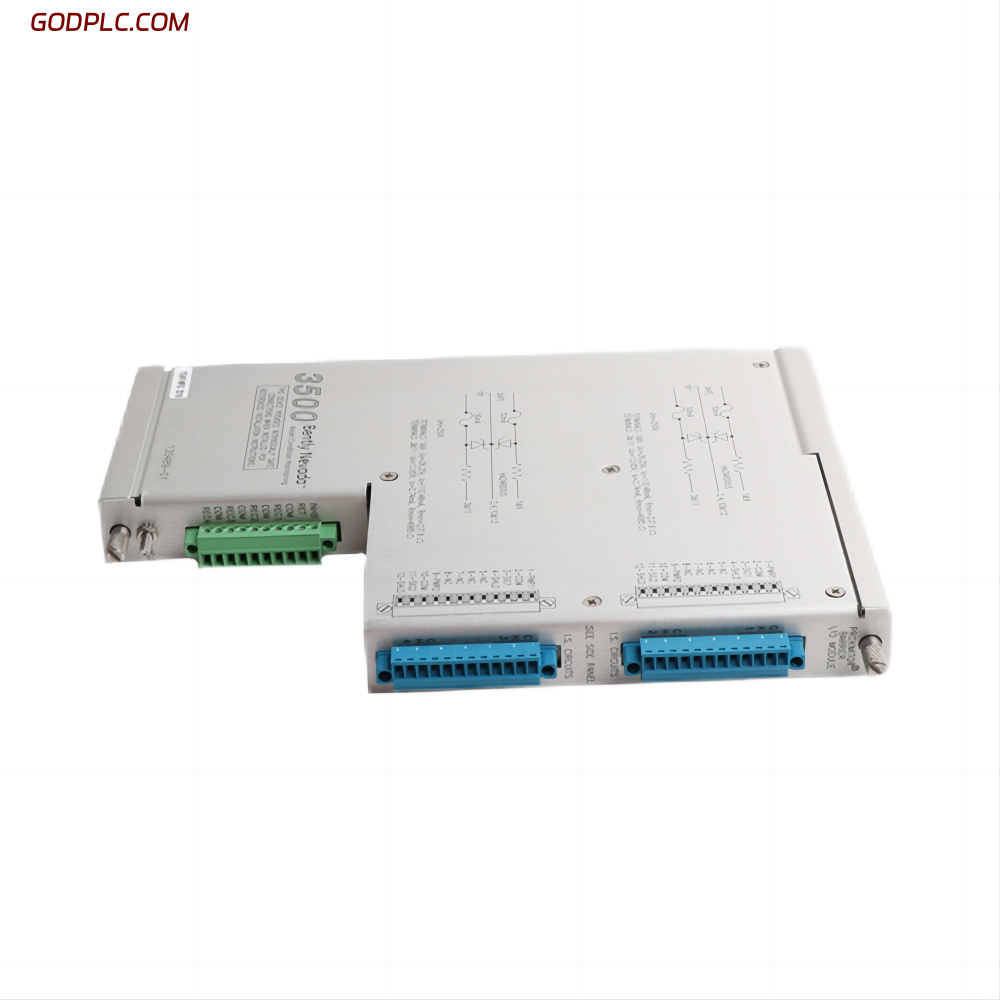

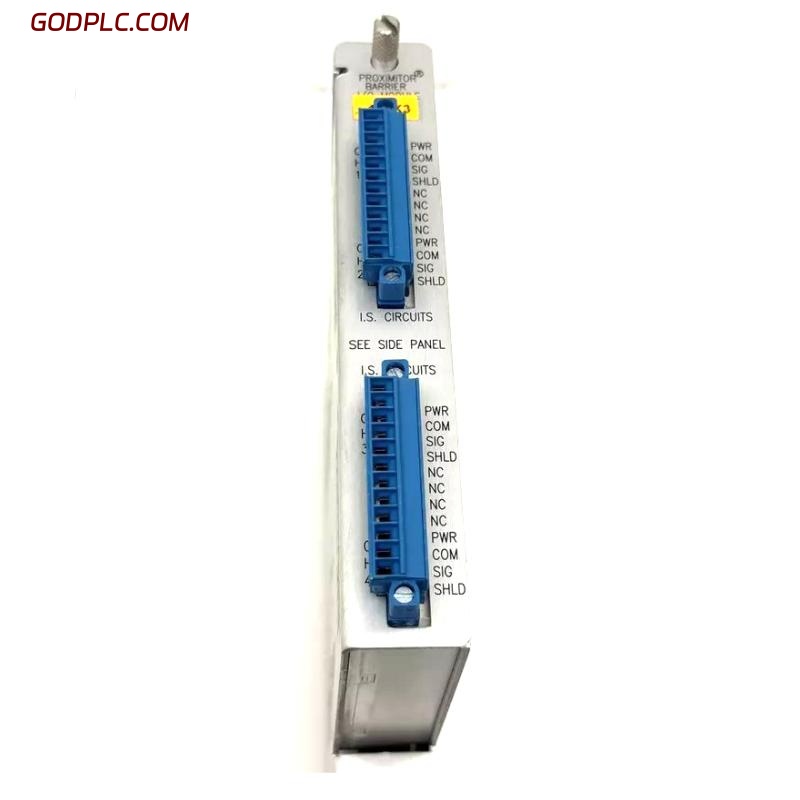

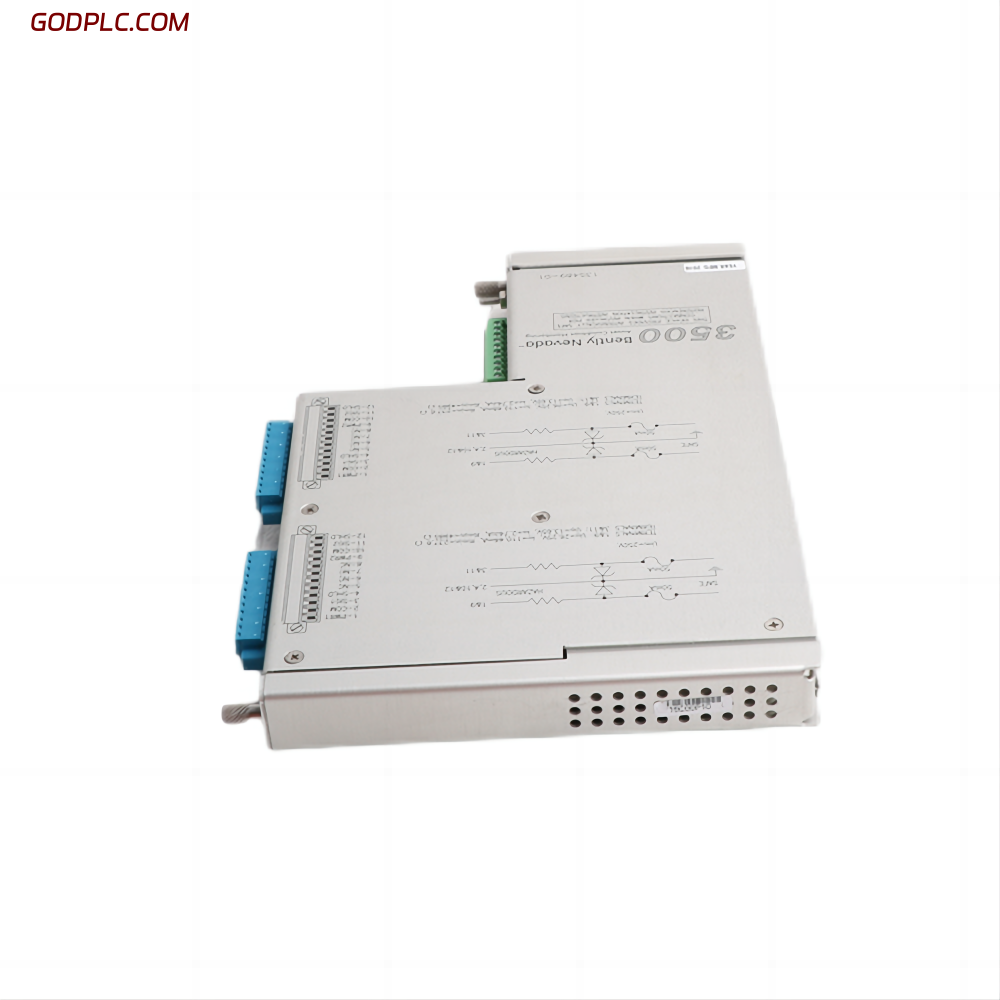

bently 3500/42M 135489-01 Four-Channel Proximitor / Seismic Monitor Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Bently Nevada 3500/42M Proximitor / Seismic Monitor is a four-channel machinery protection and condition monitoring module designed for the 3500 Series system. It measures and analyzes vibration and position signals from rotating machinery using proximity probes, velocity sensors, or accelerometers.
Each pair of channels can be configured independently to monitor parameters such as radial vibration, axial position, thrust position, shaft absolute vibration, or acceleration. The 3500/42M continuously processes these signals, compares them against user-defined alert and danger setpoints, and provides both protection and diagnostic information for critical assets such as turbines, compressors, pumps, and motors.
Engineered for continuous online monitoring, the module provides precise measurement, high reliability, and full integration with the 3500 rack system, ensuring early fault detection and machinery protection in demanding industrial environments.
Key Features
-
Four independent channels, configured in two pairs for multiple monitoring functions.
-
Supports proximity probes (Proximitor), velocity (Velomitor) sensors, and seismic accelerometers.
-
Real-time alarm comparison with configurable alert and danger thresholds.
-
Modular design for easy installation, maintenance, and field replacement.
-
Compatible with Bently Nevada 3500/22M and 3500/32M modules for communication and data integration.
-
Continuous self-diagnostics with front-panel LED indicators.
-
Ideal for rotating equipment such as turbines, compressors, fans, and pumps.
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model Number | 3500/42M (135489-01) | Four-channel Proximitor / Seismic Monitor |
| Product Type | Machinery Protection and Condition Monitoring Module | Used for vibration and position monitoring |
| Number of Channels | 4 (two independent channel pairs) | Each pair can be configured separately |
| Supported Sensors | Proximitor proximity probes, Velomitor velocity sensors, accelerometers | Flexible sensor compatibility |
| Input Impedance | 10 kΩ nominal | Ensures accurate signal conditioning |
| Power Consumption | Approx. 7.7 W per module | Low power requirement |
| Sensitivity | Typical 3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil) | Depends on probe calibration |
| Frequency Response (Direct) | 4 Hz – 4000 Hz or 1 Hz – 600 Hz (–3 dB) | Configurable depending on measurement type |
| Frequency Response (Gap) | 0.09 Hz (–3 dB) | For slow shaft or position signals |
| Dimensions (H × W × D) | 241.3 mm × 24.4 mm × 163.1 mm (9.50 in × 0.96 in × 6.42 in) | Compact 3500 Series rack size |
| Weight | Approx. 0.46 kg (1.01 lb) | Lightweight plug-in module |
| Shipping Weight | Approx. 2 kg | Including packaging |
| Operating Temperature | −30 °C to +65 °C | Suitable for harsh industrial environments |
| Mounting | 3500 Rack System | Plug-in front module with matching I/O at the rear |
| Compliance | CE, CSA/NRTL, ATEX, IECEx (depending on variant) | Meets international safety and EMC standards |
| Country of Origin | United States of America (USA) | Manufactured in Minden, Nevada, USA |
bently 3500/42M 135489-01 Four-Channel Proximitor / Seismic Monitor Module is in stock. Please contact us for a quick quote and competitive pricing.
