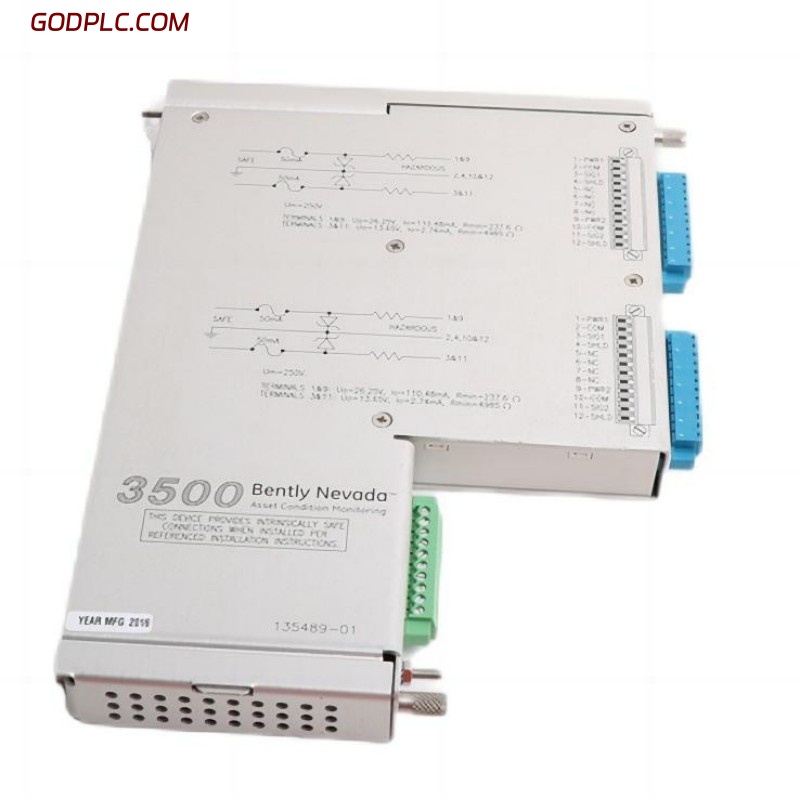

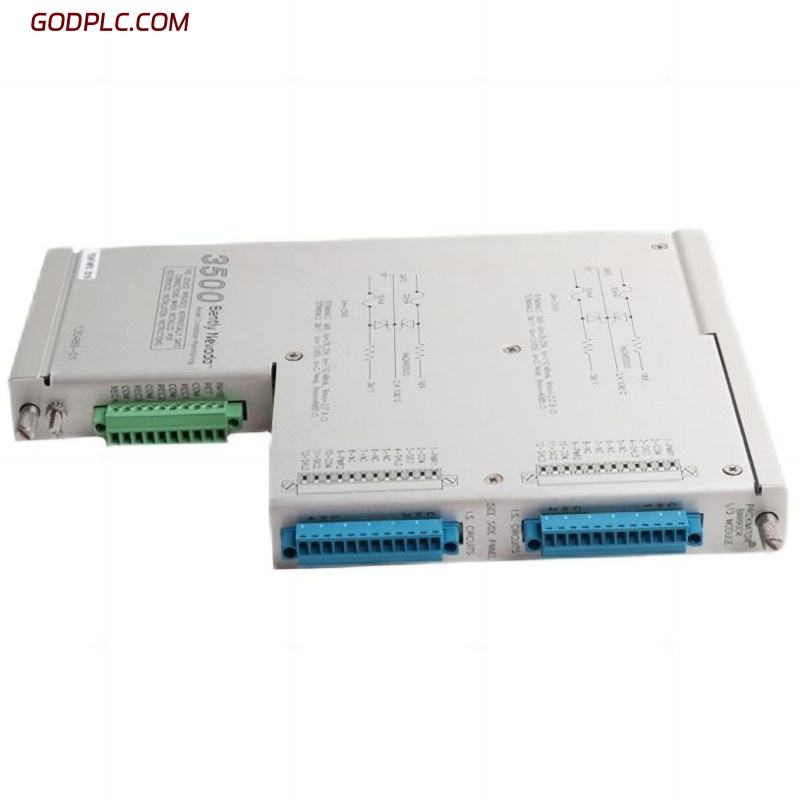

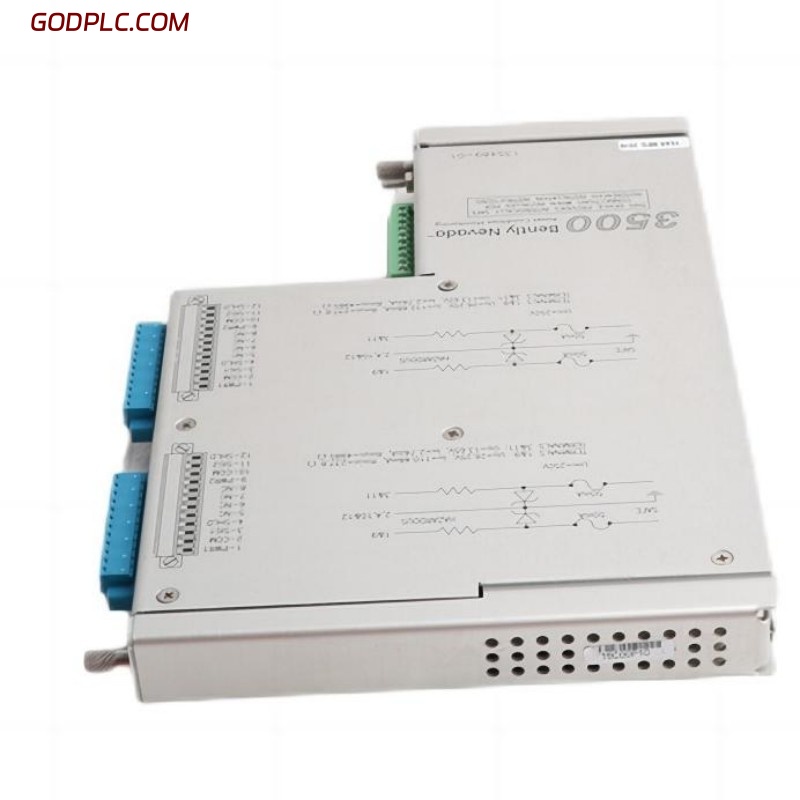

bently 3500/42M 135489-02 Proximitor / Seismic Monitor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Bently Nevada 3500/42M Proximitor / Seismic Monitor is a four-channel machinery protection and condition-monitoring module used in the Bently Nevada 3500 Series rack system. It is designed to measure and monitor vibration, position, and seismic parameters on critical rotating equipment such as turbines, compressors, pumps, and generators.
This module accepts input signals from proximity probes, velocity transducers, or accelerometers and provides accurate conditioned outputs for machinery protection and diagnostics. Each pair of channels can be configured independently, allowing one module to handle multiple measurement functions such as radial vibration, thrust position, differential expansion, or casing velocity.
The 3500/42M continuously compares measured parameters with user-defined alarm limits and generates alert and danger alarms when abnormal vibration or displacement is detected. It forms an integral part of Bently Nevada’s trusted machinery protection and predictive maintenance system.
Key Features
-
Four-channel monitor for vibration and position measurement.
-
Compatible with proximity probes, Velomitor sensors, and accelerometers.
-
Two independent channel pairs, each configurable for different measurement types.
-
Built-in alarm and trip logic with alert/danger threshold settings.
-
Provides static and dynamic outputs for both control and diagnostic systems.
-
Compact modular design for the Bently Nevada 3500 rack.
-
Field-replaceable front and rear modules for easy maintenance.
-
Designed for harsh industrial environments with high vibration and temperature stability.
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model Number | 3500/42M | Four-channel Proximitor / Seismic Monitor |
| I/O Module Type | 135489-02 | I/O module for four-channel configuration (non-barrier type) |
| Number of Channels | 4 (configured in 2 pairs) | Each pair operates independently |
| Input Types | Proximity probes, velocity transducers, accelerometers | Compatible with Bently Nevada transducers |
| Power Consumption | Approx. 7.7 W typical | For standard operation |
| Input Impedance | 10 kΩ typical | For Proximitor and accelerometer inputs |
| Measurement Range | ±2.0 mm (80 mils) typical for displacement | Depends on probe system |
| Frequency Response | Direct filter: 4 Hz–4 kHz or 1 Hz–600 Hz; Gap filter: 0.09 Hz (−3 dB) | Configurable per measurement type |
| Sensitivity | 3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil) | Adjustable per proximity probe used |
| Output Signals | Dynamic signal output and proportional DC voltage | For monitoring and control integration |
| Alarm Setpoints | Two levels: Alert and Danger | User-configurable thresholds |
| Rack Requirements | One full-height front slot and one rear slot | Standard 3500 Series rack mounting |
| Operating Temperature | −30 °C to +65 °C (−22 °F to +149 °F) | Suitable for industrial environments |
| Storage Temperature | −40 °C to +85 °C (−40 °F to +185 °F) | Long-term storage condition |
| Humidity | Up to 95% non-condensing | Industrial environment rating |
| Dimensions (H × W × D) | 241.3 mm × 24.4 mm × 163.1 mm (9.50 in × 0.96 in × 6.42 in) | Standard front module size |
| Weight | Approx. 0.46 kg (1.01 lb) | Lightweight modular construction |
| Mounting Type | Plug-in module (rack-mounted) | Quick installation and replacement |
| Material | Aluminum alloy housing | Industrial durability and heat dissipation |
| Country of Origin | United States (Minden, Nevada, USA) | Manufactured by Bently Nevada / Baker Hughes |
bently 3500/42M 135489-02 Proximitor / Seismic Monitor is in stock. Please contact us for a quick quote and competitive pricing.
