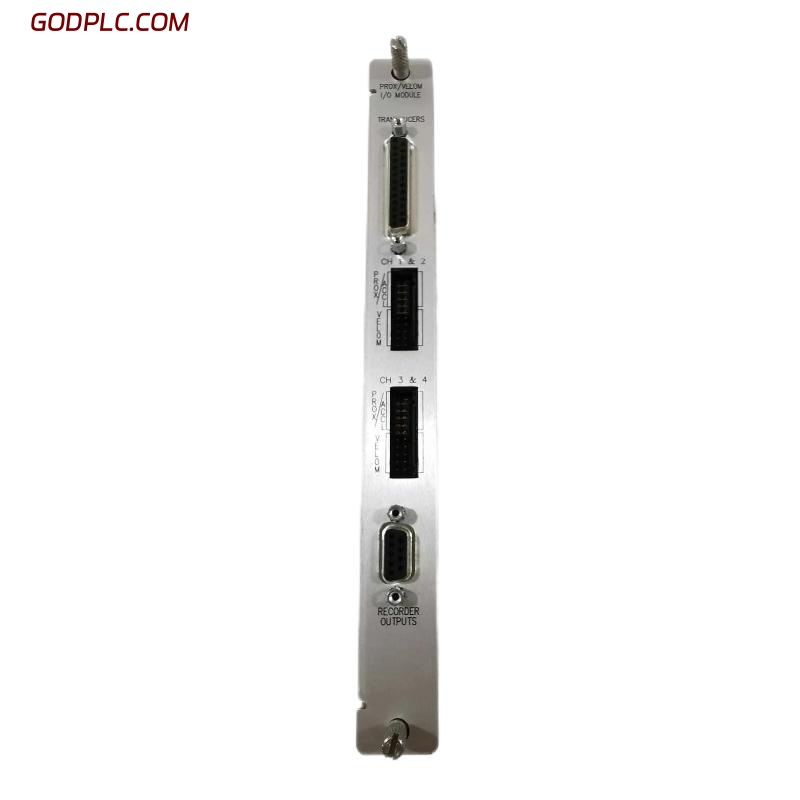

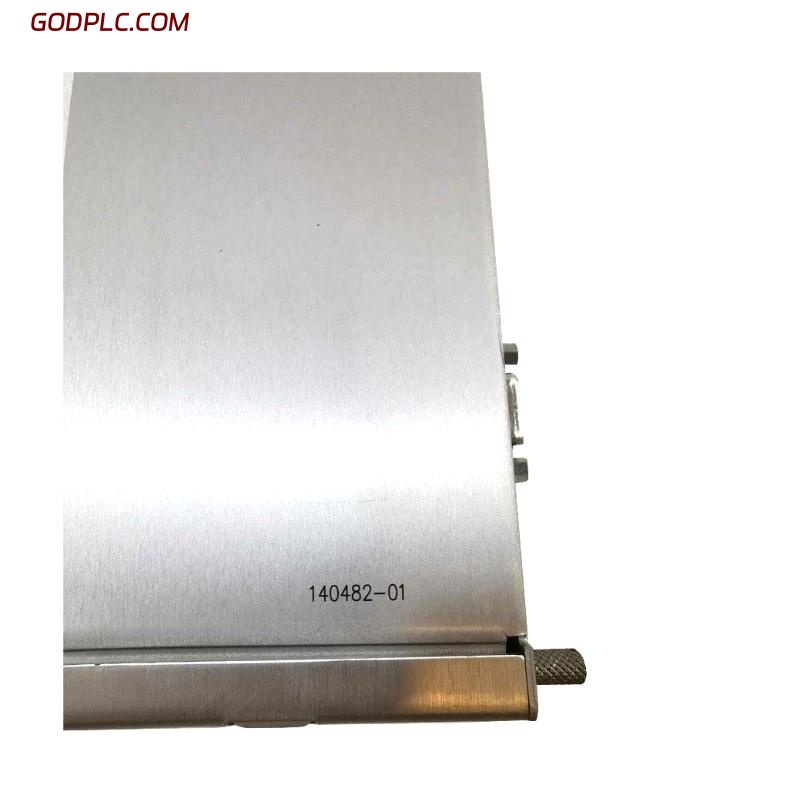

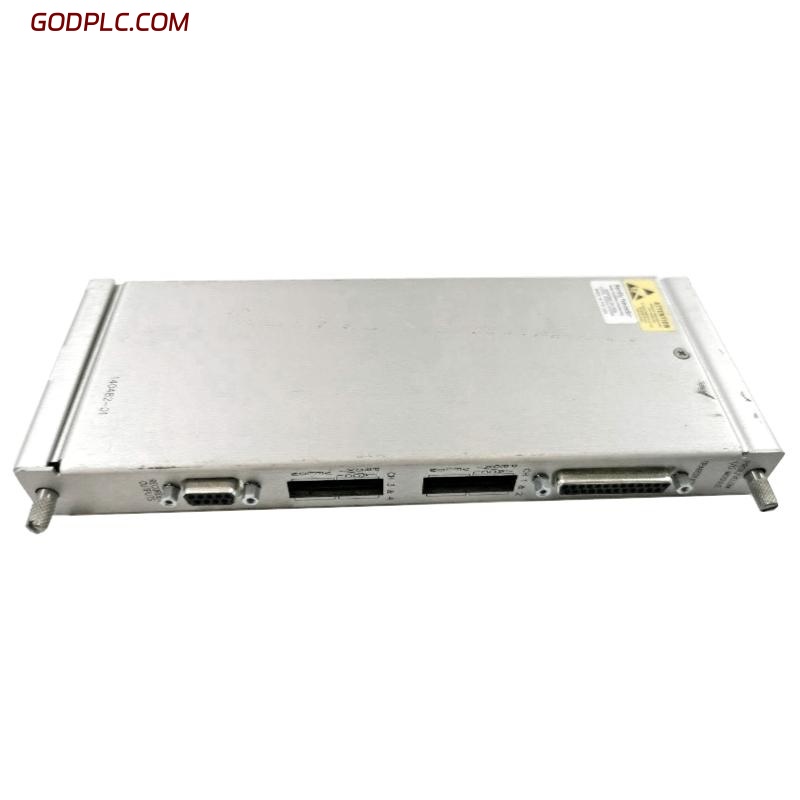

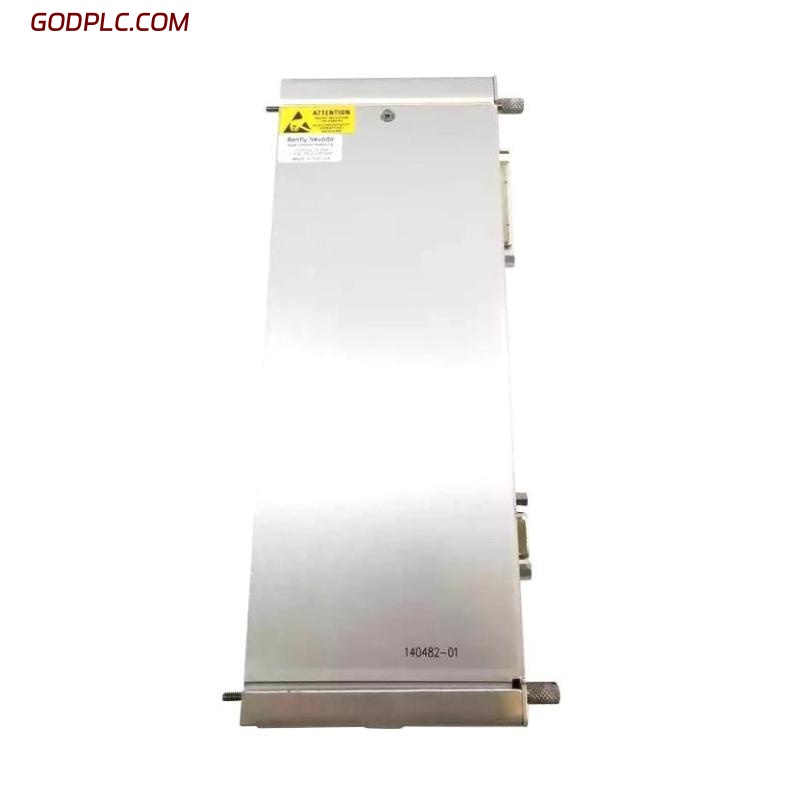

bently 3500/42M 140482-01 Proximitor / Seismic Monitor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Bently Nevada 3500/42M Proximitor / Seismic Monitor is a four-channel machinery protection and condition-monitoring module designed for use in the Bently Nevada 3500 Series rack system. It is engineered to continuously measure and protect rotating machinery by monitoring parameters such as radial vibration, thrust position, differential expansion, eccentricity, acceleration, velocity, and shaft absolute motion.
The 3500/42M module accepts inputs from proximity probes, velocity transducers, or accelerometers and converts these raw signals into conditioned engineering values. It then compares the measurements against configured Alert and Danger setpoints, providing alarm, relay, and data outputs for both protection and diagnostics.
Each pair of channels can be configured independently, enabling two distinct monitoring functions within one module. This flexibility, combined with advanced signal filtering and high measurement accuracy, makes the 3500/42M one of the most widely used vibration monitoring modules for turbines, compressors, pumps, and other critical rotating equipment.
Key Features
-
Four independent input channels supporting multiple measurement modes.
-
Accepts Proximitor, Velomitor, or accelerometer inputs.
-
Provides both machinery protection and condition monitoring functions.
-
Channel pairs can be configured separately for different measurement types.
-
Continuous self-diagnostics and system status reporting.
-
Configurable alarm and danger limits with latched or unlatched operation.
-
Seamless integration with Bently Nevada 3500 rack and communication modules.
-
Compact, lightweight design for high-density rack installations.
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model Number | 3500/42M (140482-01) | Four-channel Proximitor / Seismic Monitor |
| Function | Vibration and position monitoring | Measures vibration, displacement, or acceleration |
| Number of Channels | 4 (configured in two pairs) | Each pair can perform an independent monitoring function |
| Input Types | Proximity probes, velocity sensors, accelerometers | Compatible with Bently Nevada transducers |
| Power Consumption | Approximately 7.7 W | Typical at standard configuration |
| Input Impedance | 10 kΩ typical | High input accuracy and signal isolation |
| Frequency Response | Direct filter: 4 Hz–4 kHz or 1 Hz–600 Hz; Gap filter: 0.09 Hz (−3 dB) | Configurable per channel |
| Sensitivity | 3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil) | Depends on Proximitor calibration |
| Outputs | 4 dynamic signal outputs, buffered signal output, relay outputs | For protection and data acquisition |
| Rack Requirements | 1 full-height front slot + 1 full-height rear I/O slot | Standard 3500 Series rack configuration |
| Operating Temperature Range | −30 °C to +65 °C | Suitable for industrial environments |
| Humidity | Up to 95% non-condensing | Industrial standard operating condition |
| Dimensions (H × W × D) | 241.3 mm × 24.4 mm × 163.1 mm (9.50 in × 0.96 in × 6.42 in) | Compact rack-mount module |
| Weight | Approximately 0.46 kg (1.01 lb) | Lightweight for high-density installation |
| Housing Material | Aluminum alloy | Provides strength and EMI shielding |
| Mounting Type | Plug-in rack module | Allows easy replacement and maintenance |
| Country of Origin | United States of America (USA) | Manufactured in Minden, Nevada |
| Compliance | CE, ATEX, CSA, UL (depending on version) | Meets global industrial standards |
bently 3500/42M 140482-01 Proximitor / Seismic Monitor is in stock. Please contact us for a quick quote and competitive pricing.
