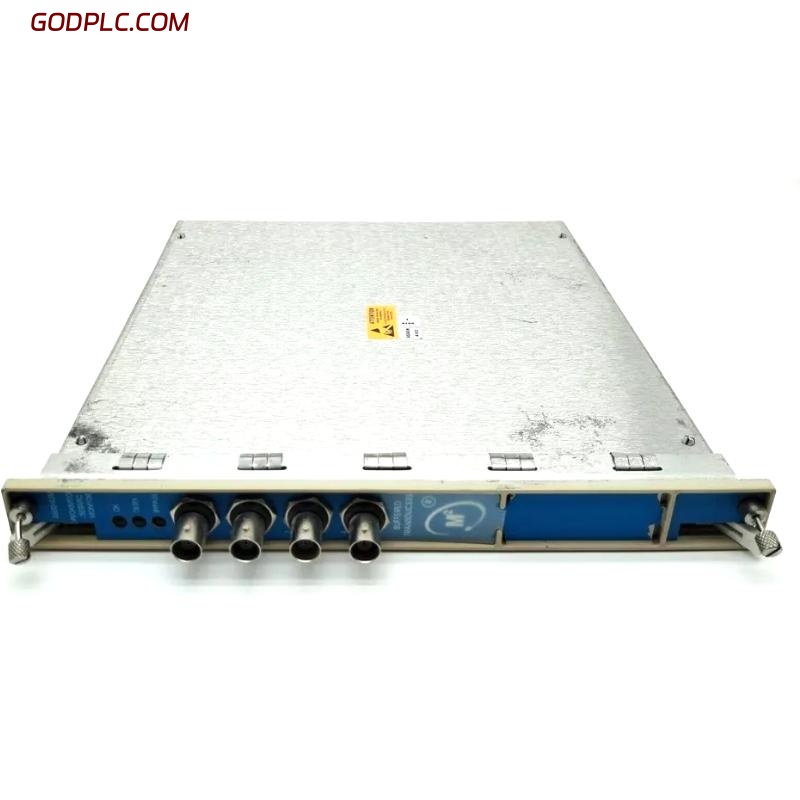

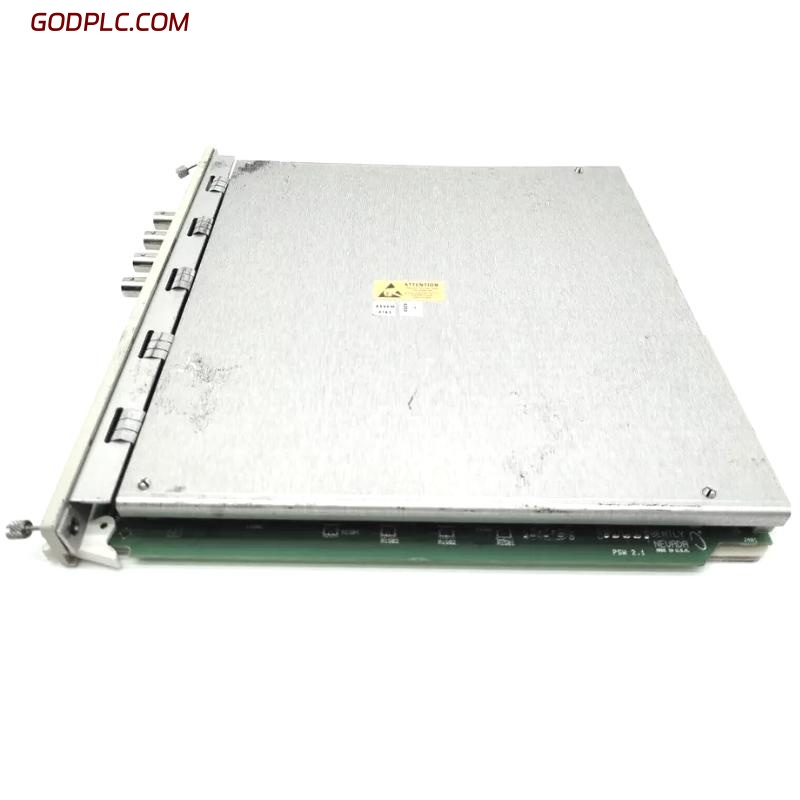

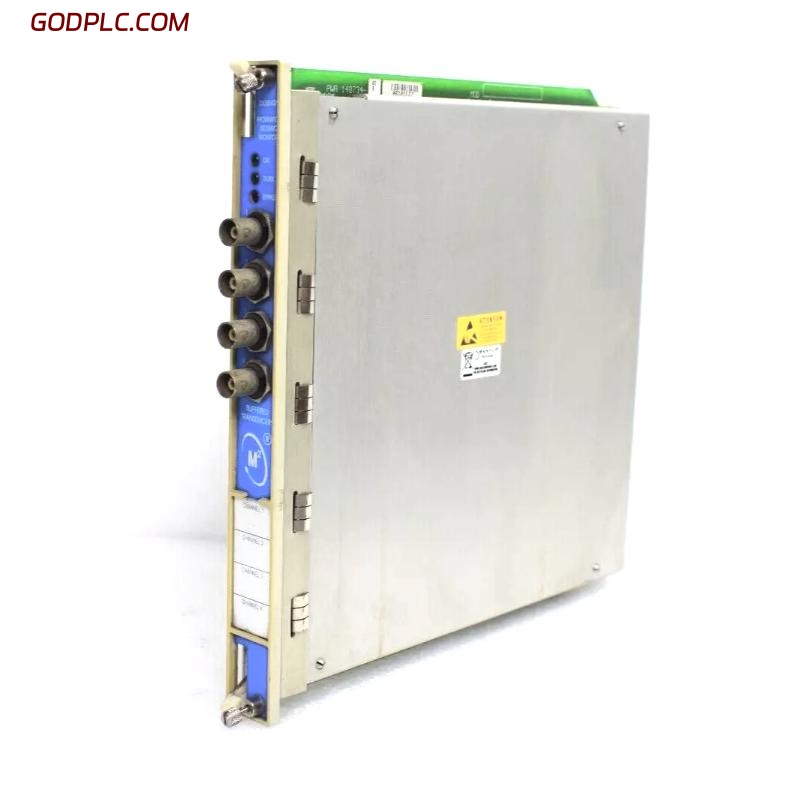

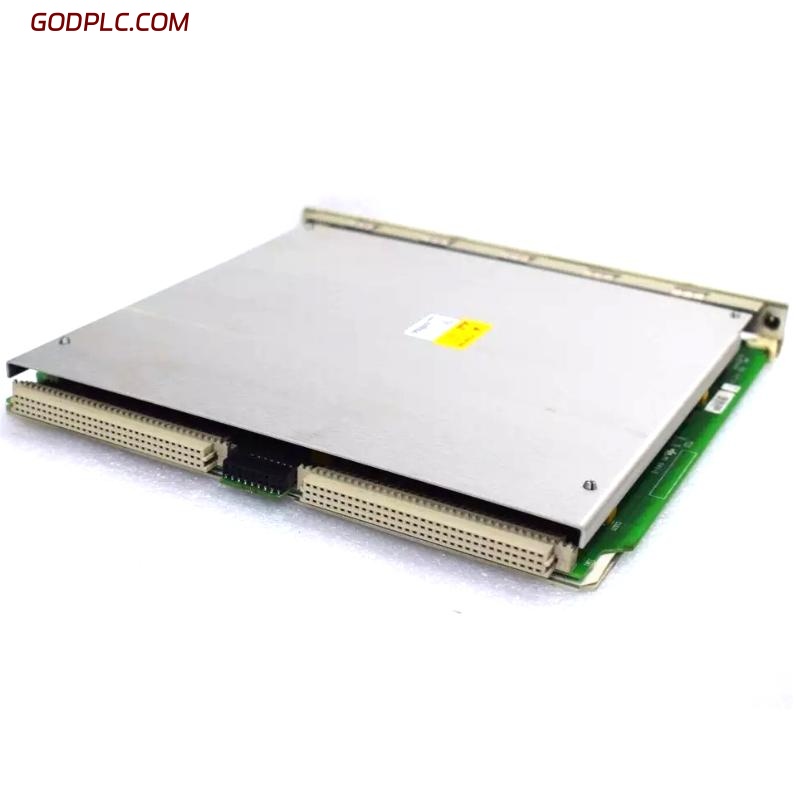

bently 3500/42M 140734-02 Proximitor / Seismic Monitor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Bently Nevada 3500/42M Proximitor / Seismic Monitor is a four-channel machinery protection and condition monitoring module designed for use in the Bently Nevada 3500 Series Machinery Protection System. It accepts input signals from proximity probes, velocity sensors, or accelerometers, providing processed outputs that represent parameters such as vibration, shaft position, differential expansion, eccentricity, and acceleration.
The 3500/42M is an enhanced version of the earlier 3500/42 module, offering improved signal processing performance, wider configuration flexibility, and superior reliability. The module continuously compares measured values with configured alert and danger setpoints, delivering both real-time protection and detailed condition monitoring for rotating machinery such as turbines, compressors, pumps, and motors.
Each pair of channels can be configured for different measurement types, allowing one module to perform dual monitoring functions simultaneously. The module integrates seamlessly with the 3500 rack architecture, supporting both standard and internally-barriered I/O modules for hazardous-area applications.
Key Features
-
Four independent input channels configurable for multiple measurement types.
-
Accepts proximity probes, velocity sensors, or accelerometers.
-
Dual-function configuration: each channel pair can be programmed for different measurements.
-
High-resolution signal processing and alarm logic for precise vibration analysis.
-
Continuous machinery protection with alert and danger relay outputs.
-
Full compatibility with Bently Nevada 3500 rack systems.
-
Compact, lightweight, and modular design for easy installation and maintenance.
-
Certified for use in industrial and hazardous-area environments.
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model Number | 3500/42M (140734-02) | Four-channel Proximitor / Seismic Monitor |
| Channels | 4 (configured in two channel pairs) | Each pair operates independently |
| Input Types | Proximity probes, velocity transducers, accelerometers | Compatible with Bently Nevada sensors |
| Measurement Types | Vibration, thrust, differential expansion, eccentricity, acceleration | Configurable per channel pair |
| Input Impedance | 10 kΩ nominal | Ensures accurate signal conditioning |
| Power Consumption | Approx. 7.7 W typical | Low power design for efficient operation |
| Frequency Response | Direct filter: 4 Hz to 4,000 Hz or 1 Hz to 600 Hz; Gap filter: 0.09 Hz (–3 dB) | Depends on selected configuration |
| Sensitivity | 3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil) | User-selectable per probe system |
| Alarm Setpoints | Configurable “Alert” and “Danger” limits | Processed internally by module |
| Operating Temperature | –30 °C to +65 °C | Industrial temperature range |
| Storage Temperature | –40 °C to +85 °C | Long-term safe storage range |
| Rack Mounting Requirements | 1 full-height front slot + 1 full-height rear slot | Standard 3500 rack layout |
| Dimensions (H × W × D) | 241.3 mm × 24.4 mm × 163.1 mm (9.50 in × 0.96 in × 6.42 in) | Compact module size |
| Weight | Approx. 0.46 kg (1.01 lb) | Lightweight and easy to handle |
| Material | Aluminum alloy housing | Durable industrial-grade construction |
| Country of Origin | United States (Minden, Nevada, USA) | Manufactured by Bently Nevada, a Baker Hughes company |
| Compliance | CE, CSA, ATEX (depending on variant) | Suitable for global industrial standards |
bently 3500/42M 140734-02 Proximitor / Seismic Monitor is in stock. Please contact us for a quick quote and competitive pricing.
