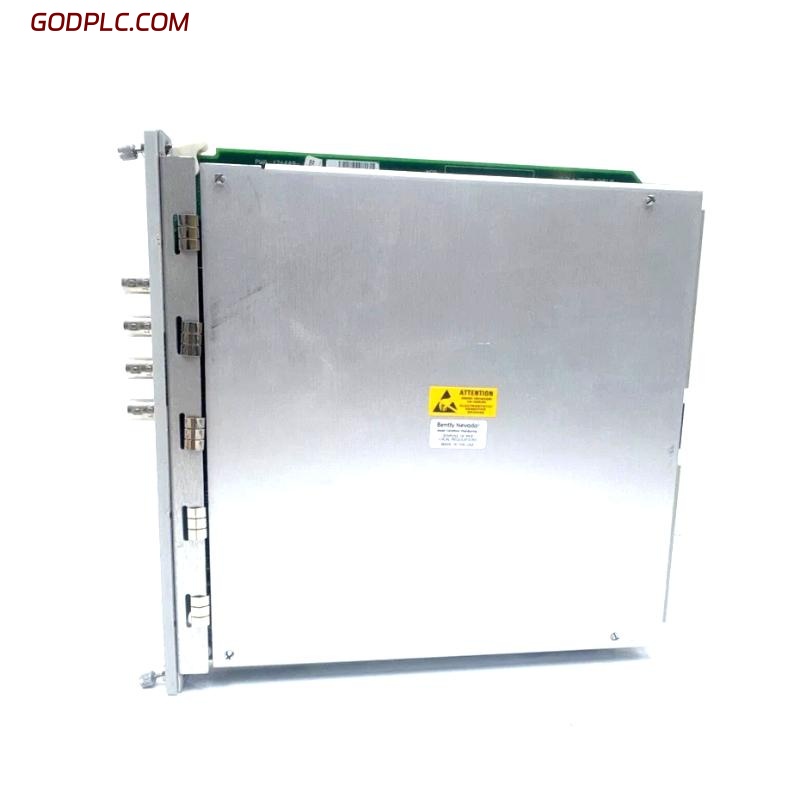

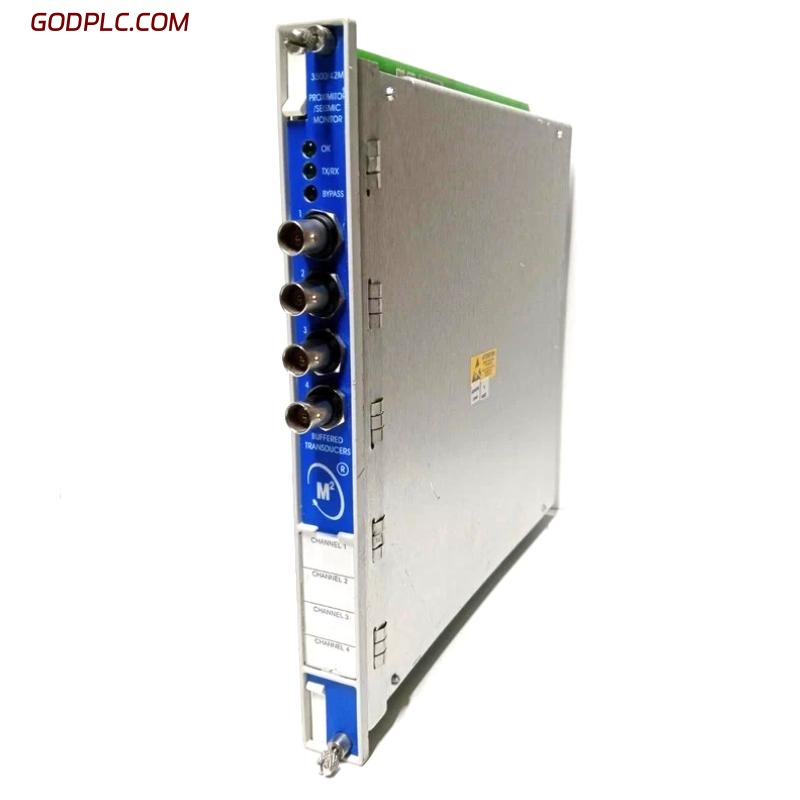

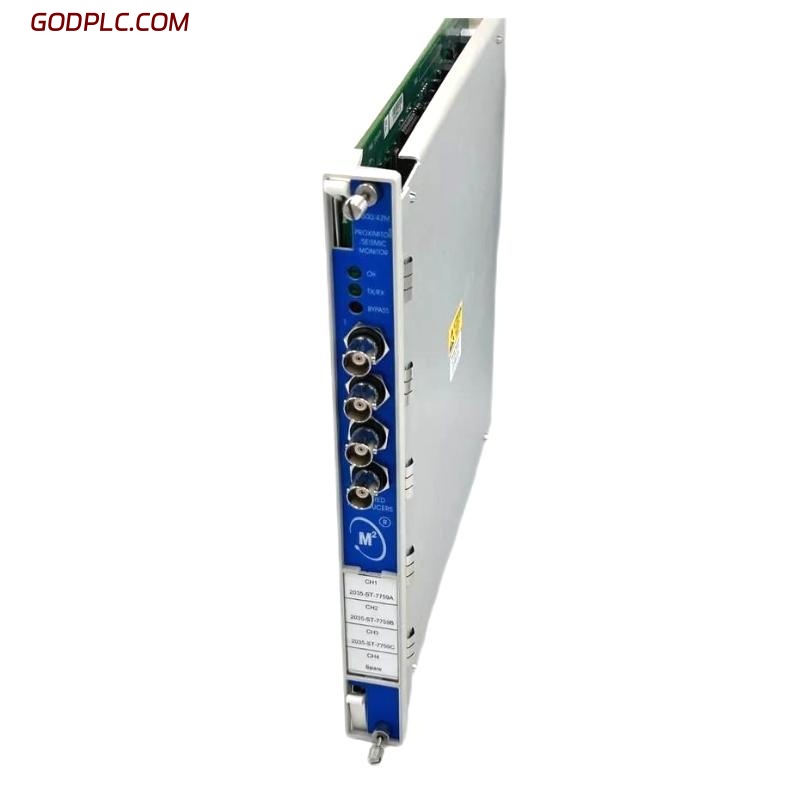

bently 3500/42M 140734-02+128229-01 Four-Channel Proximitor / Seismic Monitor Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Bently Nevada 3500/42M Proximitor / Seismic Monitor is a four-channel vibration and position monitoring module designed for use in the 3500 Machinery Protection System. It provides continuous monitoring of critical rotating equipment such as turbines, compressors, pumps, and generators.
This monitor accepts input signals from proximity probes, velocity sensors, or accelerometers and processes them into dynamic and static values used for machinery protection and condition monitoring. The 3500/42M continuously compares these values with user-defined Alert and Danger setpoints, triggering alarms and relays when limits are exceeded.
Each pair of channels can be configured independently, enabling two different monitoring functions within the same module. The module works together with its corresponding I/O module (128229-01) to provide electrical terminations, signal isolation, and field connections.
Key Features
-
Four-channel Proximitor / Seismic Monitor for the Bently Nevada 3500 System.
-
Accepts a wide range of sensor inputs including proximity, velocity, and acceleration.
-
Provides real-time protection and condition monitoring for rotating machinery.
-
Independent configuration for each channel pair (two different functions per module).
-
Internal signal conditioning, alarm comparison, and output logic.
-
Compact, rack-mount design for standard 3500 frames.
-
Compatible with Bently Nevada software configuration tools.
-
Proven industrial reliability for continuous operation.
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model Number | 3500/42M (140734-02) | Four-channel Proximitor / Seismic Monitor |

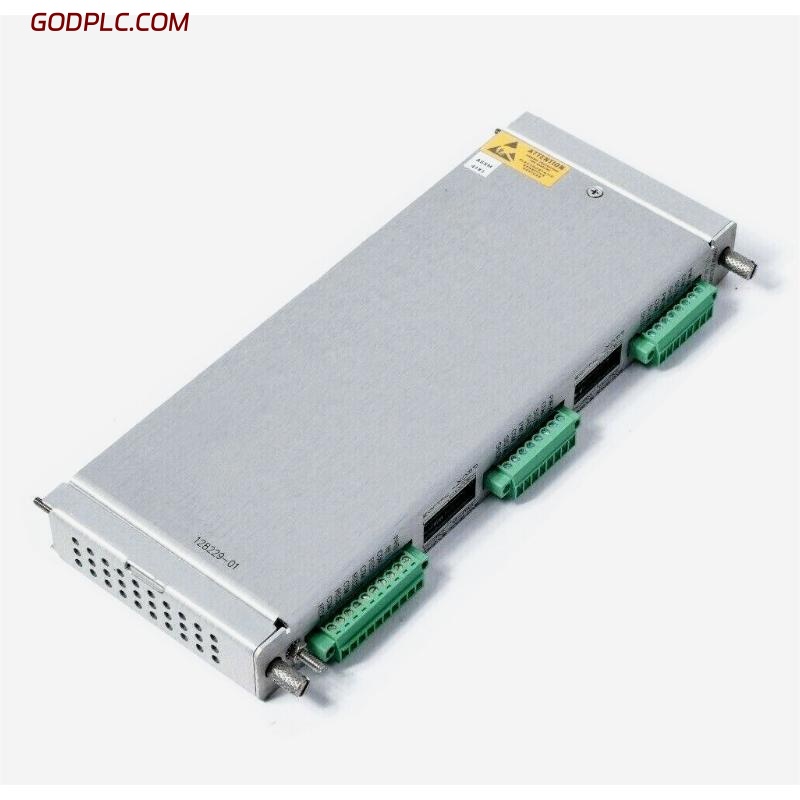

| I/O Module | 128229-01 | Standard I/O module for 3500/42M |
| Number of Channels | 4 channels (2 pairs) | Each pair can perform an independent monitoring function |
| Input Types | Proximity probes, velocity sensors, accelerometers | Supports Bently Nevada transducers |
| Measurement Functions | Radial vibration, axial position, acceleration, thrust, eccentricity | Configurable per channel pair |
| Power Consumption | Approx. 7.7 W typical | Standard configuration |
| Input Impedance | 10 kΩ typical | Provides accurate signal measurement |
| Frequency Response | Direct filter: 4 Hz – 4 kHz or 1 Hz – 600 Hz; Gap filter: down to 0.09 Hz | Depends on configuration |
| Sensitivity | 3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil) | Determined by probe system |
| Outputs | Alert and Danger alarms, OK relay, buffered output | For protection and diagnostics |
| Rack Slots Required | 1 front slot (monitor) + 1 rear slot (I/O module) | Standard 3500 rack configuration |
| Operating Temperature Range | −30 °C to +65 °C | Suitable for industrial environments |
| Humidity | Up to 95% non-condensing | Standard industrial environment |
| Dimensions (H × W × D) | 241.3 mm × 24.4 mm × 163.1 mm (9.50 in × 0.96 in × 6.42 in) | Compact front monitor module |
| Weight | Approx. 0.46 kg (1.01 lb) | Lightweight modular design |
| Housing Material | Aluminum alloy | Durable industrial construction |
| Mounting Type | Plug-in rack module | Hot-swappable installation |
| Country of Origin | United States (Minden, Nevada, USA) | Manufactured by Bently Nevada, a Baker Hughes company |
| Compliance | CE, CSA, ATEX (depending on variant) | Meets global safety and quality standards |
bently 3500/42M 140734-02+128229-01 Four-Channel Proximitor / Seismic Monitor Module is in stock. Please contact us for a quick quote and competitive pricing.
