Product Overview
The Bently Nevada 3500/42M Proximitor / Seismic Monitor is a four-channel machinery protection and condition-monitoring module designed for use within the Bently Nevada 3500 Series rack system.
It accepts inputs from proximity probes, velocity sensors, or accelerometers and provides continuous monitoring of critical machine parameters such as radial vibration, thrust position, eccentricity, shaft absolute motion, acceleration, and velocity.
This module delivers real-time protection by comparing measured values with preset alert and danger thresholds, providing both alarm output and detailed vibration diagnostics for predictive maintenance. Each pair of channels can be configured independently, allowing the same module to monitor two different functions simultaneously.
The 3500/42M is widely used in rotating machinery such as gas turbines, compressors, pumps, and generators, where precise vibration monitoring and reliable protection are essential to plant safety and operational efficiency.
Key Features
-
Four independent input channels configurable for proximity or seismic sensors.
-
Each channel pair can be set to measure a different vibration or position parameter.
-
Real-time protection through alert and danger limit processing.
-
Advanced digital signal processing for high-accuracy vibration data.
-
Compatible with standard Bently Nevada Proximitor probes and Velomitor velocity sensors.
-
Modular plug-in design for the 3500 rack system with front monitor and rear I/O card.
-
Designed for industrial environments with extended temperature and vibration tolerance.
-
Compact, lightweight, and easy to maintain.
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model Number | 3500/42M | Proximitor / Seismic Monitor |

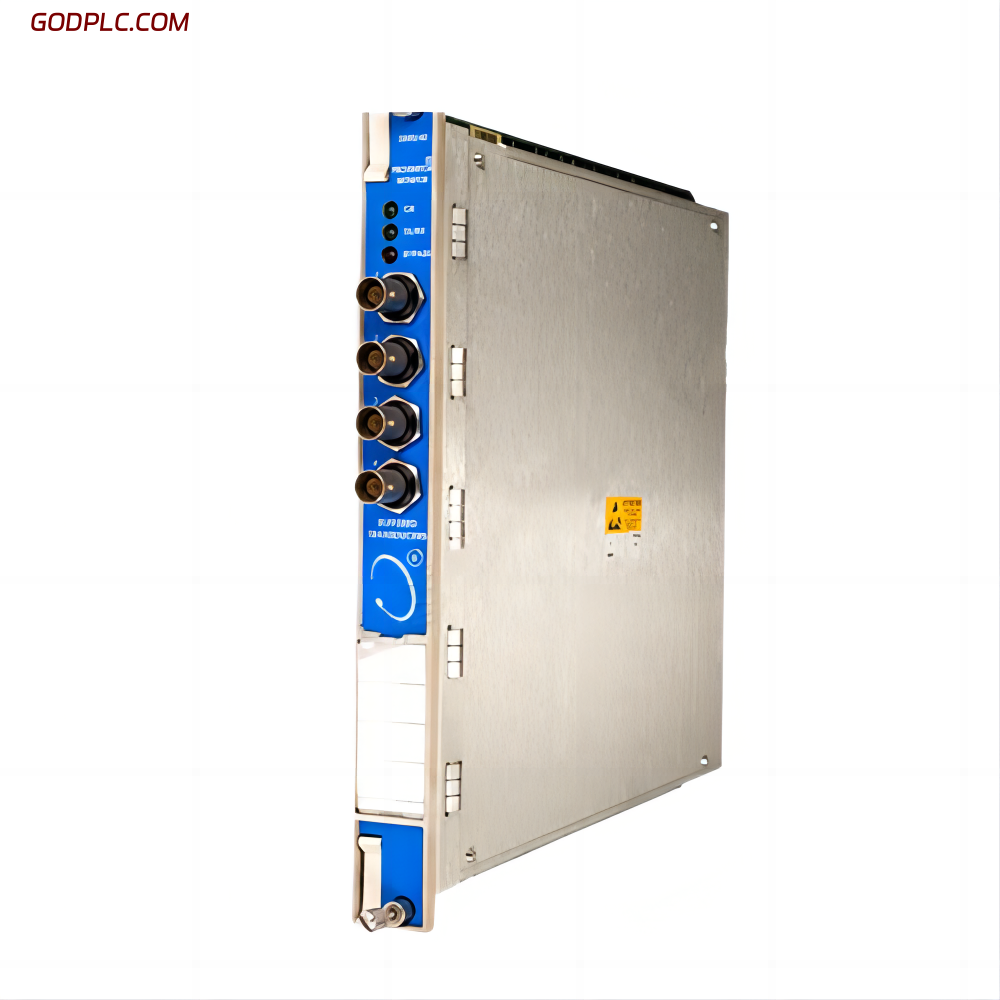

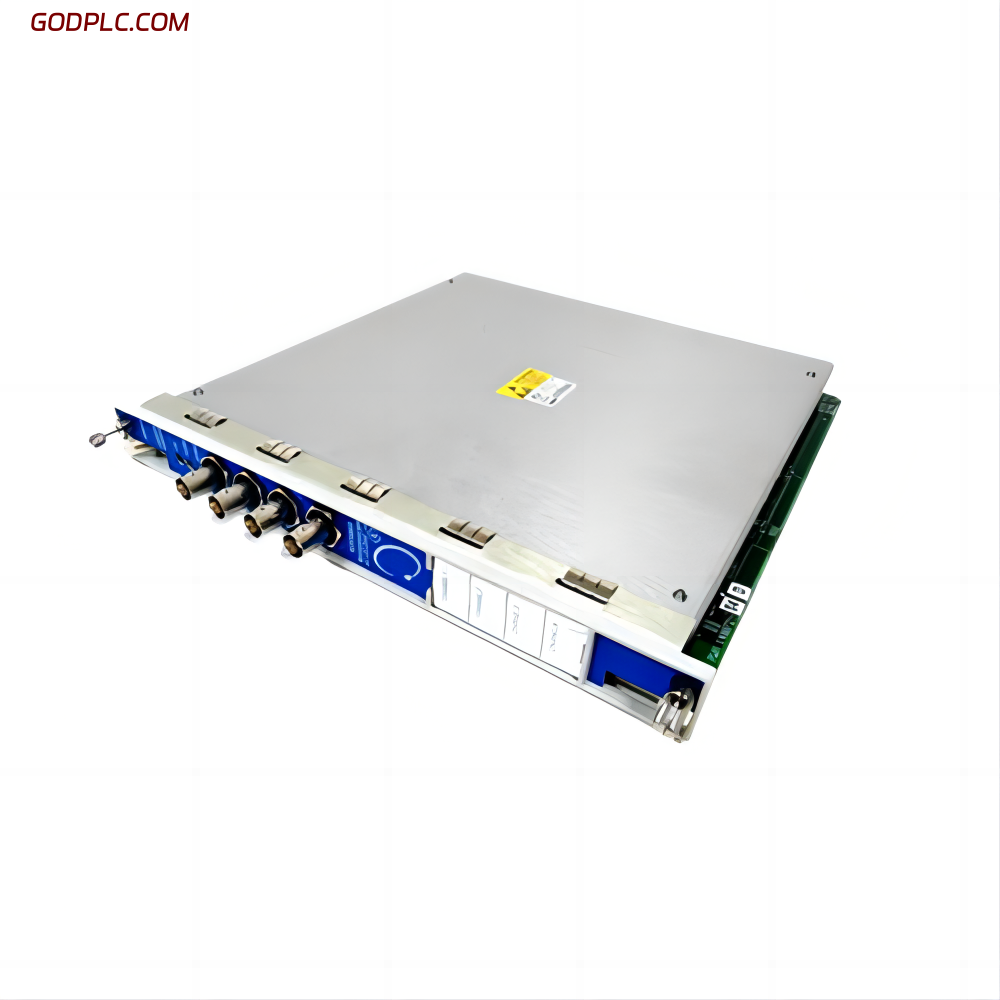

| Part Number (Monitor) | 176449-02 | Front monitor module |

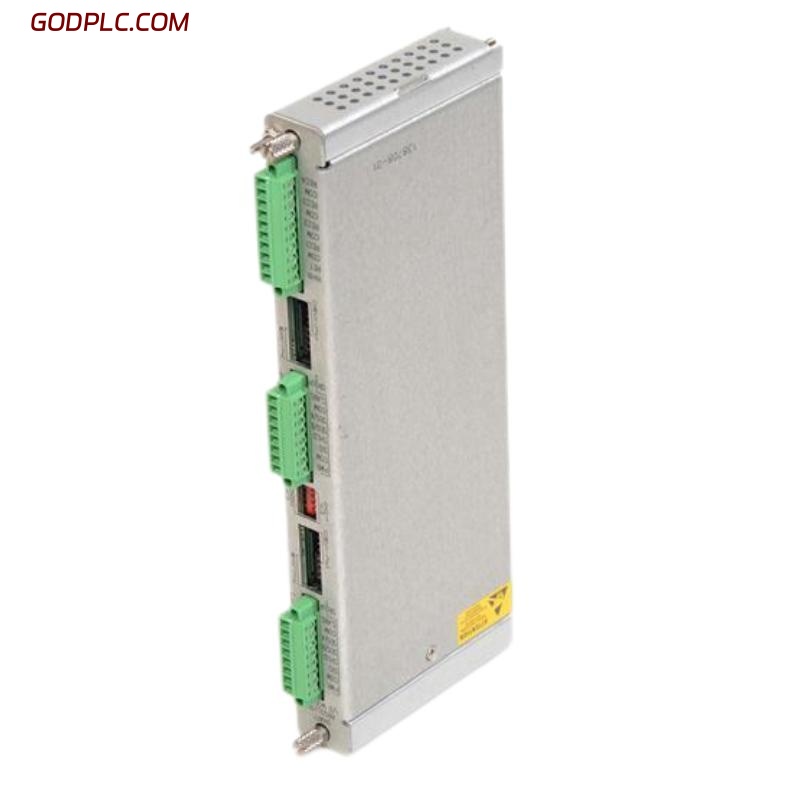

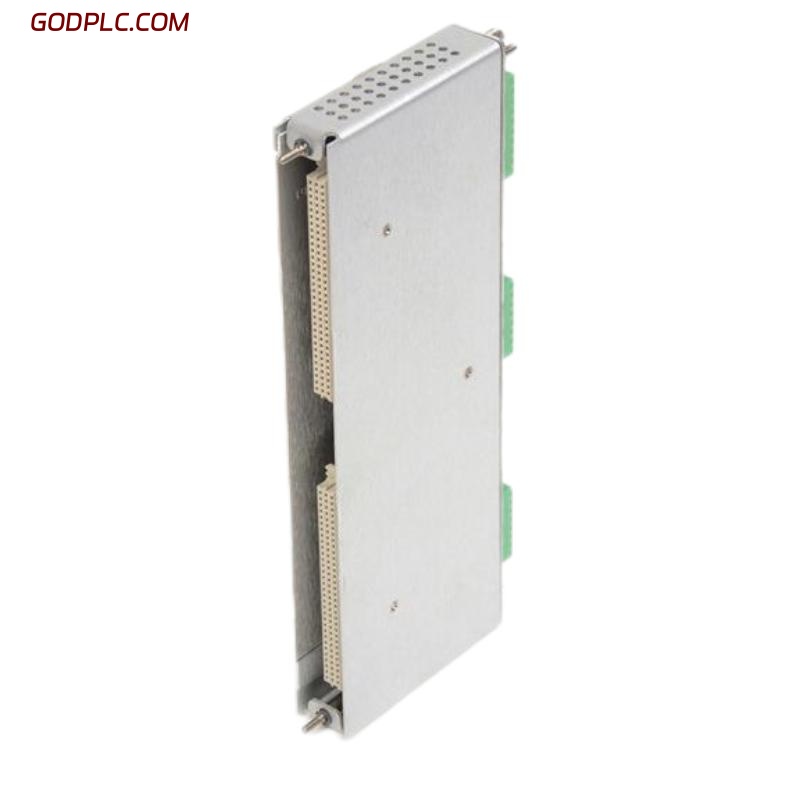

| Part Number (I/O Module) | 138708-01 | Standard I/O module for four-channel configuration |
| Number of Channels | 4 channels (2 pairs) | Each pair independently configurable |
| Supported Sensors | Proximitor probes, velocity transducers, accelerometers | Accepts Bently Nevada standard transducers |
| Measurement Parameters | Radial vibration, axial position, acceleration, velocity, eccentricity, thrust position | Configurable per channel |
| Frequency Response | Direct filter: 4 Hz – 4 kHz or 1 Hz – 600 Hz; Gap filter: 0.09 Hz (–3 dB) | Depending on setup |
| Sensitivity | 3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil) | Adjustable per probe system |
| Input Impedance | 10 kΩ typical | Ensures stable signal conditioning |
| Power Consumption | Approximately 7.7 W typical | Per module including I/O card |
| Alarm Setpoints | Two levels: Alert and Danger | User-configurable |
| Outputs | 4 dynamic outputs and 4 proportional current outputs | 4–20 mA or buffered signals |
| Operating Temperature Range | −30 °C to +65 °C | Suitable for industrial applications |
| Storage Temperature Range | −40 °C to +85 °C | For safe transport and storage |
| Humidity | 95 % non-condensing | Industrial environmental tolerance |
| Dimensions (H × W × D) | 241.3 mm × 24.4 mm × 163.1 mm (9.50 in × 0.96 in × 6.42 in) | Compact rack module format |
| Weight | Approximately 0.46 kg (1.01 lb) | Lightweight and easy to install |
| Mounting Type | Plug-in to 3500 Series rack | Front module with rear I/O interface |
| Compliance | CE, CSA, ATEX (varies by option) | Suitable for global industrial use |
| Country of Origin | United States (Minden, Nevada, USA) | Manufactured by Bently Nevada, a Baker Hughes company |
bently 3500/42M 176449-02+138708-01 Proximitor / Seismic Monitor is in stock. Please contact us for a quick quote and competitive pricing.
