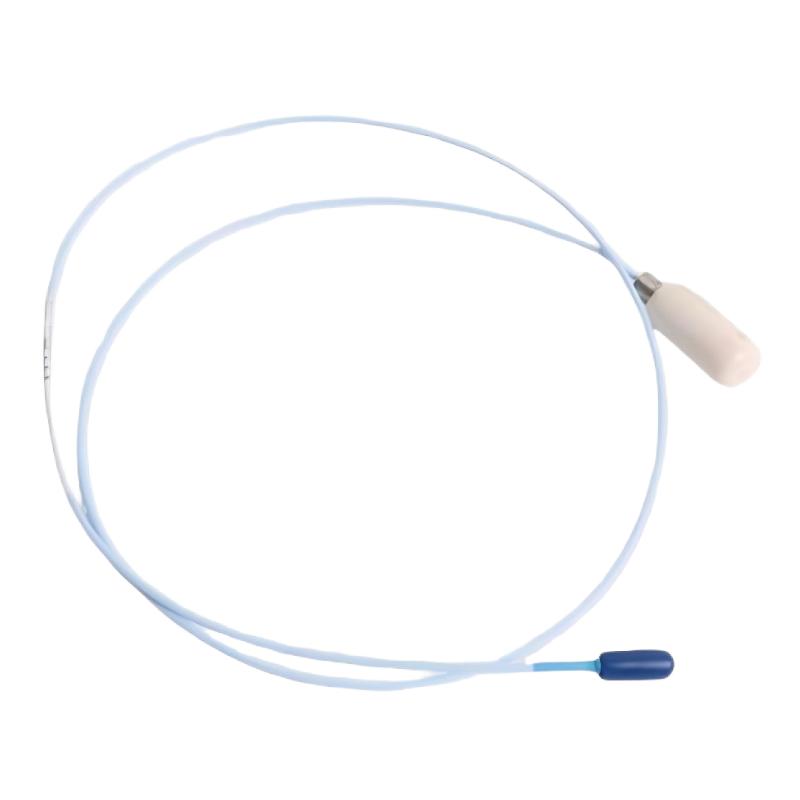

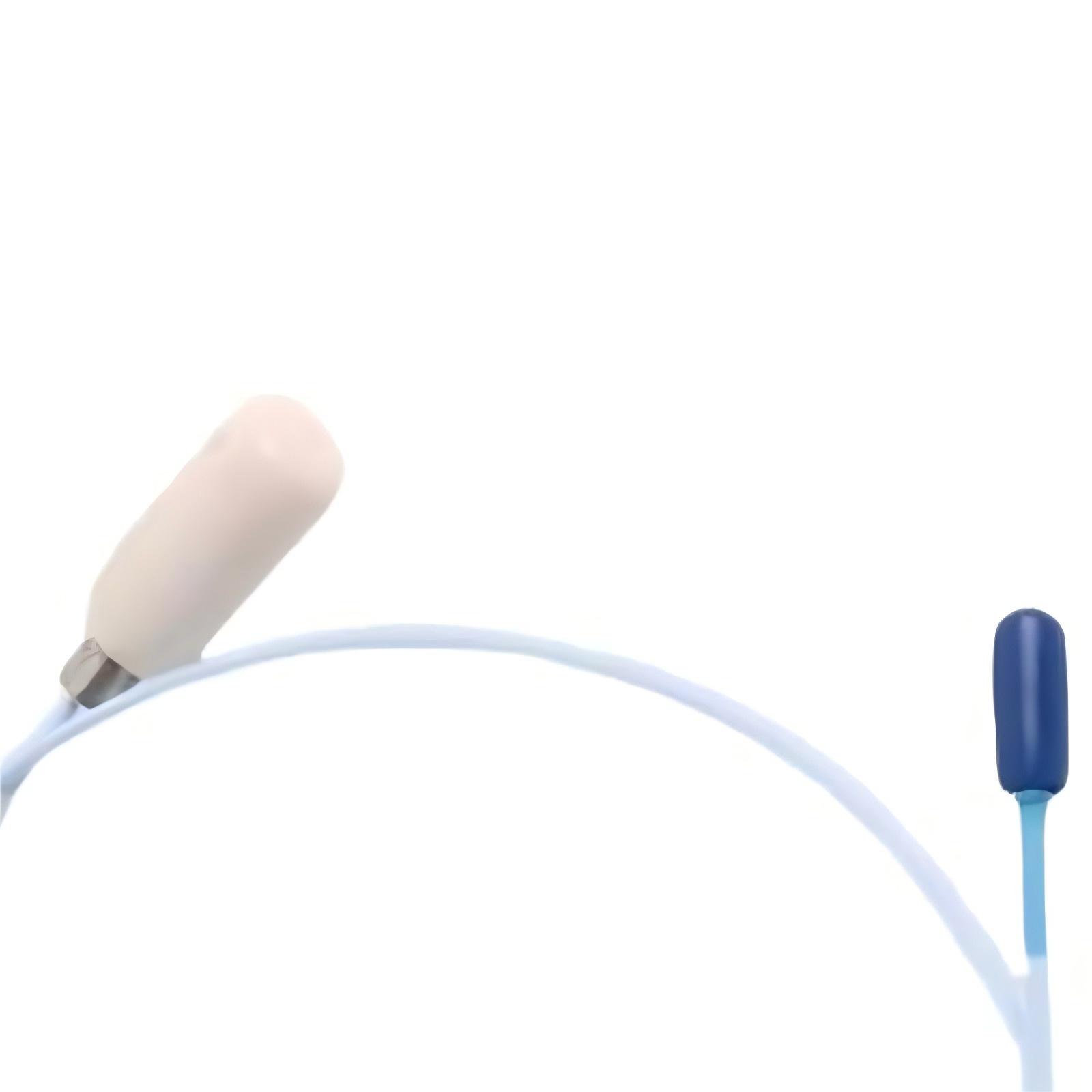

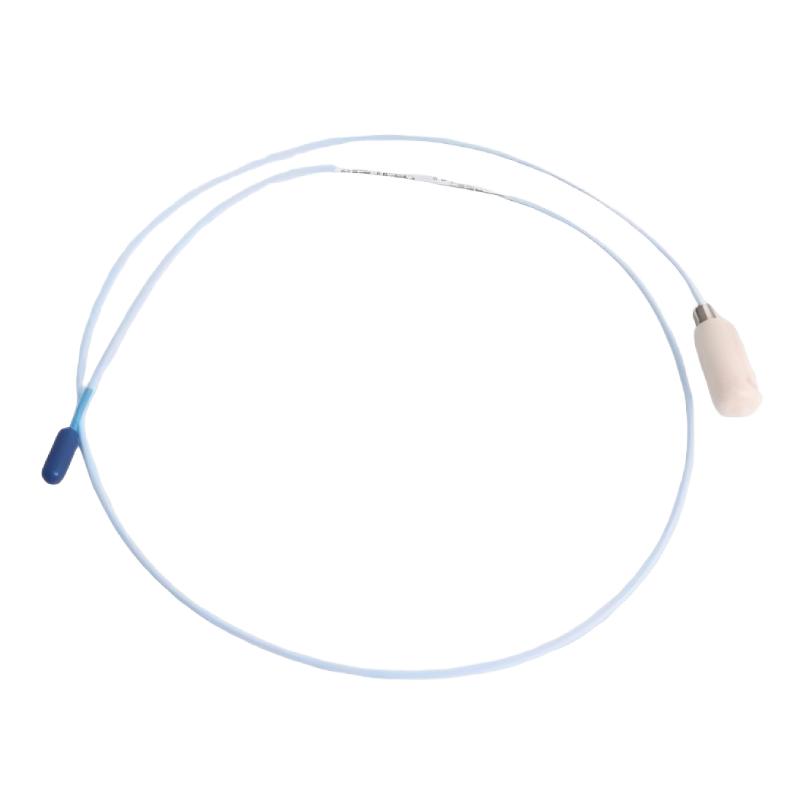

Q1: What is the main function of the Bently Nevada 146054-12-05-02-05 3300 XL Ceramic Cap Probe?

A: This probe is designed to measure shaft vibration and displacement in rotating machinery using a non-contact eddy current principle. It serves as a key front-end sensing element in the Bently Nevada 3300 XL system, continuously tracking the relative position between the probe tip and the rotating shaft. The data it provides is essential for machinery protection and condition monitoring systems, enabling early detection of mechanical issues such as imbalance, misalignment, rotor instability, or bearing wear. It is widely used in critical industrial assets where continuous monitoring is required for safe operation.

Q2: What is the purpose of the ceramic cap design?

A: The ceramic cap is engineered to enhance durability and measurement stability in harsh operating environments. Ceramic materials provide excellent resistance to high temperatures, electrical insulation, and chemical corrosion. This allows the probe to maintain consistent performance even under elevated thermal stress or electrically noisy conditions. Additionally, the ceramic tip helps protect the sensitive sensing element from mechanical damage and environmental contamination, improving long-term reliability in continuous-duty applications.

Q3: How does the eddy current measurement principle work?

A: The probe generates a high-frequency electromagnetic field at its tip. When a conductive target such as a rotating shaft enters this field, eddy currents are induced on the surface of the metal. These currents create an opposing magnetic field that changes the impedance of the probe coil. The system detects these changes and converts them into a precise voltage signal proportional to the distance between the probe and the shaft. This enables highly accurate, real-time, non-contact measurement of microscopic shaft movement.

Q4: What types of equipment commonly use this probe?

A: This probe is commonly used in large rotating machinery across industries such as power generation, oil and gas, petrochemical processing, and heavy manufacturing. Typical applications include steam turbines, gas turbines, centrifugal compressors, large electric motors, pumps, and gearboxes. These machines operate under continuous and high-load conditions, where real-time monitoring of vibration and shaft displacement is critical for preventing unexpected failures and ensuring operational safety.

Q5: What role does this probe play in the 3300 XL system?

A: Within the 3300 XL monitoring system, this probe acts as the primary sensing element that converts mechanical motion into electrical signals. It works together with a proximitor and extension cable to transmit displacement data to the monitoring unit. The system then processes this data to evaluate machine health conditions such as imbalance, misalignment, or bearing wear. It is a fundamental component of the overall protection and diagnostic architecture.

Q6: What should be considered during installation?

A: Proper installation is critical for accurate performance. The probe must be positioned at a precisely calibrated distance from the shaft surface to ensure linear measurement response. It must be securely mounted to avoid vibration-induced movement errors. Cable routing should avoid high-voltage lines and strong electromagnetic sources to reduce interference. Proper alignment and stable mechanical support are essential to maintain long-term measurement accuracy and system reliability.

Q7: How does this probe support predictive maintenance?

A: The probe continuously provides high-resolution vibration and displacement data that is essential for predictive maintenance programs. By analyzing long-term trends, maintenance teams can detect early signs of mechanical degradation. For example, increasing vibration levels may indicate rotor imbalance, while gradual changes in shaft position may suggest bearing wear or alignment issues. This enables maintenance actions to be planned in advance, reducing unplanned downtime and extending equipment life.

Q8: What maintenance practices ensure long-term reliability?

A: Although the probe is designed for long-term industrial operation with minimal wear, periodic inspections are still recommended. Maintenance should include verifying probe alignment, checking cable and connector integrity, and ensuring the mounting remains secure. The probe tip should also be inspected for contamination or damage. In addition, monitoring signal stability over time helps identify early installation or environmental issues, ensuring consistent measurement performance throughout its service life.
